BluStream Uncompressed 18Gbps HDBaseT™ Extender Set – 100m | HEX18G-KIT
The HEX18G-KIT extender set is an industry leading uncompressed, unconverted HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.3/2.2 solution utilising the latest in HDBaseT™ technology.
The HEX18G-KIT supports uncompressed distribution of the latest HDR resolutions including HDR10/10+ and Dolby Vision resulting in the ultimate in picture quality for your critical viewing areas.
The HEX18G-KIT supports bi-directional IR, RS-232 and PoC up to lengths of 100m over a single CAT6A cable.
Key Features
• Advanced uncompressed, unconverted, HDMI over HDBaseT™ technology offering distribution of bit for bit 4K HDMI video and audio over a single CAT6A cable
• Supports HDMI 2.0 18Gbps specification including 4K 60Hz 4:4:4 UHD video
• Supports uncompressed distribution of the latest HDR resolutions including HDR10/10+ and Dolby Vision
• Supports HDMI video distribution up to 100m*
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• HDMI re-clocking on the HDBaseT™ Receiver to help solve HDMI HDCP, compatibility and handshaking issues
• Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
• Bi-directional IR & RS-232 pass through
• Supplied with Blustream IR receiver and emitter
• Bi-directional PoC (Power over Cable) to power extenders from either transmitter or receiver end
• Support for HDCP 2.3, HDCP 2.2 and HDCP 1.4*Transmission distance is subject to video format, cable type and installation environment. It is recommended to use a minimum of CAT6A cabling
Box Contents

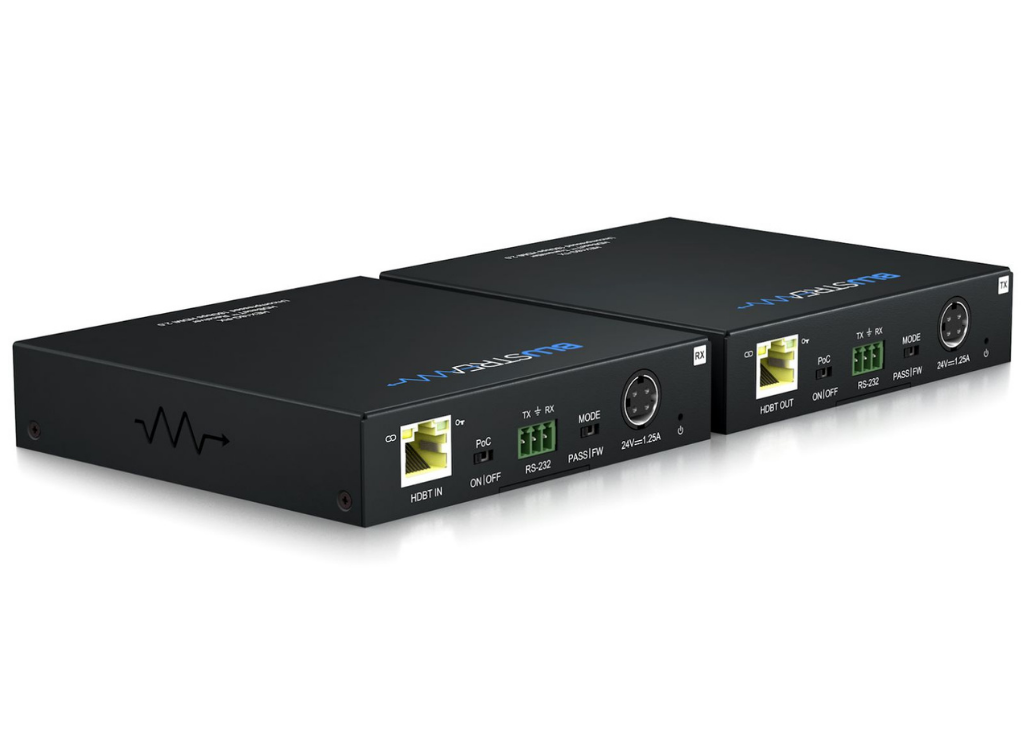

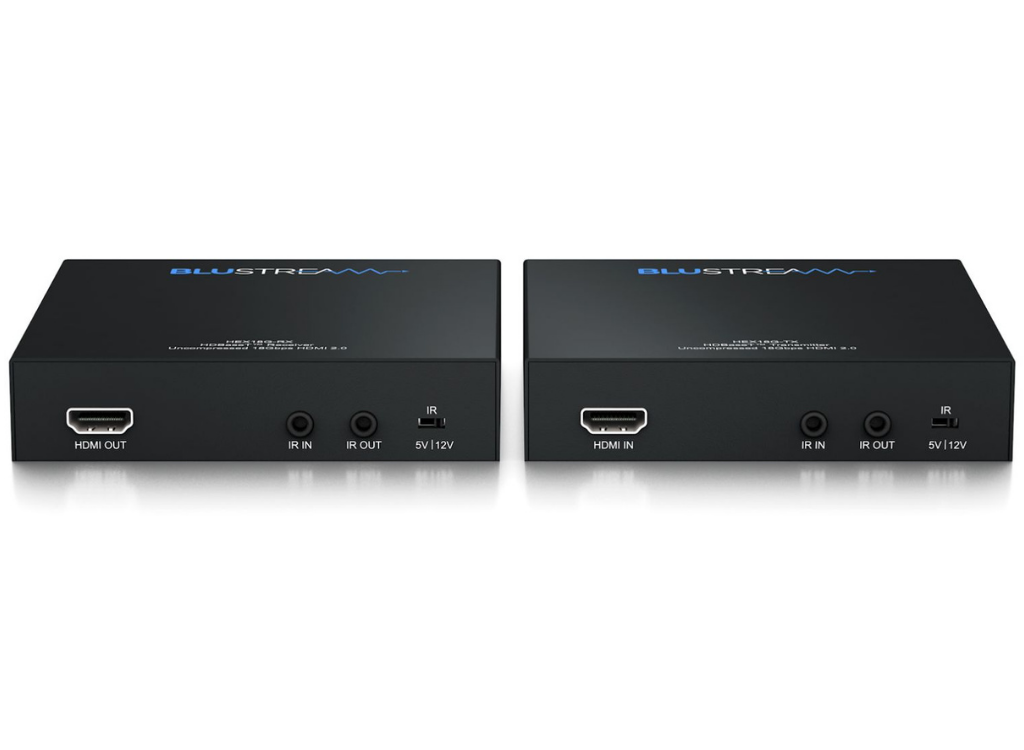

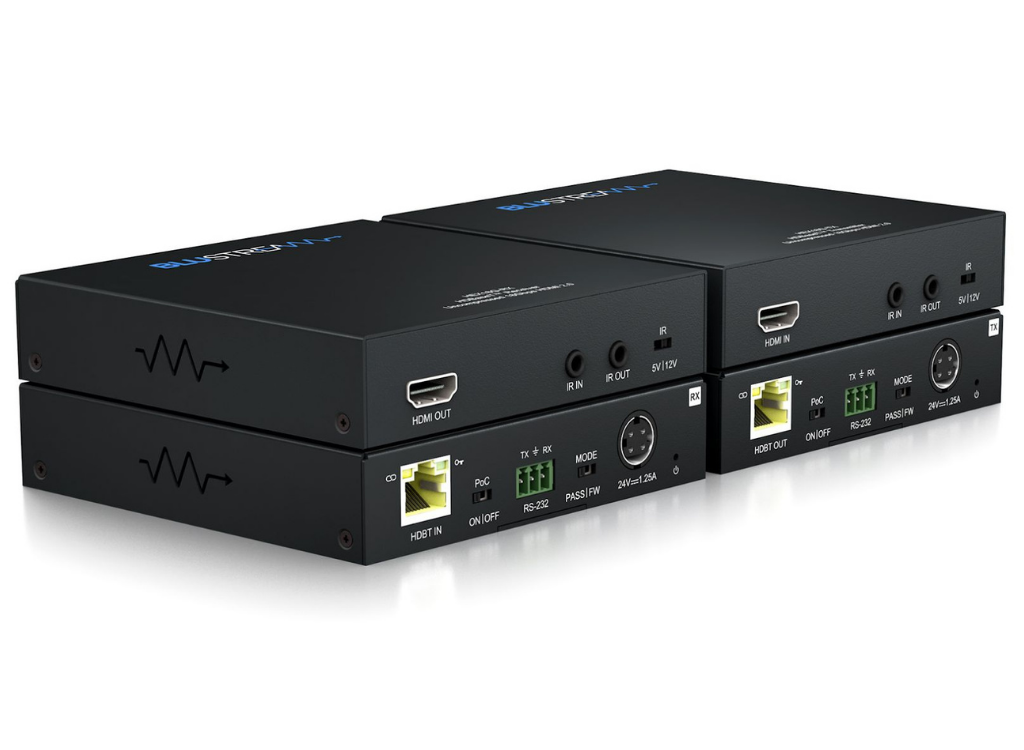

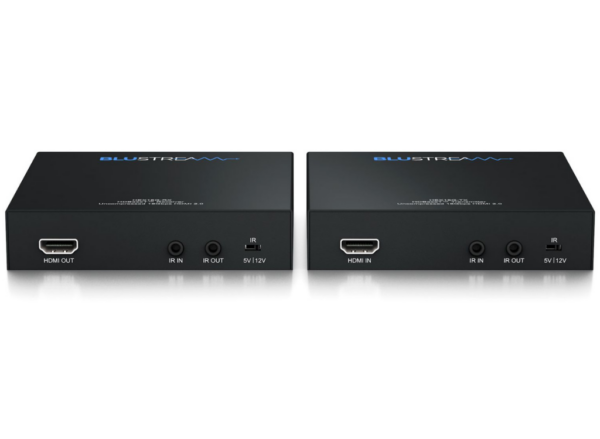

1 x HEX18G-TX Transmitter
1 x HEX18G-RX Receiver
1 x 24V/1.25A DC power supply
1 x IRE1 receiver
1 x IRR emitter
2 x Mounting brackets
1 x Quick Reference Guide -
Feature HEX18G-TX HEX18G-RX Video Input Connectors 1 x HDMI Type A, female 1 x HDBaseT™ RJ45 connector Video Output Connectors 1 x HDBaseT™ RJ45 connector 1 x HDMI Type A, female IR Input Ports 1 x 3.5mm stereo jack 1 x 3.5mm stereo jack IR Output Ports 1 x 3.5mm mono jack 1 x 3.5mm mono jack RS-232 Serial Port 1 x 3-pin Phoenix connector 1 x 3-pin Phoenix connector Power Supply 1 x 24V/1.25A DC 1 x 24V/1.25A DC Casing Dimensions (W x D x H) 95mm x 116mm x 24mm 95mm x 116mm x 24mm Dimensions Including Connections 95mm x 116mm x 24mm 95mm x 116mm x 24mm Shipping Weight (Kit) 1.5kg (combined) 1.5kg (combined) Operating Temperature 32°F to 104°F (0°C to 40°C) 32°F to 104°F (0°C to 40°C) Storage Temperature -4°F to 140°F (-20°C to 60°C) -4°F to 140°F (-20°C to 60°C) Mounting Kits Included Included -
