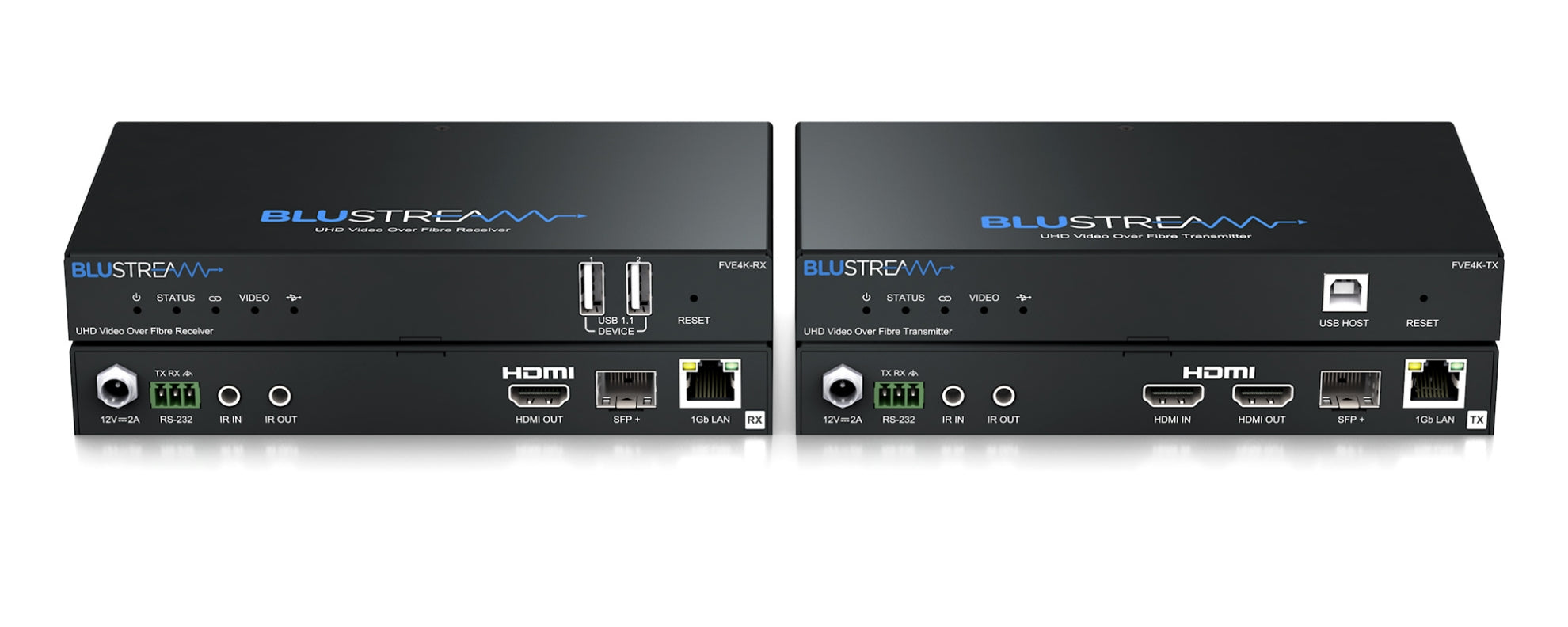

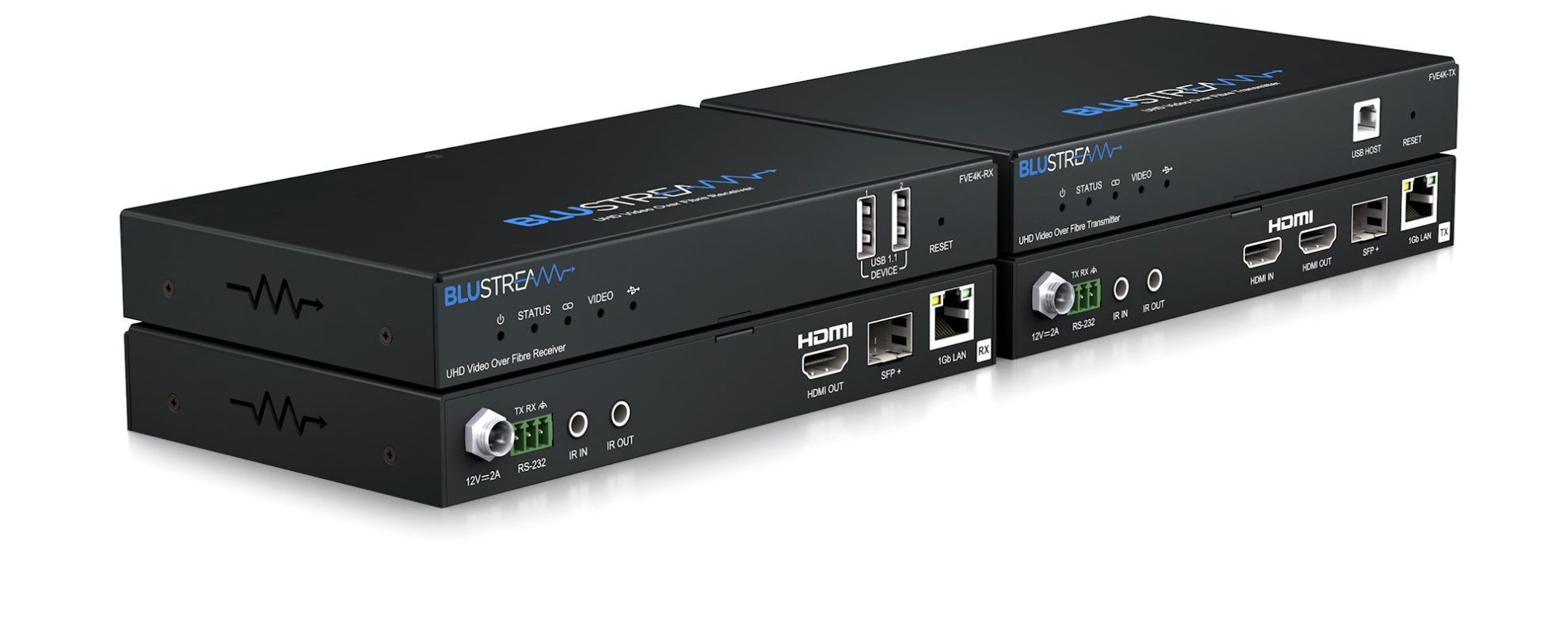

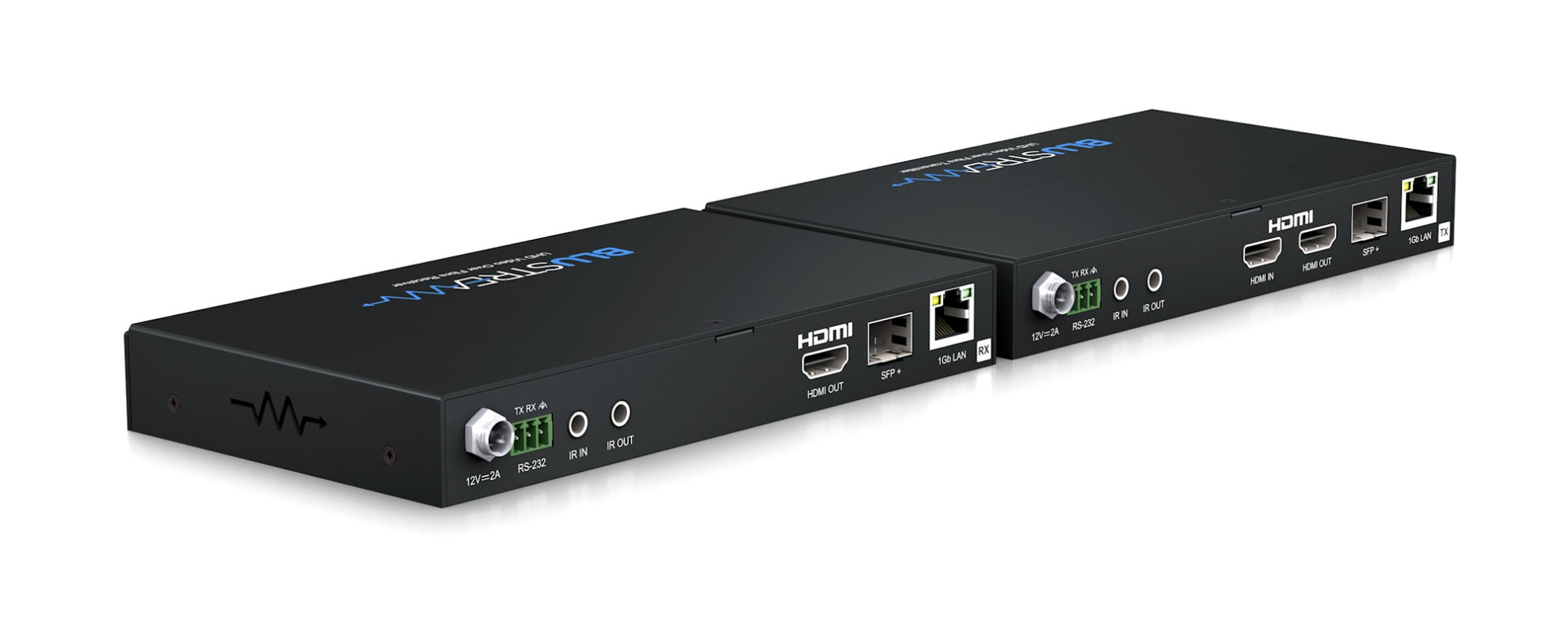

• BluStream UHD Video Over Fibre Extender | FVE4K-KIT

  The FVE4K-KIT is an industry leading HDMI2.0 4K 60Hz 4:4:4 HDCP 2.2 fibre extender solution utilising the latest in SDVoE technology.

  The FVE4K-KIT supports un-compromised distribution of the latest 4K resolutions including HDR / Dolby Vision LLM resulting in the ability to transmit 18Gbps signals over distances not capable of being achieved over copper cabling.

  The FVE4K-KIT supports bi-directional IR, RS-232, USB1.1, and 1Gbps LAN up to distances supported by the 10Gbps SFP+ modules and fibre cable in use.

  Key Features
  • Advanced 18Gbps UHD Video over 10Gbps fibre cable with visually lossless compression and zero latency

  • Supports HDMI 2.0 18Gbps specification with pass-through for up to 4K 60Hz 4:4:4 and 10/12-bit HDR sources, including Dolby Vision LLM

  • Features 1x HDMI loop-out on FVE4K-TX for integrating local displays or cascading to
  multiple devices
  • Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission

  • USB 1.1 point to point pass-through

  • Bi-directional 10/100/1000BaseT Ethernet pass-through

  • Supports bi-directional 5V or 12V IR pass-through

  • Bi-directional RS-232 pass-through

  • HDCP 2.2 compliant with advanced EDID management

  • Local 12V 2A power supply required at TX & RX (supplied)

  Box Contents
  1 x FVE4K-TX
  1 x FVE4K-RX
  2 x 12V/2A DC power supply
  1 x IR emitter
  1 x IR receiver
  2 x Mounting kit
  1 x Quick Reference Guide

• Feature	FVE4K-RX	FVE4K-TX	FVE4K-KIT
  Video Input Connectors	1 x SFP+ module video network	1 x HDMI Type A, female	N/A
  Video Output Connectors	1 x HDMI Type A, female	1 x SFP+ module video network, 1 x HDMI Type A, female
  Ethernet Port	1 x 1Gb LAN RJ45 pass-through	1 x 1Gb LAN RJ45 pass-through	N/A
  USB / KVM Port	2 x USB-Type A (Devices)	1 x USB-Type B (Host)	N/A
  5V IR Input Port	1 x 3.5mm stereo jack	1 x 3.5mm stereo jack	N/A
  5V IR Output Port	1 x 3.5mm mono jack	1 x 3.5mm mono jack	N/A
  RS-232 Port	1 x 3-pin Phoenix connector	1 x 3-pin Phoenix connector	N/A
  Power Supply	12V/2A DC, screw type connector	12V/2A DC, screw type connector	N/A
  Casing Dimensions (WxDxH)	N/A	N/A	180mm x 103mm x 24mm (without connections)
  Casing Dimensions (WxDxH)	N/A	N/A	180mm x 108mm x 24mm (with connections)
  Shipping Weight	N/A	N/A	1.6kg
  Operating Temperature	32°F to 104°F (0°C to +40°C)	32°F to 104°F (0°C to +40°C)	32°F to 104°F (0°C to +40°C)
  Storage Temperature	-4°F to 140°F (-20°C to +60°C)	-4°F to 140°F (-20°C to +60°C)	-4°F to 140°F (-20°C to +60°C)
  Distance Capabilities	N/A	N/A	Single mode fibre (up to 10km), Multimode fibre (OM3: 300m, OM4: 400m, OM5: 300m)
