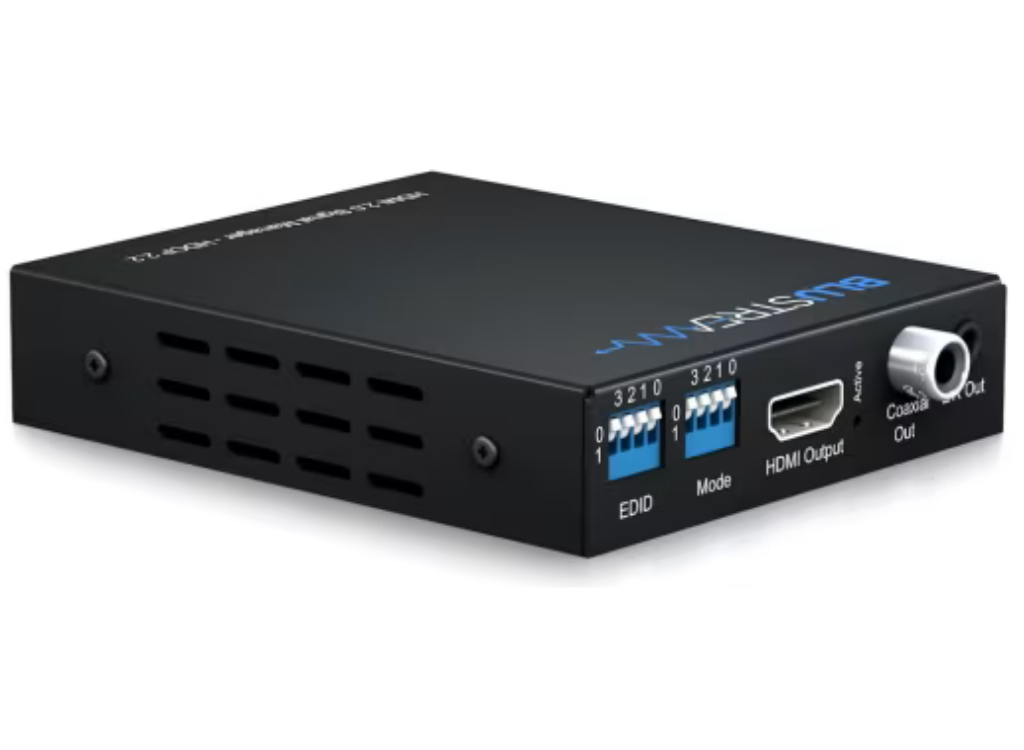

BluStream SM11 Advanced HDMI Signal Manager with Audio Embedder / De-Embedder
Our SM11 HDMI Signal Manager has been designed to help solve HDMI compatibility, HDCP 2.2, clock stretching, EDID and handshaking issues that are common problems when distributing HDMI signals especially with 4K.
The SM11 features de-embedding or embedding audio within the HDMI signal path, allowing you to breakout up to 7.1ch audio signals. The SM11 supports full HDMI 2.0 and HDCP 2.2 with video resolutions up to and including 4K @ 60Hz 4:4:4.
Key Features
• Can help to solve most HDMI EDID, HDCP, compatibility and handshaking issues
• Supports full HDMI 2.0 specification 4K UHD video (4K @60Hz 4:4:4)
• HDCP 2.2 compliant
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports pass-through of HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master
• Can be configured to work as either a HDMI audio de-embedder or audio embedder
• HDMI audio de-embedded to both analogue L/R audio and coaxial digital outputs concurrently (analogue audio supports 2CH PCM only)
• Supports CEC bypass (Consumer Electronics Control)
• Embed analogue L/R 2ch audio input onto HDMI output
• Extract audio with or without a display connected to output (SM11 acts as HDMI end-point)Box Contents
1 x SM11
1 x 5V/1A DC Power Supply
1 x Mounting Kit
1 x User Manual -

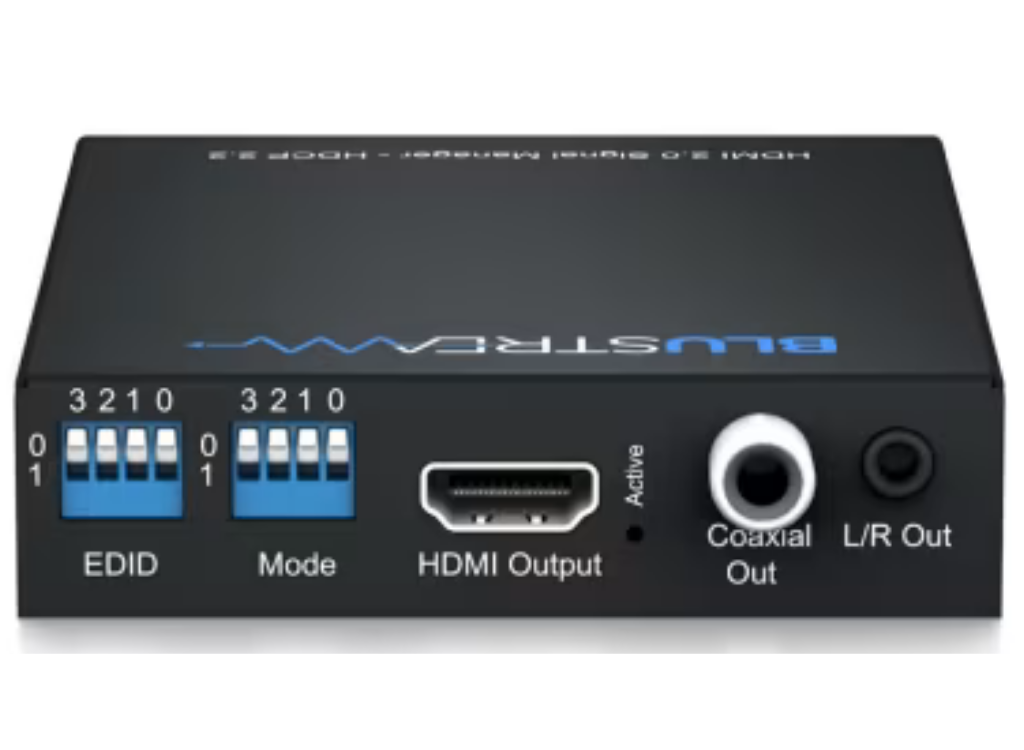

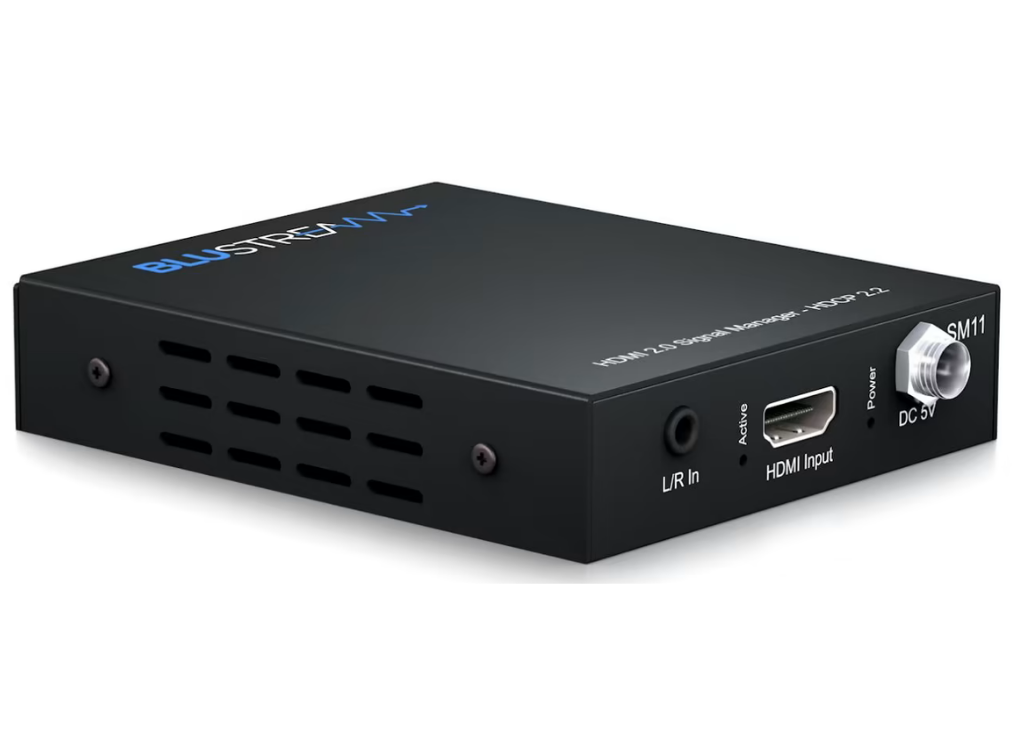

Feature Specification Audio Input Connectors 1 x analogue L/R audio (3.5mm stereo jack) Audio Output Connectors 1 x RCA (SPDIF), 1 x analogue L/R (3.5mm stereo) Video Input Connectors 1 x HDMI Type A, 19-pin, female Video Output Connectors 1 x HDMI Type A, 19-pin, female Casing Dimensions (W x H x D) 105mm x 23mm x 87mm Dimensions with Connections (W x H x D) 114mm x 23mm x 87mm Shipping Weight 0.5kg Operating Temperature 32°F to 104°F (0°C to 40°C) Storage Temperature -4°F to 140°F (-20°C to 60°C) Power Supply 5V/1A DC, screw thread -
