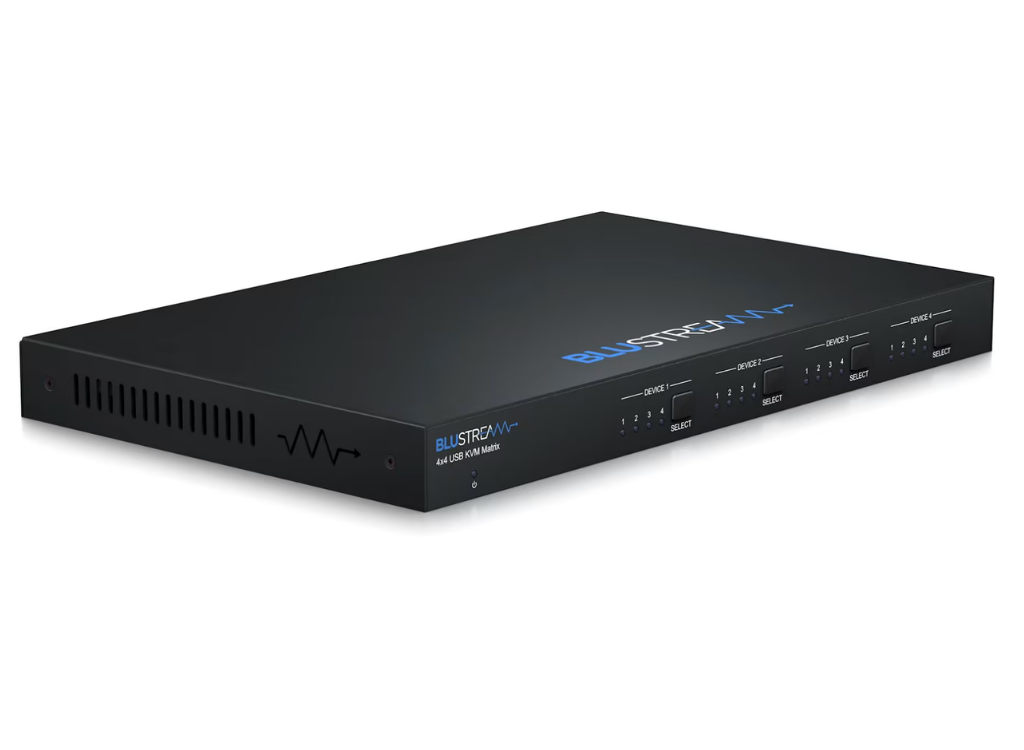

• BluStream MX44KVM 4×4 USB KVM Matrix

  Our 4×4 USB 3.0 KVM Matrix offers unprecedented performance and value for the custom and commercial installation market.

  The MX44KVM is a USB 3.0 Matrix package allowing 4x USB peripheral devices to be shared between 4x host devices, supporting plug-and-play capabilities, and USB data transfer rates up to 5Gbps.

  The Matrix provides advanced features including cascading of multiple MX44KVM units, GPIO functionality for 3rd party product triggers, an in-built web browser interface module for control and configuration of the Matrix, along with RS-232 for seamless control integration.

  An RS-232 loop-through connection allows for the MX44KVM to be intrinsically linked to any Blustream video matrix product for the addition of KVM support to our video-only switching products.


  Key Features
  • 4×4 USB KVM Matrix allowing up to 4 x USB peripheral devices to be shared between 4 x host devices
  • USB 3.0 connectivity with data transfer rates up to 5Gbps
  • Backwards compatible with USB 2.0 and 1.1
  • Plug-and-play with no drivers, downloads, or software required
  • USB-A connections provide 5V / 900mA
  • Features 4 x configurable GPIO ports for integration with 3rd party products
  • Features RS-232 loop-through for repetition of incoming RS-232 commands to additional Blustream products
  • Assignable inputs and outputs allowing automated switching when used with existing Blustream Matrix products
  • Web interface module for control and configuration of the MX44KVM
  • Control via front panel, IR, RS-232, and TCP/IP

  Box Contents
  1 x MX44KVM
  1 x Mounting kit
  1 x USB-A to USB-B cable (1m)
  1 x IRR receiver
  1 x IRCAB control cable (3.5mm – 3.5mm cable)
  2 x 3-pin Phoenix connector
  1 x 5-pin Phoenix connector
  4 x Isolation feet
  1 x 24V/1.25A DC power supply
  1 x Quick Reference Guide

• Feature	Specification
  USB Device	4 x USB Type A, female
  USB Host	4 x USB Type B, female
  RS-232 Serial Port	2 x 3-pin Phoenix connector
  IR Input Port	1 x 3.5mm stereo jack
  TCP/IP Control	1 x RJ45, female
  GPIO Control	1 x 5-pin Phoenix connector
  Dimensions (W x D x H)	273mm x 168mm x 25mm
  Shipping Weight	2.65kg
  Operating Temperature	32°F to 104°F (-5°C to +55°C)
  Storage Temperature	-4°F to 140°F (-25°C to +70°C)
  Power Supply	24V/1.25A DC, 4-pin DIN connector

• Item	Link
  Datasheet	Downloads
  User Manual	Downloads
