• BluStream Multi Format HDBaseT™ CSC Extender Set | HEX70HDUK-KIT

  The HEX70HDUK-KIT extender set is an industry leading HDMI2.0 4K 60Hz 4:4:4 (18Gbps) HDCP2.2 HDBaseT™ multi-format solution utilising CSC technology to deliver HDMI, USB-C and DisplayPort™ up to lengths of 40m (70m at 1080p) over a single CAT cable.

  The HEX70HDUK-KIT provides enhanced features including USB 2.0 extension, local HDMI input on the HDBaseT™ Receiver for additional source input, web-GUI for control and configuration, auto display control, audio breakout and bi-directional IR pass-through.

  The HEX70HDUK-KIT also features control via front panel, IR, RS-232 and TCP/IP, PoC (Power over Cable), and advanced EDID and HDCP management.

  Key Features
  • Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
  • Advanced Colour Space Conversion (CSC) supports HDMI2.0 18Gbps specification including HDR
  • Features 1 x HDMI, 1 x USB-C and 1 x DisplayPort™ input on the HDBaseT™ Transmitter with manual or auto source selection
  • Features 1 x local HDMI input on the HDBaseT™ Receiver for connection of a source local to the display
  • Supports 4K 60Hz 4:4:4 UHD video up to 40m
  • Extends HDMI 1080p up to a distance of 70m over single CAT cable
  • Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
  • Supports USB Type C up to 4K UHD 60Hz 4:4:4 DP1.2 with 60W charging capability*
  • Supports DisplayPort™ up to 4K UHD 60Hz 4:4:4 DP1.2
  • Features 2 x USB-Type A devices (RX – peripherals), 2 x USB-Type A devices (TX – peripherals) and 2 x USB Type-B (TX – host source specific) that support a combined data transmission bandwidth of up to 250Mbps
  • USB Type-A connections support charging of devices up to 500mA when there is an active connection to a Host device
  • Independent USB Type-A connection to support charging only of devices up to 5V 2A
  • Audio breakout to analogue L/R audio and Optical digital (S/PDIF) outputs concurrently**
  • Bi-directional IR pass-through
  • Auto display on/off feature allowing control of display at the HDBaseT™ Receiver via CEC or RS-232
  • Web interface module for control and configuration of HEX70HDUK-KIT
  • Control via front panel, IR, RS-232 and TCP/IP
  • Supports bi-directional PoC (Power over Cable) to power extenders from either transmitter or receiver end
  • Advanced EDID ad HDCP management

  *USB-C video support is limited to 4K 60HZ 4:2:0 when charging feature is activated by the source device
  **Analogue audio breakout supports 2ch PCM only

  Box Contents
  1 x HEX70HDUK-TX

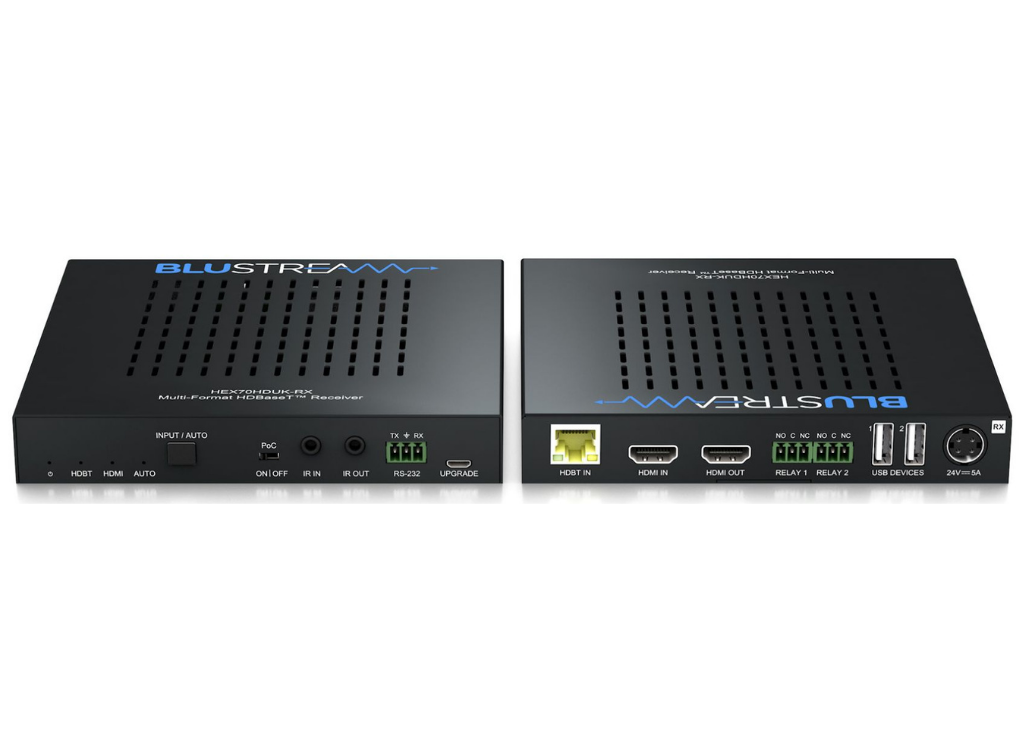

  1 x HEX70HDUK-RX
  1 x 24V/5A DC power supply
  1 x USB-A to USB-B cable
  1 x IRE1 emitter
  1 x IRR receiver
  1 x RS-232 control cable
  2 x Mounting kit
  1 x Quick Reference Guide

• Feature	HEX70HDUK-TX	HEX70HDUK-RX
  Video Input Connectors	1 x HDMI, 1 x USB-C, 1 x DisplayPort™	1 x HDMI, 1 x HDBaseT™ RJ45
  Video Output Connectors	1 x HDBaseT™ RJ45	1 x HDMI
  RS-232 Serial Port	1 x 3-Pin Phoenix	1 x 3-Pin Phoenix
  TCP/IP Control	1 x RJ45, female	N/A
  Relay Control	N/A	2 x 3-Pin Phoenix
  IR Input Ports	2 x 3.5mm stereo jack	1 x 3.5mm stereo jack
  IR Output Ports	1 x 3.5mm mono jack	1 x 3.5mm mono jack
  USB Ports	3 x USB Type-A (1 for charging), 2 x USB Type-B	2 x USB Type-A
  EDID	4-pin DIP switch	4-pin DIP switch
  Product Upgrade	1 x Micro USB, female	1 x Micro USB, female
  Local Power Input	1 x 24V/5A 4-pin DIN	1 x 24V/5A 4-pin DIN
  Casing Dimensions (W x H x D)	183mm x 44mm x 173mm	155mm x 24mm x 155mm
  Shipping Weight	3.35kg (combined)	3.35kg (combined)
  Power Supply	24V/5A 4-pin DIN	24V/5A 4-pin DIN
  Operating Temperature	32°F to 104°F (-5°C to +55°C)	32°F to 104°F (-5°C to +55°C)
  Storage Temperature	-4°F to 140°F (-25°C to +70°C)	-4°F to 140°F (-25°C to +70°C)
