• BluStream IP Multicast 60Hz 4:4:4 4K UHD Video Transmitter Over 1GB Network


  The Blustream IP300 series Multicast distribution platform allows virtually latency free (1 frame) distribution of 4K HDMI video over a 1Gb managed network.
  Featuring full interoperability with the IP350UHD product line where Dante is required, the IP300UHD-TX is an industry leading 4K HDCP 2.2 HDMI transmitter that, using visually lossless compression technology, delivers 18Gbps HDMI, audio, bi-directional IR, RS-232 & USB/KVM up to lengths of 100m over standard copper network architecture, or greater distances using the in-built fibre SFP network interface.
  The unit can be powered via PoE from the network switch, or locally should the switch not support PoE.
  With multiple configuration options available, the flexibility of the Blustream Multicast video over IP solution makes this platform ideal for multiple installation types.


  Key Features
  Advanced 4K HDMI 2.0 video over 1Gb managed network supporting 18Gbps HDMI signals
   Virtually unlimited system size
   Extends HDMI up to a distance of 100m over a single CAT cable
   SFP port for signal distribution over fibre
   Features 1 x HDMI loop-out for integrating local displays or cascading to multiple devices
   Supports up to 4K UHD 60Hz 4:4:4
   Supports HDR including Dolby Vision LLM
   Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
   Advanced signal management for independent routing of IR, RS-232, USB/KVM, audio and video
   PoE (Power over Ethernet) to power Blustream unit from PoE switch
   HDCP 2.2 compliant with advanced EDID management
   Audio breakout to analogue L/R audio, supporting both balanced and unbalanced audio signals
   Balanced/unbalanced analogue audio input for replacing the HDMI embedded audio with a different audio signal

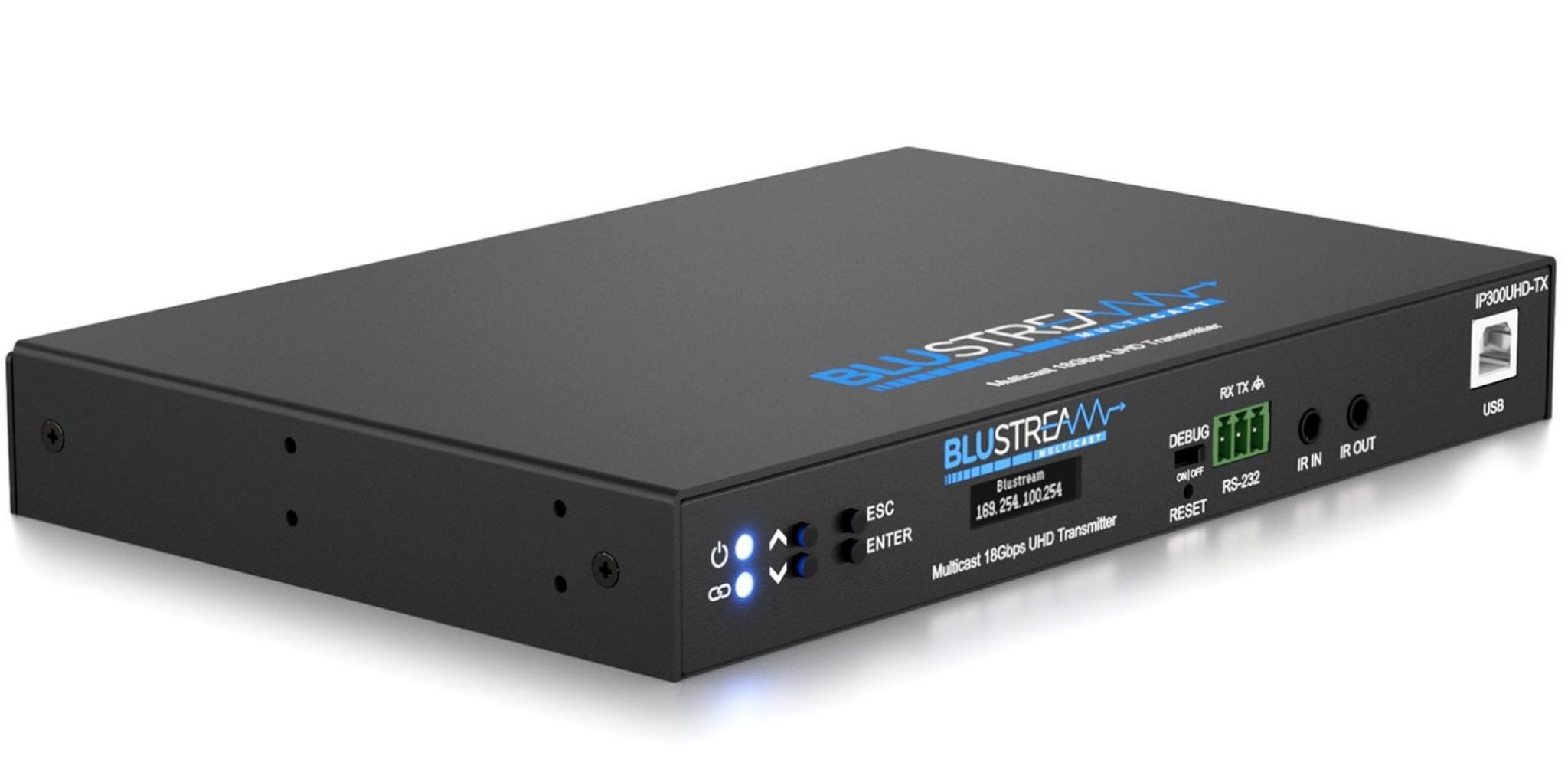

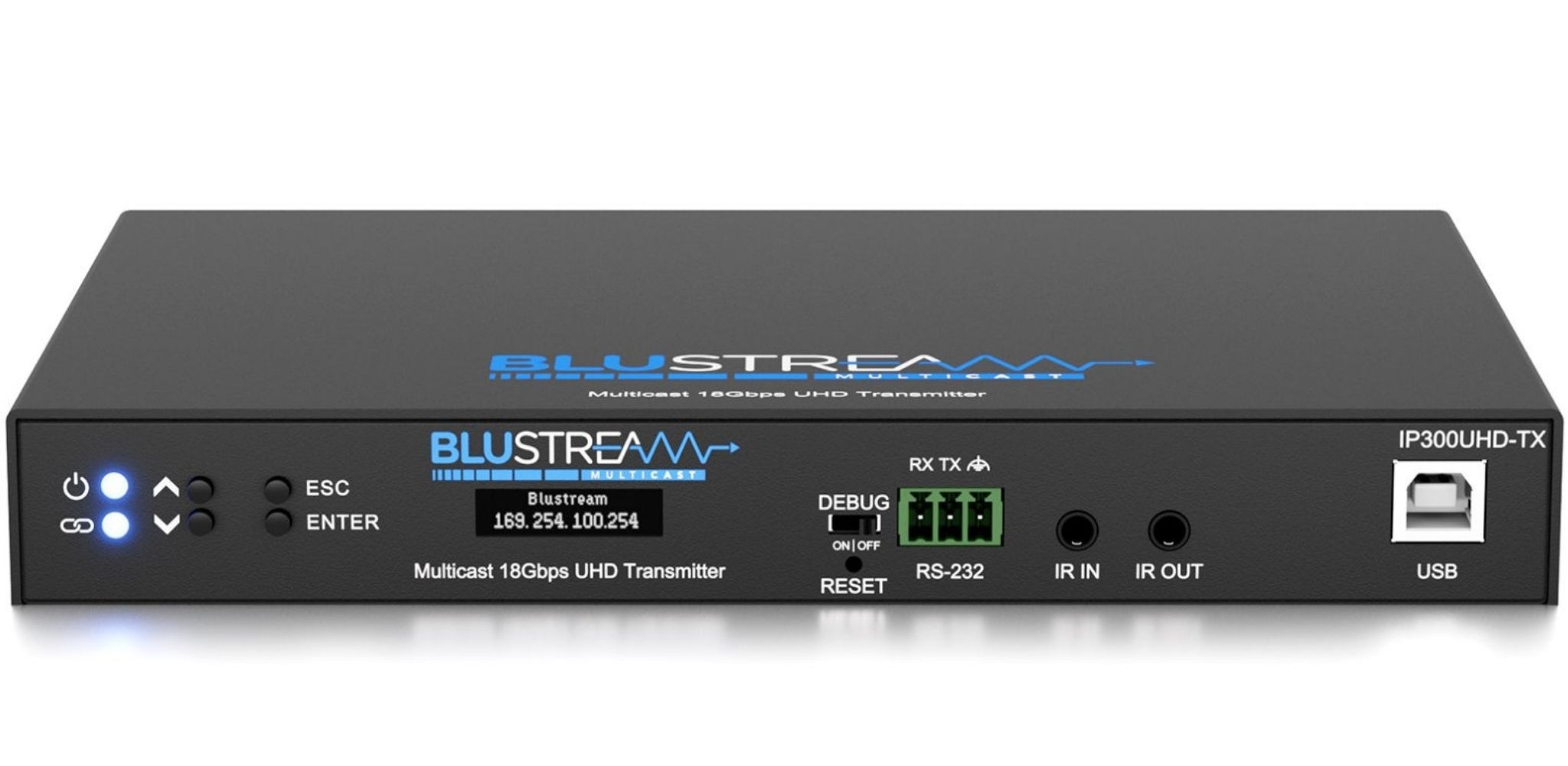

   OLED front panel display for advanced system information and manual configuration
   Optional 24V power supply (should Ethernet switch not support PoE)
   Compatible with Blustream IP300UHD-RX and IP350UHD-TX/RX products
   IP300/350 Multicast platform features 4 operational modes:
     – Matrix distribution (requires 1Gb network switch)
     – Video wall (requires 1Gb network switch)
     – One-to-one HDMI extender (no network switch required)
     – One-to-many HDMI extender (no network switch required)

  Box Contents
  1 x IP300UHD-TX
  1 x IRR Receiver
  1 x IRE1 Emitter
  2 x Audio 5-pin Phoenix Connector
  1 x Serial 3-pin Phoenix Connector
  1 x Mounting Kit

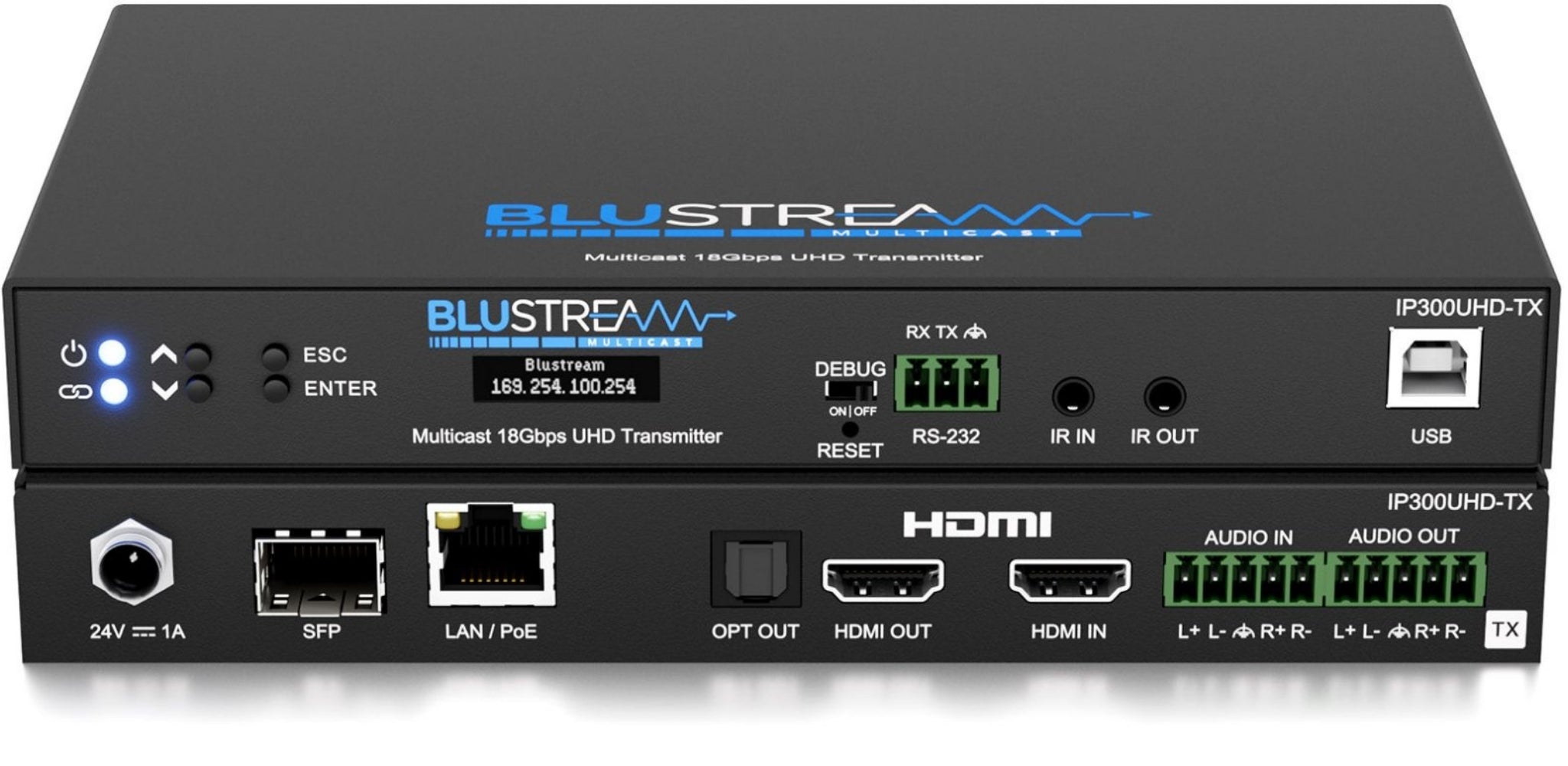

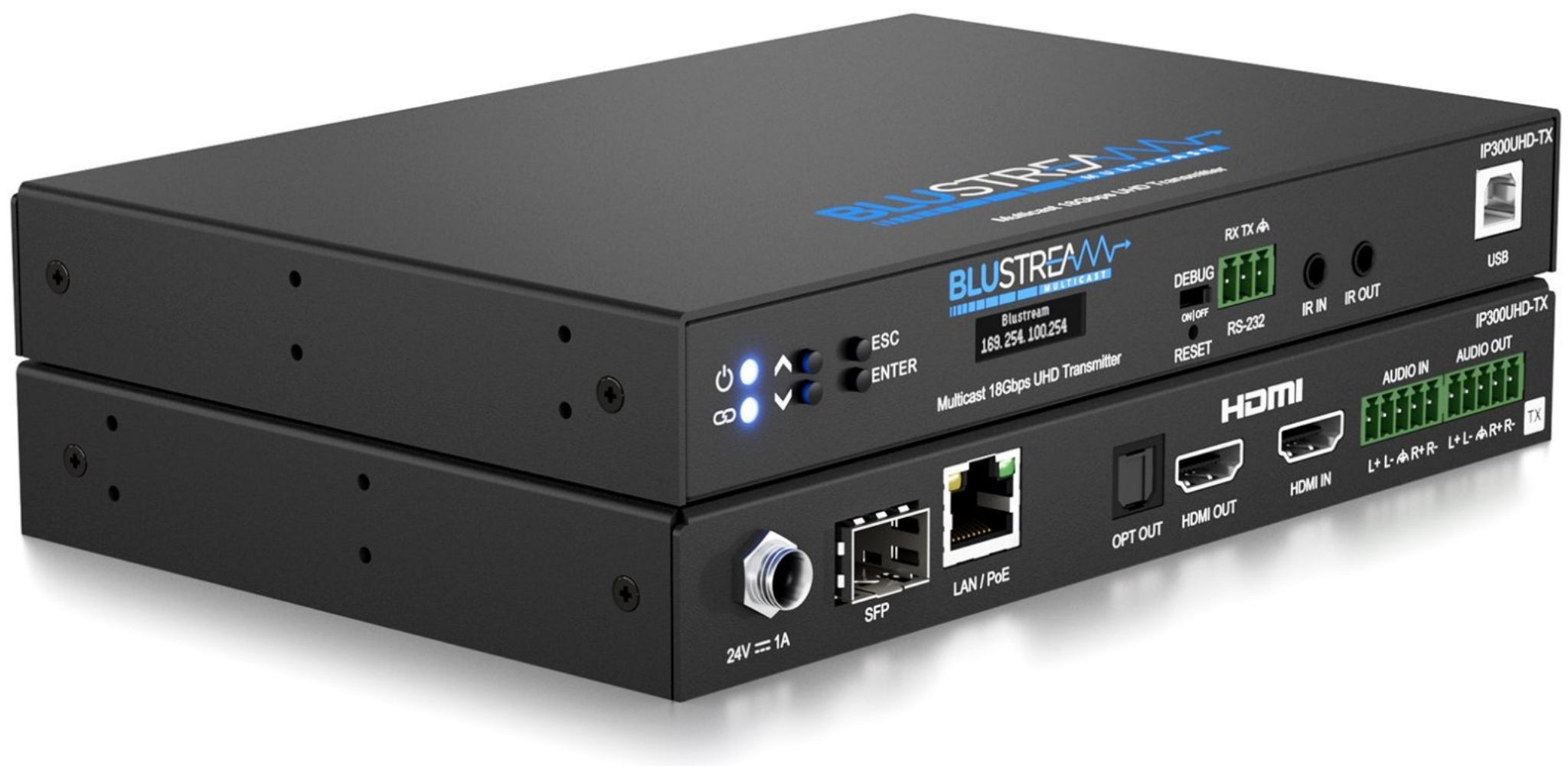

• Specification	Details
  Video Input	1 x HDMI Type A, female
  Video Output	1 x LAN RJ45, 1 x SFP, 1 x HDMI Type A
  Audio Input	1 x 5-pin Phoenix connector
  Audio Output	1 x 5-pin Phoenix, 1 x Optical (S/PDIF)
  Ethernet Port	1 x LAN RJ45 connector
  Fibre Port	1 x SFP connector (fibre module not supplied)
  RS-232 Serial Port	1 x 3-Pin Phoenix connector
  USB/KVM Port	1 x USB2.0-type B for KVM
  IR Input	1 x 3.5mm stereo jack
  IR Output	1 x 3.5mm mono jack
  Dimensions (W x D x H)	190mm x 128mm x 25mm
  Packaging Dimensions (W x D x H)	260mm x 180mm x 55mm
  Unit Weight	0.75kg
  Power Consumption	8W (max)
  Shipping Weight	0.8kg
  Operating Temperature	32°F to 104°F (0°C to 40°C)
  Storage Temperature	-4°F to 140°F (-20°C to 60°C)
  Power Supply	Class 3 IEEE 802.3af PoE PD or 24V 1A DC PSU
