• BluStream IP Multicast 4K UHD Video Transmitter Over 1GB Network


  Our UHD Multicast distribution platform allows virtually latency free (1 frame) distribution of HDMI video over a 1GB Network switch.

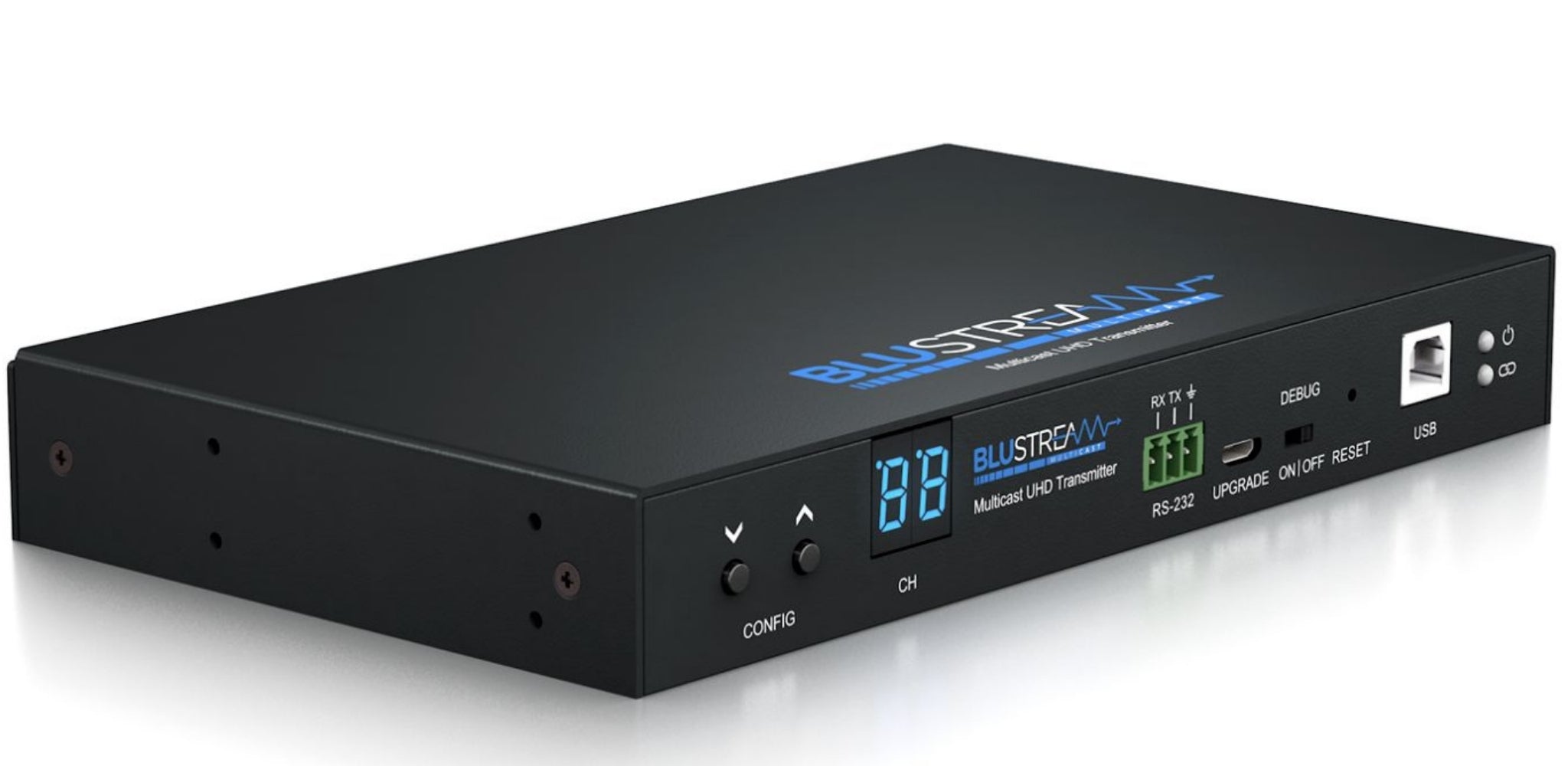

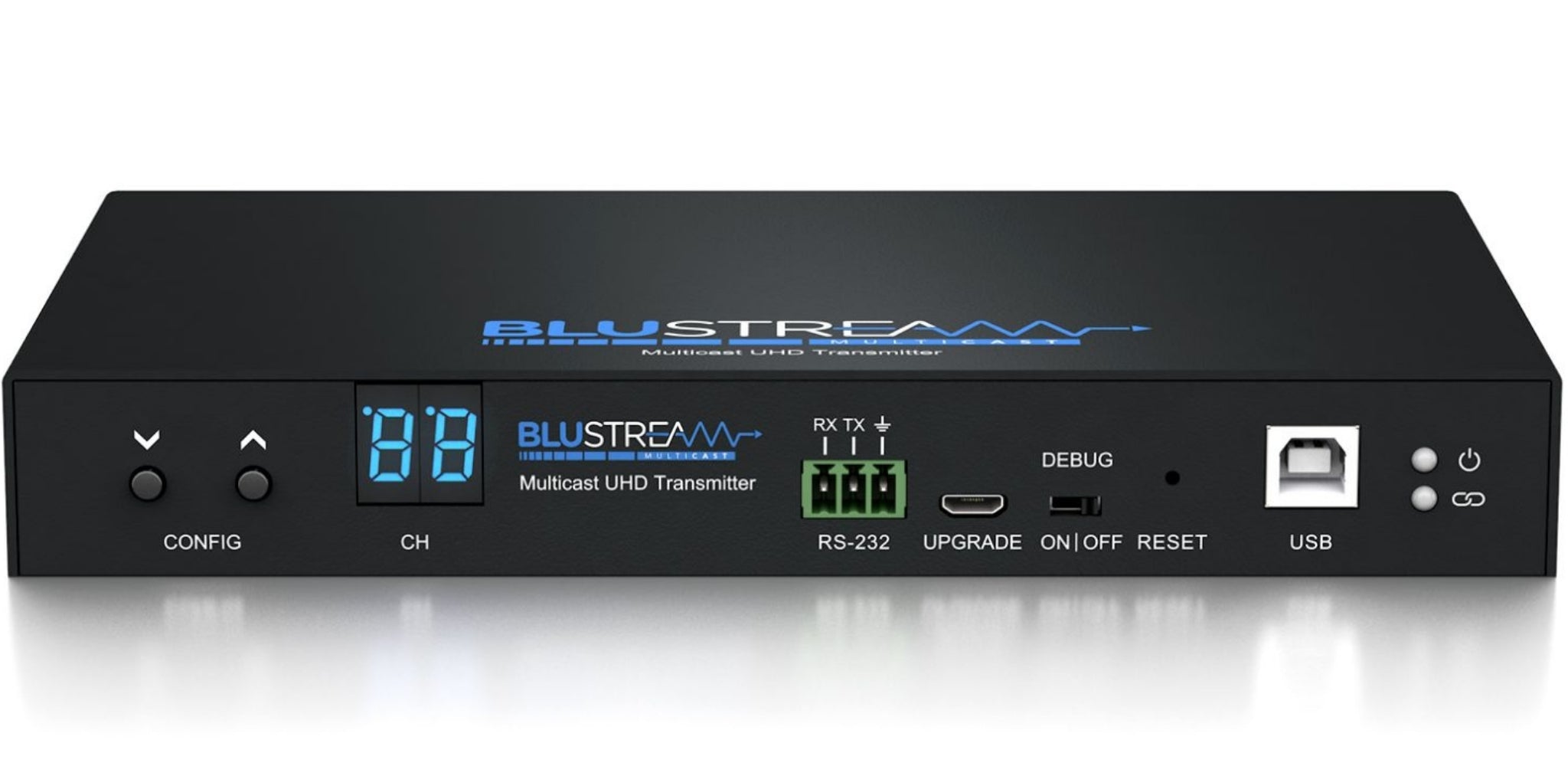

  The IP200UHD-TX is an industry leading 4K HDCP 2.2 HDMI transmitter that, using visually lossless compression technology, delivers HDMI, Bi-directional IR, RS-232 & USB/KVM up to lengths of 100m over standard network architecture.

  The IP200UHD-TX can be powered via PoE from the Network switch or locally should the switch not support PoE. With multiple configuration options available the Multicast solution is ideal for both commercial and residential installations.


  Key Features
  Advanced UHD video over 1Gb Network
   Virtually unlimited system size
   Extends HDMI up to a distance of 100m over a single CAT cable
   Supports up to 4K HDR UHD video sources (3840 x 2160 @ 30Hz 4:4:4, 4096 x 2160 @ 24Hz 4:4:4, and 4K @ 60Hz 4:2:0)
   Supports all known HDMI audio formats including Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio transmission
   Advanced signal management for independent routing of IR, RS-232, USB / KVM, audio and video
   PoE (Power over Ethernet) to power Blustream products from PoE switch
   HDCP 2.2 compliant with advanced EDID management
   Analogue L/R audio embedding
   Analogue L/R audio breakout
   Local 24-56V power supply (should Ethernet switch not support PoE) – sold separately
   Features 4 operational modes:
     – Matrix distribution (requires 1GB network switch)
     – Video wall (requires 1GB network switch)
     – One-to-one HDMI extender (no network switch required)
     – One-to-many HDMI extender (no network switch required)

  Box Contents
  1 x IP200UHD-TX
  1 x (IRR) IR Receiver
  1 x (IR1) IR Transmitter
  1 x Serial 3-pin Phoenix Connector
  1 x Mounting Kit

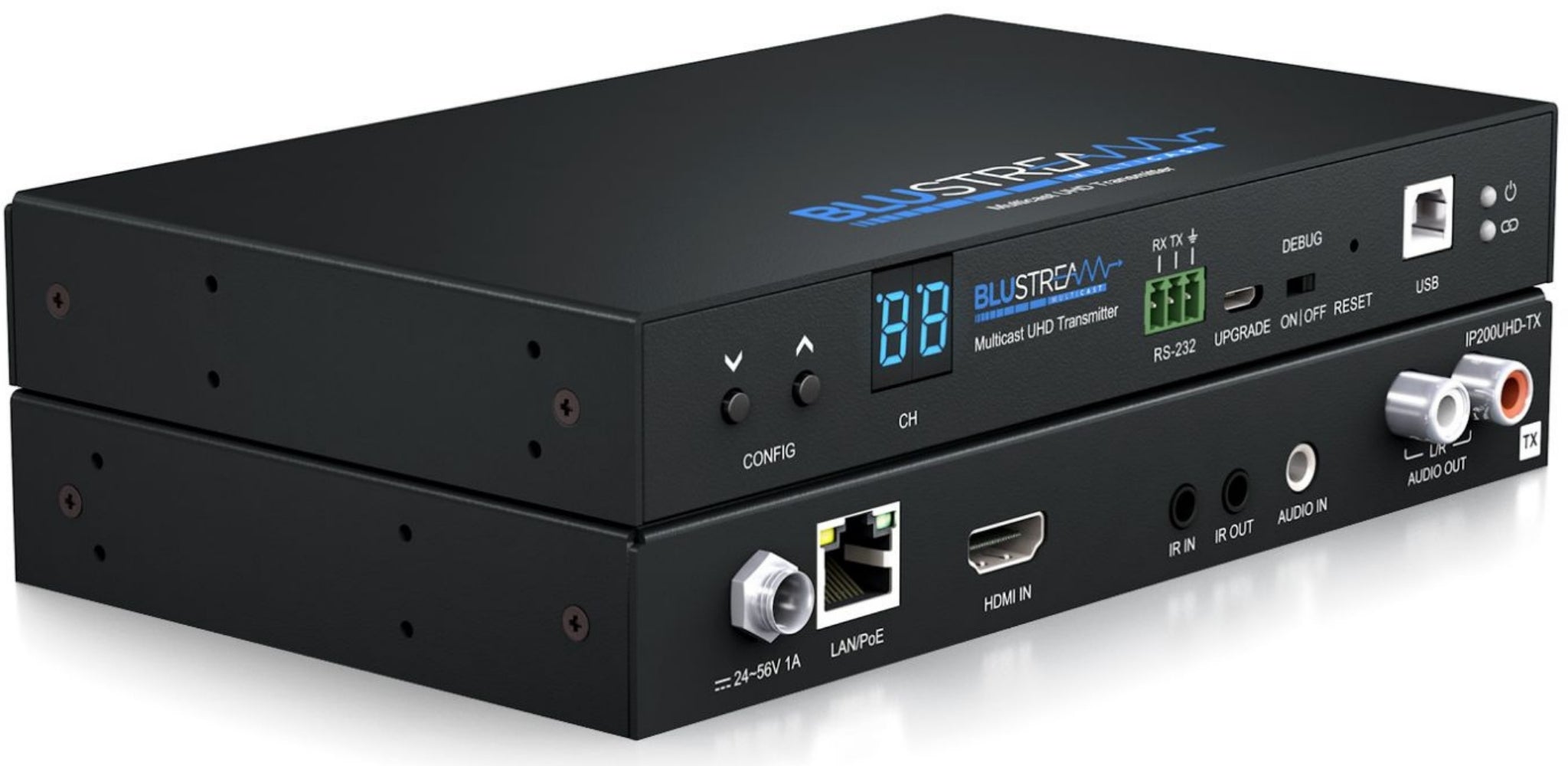

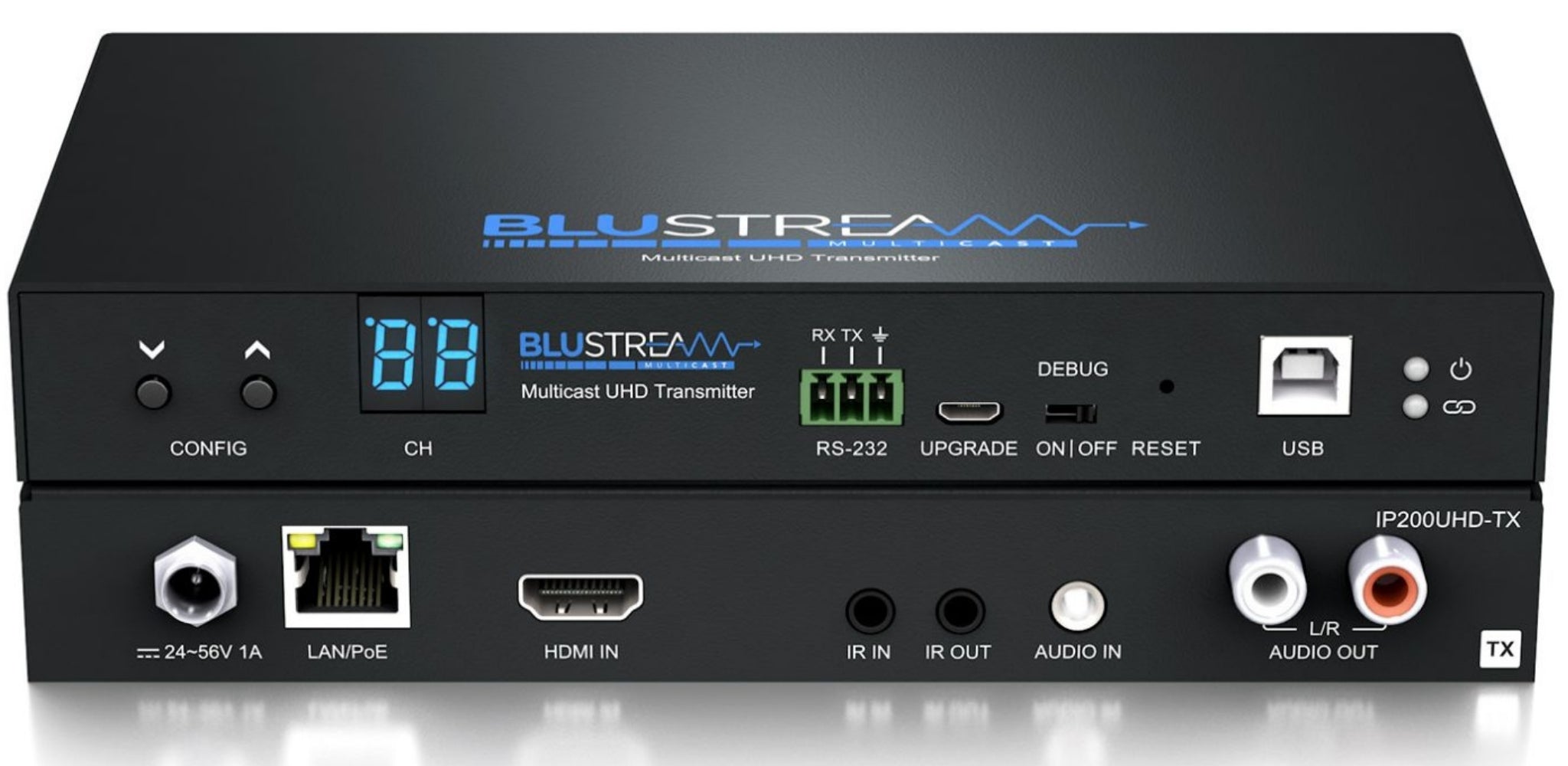

• Feature	Details
  Video Input	1 x HDMI Type A, female
  Video Output	1 x LAN RJ45 connector
  Latency	1 Frame (16-33ms depending on frame rate)
  Audio Input	1 x 3.5mm L/R Analogue audio
  Audio Output Connectors	2 x RCA L/R Analogue audio
  Ethernet Port	1 x LAN RJ45 connector
  RS-232 Serial Port	1 x 3-Pin Phoenix connector
  USB / KVM Port	1 x USB – Type B
  IR Input	1 x 3.5mm stereo jack
  IR Output	1 x 3.5mm mono jack
  PoE Draw	6.0W (typical), 7.2W (max load)
  Firmware Update	1 x Micro-USB
  Mounting Kit	Included
  Dimensions (W x D x H)	190mm x 114mm x 25mm
  Shipping Weight	0.8kg
  Operating Temperature	32°F to 104°F (0°C to 40°C)
  Storage Temperature	-4°F to 140°F (-20°C to 60°C)
