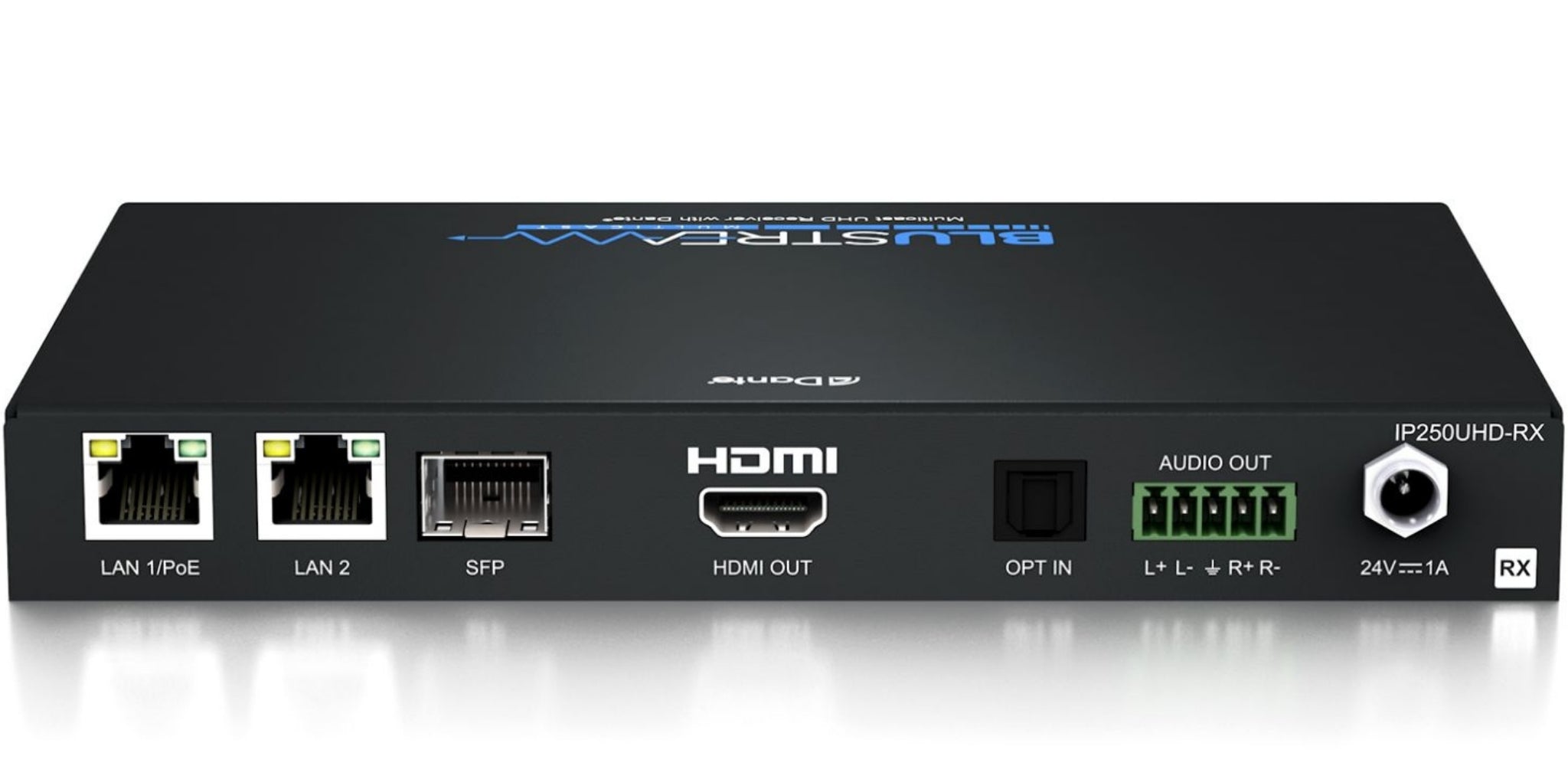

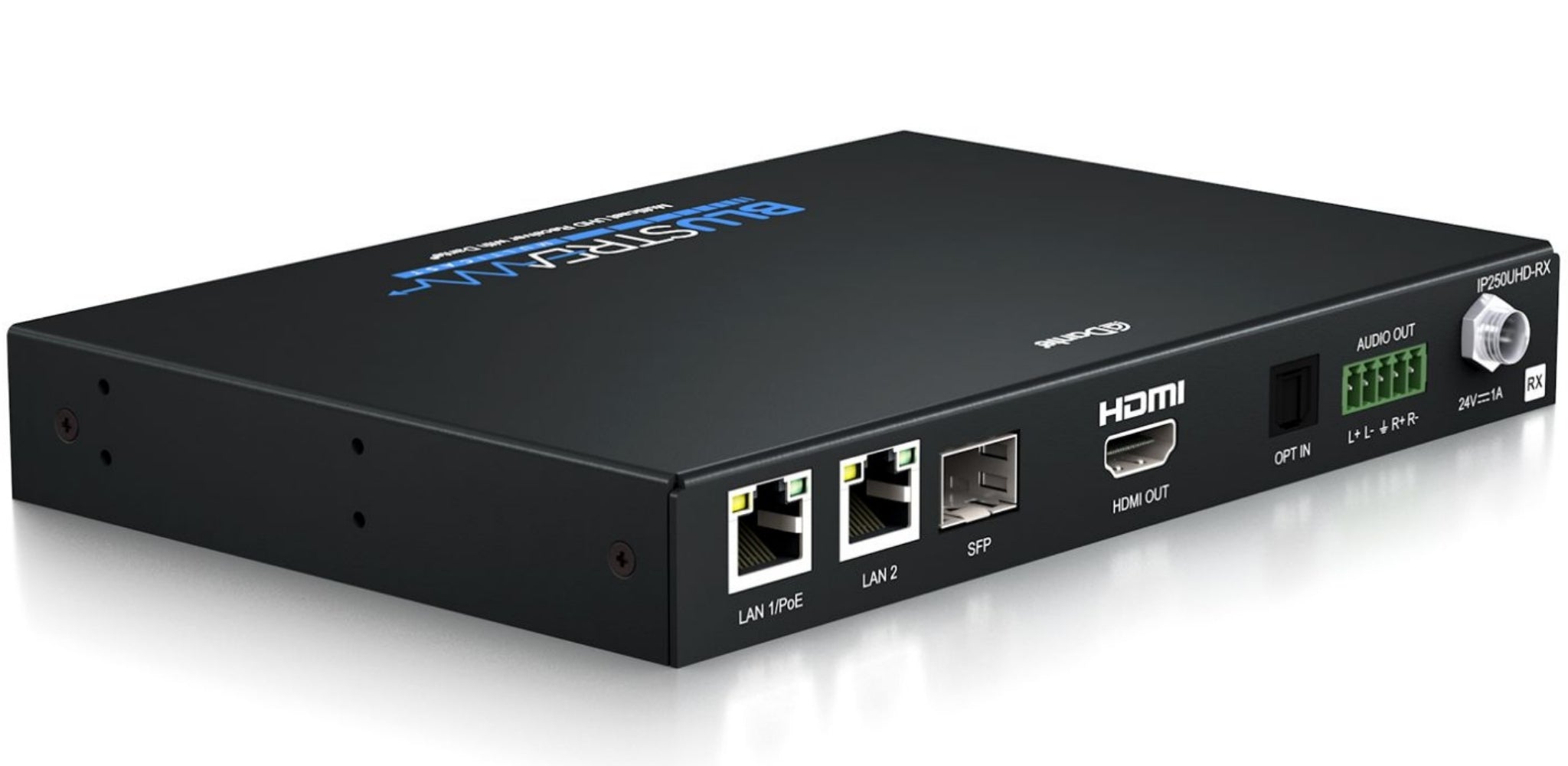

BluStream IP Multicast 4K UHD Video Receiver Over 1GB Network | IP250UHD-RX

• Description
• Specifications
• Downloads

• BluStream IP Multicast 4K UHD Video Receiver Over 1GB Network


  Our UHD Multicast distribution platform allows virtually latency free (1 frame) distribution of HDMI video over a 1Gb Managed Network.
  Compatible with the current IP200 platform, the IP250UHD-RX is an industry leading 4K HDCP 2.2 HDMI video scaling receiver that, using visually lossless compression technology, delivers 10Gb HDMI, Bi-directional IR, RS-232 & USB/KVM up to lengths of 100m over standard network architecture, or greater distances using the in-built Fibre SFP port.
  The IP250UHD-RX features dual RJ45 network ports for independent or combined HDMI and/or Dante signal distribution.
  The unit can be powered via PoE from the network switch or locally should the switch not support PoE. With multiple configuration options available, the Multicast solution is ideal for both commercial and residential installations.


  Key Features
  Advanced UHD video over 1Gb Managed Network
   Operates as a stand-alone system, or together with existing IP200UHD products
   Virtually unlimited system size
   Extends HDMI and Dante up to a distance of 100m over a single CAT cable
   Dual RJ45 network ports configurable for independent or combined HDMI and Dante signal distribution
   SFP port for independent or combined HDMI and Dante signal distribution over a single fibre cable
   Video up-scaling and down-scaling
   Supports up to 4K 30Hz UHD video output
   In-built 2ch Dante transmitter for breakout of audio from HDMI source or local analogue audio input
   In-built 2ch Dante receiver for embedding of audio onto the HDMI signal or breakout to local analogue audio output
   Optical (S/PDIF) audio input for conversion of a stereo digital audio format into a Dante audio system
   Analogue L/R audio outputs support both balanced and unbalanced audio signals
   Supports all known HDMI audio formats including Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
   Advanced signal management for independent routing of IR, RS-232, USB/KVM, audio and video
   OLED front panel display for advanced system information and manual configuration
   PoE (Power over Ethernet) to power Blustream Multicast products from a PoE switch
   HDCP 2.2 compliant with advanced EDID management
   Local 24V 1A power supply should Ethernet switch not support PoE (not included)
   Features 4 operational modes:
     – Matrix distribution (requires 1Gb network switch)
     – Video wall (requires 1Gb network switch)
     – One-to-one HDMI extender (no network switch required)
     – One-to-many HDMI extender (no network switch required)

  Box Contents
  1 x IP250UHD-RX
  1 x IRR IR Receiver
  1 x IR1 IR Emitter
  1 x Serial 3-pin phoenix connector
  1 x Mounting kit
  1 x Quick Reference Guide

• Specification	Details
  Video Input Connectors	1 x LAN RJ45 connector
  Video Output Connectors	1 x HDMI Type A, female
  Latency	1 Frame (16-33ms depending on frame rate)
  Audio Input	1 x Optical (S/PDIF)
  Audio Output Connectors	1 x 5-pin Phoenix connector
  Ethernet Port	2 x LAN RJ45 connector
  Fibre Port	1 x SFP connector (fibre module not supplied)
  RS-232 Serial Port	1 x 3-pin Phoenix connector
  USB/KVM Port	2 x USB-Type A
  IR Input Ports	1 x 3.5mm stereo jack
  IR Output Ports	1 x 3.5mm mono jack
  PoE Draw	8.0W (typical), 9.2W (max load)
  Firmware Update	1 x Micro-USB
  Mounting Kit	Included
