• BluStream IP Multicast 1080p Video Transmitter Over 100Mbps Network


  High Definition Video over IP Transmitter. Our Contractor HD Multicast distribution platform allows distribution of AV and control signals over a 100Mbps network.

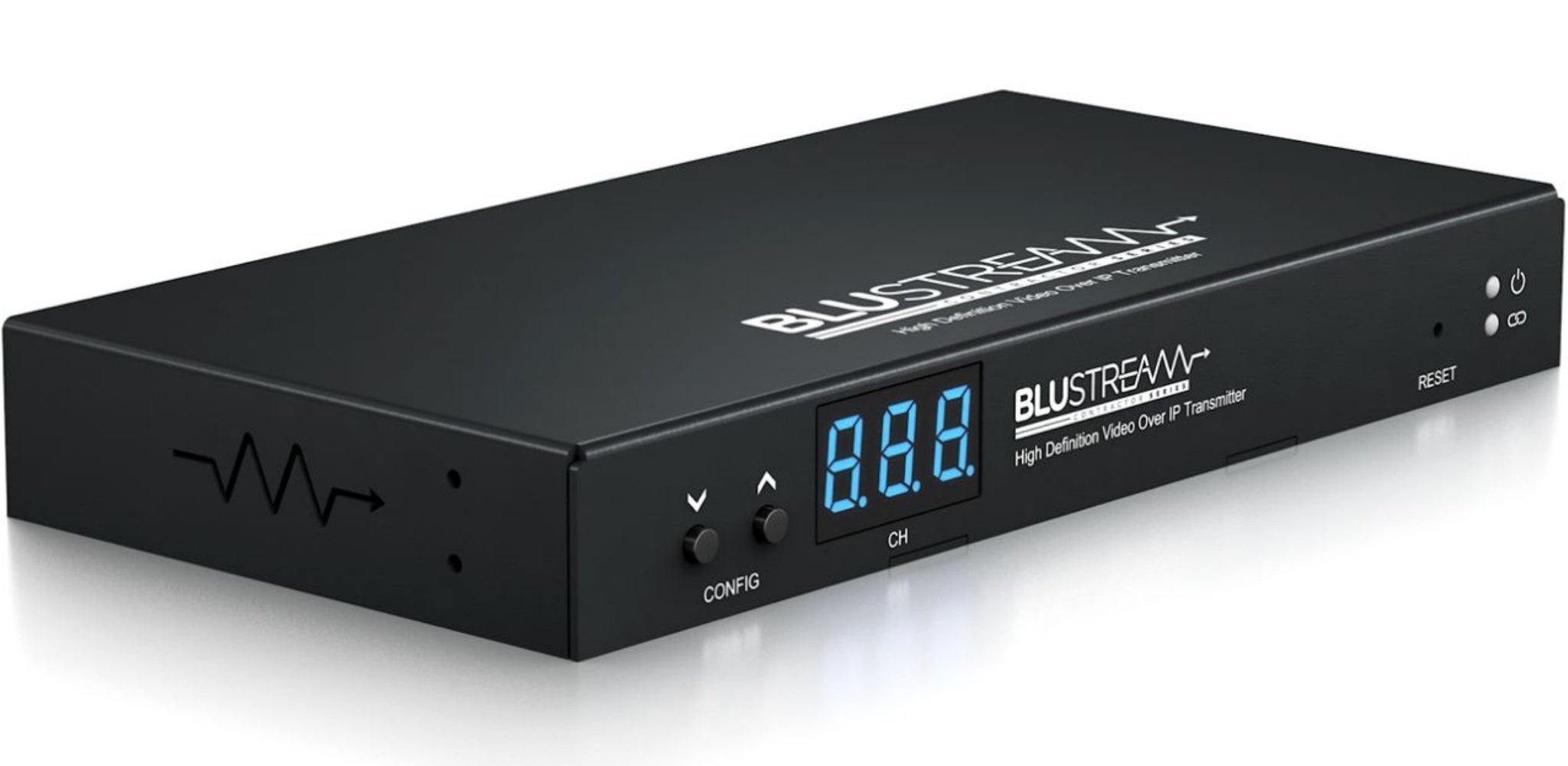

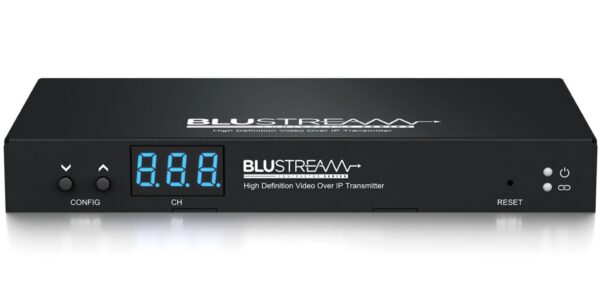

  The IP50HD-TX is an industry leading 1080p HDMI transmitter that, using H.265 compression technology, delivers HDMI, Bi-directional IR, RS-232 & USB/KVM up to lengths of 100m over standard network architecture.
  The transmitter includes a HDMI loop-out for cascading to multiple devices and can be powered via PoE from the network switch or locally should the switch not support PoE. With multiple configuration options available the Multicast HD solution is ideal for both commercial and residential installations.

  Key Features
   Advanced HD video, control and KVM over network infrastructure
   Extends HDMI up to a distance of 100m over a single CAT cable
   Supports unicast transmission over unmanaged networks
   Supports multicast transmission for large managed networks
   Supports up to 1080p @ 60Hz
   Features 1 x HDMI loop-out for integrating local displays or cascading to multiple devices
   Supports PCM 2.0 channel audio only
   Advanced signal management for independent routing of IR, RS-232, USB/KVM, and video/audio
   PoE (Power over Ethernet) to power product from a PoE switch
   HDCP1.4 compliant with advanced EDID management
   Analogue L/R audio embedding and audio breakout (2ch PCM only)
   Local 12V 1A power supply should Ethernet switch not support PoE (supplied separately)
   Features 2 operational modes:
     – Matrix distribution (requires 100Mbps network switch)
     – One-to-one HDMI extender (no network switch required)

  Box Contents
  1 x IP50HD-TX
  1 x IR Receiver
  1 x IR Emitter
  1 x Mounting Kit
  4 x Rubber Feet

• Specification	Details

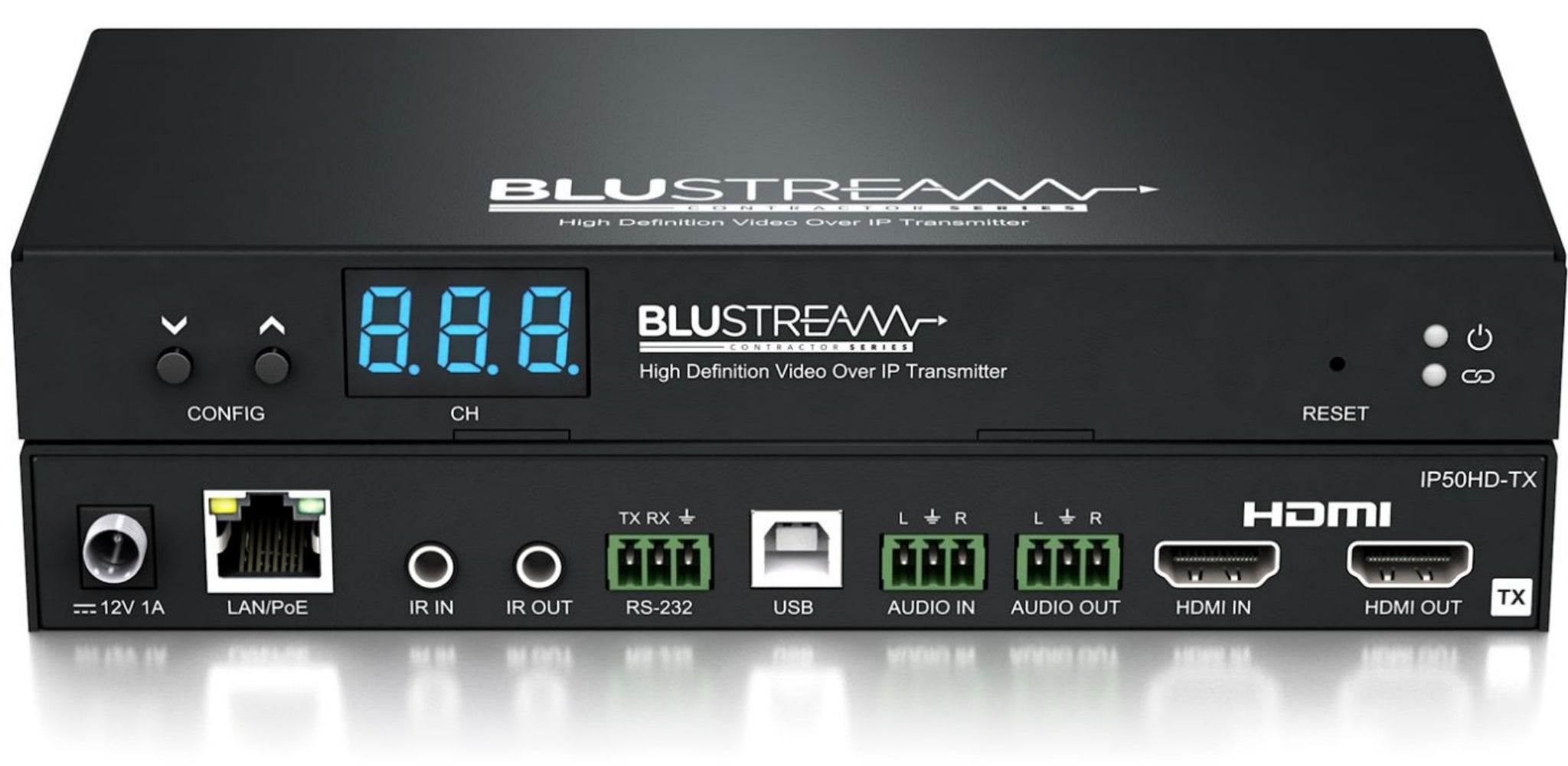

  Video Input	1 x HDMI Type A, 19-pin, female, locking
  Video Output	1 x LAN RJ45 connector, 1 x HDMI Type A, 19-pin, female, locking
  Latency	3 frames (<120ms subject to video compression, frame rate and scaling); No latency on HDMI Loop out
  Audio Input	1 x 3-pin Phoenix connector
  Audio Output	1 x 3-pin Phoenix connector
  Ethernet Port	1 x LAN RJ45 connector
  RS-232 Serial Port	1 x 3-pin Phoenix connector
  USB/KVM Host Port	1 x USB-Type B
  IR Input	1 x 3.5mm stereo jack
  IR Output	1 x 3.5mm mono jack
  PoE Draw	3.7W (typical), 4.0W (max load)
  Mounting Kit	Included
  Dimensions (W x D x H)	190mm x 95mm x 25mm
  Dimensions Including Connections	190mm x 100mm x 25mm, without feet
  Operating Temperature	32°F to 104°F (0°C to 40°C)
  Storage Temperature	-4°F to 140°F (-20°C to 60°C)
