• BluStream IP Multicast 1080p Video Receiver Over Via 100Mbps Network


  Our Contractor Series HD distribution platform allows distribution of AV and control signals over a 100Mbps network.

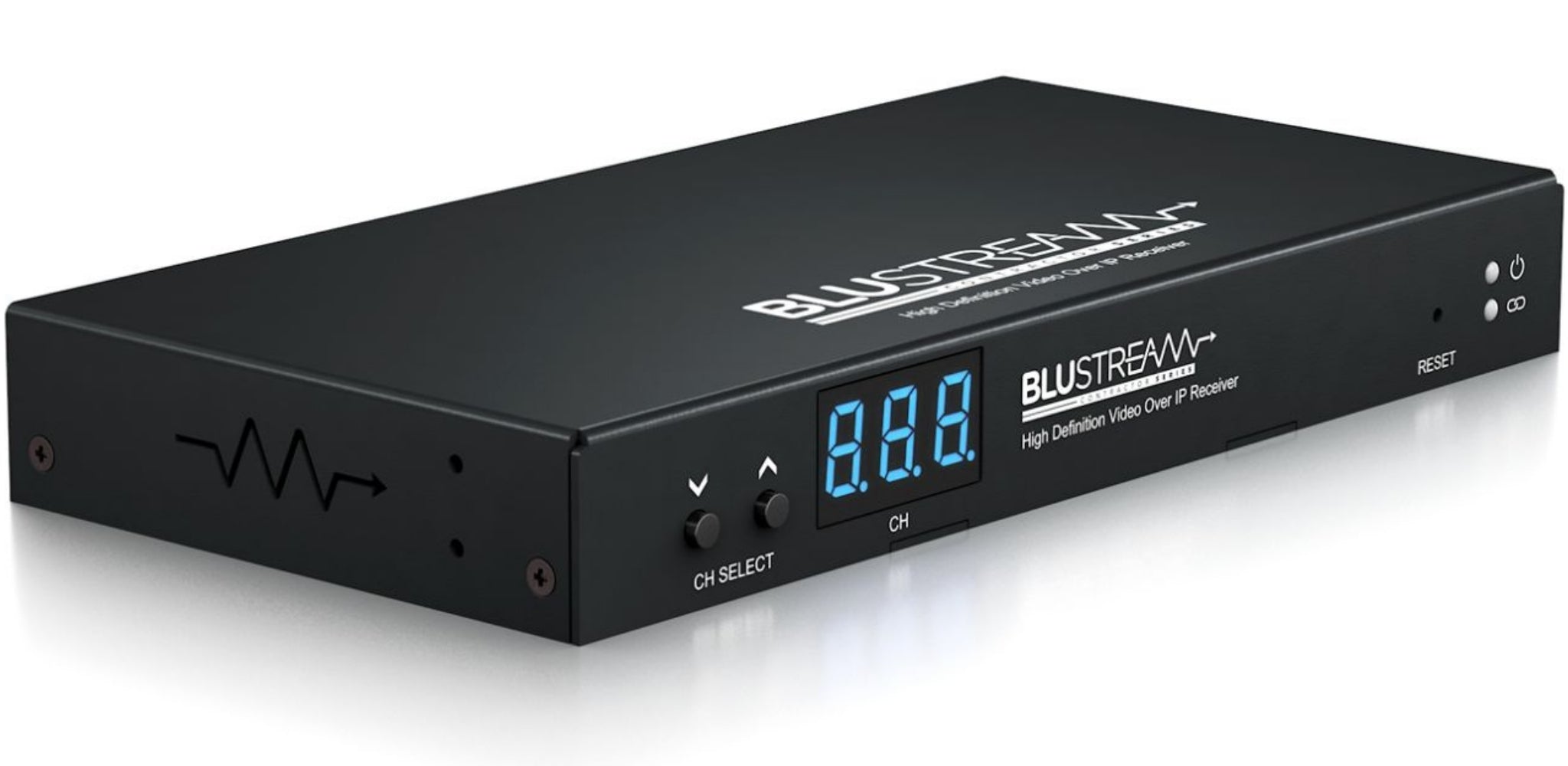

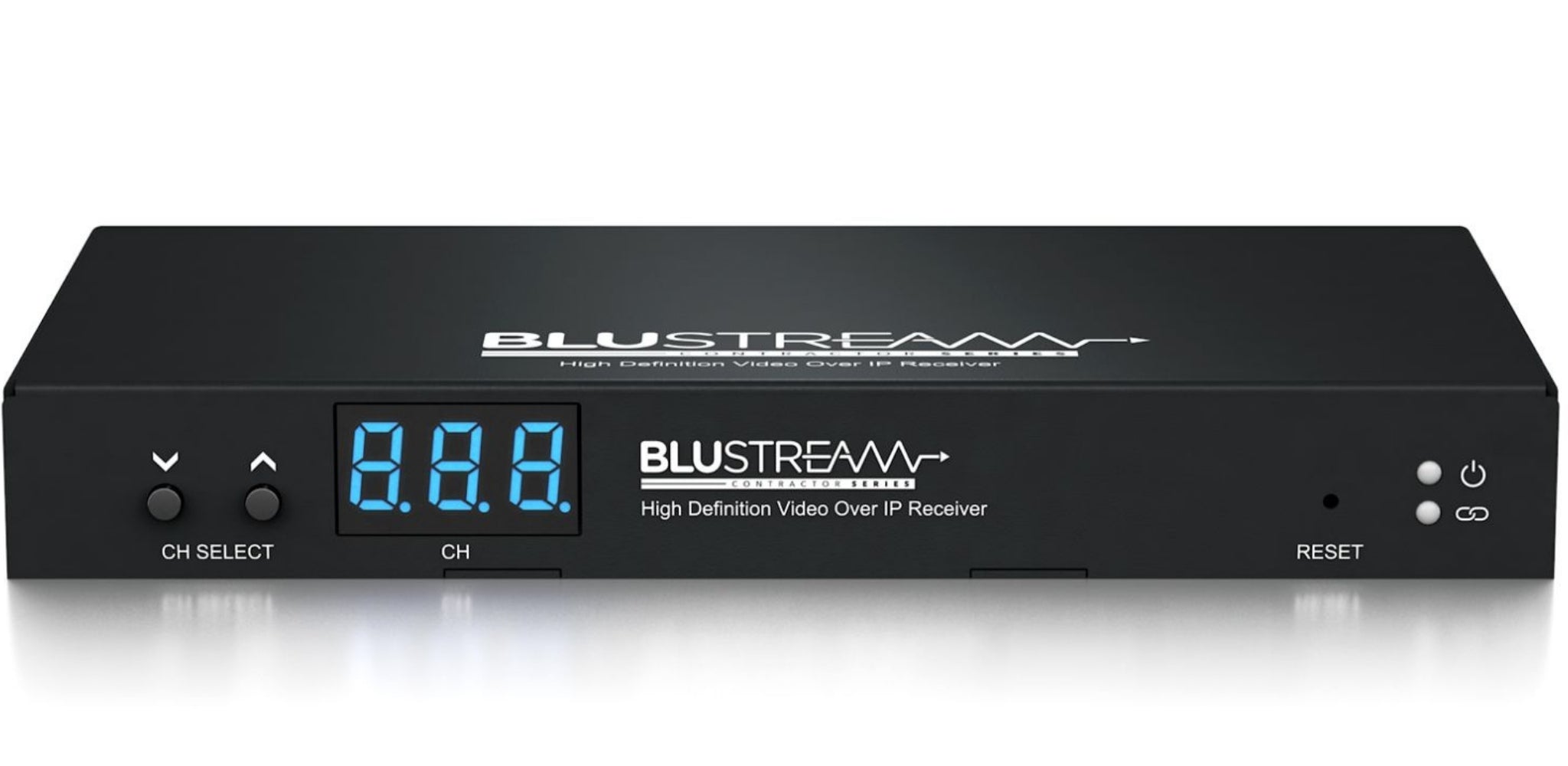

  The IP50HD-RX is an industry leading 1080p HDMI video scaling receiver that, using H.265 compression technology, delivers HDMI, Bi-directional IR, RS-232 & USB/KVM up to lengths of 100m over standard network architecture.
  The receiver can be powered via PoE from the network switch or locally should the switch not support PoE. With multiple configuration options available the Multicast HD solution is ideal for both commercial and residential installations.


  Key Features
   Advanced HD video, control and KVM over network infrastructure
   Extends HDMI up to a distance of 100m over a single CAT cable
   Supports unicast transmission over unmanaged networks
   Supports multicast transmission for large managed networks
   In-built video scaler to allow for inclusion of displays with differing resolution capabilities (1080p max)
   Supports up to 1080p @ 60Hz video output
   Supports PCM 2.0 channel audio only
   Advanced signal management for independent routing of IR, RS-232, USB/KVM, and video/audio
   PoE (Power over Ethernet) to power Blustream products from PoE switch
   HDCP1.4 compliant with advanced EDID management
   Analogue L/R audio breakout
   Local 12V 1A power supply should Ethernet switch not support PoE (not included)
   Features 2 operational modes:
     – Matrix distribution (requires 100Mbps network switch)
     – One-to-one HDMI extender (no network switch required)

  Box Contents
  1 x IP50HD-RX
  1 x IR Receiver
  1 x IR Emitter
  1 x Mounting Kit
  4 x Rubber Feet

• Specification	Details
  Video Input Connectors	1 x LAN RJ45 connector
  Video Output Connectors	1 x HDMI Type A, 19-pin, female, locking
  Latency	3 frames (<120ms, subject to compression)
  Audio Output Connectors	1 x 3-pin Phoenix connector
  Ethernet Port	1 x LAN RJ45 connector (video extension)
  RS-232 Serial Port	1 x 3-pin Phoenix connector
  USB/KVM Device Ports	2 x USB-Type A
  IR Input Ports	1 x 3.5mm stereo jack
  IR Output Ports	1 x 3.5mm mono jack
  PoE Draw	2.9W (typical), 3.2W (max load)
  Mounting Kit	Included
  Dimensions (W x D x H)	190mm x 95mm x 25mm
  Dimensions with Connections	190mm x 100mm x 25mm, without feet
  Operating Temperature	32°F to 104°F (0°C to 40°C)
  Storage Temperature	-4°F to 140°F (-20°C to 60°C)
