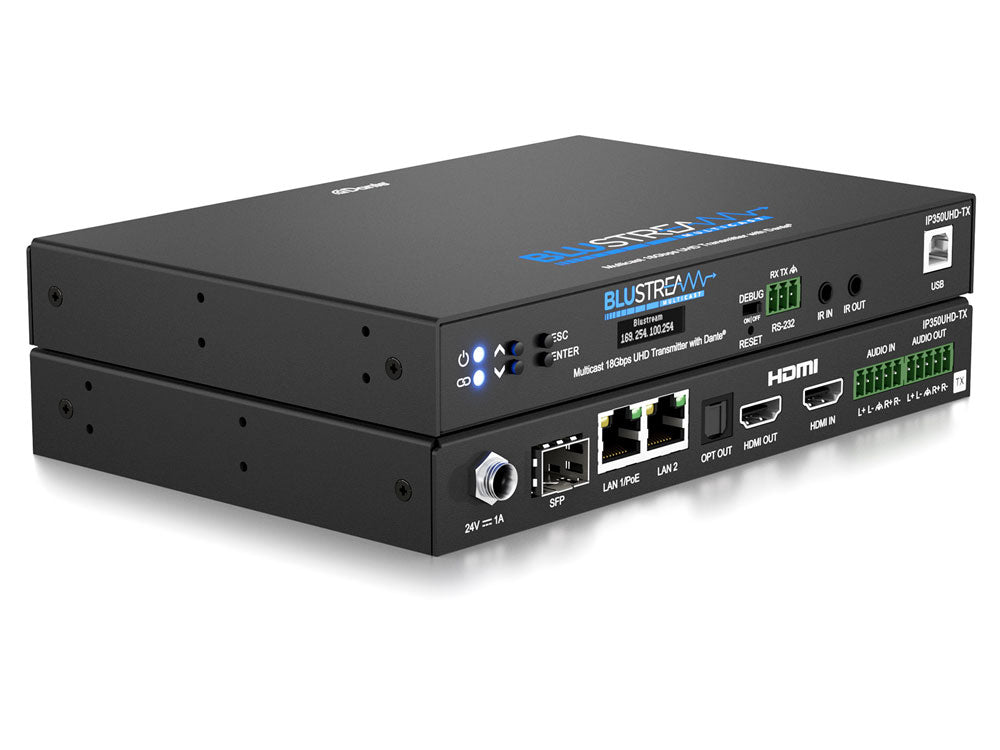

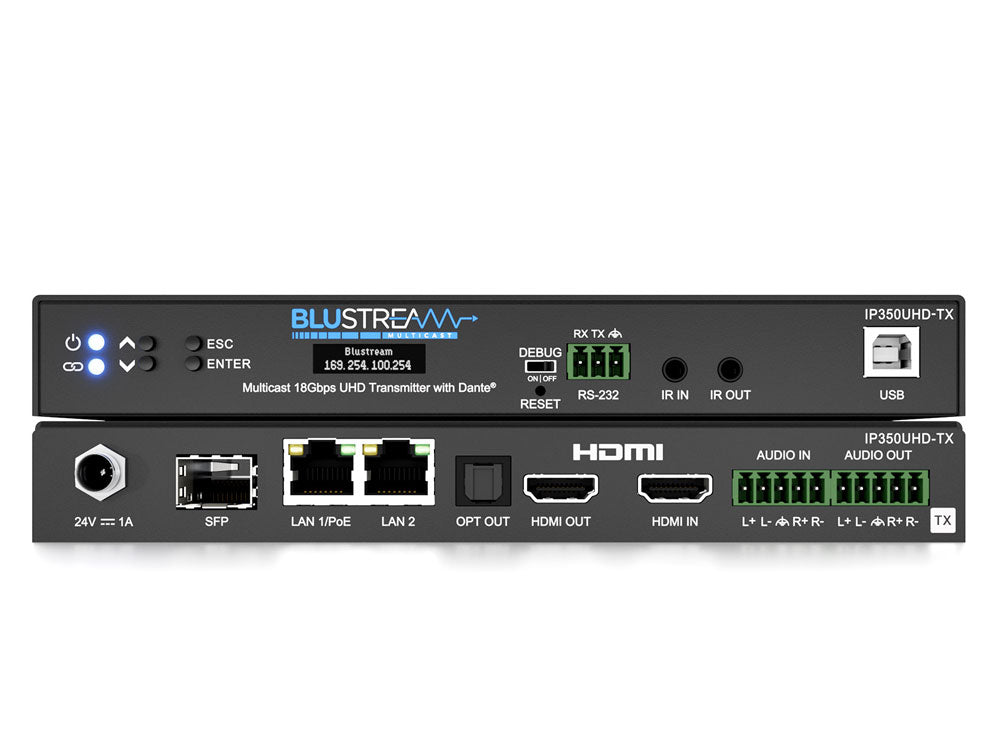

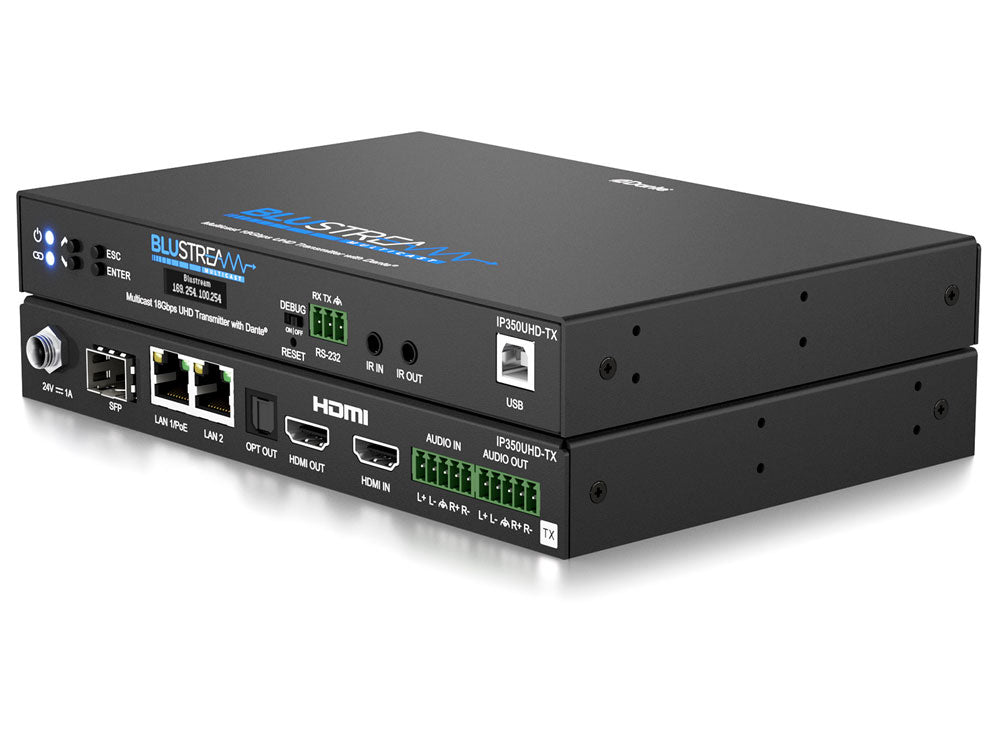

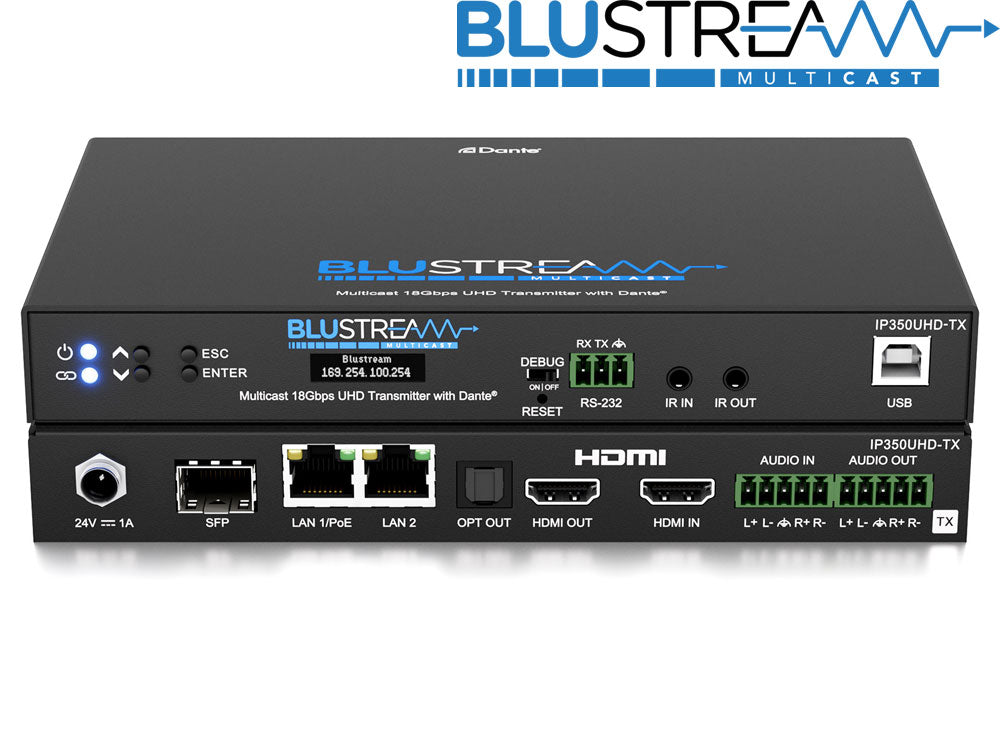

• BluStream IP Dante Enabled Multicast UHD Video Transmitter Over 1GB Network


  The Blustream IP300 series Multicast distribution platform allows virtually latency free (1 frame) distribution of 4K HDMI video over a 1Gb managed network.
  Featuring full interoperability with the IP300UHD product line, the IP350UHD-TX is an industry leading Dante enabled 4K HDCP 2.2 HDMI transmitter that, using visually lossless compression technology, delivers 18Gbps HDMI, Dante & AES67 audio, bi-directional IR, RS-232 & USB/KVM up to lengths of 100m over standard copper network architecture, or greater distances using the in-built fibre SFP network interface.
  The IP350UHD-TX can support both video and Dante audio distribution from a single network. A second RJ45 connection allows for the Dante audio network interface to be segregated from the video over IP network if required.
  The unit can be powered via PoE from the network switch, or locally should the switch not support PoE.
  With multiple configuration options available, the flexibility of the Blustream Multicast video over IP solution makes this platform ideal for multiple installation types.

  Key Features
  Advanced 4K HDMI 2.0 video over 1Gb managed network supporting 18Gbps HDMI signals
   Virtually unlimited system size
   Extends HDMI up to a distance of 100m over a single CAT cable
   SFP port for signal distribution over fibre
   Features 1 x HDMI loop-out for integrating local displays or cascading to multiple devices
   Supports up to 4K UHD 60Hz 4:4:4
   Supports HDR including Dolby Vision LLM
   Dual RJ45 network ports configurable for independent or combined HDMI and Dante signal distribution
   SFP port for independent or combined HDMI and Dante signal distribution over a single fibre cable
   In-built 2ch Dante transmitter for breakout of audio from HDMI source or local analogue audio input
   In-built 2ch Dante receiver for embedding of audio onto the HDMI signal or breakout to local analogue audio output
   Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
   Advanced signal management for independent routing of IR, RS-232, USB/KVM, audio and video
   PoE (Power over Ethernet) to power Blustream unit from PoE switch
   HDCP 2.2 compliant with advanced EDID management
   Balanced/unbalanced analogue L/R audio embedding
   Audio breakout to analogue L/R audio, supporting both balanced and unbalanced audio signals
   OLED front panel display for advanced system information and manual configuration
   Optional 24V power supply (should Ethernet switch not support PoE)
   Compatible with Blustream IP300UHD-RX and IP350UHD-TX/RX products
   IP300/350 Multicast platform features 4 operational modes:
     – Matrix distribution (requires 1Gb network switch)
     – Video wall (requires 1Gb network switch)
     – One-to-one HDMI extender (no network switch required)
     – One-to-many HDMI extender (no network switch required)

  Box Contents
  1 x IP350UHD-TX
  1 x IRR Receiver
  1 x IRE1 Emitter
  2 x Audio 5-pin Phoenix Connector
  1 x Serial 3-pin Phoenix Connector
  1 x Mounting Kit

• Specifications	Details
  Video Input	1 x HDMI Type A, female
  Video Output	1 x LAN RJ45 connector (LAN1/PoE), 1 x SFP connector, 1 x HDMI Type A, female
  Audio Input	1 x 5-pin Phoenix connector
  Audio Output	1 x 5-pin Phoenix connector, 1 x Optical (S/PDIF)
  Dante Port	1 x LAN RJ45 connector (LAN2)
  Fibre Port	1 x SFP connector (fibre module not supplied)
  RS-232 Serial Port	1 x 3-Pin Phoenix connector
  USB/KVM Port	1 x USB2.0-type B for KVM
  IR Input	1 x 3.5mm stereo jack
  IR Output	1 x 3.5mm mono jack
  Dimensions (W x D x H)	190mm x 128mm x 25mm
  Packaging Dimensions (W x D x H)	260mm x 180mm x 55mm
  Unit Weight	0.75kg
  Power Consumption	12W (max)
  Shipping Weight	1kg
  Operating Temperature	32°F to 104°F (0°C to 40°C)
  Storage Temperature	-4°F to 140°F (-20°C to 60°C)
  Power Supply	Class 3 IEEE 802.3af POE PD or 24V 1A DC PSU
  Advanced Features	4K HDMI 2.0 video over 1Gb managed network, 18Gbps HDMI signals, virtually unlimited system size, extends HDMI up to 100m over CAT cable, SFP port for signal distribution over fibre, HDMI loop-out for local displays or cascading, supports up to 4K UHD 60Hz 4:4:4, HDR support, dual RJ45 network ports, in-built 2ch Dante transmitter/receiver, HDCP 2.2 compliant, balanced/unbalanced analogue L/R audio, OLED front panel display, optional 24V power supply, compatible with Blustream IP300UHD-RX and IP350UHD-TX/RX, four operational modes (matrix, video wall, one-to-one, one-to-many).
