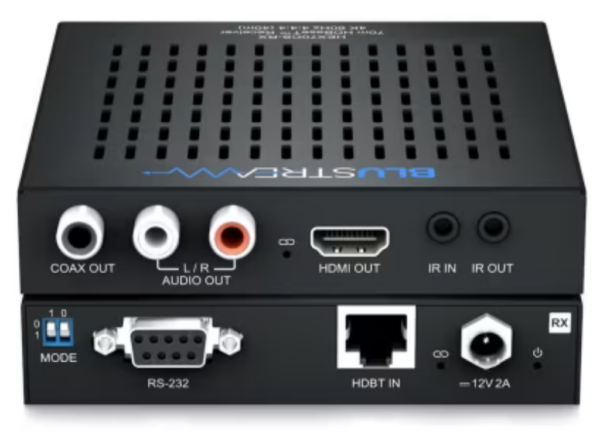

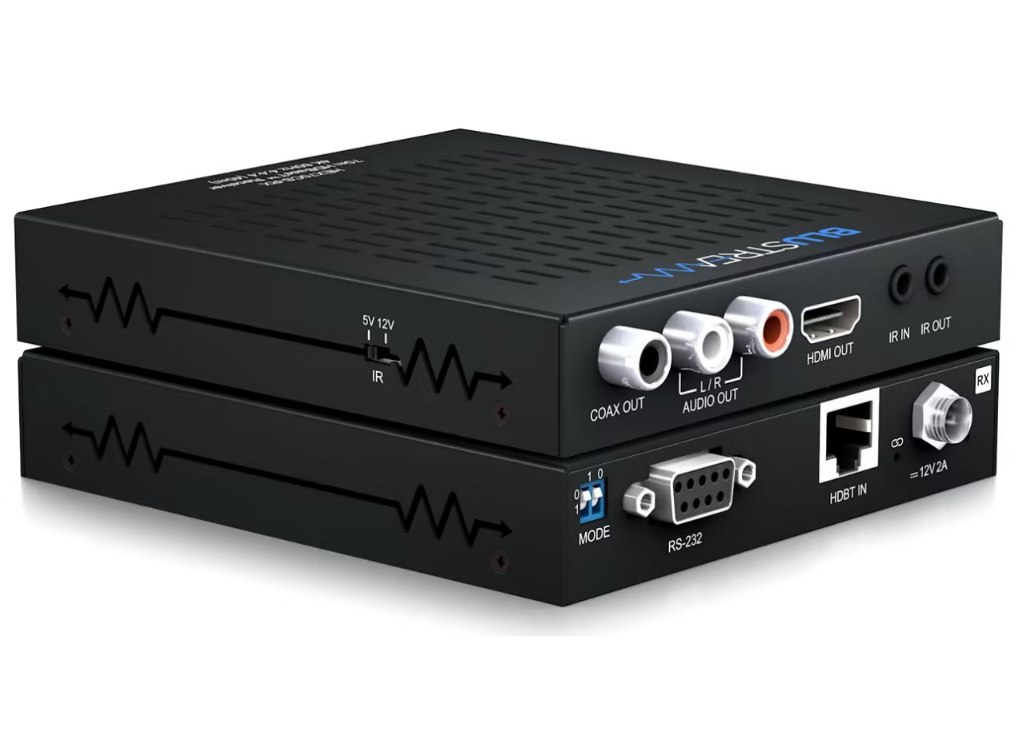

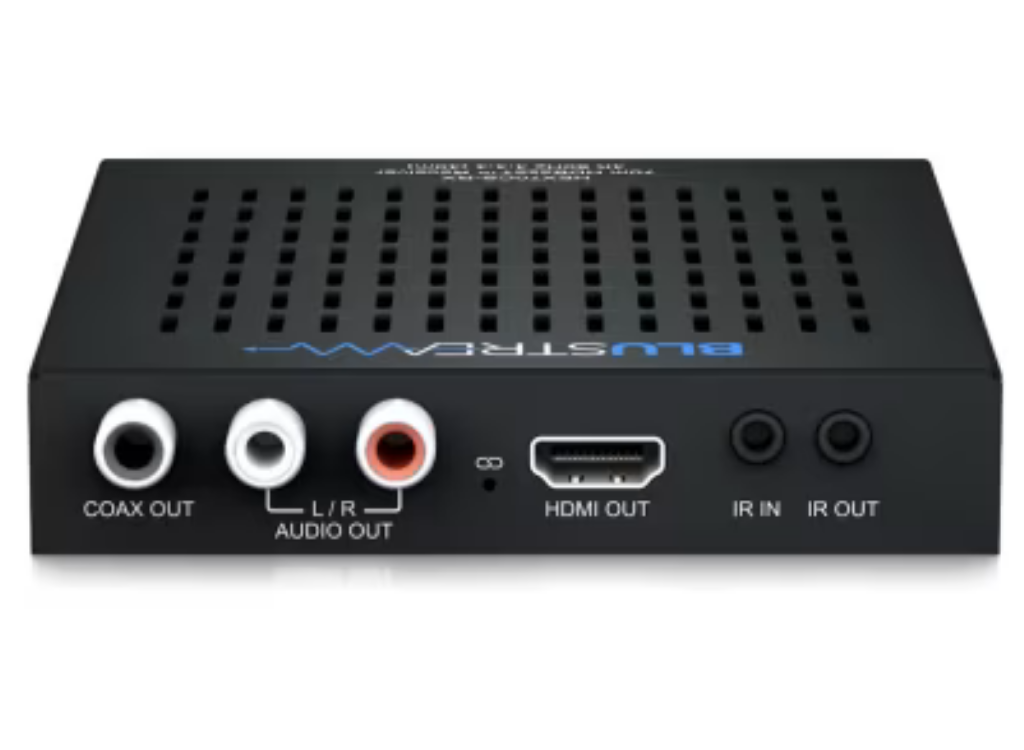

• BluStream HEX70CS-RX HDBaseT™ CSC Receiver – 70m

  Our HEX70CS-RX HDMI 2.0 4K 60Hz 4:4:4 (18Gbps) HDCP 2.2 HDBaseT™ receiver offers market leading features and outstanding value utilising CSC technology.

  The product extends HDMI, Bi-directional IR & RS-232 and Bi-directional PoC up to lengths of 70m (4K 40m).

  The receiver features simultaneous analogue stereo and digital coax audio breakout.

  Key Features
  • Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
  • Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR
  • Supports 4K 60Hz 4:4:4 UHD video up to 40m
  • Extends HDMI 1080p video up to 70m
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Supports all known digital HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio and DTS:X transmissions
  • HDMI re-clocking to help solve HDMI HDCP, compatibility and handshaking issues
  • HDMI audio breakout to analogue L/R audio and coaxial digital outputs concurrently
  • Supports bi-directional RS-232 pass-through
  • Supports bi-directional IR pass-through
  • Advanced EDID management
  • HDCP 2.2 compliant

  Box Contents
  1x HEX70CS-RX
  1x Mounting Kit

• Feature	Specification
  Audio Output Connectors	1 x RCA (SPDIF) & 2 x Analogue RCA (Left/Right)
  IR Output Ports	1 x 3.5mm mono jack
  IR Input Ports	1 x 3.5mm stereo jack
  RS-232 Serial Port	1 x DB-9 female
  Video Output Connectors	1 x HDMI Type A, female
  Video Input Connectors	1 x HDBaseT™ RJ45 connector
  Power Supply	12V/2A DC, screw type connector (not supplied)
  Power Consumption	5.6W
  Unit Dimensions (W x D x H)	113 x 124 x 22mm (without connections)
  	113 x 138 x 22mm (with connections)
  Unit Weight	0.35kg (excluding accessories)
  Shipping Weight	0.5kg
  Operating Temperature	32°F to 104°F (0°C to 40°C)
  Storage Temperature	-4°F to 140°F (-20°C to 60°C)
  Mounting Kit Included	Yes
