• BluStream HEX100HDVGA-KIT HDBaseT™ Extender Set – 100m

  Our HEX100HDVGA-KIT extender set is an industry leading 4K UHD HDBaseT™ solution that delivers switchable HDMI and VGA inputs.

  The extender set also transmits Bi-directional IR, RS-232 and PoC up to lengths of 100m over a single CAT cable.


  Key Features
  • Extends HDMI and VGA / Audio up to a distance of 100m over single CAT cable
  • Auto signal sensing switches between HDMI and VGA/Audio inputs. Will display last input signal connected
  • Manual switching between inputs using toggle button or RS-232 control on either transmitter or receiver
  • Supports 4K UHD video up to 70m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
  • Supports industry standard video resolutions from 480i-4K and most industry standard VGA resolutions (check manual for full list of supported VGA resolutions)
  • Supports full 3D signal display
  • Supports CEC bypass (Consumer Electronics Control) – HDMI only
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
  • Supports bi-directional RS-232 pass-through
  • Supports bi-directional IR from all input and output locations
  • Supplied with Blustream IR receiver and emitters
  • Supports bi-directional PoC (Power over Cable) to power extenders from either transmitter or receiver end
  • HDCP 1.4 compliant

  Box Contents
  1 x HEX100HDVGA-TX
  1 x HEX100HDVGA-RX
  1 x 12V/2A DC Power Supply
  1 x IR Receiver
  1 x IR Emitter
  2 x Mounting Brackets
  1 x User Manual

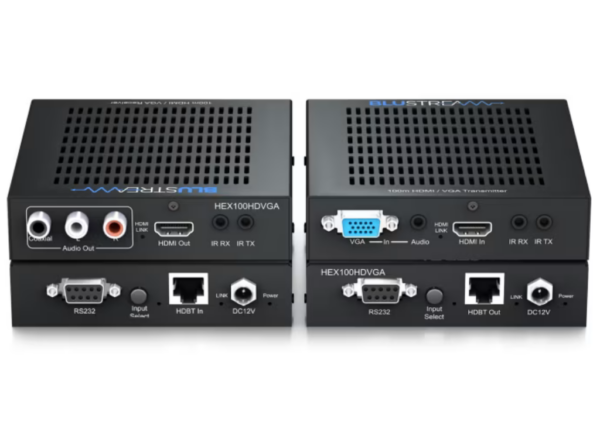

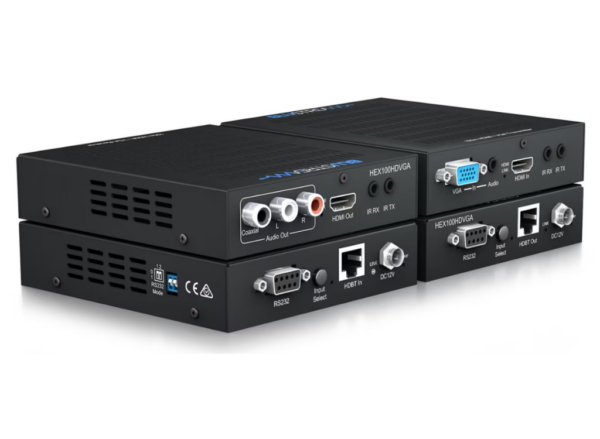

• Feature	HEX100HDVGA-TX	HEX100HDVGA-RX
  Audio Input Connectors	1 x Analogue L/R 3.5mm stereo jack	–
  Audio Output Connectors	–	2 x Analogue RCA L/R & Coaxial digital
  Video Input Connectors	1 x HDMI Type A & 1x VGA (DB-15)	1 x HDBaseT™ RJ45 connector
  Video Output Connectors	1 x HDBaseT™ RJ45 connector	1 x HDMI Type A
  IR Input Ports	1 x 3.5mm stereo jack	1 x 3.5mm stereo jack
  IR Output Ports	1 x 3.5mm mono jack	1 x 3.5mm mono jack
  RS-232 Serial Port	1 x DB9, female	1 x DB9, female
  Mounting Brackets Included	Yes	Yes
  Balun Dimensions (with connections) (W x D x H)	115mm x 135mm x 30mm	115mm x 135mm x 30mm
  Balun Dimensions (without connections) (W x D x H)	115mm x 125mm x 30mm	115mm x 125mm x 30mm
  Individual Balun Weight	0.35kg (excluding accessories)	0.35kg (excluding accessories)
  Carton/Box Dimensions (W x D x H)	300mm x 155mm x 90mm	300mm x 155mm x 90mm
  Shipping Weight	1.2kg	1.2kg
  Operating Temperature	32°F to 104°F (0°C to 40°C)	32°F to 104°F (0°C to 40°C)
  Storage Temperature	-4°F to 140°F (-20°C to 60°C)	-4°F to 140°F (-20°C to 60°C)
  Power Supply	12V/2A DC, screw type connector	12V/2A DC, screw type connector
