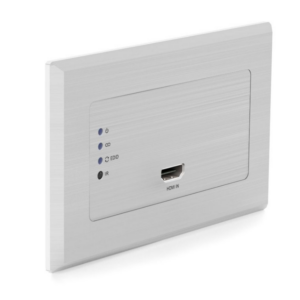

• BluStream HDMI Wall Plate HDBaseT™ Transmitter | HEX11WPW-TX

  Our HEX11WPW-TX HDMI Wall Plate HDBaseT™ Transmitter is a 4K solution that extends HDMI up to 70m at 1080p (40m 4K 60Hz 4:2:0).

  The HEX11WPW-TX has been designed to work with all Blustream HDBaseT™ receiver and matrix solutions, can be installed in both UK and European back boxes, and can be powered locally or from compatible Blustream HDBaseT™ products.

  Key Features
  • Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
  • Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
  • Extends HDMI at 1080p up to a distance of 70m
  • Smart EDID function automatically limits EDID to within HDBaseT™ specification to improve compatibility#
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
  • Supports 12V-48V PoC from compatible Blustream HDBaseT™ receiver / matrix products
  • Bi-directional RS-232 pass-through
  • Supports IR pass-through to HDBaseT™ device
  • Compatible with all Blustream HDBaseT™ receiver / matrix products*
  • White magnetic faceplate surround allowing for both UK & EU backbox compatibility
  • HDCP 2.2 support

  *Technical performance is subject to the features supported on the connected HDBaseT™ device.

  Box Contents
  1 x HEX11WPW-TX
  1 x 12V/1A DC Power Supply
  1 x Magnetic Faceplate
  1 x Quick Reference Guide

• Feature	Specification
  Video Input Connectors	1 x HDMI Type A, 19-pin, female
  Video Output Connectors	1 x HDBaseT™ RJ45 connector
  RS-232 Serial Port	1 x 3-pin Phoenix connector
  IR Input Port	1 x 3-pin Phoenix connector
  Local Power Input	1 x 2-pin Phoenix connector
  Module Dimensions (W x H x D)	136mm x 76mm x 44mm (w/o faceplate)
  Faceplate Dimensions (W x H x D)	146mm x 86mm x 6mm
  Cut Out Dimensions (W x H x D)	87mm x 49mm x 39mm
  Mounting Hole Spacing	UK 121mm CTC, EU 60mm CTC
  Backbox Mounting Depth	40mm (min), 47mm (rec), UK/EU double gang
  Shipping Weight	1.0Kg
  Operating Temperature	32°F to 104°F (-5°C to +55°C)
  Storage Temperature	-4°F to 140°F (-25°C to +70°C)
  Power Supply	12V/1A DC

• Document	Link
  Datasheet	Downloads
