• BluStream HDMI Wall Plate HDBaseT™ Transmitter | HEX11WP-TX

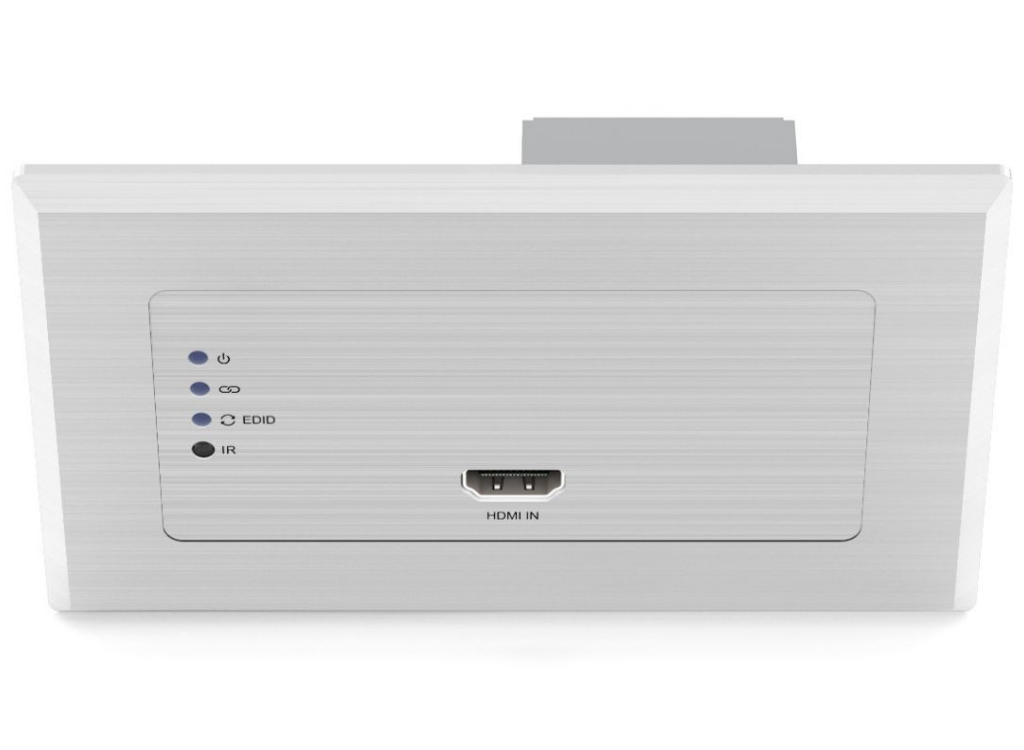

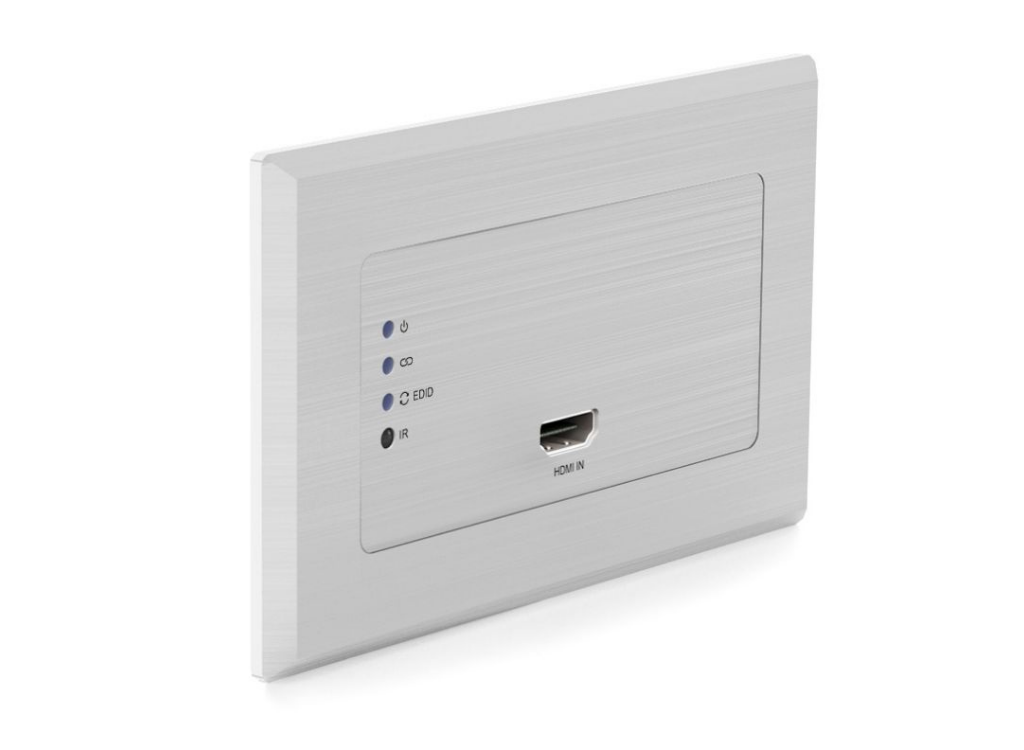

  Our HEX11WP-TX HDMI Wall Plate HDBaseT™ Transmitter is a 4K solution that extends HDMI up to 70m at 1080p (40m 4K 60Hz 4:2:0).

  The HEX11WP-TX has been designed to work with all Blustream HDBaseT™ receiver and matrix solutions, can be installed in both UK and European back boxes, and can be powered locally or from compatible Blustream HDBaseT™ products.


  Key Features
  Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
  Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
  Extends HDMI at 1080p up to a distance of 70m
  Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
  Supports 12V-48V PoC from compatible Blustream HDBaseT™ receiver / matrix products *
  Bi-directional RS-232 pass-through
  Supports IR pass-through to HDBaseT™ receiver / matrix device
  Compatible with all Blustream HDBaseT™ receiver / matrix products **
  Magnetic faceplate surround allowing both UK & EU backbox compatibility
  HDCP 2.2 support

  * When powering the HEX11WP-TX locally, PoC is not passed to a connected HDBaseT™ receiver device until there is an active source HDMI connection
  ** Technical performance is subject to the features supported on the connected HDBaseT™ device

  Box Contents
  1 x HEX11WP-TX
  1 x 12V/1A DC Power Supply
  1 x Magnetic Faceplate surround
  1 x Quick Reference Guide

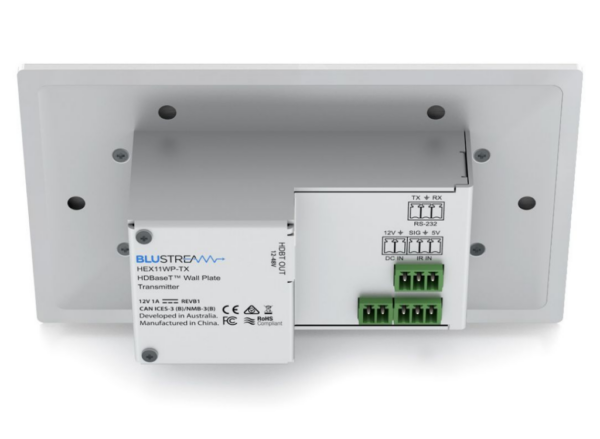

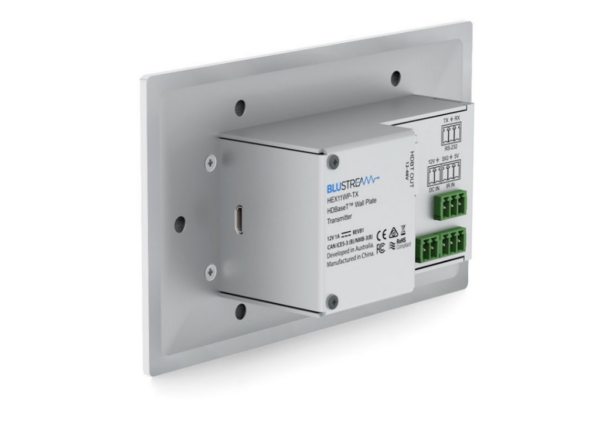

• Feature	Specification
  Video Input Connectors	1 x HDMI Type A, 19-pin, female
  Video Output Connectors	1 x HDBaseT™ RJ45 connector
  RS-232 Serial Port	1 x 3-Pin Phoenix connector
  IR Input Port	1 x 3-Pin Phoenix connector
  Local Power Input	1 x 2-Pin Phoenix connector
  Casing Dimensions (without faceplate)	136mm x 76mm x 44mm
  Casing Dimensions (with faceplate)	146mm x 86mm x 44mm
  Faceplate Dimensions	146mm x 86mm x 6mm
  Backbox House Unit Dimensions	78mm x 49mm x 39mm (inside backbox)
  UK / EU Backbox Mounting Depth	40mm (minimum) – backbox not supplied
  Shipping Weight	2.1kg
  Operating Temperature	32°F to 104°F (-5°C to +55°C)
  Storage Temperature	-4°F to 140°F (-25°C to +70°C)
  Power Supply	12V/1A DC
