• BluStream HDMI Over Coax Extender Set – 120m | CEX120B-KIT

  Our CEX120B-KIT HDMI™ extender set offers HDMI distribution over a single Coaxial cable.

  The product delivers HDMI & Bi-directional IR up to lengths of 120m @ 1080p.

  Key Features
  • Extends HDMI 1080p up to a distances of 120m over a single Coaxial cable
  • Supports the following video resolutions: 480i, 576i, 720p, 1080i and 1080p
  • Supports Bi-directional IR from input and output locations
  • Supports audio formats up to 7.1ch
  • Supplied with Blustream IR receiver and emitter
  • Requires local power at both transmitter and receiver
  • Smart EDID management
  • HDCP 1.4 compliant

  Box Contents
  1 x CEX120B-TX
  1 x CEX120B-RX
  2 x 5V/1.2A DC Power Supply
  1 x IR1 Emitter
  1 x IRR Receiver
  2 x Mounting Brackets
  2 x F-type to BNC Adaptor
  1 x User Manual

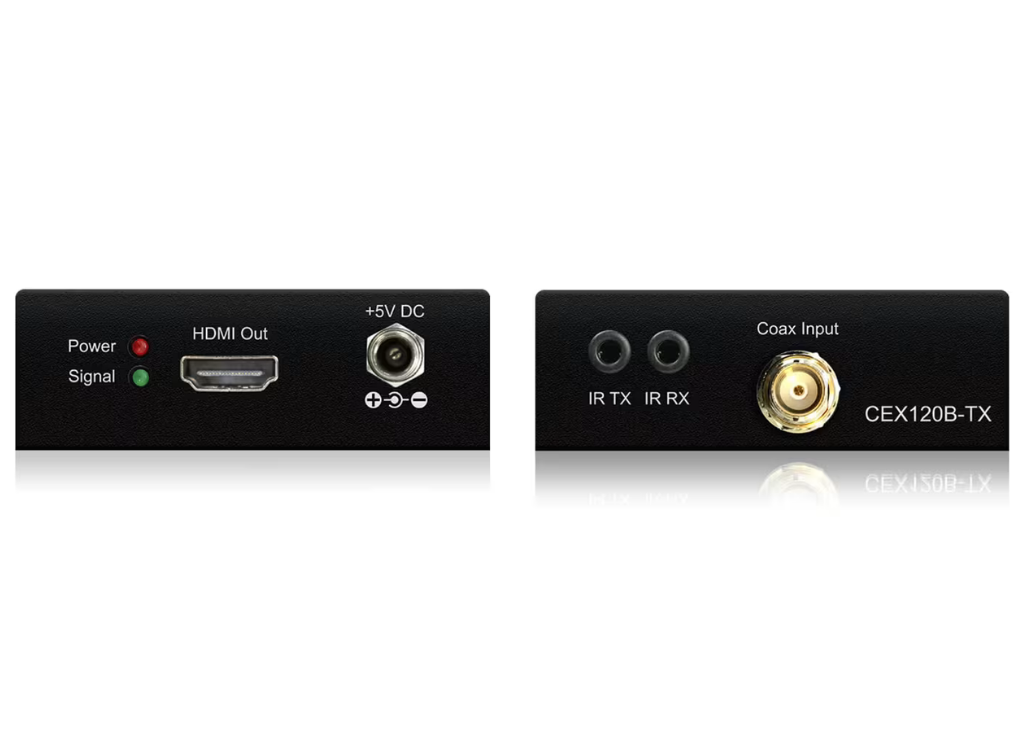

• Feature	CEX120B-TX	CEX120B-RX
  Video Input Connectors	1 x HDMI Type A	1 x BNC connector
  Video Output Connectors	1 x BNC connector	1 x HDMI Type A
  IR Input Ports	1 x 3.5mm stereo jack	1 x 3.5mm stereo jack
  IR Output Ports	1 x 3.5mm mono jack	1 x 3.5mm mono jack
  Dimensions (W x D x H)	79mm x 84mm x 28mm	79mm x 84mm x 28mm

  Additional Specifications
  Supported Video Resolutions	480i 30Hz, 576i 25Hz, 720p 50/60Hz, 1080i 25/30Hz, 1080p 24/30/60Hz
  Note	4K, 3D, and 480i/p Video not supported
  Supported Audio Resolutions	Dolby Digital (up to 7.1CH), DTS ES (up to 7.1CH), 2CH PCM
  Unit Weight	2 x 0.25kg
  Shipping Weight	1.1kg
  Operating Temperature	32°F to 104°F (0°C to 40°C)
  Storage Temperature	-4°F to 140°F (-20°C to 60°C)
