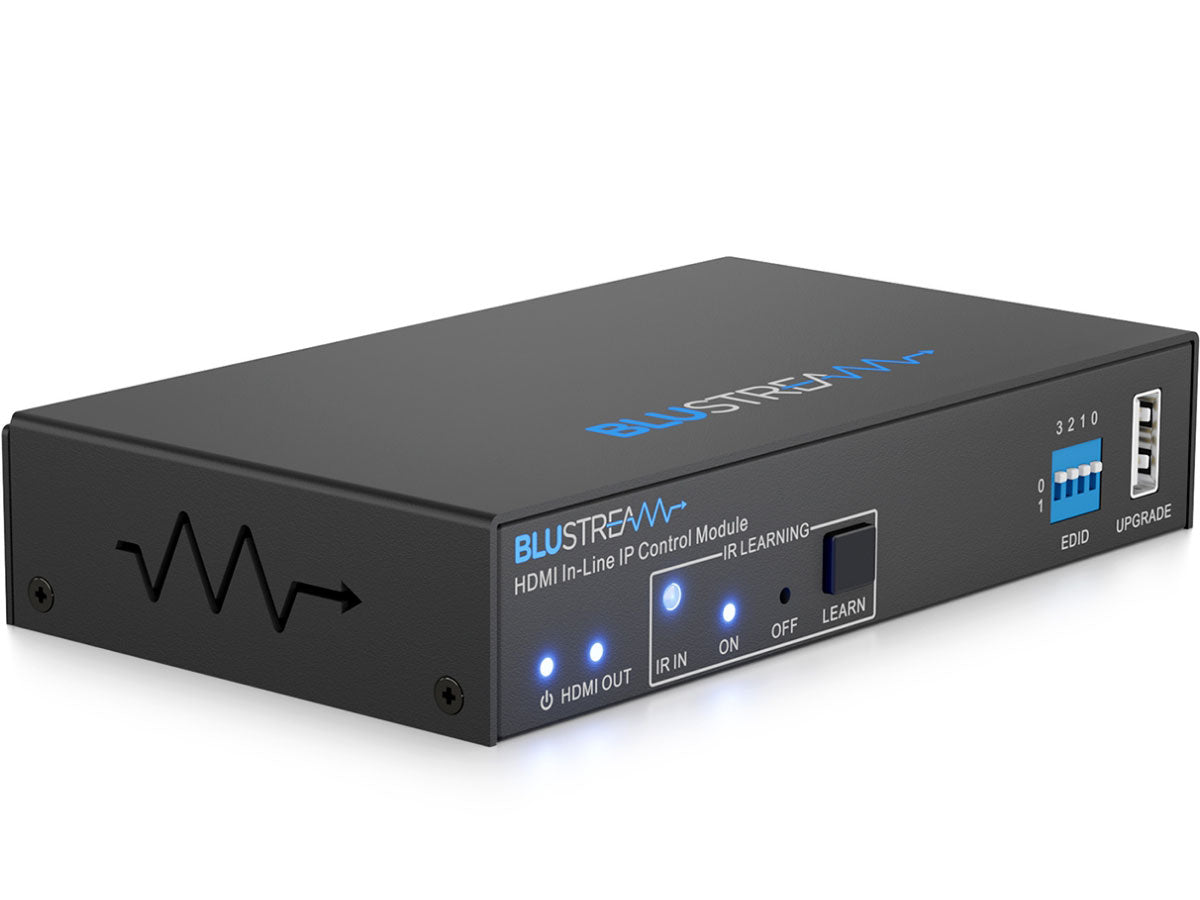

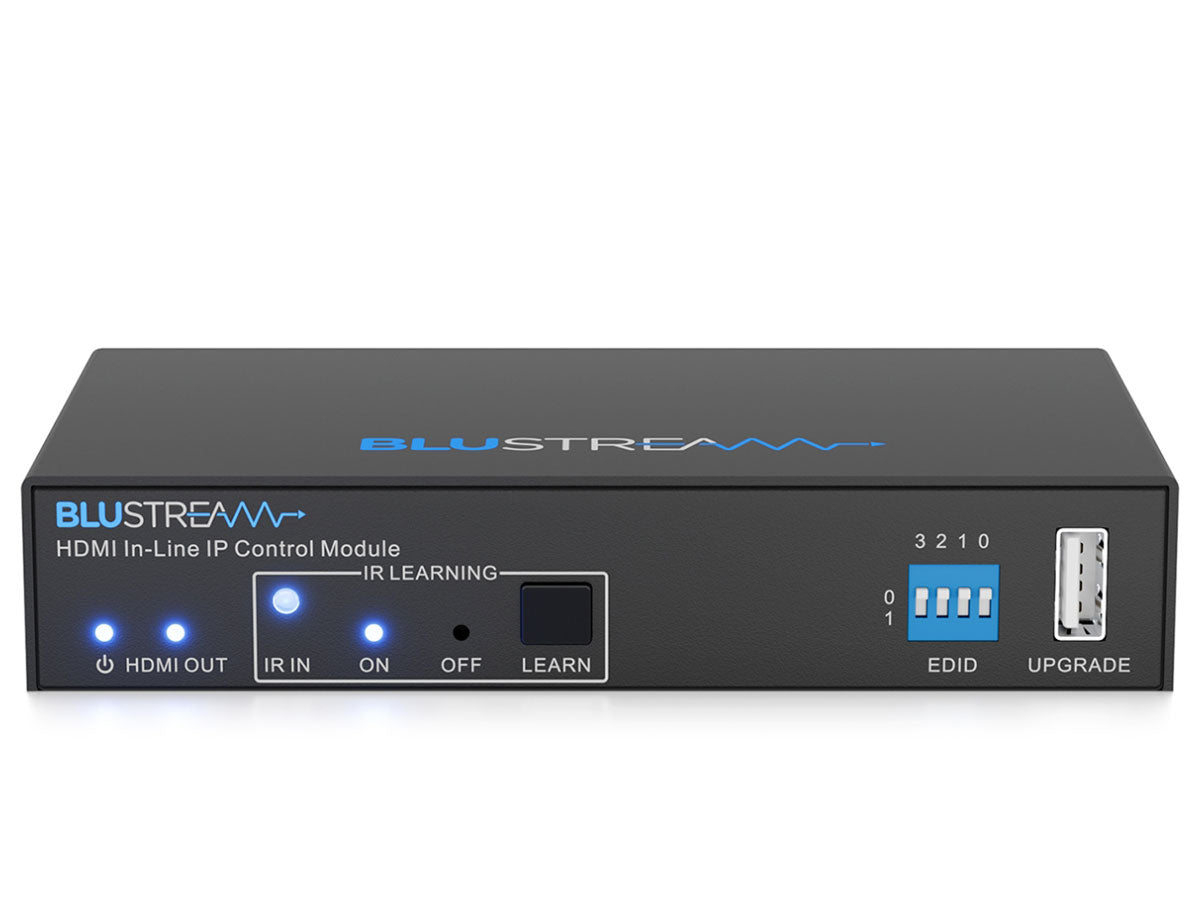

• BluStream HDMI In-line IP Control Module


  Our HD11CTRL-V2 HDMI in-line controller is a innovative single zone automated control solution. With multiple configuration options, this unit includes RS-232, IR or IP command triggers, display on / off control via CEC, and HDMI signal sensing. External relay inputs allow 3rd party triggers for integration with devices such as sensors or switches. The addition of a web-GUI allows for simple configuration and advanced management and distribution of 3rd party commands and automated processes.

  The HD11CTRL-V2 will also help with HDMI compatibility, HDCP 2.2, clock stretching, EDID and handshaking issues that can cause problems when distributing HDMI signals, especially 4K.

  The HD11CTRL-V2 supports full HDMI 2.0 and HDCP 2.2, with video resolutions up to and including 4K @ 60Hz 4:4:4.


  Features
  Automated in-line HDMI control module supporting up to 10 macros, with up to 10 command functions per macro
   Supports HDMI 2.0 18Gbps specification including HDR
   Supports resolutions up to 4K UHD 60Hz 4:4:4
   Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
   Features Smart-Scale technology to convert 4K input signal to 1080p output (Note: 4:2:2 colour space not supported)
   Can help to solve most HDMI EDID, HDCP, compatibility, and handshaking issues
   Automatic display control via CEC, RS-232, IR or IP
   IR learning up to 30 IR commands
   Relay control for interface to third party devices such as projector screens
   Signal sense input for connection from third party devices such as sensors or switches
   HDCP 2.2 compliant with advanced EDID management
   In-built web-GUI for configuration and control

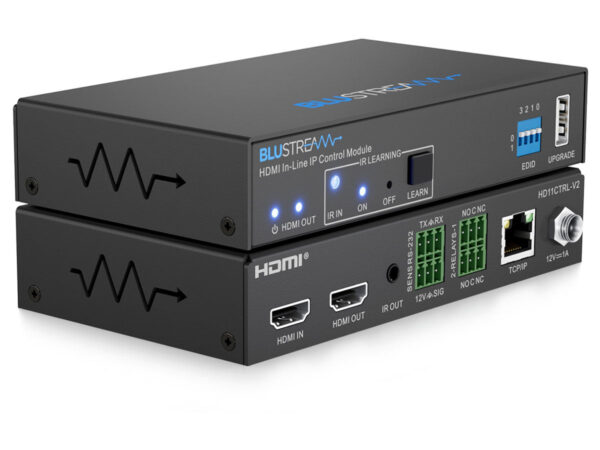

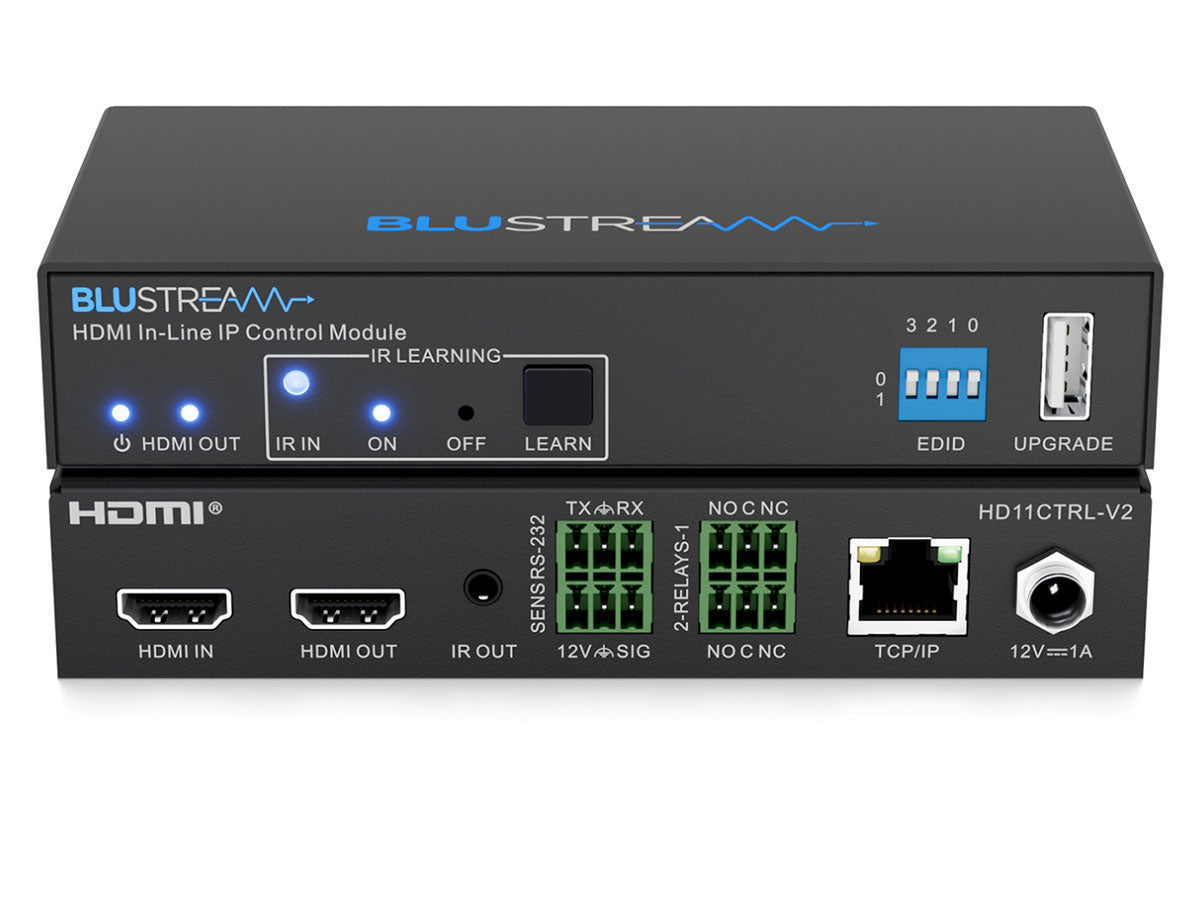

• Feature	Description
  Video Input	1 x HDMI Type A, 19-pin, female
  Video Output	1 x HDMI Type A, 19-pin, female
  RS-232 Serial Port	1 x 3-pin Phoenix connector
  TCP/IP Control Port	1 x RJ45, female
  IR Output Port	1 x 3.5mm mono jack
  Relay Control	2 x 3-pin Phoenix connector
  Sensor Input	1 x 3-pin Phoenix connector
  EDID Selection	4-pin DIP Switch
  Product Upgrade	1 x USB Type A, female
  Dimensions	145mm x 28mm x 84mm
  Shipping Weight	1.0kg
  Operating Temp.	32°F to 104°F (0°C to 40°C)
  Storage Temp.	-4°F to 140°F (-20°C to 60°C)
  Power Supply	12V/1A DC
