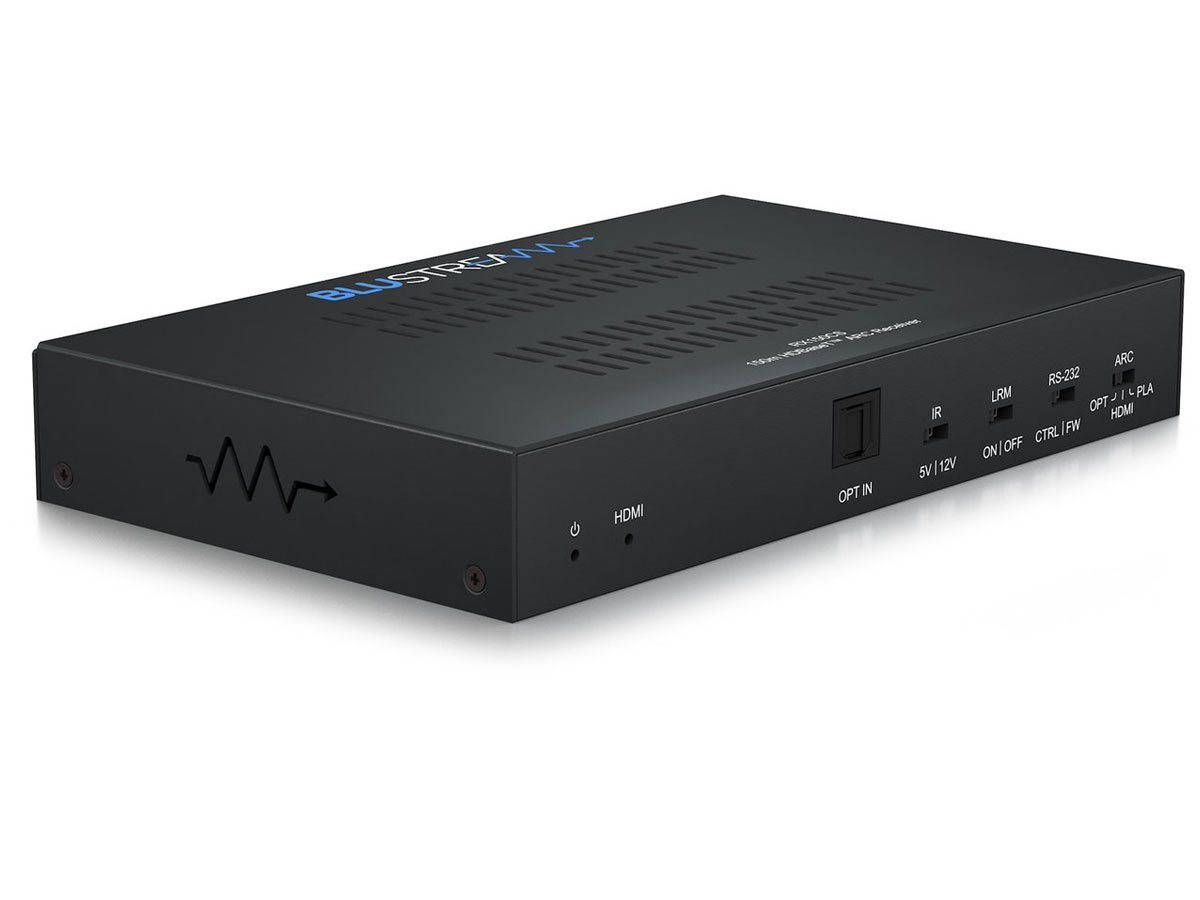

BluStream HDBaseT™ Long Range CSC Receiver – 150m
Our RX150CS HDMI 2.0 4K 60Hz 4:4:4 (18Gbps) HDCP 2.2 HDBaseT™ ARC Receiver offers market leading features and outstanding value utilising CSC technology.
The product extends HDMI, Bi-directional IR & RS-232 and is powered by the matrix up to lengths of 150m (4K 100m).
The RX150CS Receiver features ARC support and Ethernet pass through when used with compatible Blustream hardware and simultaneous analogue stereo and Optical Toslink audio breakout.
Features
Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
Advanced Colour Space Conversion (CSC) supports HDMI2.0 18Gbps specification including HDR
Supports 4K 60Hz 4:4:4 UHD video up to 100m
Extends HDMI 1080P video up to 150m (HDBaseT™ long-reach mode)
Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
Automatic downscaling of up to 4K 60Hz 4:4:4 video input to 1080p
Supports ARC (Audio Return Channel) from connected display via HDMI or Optical digital inputs (when used with compatible Blustream transmitter / matrix)
Bi-directional Ethernet pass through when used with compatible Blustream transmitter or matrix solution.
Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
Bi-directional RS-232 pass-through
Supports bi-directional IR pass-through to compatible HDBaseT™ device
Supports PoC (Power over Cable) from Blustream matrix or transmitter products
HDCP 2.2 support
Recommended receiver for the Blustream PLA88CS product. -
Specification Details Video Input Connectors 1x HDBaseT™ RJ45 connector Video Output Connectors 1x HDMI Type A, 19-pin, female Audio Input Connectors 1x Toslink (S/PDIF) Audio Output Connectors 1x Toslink (S/PDIF), 1x 3.5mm L/R Analogue audio RS-232 Serial Port 1x 3-Pin Phoenix connector Ethernet Port 1x RJ45 connector IR Input Ports 1x 3.5mm stereo jack IR Output Ports 1x 3.5mm mono jack Mounting Kit Included Yes Casing Dimensions (W x D x H) 164mm x 100mm x 25mm Shipping Weight (Kit) 0.5kg Operating Temperature 32°F to 104°F (-5°C to +55°C) Storage Temperature -4°F to 140°F (-25°C to +70°C) Power Supply 1x 24V/1.25A DC -
