• BluStream HDBaseT™ ARC Extender Set – 70m | HEX70ARC-KIT

  The HEX70ARC-KIT 4K HDBaseT™ ARC extender set offers market leading features for the custom installation industry.

  The product delivers HDMI, ARC, Optical Audio Return, Bi-directional IR and Bi-directional PoC (Power over Cable) up to lengths of 70m (40m at 4K 60Hz 4:2:0).

  Key Features
  • Advanced HDBaseT™ technology offering uncompressed video and audio with zero latency
  • Extends HDMI 1080p up to a distance of 70m over a single CAT cable
  • Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Supports ARC (Audio Return Channel) from connected display via HDMI ARC or optical digital input
  • Features 1 x HDMI loop-out on HEX70ARC-TX for integrating local displays or cascading to multiple devices
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission (TX to RX)
  • Bi-directional IR pass-through
  • Supplied with Blustream IR receiver and emitter
  • Supports bi-directional PoC (Power over Cable) to power extenders from either transmitter or receiver end
  • HDCP 2.2 compliant with smart EDID management

  *Please note: Optical and L/R audio breakout on the HEX70ARC-TX are for audio return channel use only. HDMI source audio cannot be broken out from these connections.

  Box Contents
  1 x HEX70ARC-TX
  1 x HEX70ARC-RX
  1 x 24V/1.25A DC Power Supply
  1 x IR Emitter
  1 x IR Receiver
  2 x Mounting Bracket Sets
  1 x Quick Reference Guide

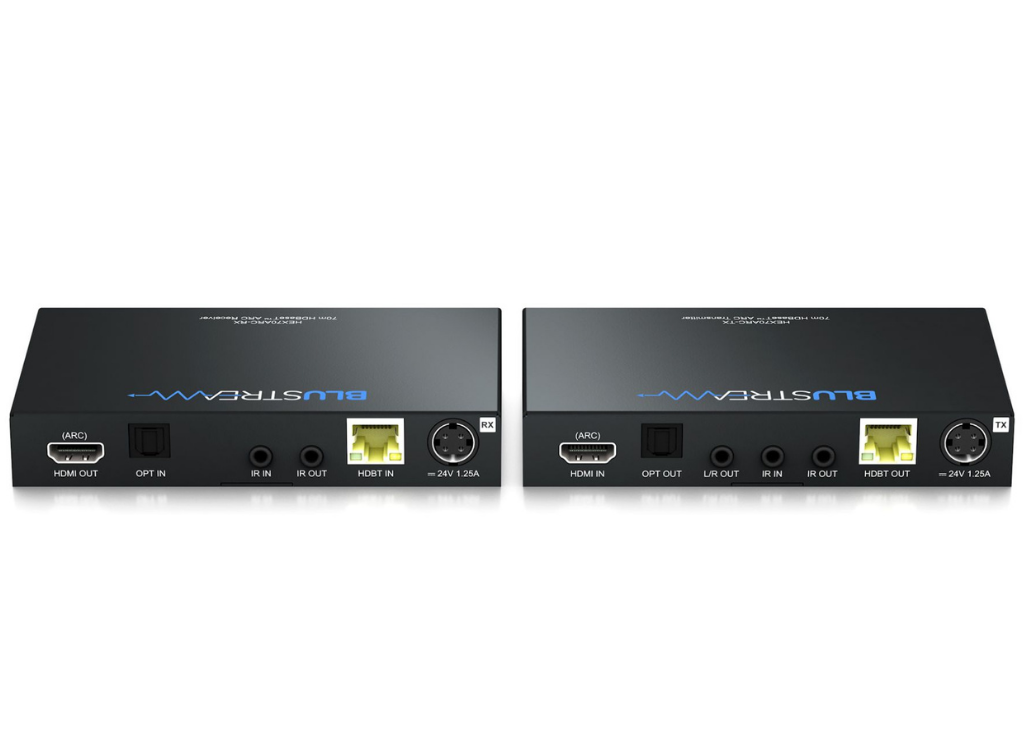

• Feature	HEX70ARC-TX	HEX70ARC-RX
  Video Input Connectors	1 x HDMI Type A, female	1 x HDBaseT™ RJ45 connector
  Video Output Connectors	1 x HDBaseT™ RJ45 connector, 1 x HDMI Type A, female	1 x HDMI Type A, female
  Audio Output Ports	1 x Optical (S/PDIF), 1 x 3.5mm L/R analogue audio (audio return only)	N/A
  Audio Input Port	N/A	1 x Optical (S/PDIF)
  IR Input Port	1 x 3.5mm stereo jack	1 x 3.5mm stereo jack
  IR Output Port	1 x 3.5mm mono jack	1 x 3.5mm mono jack
  Product Upgrade	1 x Micro-USB, female	1 x Micro-USB, female
  Casing Dimensions (W x D x H)	135 x 84 x 21mm	135 x 84 x 21mm
  Power Supply	1 x 24V/1.25A DC, 4-pin DIN connector	1 x 24V/1.25A DC, 4-pin DIN connector
  Box Dimensions (W x D x H)	248 x 151 x 103mm	248 x 151 x 103mm
  Shipping Weight	1kg	1kg
  Operating Temperature	32°F to 104°F (-5°C to +55°C)	32°F to 104°F (-5°C to +55°C)
  Storage Temperature	-4°F to 140°F (-25°C to +70°C)	-4°F to 140°F (-25°C to +70°C)
