• BluStream HD11AU HDMI Audio Embedder / De-Embedder

  Our HD11AU is the perfect solution for either de-embedding or embedding audio within the HDMI signal path.

  This solution allows you to breakout up to 7.1ch audio signals. Connect the HD11AU between your source and display via HDMI, then select the whether to embed or de-embed audio as required.

  Key Features
  • Can be configured to work as either a HDMI audio de-embedder or audio embedder
  • HDMI audio de-embedded to both analogue L/R audio and coaxial digital outputs concurrently
  • Extract audio and embed analogue L/R audio input onto the HDMI output
  • Extract audio with or without a connected display – acts as an end-sink
  • Supports 4K UHD video (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission*
  • Supports CEC bypass (Consumer Electronics Control)
  • Advanced EDID management allows for hand-shaking issues between HDMI equipment to be resolved when used as a repeater
  • HDCP 1.4 compliant


  Box Contents
  1 x HD11AU
  1 x 5V/1A DC Power Supply
  1 x Mounting Kit
  1 x User Manual

• Category	Details

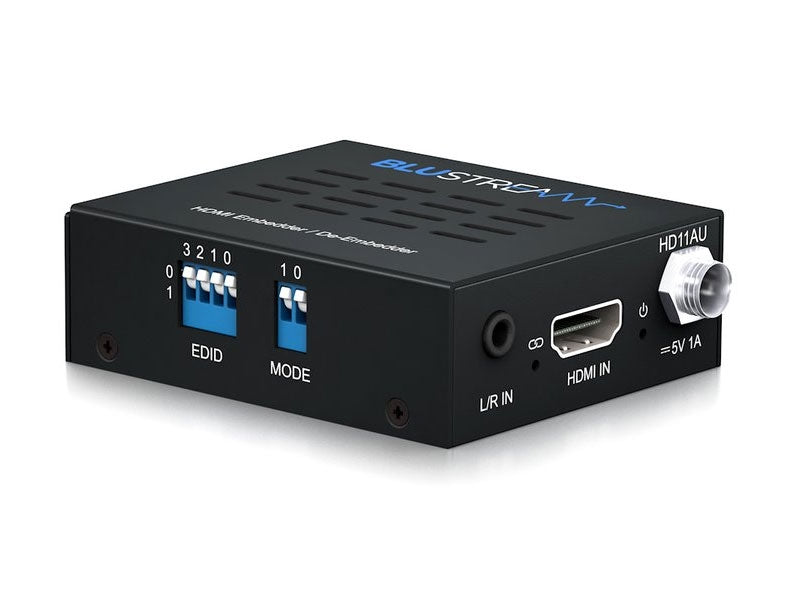

  Audio Input Connectors	1 x Analogue Left / Right audio (3.5mm stereo jack)

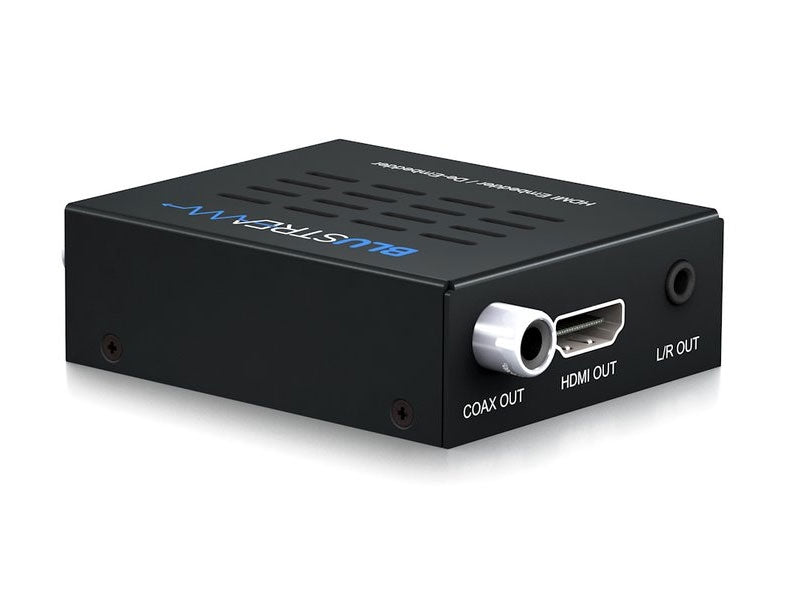

  Audio Output Connectors	1 x RCA (S/PDIF) & 1 x Analogue Left / Right audio (3.5mm)
  Video Input Connectors	1 x HDMI Type A
  Video Output Connectors	1 x HDMI Type A
  Product Dimensions (with connections)	60 x 80 x 25mm
  Product Dimensions (without connections)	60 x 70 x 25mm
  Product Weight	0.15kg (excluding accessories)
  Carton / Box Dimensions	165 x 115 x 85mm
  Shipping Weight	0.5kg
  Operating Temperature	32°F to 104°F (0°C to 40°C)
  Storage Temperature	-4°F to 140°F (-20°C to 60°C)
  Power Supply	5V/1A DC, screw type connector
  Mounting Kit	Included
  Additional Note	Embedded HDMI 5.1ch PCM transmission not supported via coax audio
