• BluStream eARC/ARC Over CAT | CAT100EARC

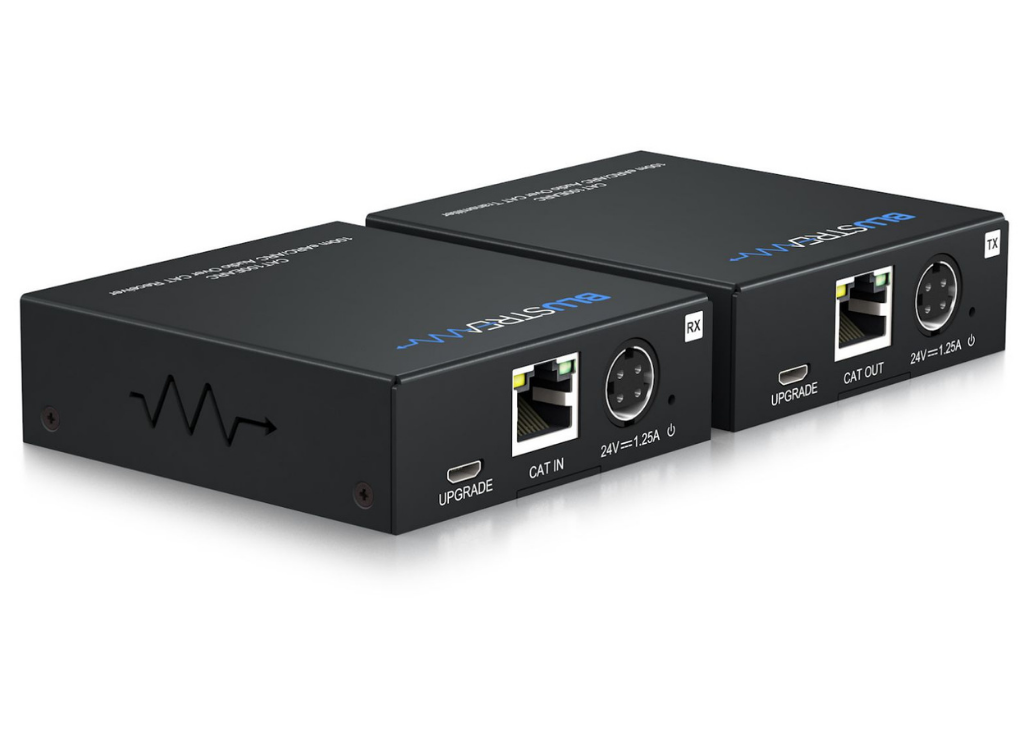

  Our CAT100EARC Audio over CAT cable extender transmits HDMI eARC/ARC or optical digital audio signals up to a distance of 200m (eARC/ARC signals up to 100m).

  This plug and play device supports CEC pass-through when HDMI eARC/ARC audio is selected and features a built in DAC to convert either of the inputs to a stereo left / right audio output.

  Key Features
  • Extend either eARC/ARC or optical digital audio signals over a single CAT cable*

  • CAT100EARC supports eARC/ARC distribution distances of up to 100m

  • CAT100EARC supports Optical audio distribution distances of up to 200m

  • Built in DAC (Digital to Analogue audio Converter) converts either HDMI eARC/ARC or optical digital to analogue stereo left/right audio output (2ch PCM only)*

  • Supports CEC pass-through when HDMI eARC/ARC mode selected

  • Supports the following audio formats:
     –  eARC: PCM 2.0/5.1/7.1ch, Dolby Digital Plus, DTS, Dolby TrueHD, DTS-HD MA, Dolby Atmos
     –  ARC: PCM 2.0ch, Dolby 5.1ch, DTS 5.1ch
     –  Optical: PCM 2.0ch, Dolby 5.1ch, DTS 5.1ch

  • Bi-directional PoC (Power over Cable) to power extenders from either the transmitter or receiver

  *Selection between HDMI eARC/ARC or Optical digital audio via dipswitch on the TX

  Box Contents
  1 x CAT100EARC-TX
  1 x CAT100EARC-RX
  1 x 24V/1.25A DC power supply
  1 x Mounting kit
  1 x Quick Reference Guide

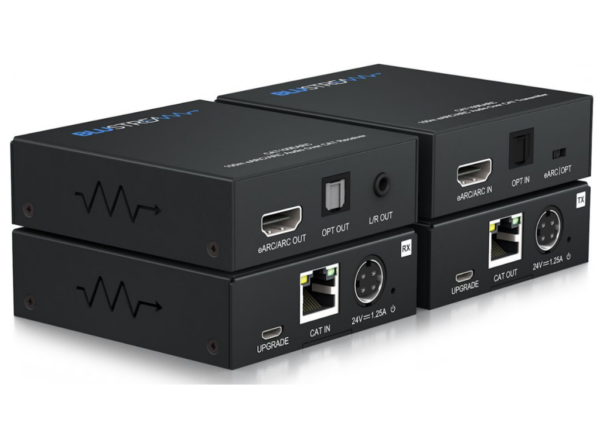

• Feature	CAT100EARC-TX	CAT100EARC-RX
  Audio Input Connectors	1x Optical (S/PDIF), 1x HDMI Type A	N/A
  Input Connectors	N/A	1x RJ45, 5V/1A DC
  Output Connectors	1x RJ45	1x Optical (S/PDIF), 1x HDMI Type A, 1x Analogue L/R (3.5mm)
  Firmware Upgrade	1x Micro-USB	1x Micro-USB
  Dimensions (W x H x D)	74mm x 80mm x 24mm	74mm x 80mm x 24mm
  Shipping Weight	0.7kg	0.7kg
  Operating Temperature	32°F to 104°F (-5°C to +55°C)	32°F to 104°F (-5°C to +55°C)
  Storage Temperature	-4°F to 140°F (-25°C to +70°C)	-4°F to 140°F (-25°C to +70°C)
  Power Supply	24V/1.25A DC	24V/1.25A DC
