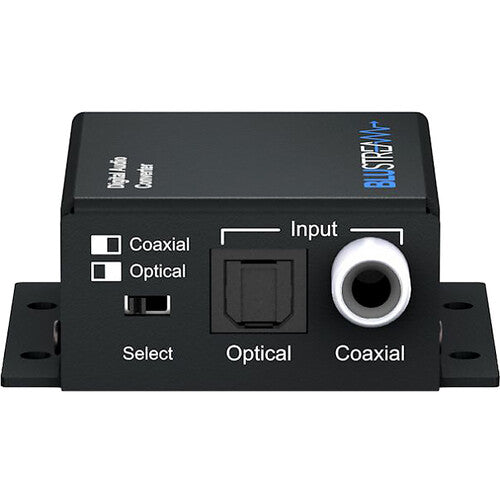

BluStream DIG11AU Digital Audio Converter

• Description
• Specifications
• Downloads

• BluStream DIG11AU Digital Audio Converter

  Our DIG11AU is designed to convert digital audio signals from coaxial or optical inputs.

  The outputs are simultaneous so audio can be distributed to multiple locations.

  The DIG11AU supports 192kHz sample rates for enhanced sound reproduction.


  Key Features
  • Converts digital audio formats (optical to optical and coax, or, coax to optical or coax)
  • Both optical and coaxial digital outputs work concurrently regardless of input type selected
  • Supports sample rates 32kHz, 44.1kHz, 48kHz, 96kHz & 192kHz up to 24-bit resolution
  • Plug-and-play solution

  Box Contents
  1 x DIG11AU
  1 x 5V/1A DC Power Supply
  1 x User Manual

• Specification	Details
  Audio Input Connectors	1 x Optical (SPDIF), 1 x Coax RCA (S/PDIF)
  Output Connectors	1 x Optical (SPDIF), 1 x Coax RCA (S/PDIF)
  Product Dimensions (with)	65 x 60 x 25mm
  Product Dimensions (without)	50 x 45 x 25mm
  Product Weight	0.1kg (excluding accessories)
  Carton / Box Dimensions	165 x 110 x 85mm
  Shipping Weight	0.3kg
  Operating Temperature	32°F to 104°F (0°C to 40°C)
  Storage Temperature	-4°F to 140°F (-20°C to 60°C)
  Power Supply	5V/1A DC, barrel type connector
  Wall Mounting Wings	Included
