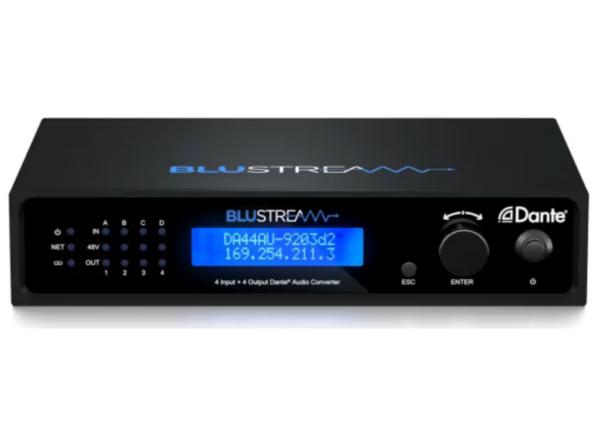

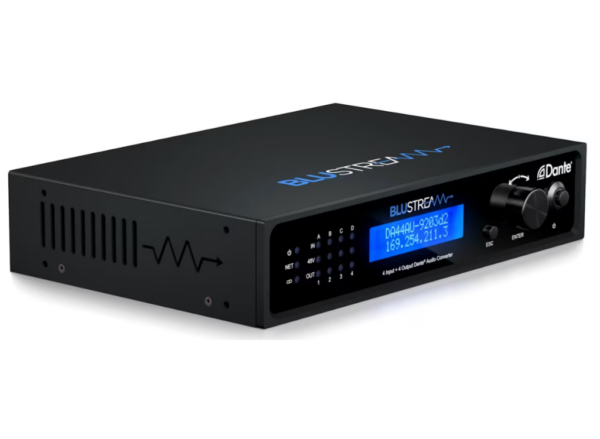

BluStream DA44AU 4×4 Dante® Digital Audio Converter

• Description
• Specifications
• Downloads

• BluStream DA44AU 4×4 Dante® Digital Audio Converter

  Our DA44AU is a four input / four output Dante® digital audio converter.

  The DA44AU allows any non-Dante® audio source such as mixing consoles, amplifiers, computers and Blustream Matrix / distribution products to be connected as an audio source within a Dante® network, as well as converting a Dante® signal back to an analogue audio signal.

  The DA44AU supports both balanced and unbalanced audio as well as microphone line level inputs inc. 48V phantom power. The DA44AU supports AES67 RTP audio transport.


  Key Features
  • Features 4 x analogue audio inputs that are converted to a Dante® compatible signal
  • Features conversion of 4 x Dante® signals to analogue audio outputs
  • Analogue audio inputs support both balanced and unbalanced audio + MIC line level signals
  • MIC line level supports 48V phantom power
  • Supports 44.1, 48 & 96kHz sample rates @ 24-bit
  • Configurable Dante® device latency (supports 1, 2 or 5ms configurable using Dante® Controller)
  • Independent input gain settings per channel
  • Supports AES67 RTP audio transport

  Box Contents
  1 x DA44AU
  1 x 12V/1A DC Power Supply
  1 x Mounting Kit
  1 x Quick Reference Guide

• Feature	Specification
  Audio Input Connectors	12-pin Phoenix (4ch balanced/unbalanced, audio/MIC)
  Audio Output Connectors	2 x RJ45, female (1Gb Dante® network), 12-pin Phoenix (4ch balanced/unbalanced, audio/MIC)
  Casing Dimensions (W x D x H)	215mm x 145mm x 44mm (without feet)
  Operating Temperature	32°F to 104°F (-5°C to +55°C)
  Storage Temperature	-4°F to 140°F (-25°C to +70°C)
  Power Supply	12V/1A DC

• Item	Link
  Manual	Downloads
  Datasheet	Downloads
