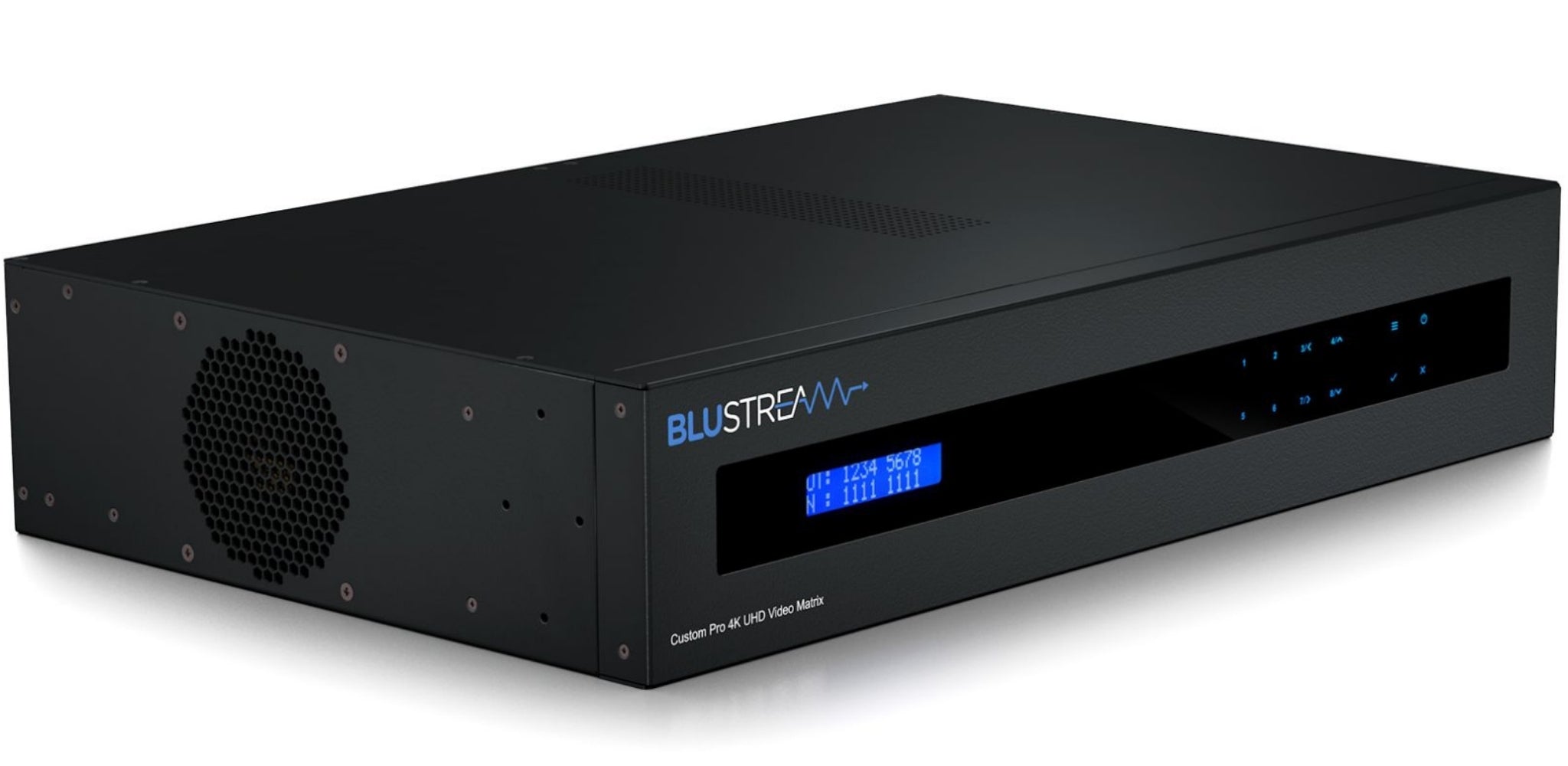

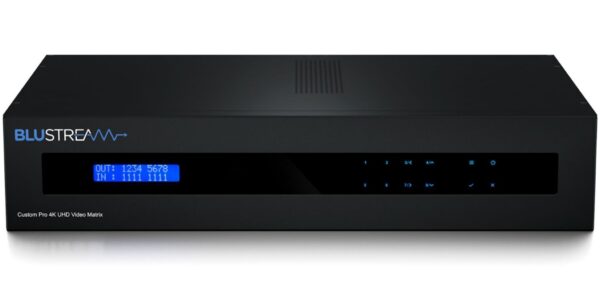

• BluStream Custom Pro 8×8 HDBaseT™ CSC Matrix – 70m | PRO88HBT70CS


  Our 70m Custom Pro 8×8 HDBaseT™ CSC Matrix offers unprecedented 4K HDR performance for the custom installation market.
  The PRO88HBT70CS is a HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 Matrix utilising CSC technology to deliver HDMI, Bi-directional IR, PoC up to lengths of 70m over a single CAT cable (4K HDR up to 40m) with independent down-scaling of 4K video inputs on the CSC HDBaseT™ outputs to allow displays only capable of supporting lower video resolutions to receive 4K video while still showing maximum original 4K UHD resolution on the higher-definition displays.
  The Matrix also provides advanced features including 8 x simultaneous HDMI outputs, audio breakout with line level pre amp volume control and a web browser interface module for control and configuration of the matrix.


  Key Features
   HDBaseT™ technology offering distribution of video and audio over a single CAT cable
   Advanced Colour Space Conversion (CSC) supports HDMI2.0 18Gbps specification including HDR
   Features 8 x HDMI inputs which can be independently routed to 8 x HDBaseT™ outputs
   Supports 4K 60Hz 4:4:4 UHD video up to 40m
   Independent down-scaling of resolutions up to 4K 60Hz 4:4:4 video input to the following formats:
      1080p 60Hz (for screens that do not support 4K)
      4K 60Hz 4:2:0 (for screens that do not support full 4K 60Hz 4:4:4)
   Supports 4K with HDR
   Extends HDMI 1080p video up to 70m
   4 x Simultaneous HDMI Outputs
   Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K HDR
   Supports all known digital HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio and DTS:X transmissions
   8 x simultaneous coaxial digital and variable line-level analogue L/R audio outputs
   Analogue audio input can be embedded onto any HDMI input
   Web interface module for control and configuration of matrix
   Supports bi-directional IR
   Supplied with Blustream IR receivers and emitters
   Control via front panel, IR, RS-232 and TCP/IP
   Supports PoC (Power over Cable) to power compatible HDBaseT™ receivers
   3rd Party drivers available for major control brands
   2U Design for 19″ rack mount integration – Mounting kit included
   Advanced EDID management
   HDCP 2.2 compliant
   To be used with the HEX70CS-RX receivers

  Box Contents
  1 x Custom Pro Hub Matrix
  2 x PRO-IN4HAB
  1 x PRO-8ABV
  1 x PRO-8IR-V2
  1 x PRO-OUT4TLS-V2
  1 x PRO-OUT4TL
  1 x 24V/8A Power Supply
  1 x Remote Control
  1 x Rack Mounting Kit
  1 x Quick Reference Guide

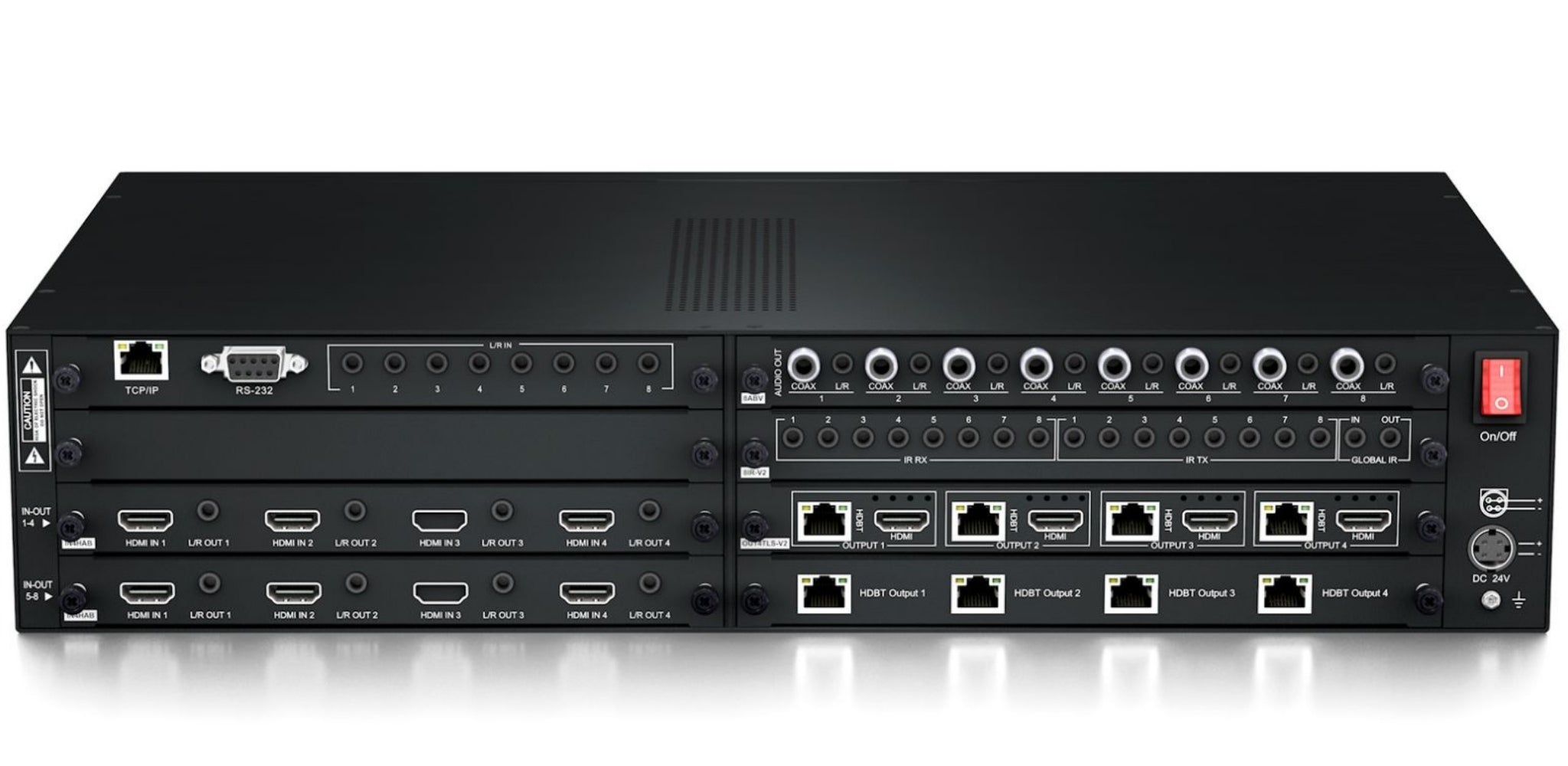

• Specification	Details
  Video Input Connectors	8 x HDMI Type A, 19-pin, female
  Video Output Connectors	8 x HDBaseT™ RJ45, 4 x HDMI Type A
  Audio Input Connectors	8 x 3.5mm stereo jack (L/R)
  TCP/IP Control	RJ45, female
  Ethernet / Network	RJ45, female
  IR Input Ports	9 x 3.5mm stereo jack
  RS-232 Serial Port	DB-9, female
  Rack Mountable	2U rack height, rack ears included
  Casing Dimensions (W x H x D)	440mm x 87mm x 282mm (without feet)
  Dimensions Including Connections	440mm x 94mm x 288mm (with feet)
  Shipping Weight	5kg
  Operating Temperature	32°F to 104°F (0°C to 40°C)
  Storage Temperature	-4°F to 140°F (-20°C to 60°C)
  Power Supply	24V/8A DC
