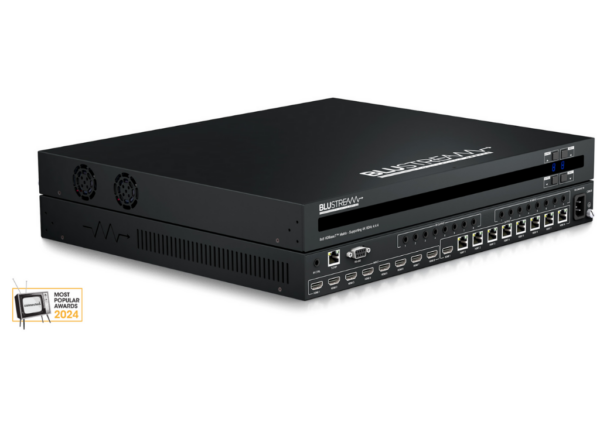

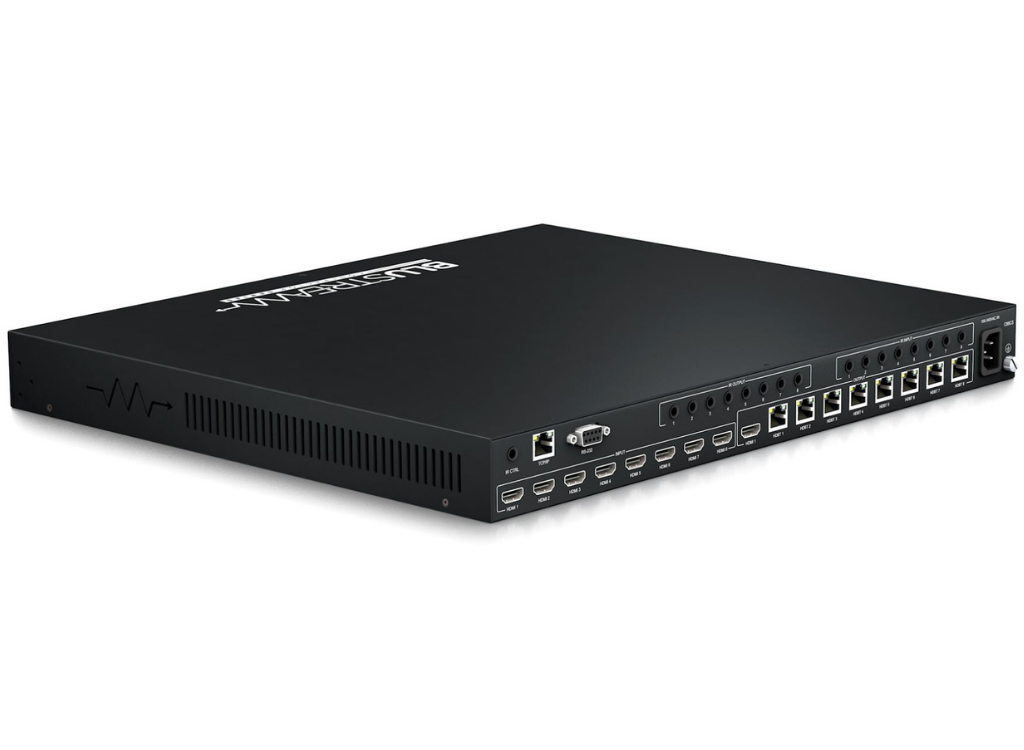

• BluStream Contractor 8×8 HDBaseT™ CSC Matrix – 70m | C88CS

  Our Contractor 8×8 HDBaseT™ Matrix offers unprecedented performance and value for the custom installation market.

  The C88CS is a HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 Matrix utilising CSC technology* to deliver HDMI, Bi-directional IR and PoC up to lengths of 40m over a single CAT cable (1080p to 70m).

  The Matrix also provides advanced features including simultaneous HDBaseT™ / HDMI on output 1, video down conversion on HDBaseT™ outputs, and a web browser interface module for control and configuration of the matrix.


  Key Features
  • Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
  • Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR*
  • Features 8 x HDMI inputs which can be independently routed to 8 x HDBaseT™ outputs
  • Output 1 features simultaneous HDMI and HDBaseT™ output
  • Video down-conversion on HDBaseT™ outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining video outputs
  • Supports 4K 60Hz 4:4:4 UHD video up to 40m
  • Extends HDMI 1080p video up to 70m
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
  • Web interface module for control and configuration of matrix
  • Supports bi-directional IR on all HDBaseT™ outputs
  • Control via front panel, IR, RS-232 and TCP/IP
  • Supports PoC (Power over Cable) to power compatible HDBaseT™ receivers (RX70CS recommended)
  • Supplied with Blustream IR receivers and emitters
  • 3rd party drivers available for major control brands
  • 1U Design for 19″ rack mount integration – mounting kit included
  • Advanced EDID management
  • HDCP 2.2 compliant
  • Recommended receiver: RX70CS (where 18Gbps CSC support is required)

  *For 18Gbps CSC support use RX70CS receivers

  Box Contents
  1 x C88CS
  1 x Rack Mounting Kit
  1 x Remote Control
  8 x IR Emitters
  9 x IR Receivers
  1 x RS-232 Control Cable
  1 x IR Control Cable – 3.5mm-3.5mm Cable
  1 x Quick Reference Guide
  Power Cable(s)

• Feature	Specification

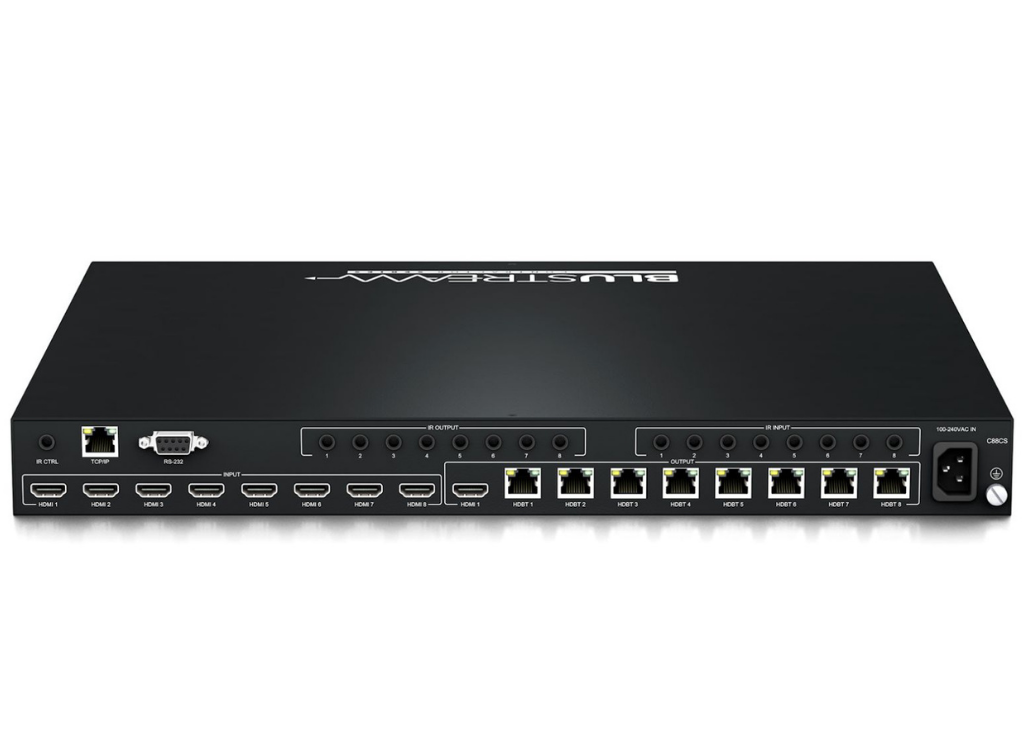

  Video Input Connectors	8 x HDMI Type A, 19-pin, female
  Video Output Connectors	1 x HDMI Type A, 19-pin, female; 8 x HDBaseT™ RJ45 connector
  RS-232 Serial Port	1 x DB9 Serial connector
  TCP/IP Control	1 x RJ45, female
  IR Input Ports	9 x 3.5mm stereo jack
  IR Output Ports	8 x 3.5mm mono jack
  Rack Mountable	1U rack height, rack ears included
  Case Dimensions (without feet & connections)	437mm x 377mm x 44mm
  Case Dimensions (with feet & connections)	437mm x 384mm x 53mm
  Shipping Weight	6.25kg
  Operating Temperature	32°F to 104°F (-5°C to +55°C)
  Storage Temperature	-4°F to 140°F (-25°C to +70°C)
  Power Supply	Internal 100-240V AC
