• BluStream Analogue XLR Audio to Dante® Encoder | DA11XLR

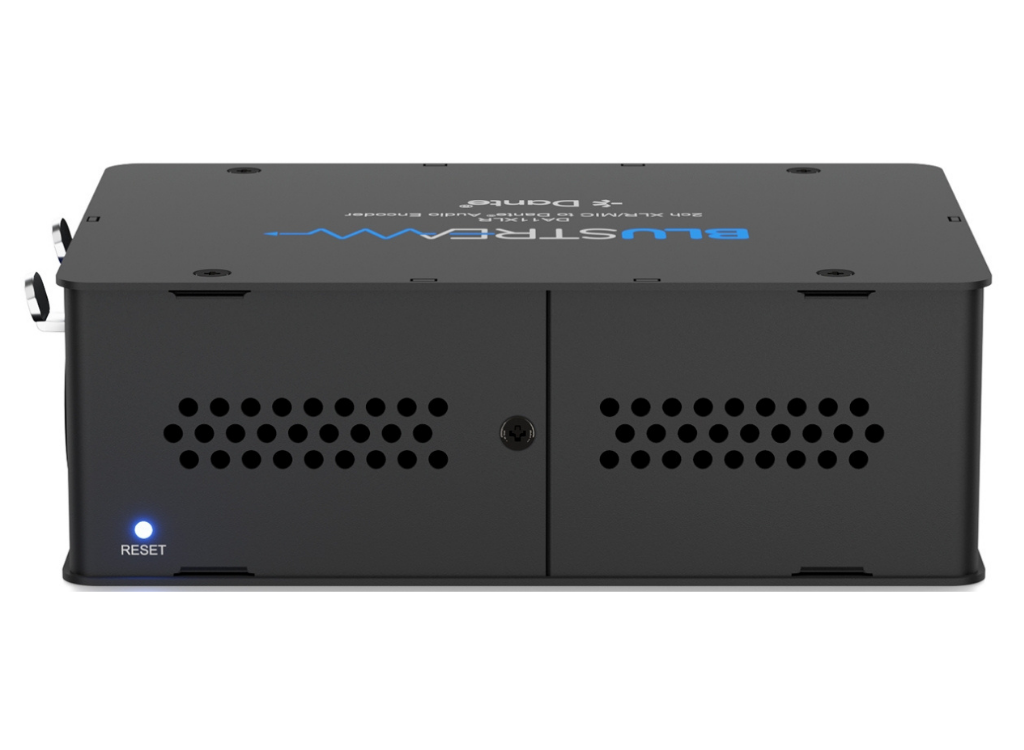

  The DA11XLR is a multi-input XLR to Dante® networked audio system. The DA11XLR converts 2 input channels of balanced / unbalanced / MIC audio with switchable 48V Phantom power to Dante® digital audio.

  The DA11XLR is a plug & play device that is powered using PoE (Power over Ethernet), or via 12V power supply, offers support for AES67 RTP audio transport.

  Key Features
  • Dante® network interface for 2 x XLR audio inputs
  • Converts 2 x balanced / unbalanced / MIC audio sources to Dante® audio channels
  • Switchable 48V Phantom power for each MIC XLR input
  • Adjustable MIC / line sensitivity from +24dBu to -28dBV for each XLR input
  • Supports: 44.1, 48, 88.2 & 96 KHz sample rates @ 16, 24 & 32 Bit
  • Configurable Dante® device latency (supports 2, 3, 4, 5 or 10ms configurable using Dante® Controller)
  • Supports AES67 RTP audio transport
  • Features Class 0 802.3af PoE for powering of product from any PoE switch
  • Local 12V power supply input for when network switch does not support PoE*

  * PS121PH power supply sold separately

  Box Contents
  1 x DA11XLR
  1 x Quick Reference Guide

• Feature	Specification
  Casing Dimensions	120mm x 84mm x 40mm
  Shipping Weight	0.3 kg
  Operating Temperature	32°F to 104°F (0°C to 40°C)
  Storage Temperature	-4°F to 140°F (-20°C to 60°C)

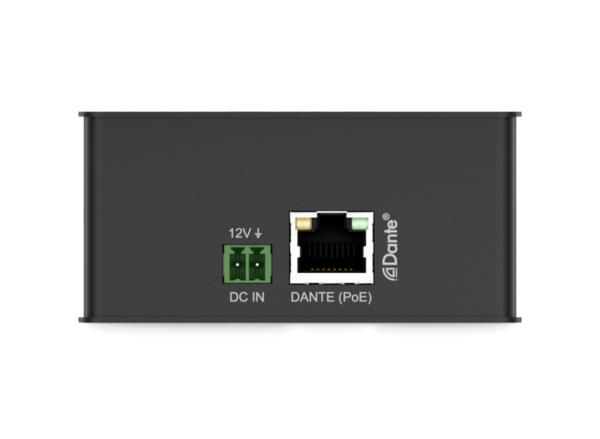

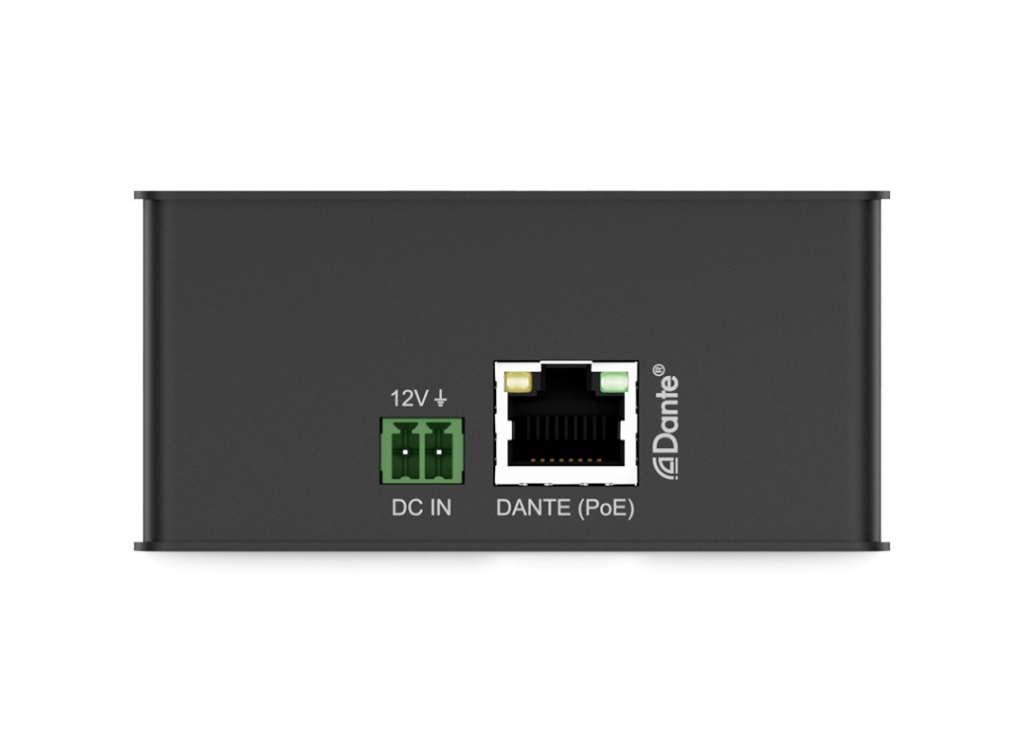

  Power Supply	Class 0 IEEE 802.3af PoE PD or 12V/1A DC 2-Pin Phoenix connector

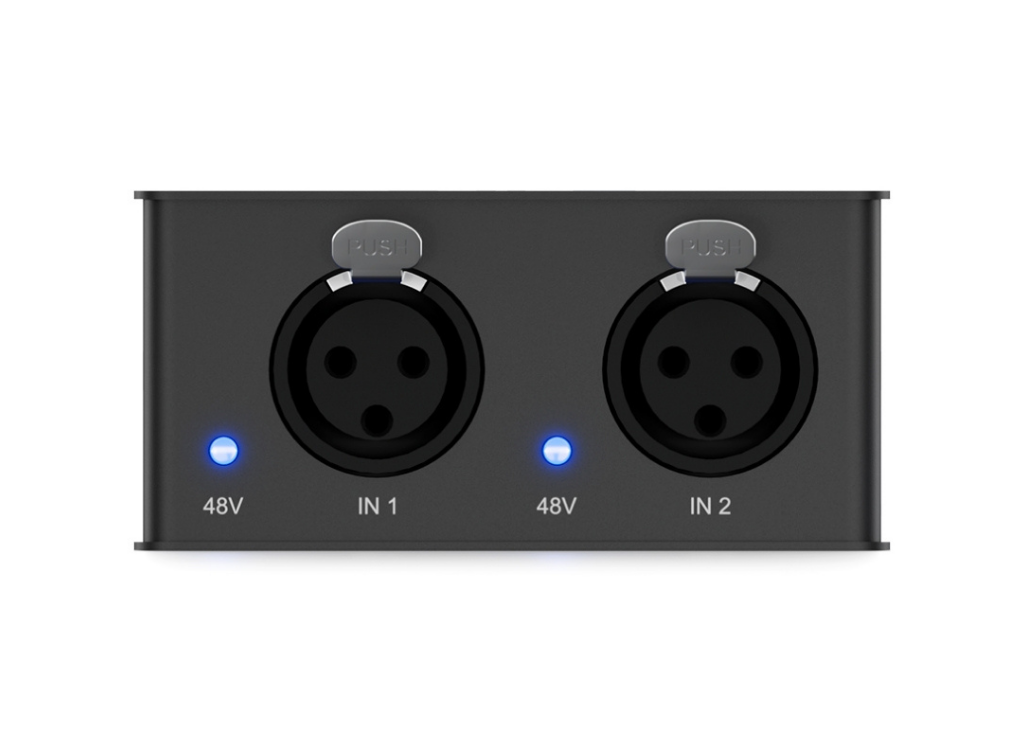

  Audio Input Connectors	2 x Analogue Balanced/Unbalanced 3-Pin XLR connector
  Audio Output Connector	1 x RJ45, female (100 Mbps Dante® network)
