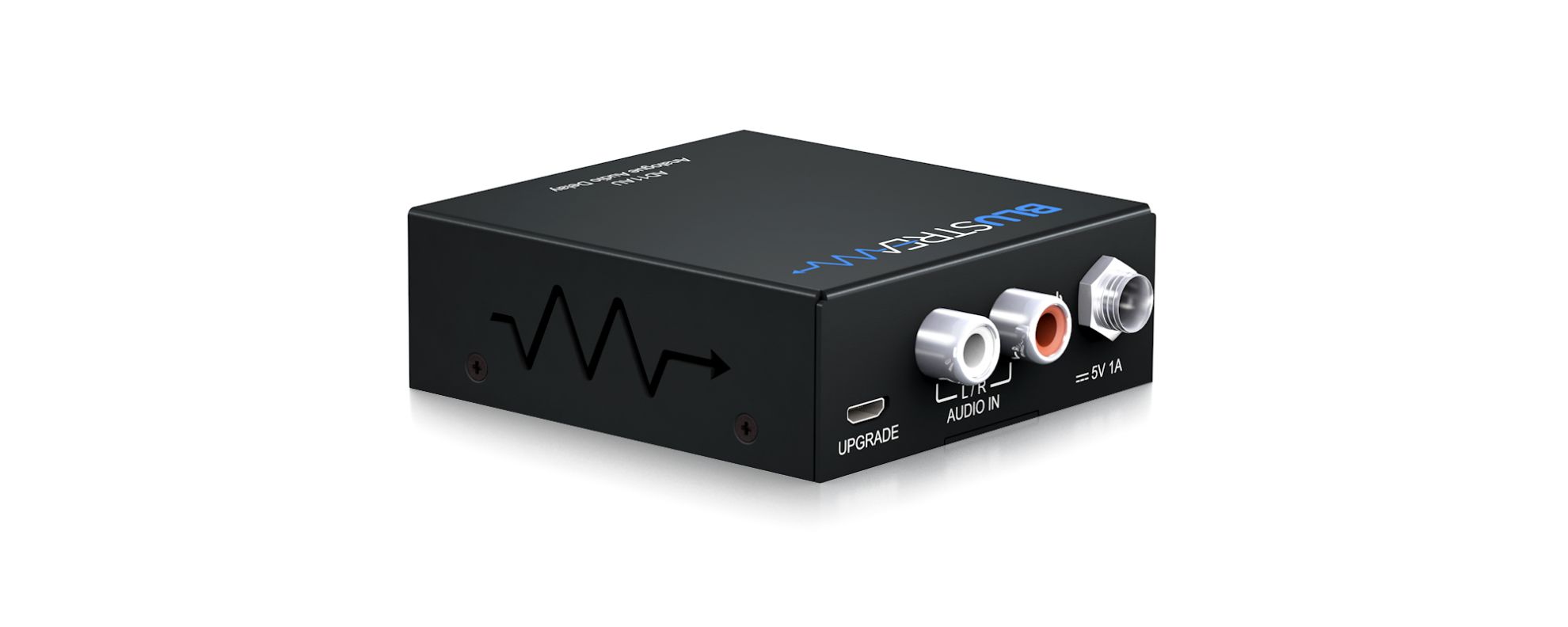

BluStream Analogue Audio Delay Processor with Volume Control | AD11AU

• Description
• Specifications
• Downloads

• BluStream Analogue Audio Delay Processor with Volume Control | AD11AU

  Our AD11AU has been designed to help correct audio delays incurred when separating audio and video signals in an AV system.

  The AD11AU can add a delay of up to 1 second selectable in 15 increments and has line-level volume adjustment of -75dB to 0dB.

  Key Features
  • In-line 2ch analogue audio delay with line-level volume control

  • Supports 48KHz / 24 bit sample rates

  • Selectable audio delay from 50-1,000ms
     – 0 – 500ms in steps of 50ms
     – 500 – 1,000ms in steps of 100ms

  • Adjustable line level volume control from -75dB to 0dB

  Box Contents
  1 x AD11AU
  1 x 5V/1A DC Power Supply
  1 x Mounting Kit
  1 x Quick Reference Guide

• Feature	Specification
  Audio Input Connectors	2 x RCA analogue left/right
  Audio Output Connectors	2 x RCA analogue left/right
  Audio Delay	Rotation switch
  Volume Control	Rotation switch
  Casing Dimensions (WxHxD)	70mm x 25mm x 73mm
  Shipping Weight	0.4kg
  Operating Temperature	32°F to 104°F (-5°C to +55°C)
  Storage Temperature	-4°F to 140°F (-25°C to +70°C)
  Power Supply	5V/1A DC

• Description	Downloads
  Datasheet	Downloads
