• BluStream Advanced Wireless Multi-Format Presentation Switch | WMF72

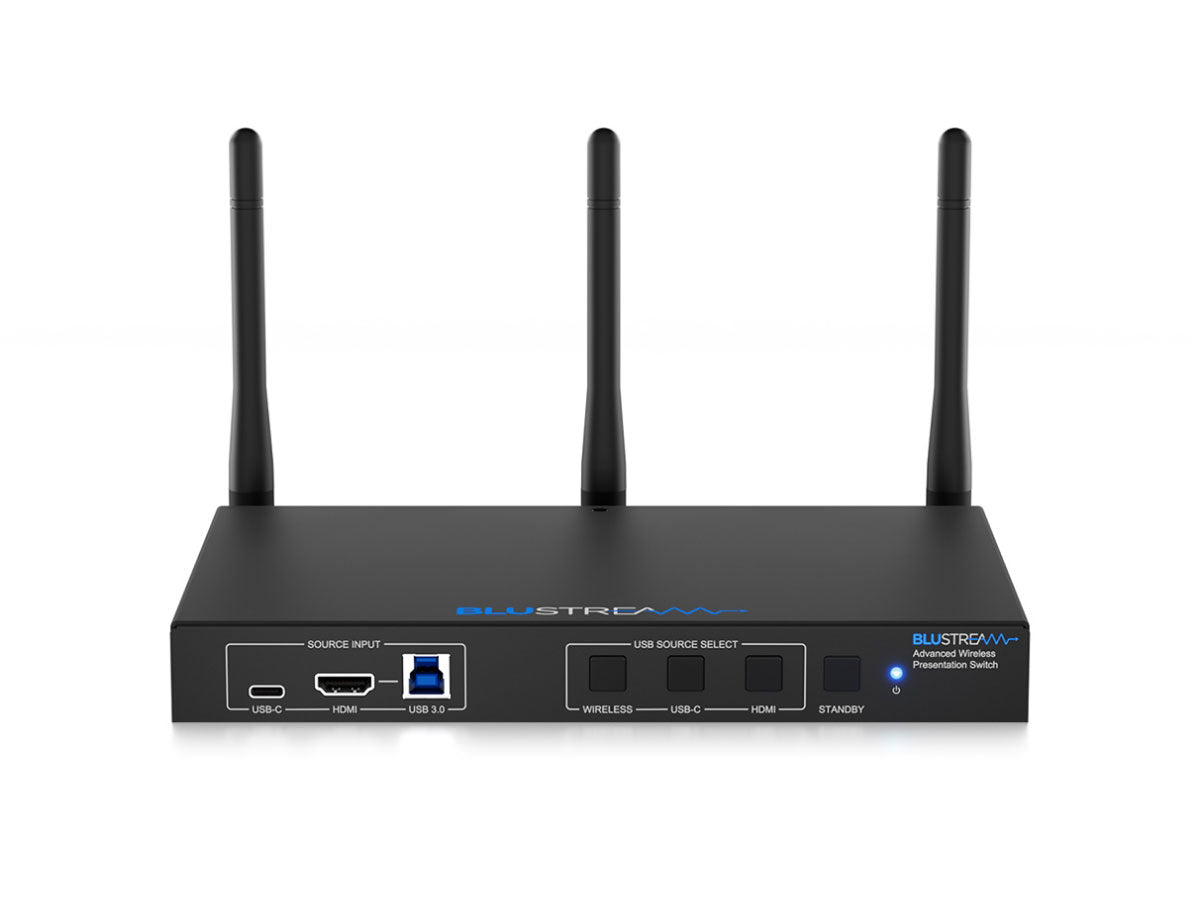

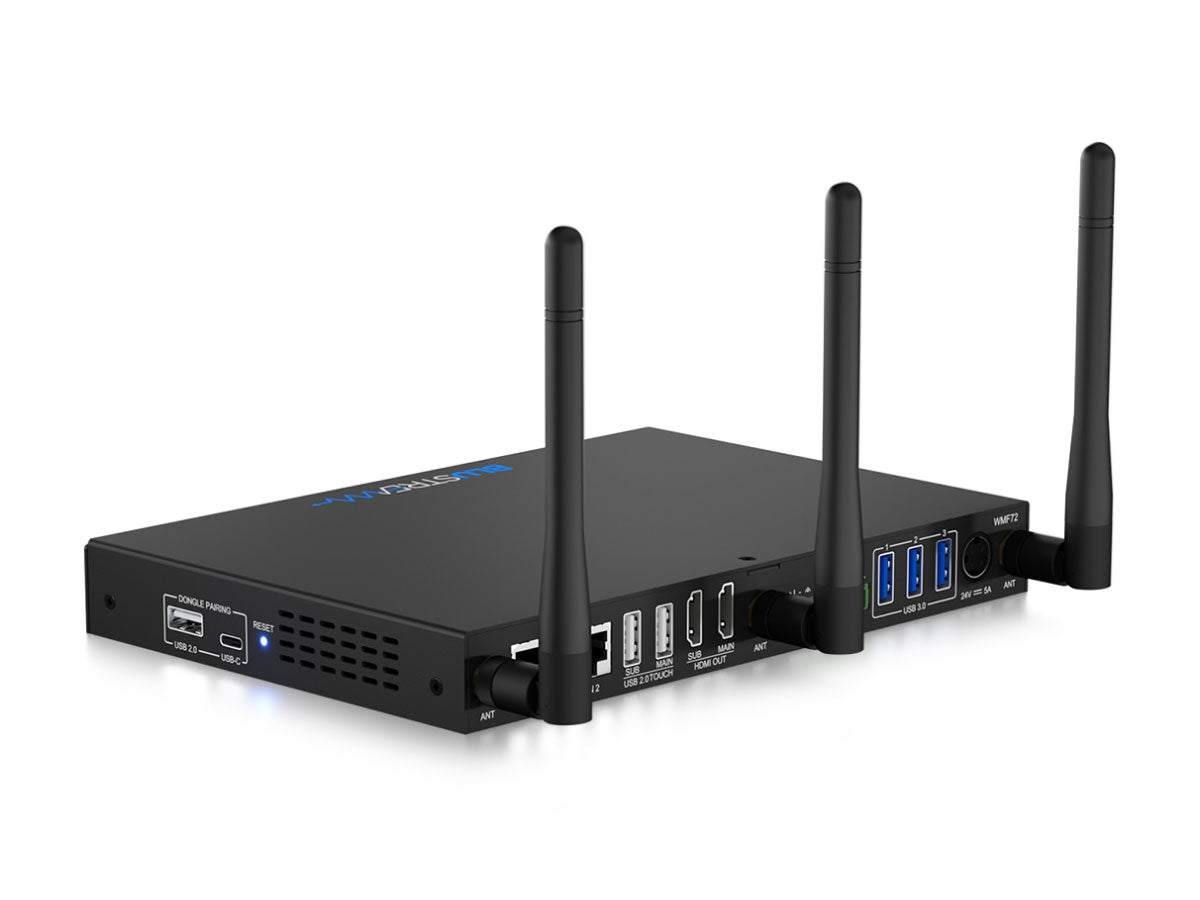

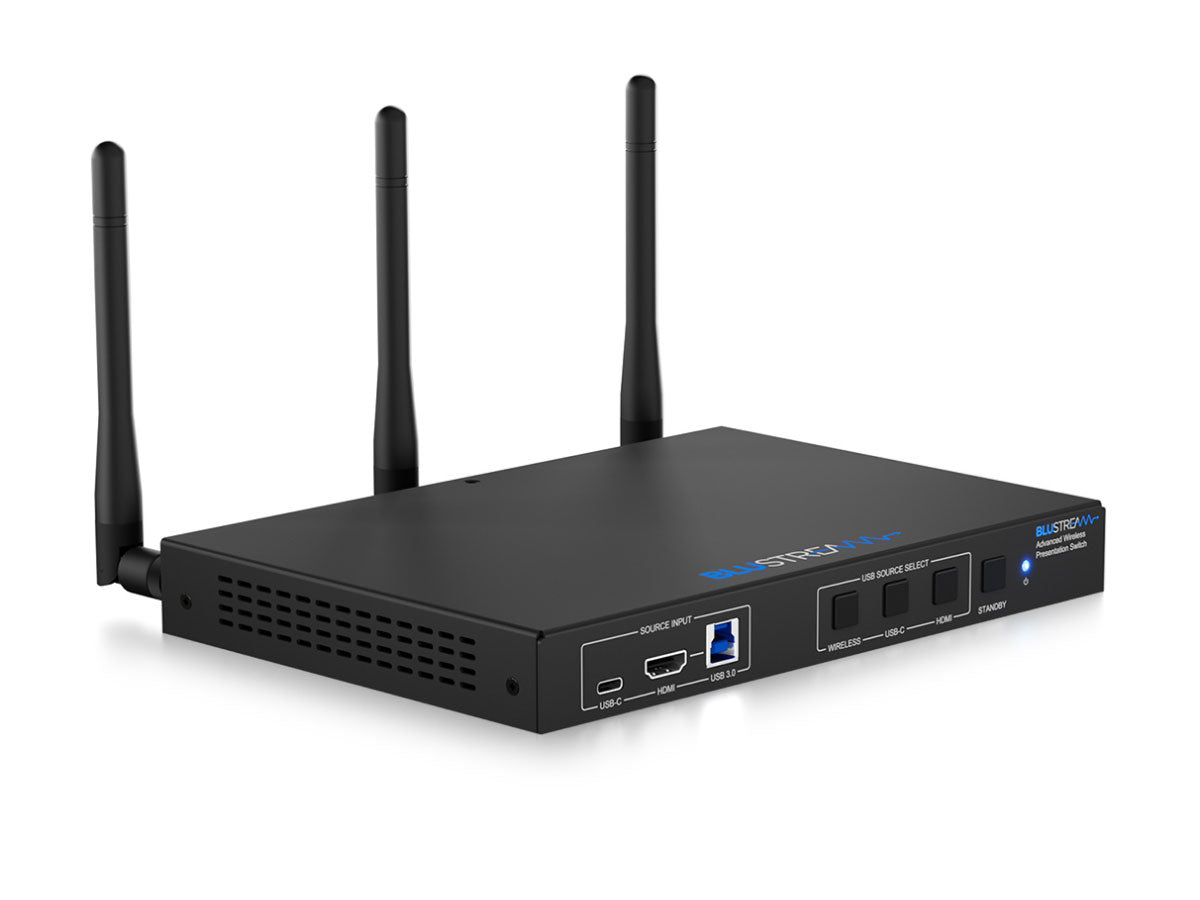

  The WMF72 is an advanced 4K multi-format presentation switch featuring wired HDMI and USB-C, AirPlay, Miracast® and Chromecast® inputs to dual HDMI outputs.

  The WMF72 provides enhanced features including dual HDMI output for mirrored or managed source control with multiview presentation, video scaling and web-GUI for control and configuration, localised 2.4/5G WiFi hotspot, and dual LAN connection. The WMF72 also features OSD control, USB camera and MIC over WiFi, USB touch-back to connected host device, whiteboard and screen overlay annotation, manual or automated source selection, and control via front panel, RS-232 and TCP/IP.

  The WMF72 is also compatible with Blustream WMF-USBC-D and WMF-HDMI-D plug & play wireless dongles, providing an ideal BYOD solution for your boardroom, classroom or huddle-space application.


  Key Features
  4K multi-format multi-view presentation switch
  Features HDMI, USB-C, AirPlay, Miracast®, Chromecast® and Blustream wireless dongle support which can be switched to dual HDMI outputs
  Dual HDMI output supports mirror or desktop extension for managed soure control within advanced video conferencing set-ups
  Multiview presentation with up to 5 concurrent video signals and configurable screen layout
  In-built video scaler with output timing up to 4K 60Hz 4:4:4
  USB-C connection for BYOM, with DP, USB, 1Gbps network and up to 65W power charging
  HDMI & USB Type B connection for BYOM, with USB and 1Gbps network via USB Type B connection
  Localised 2.4G/5G WiFi hotspot to host AirPlay, Miracast® and Chromecast® local point-to-point mode (up to 1080p 30Hz)
  Dual LAN connection for integration to existing network infratructures
  Supports USB camera and MIC over WiFi up (1080p 30Hz)
  Supports USB touch-back feature via WMF-USBC-D and WMF-HDMI-D dongles and Miracast®*
  Audio breakout to balanced / unbalanced analogue L/R audio
  Web interface module for control and configuration of switch
  OSD control with preview function
  Whiteboard and screen overlay annotation feature
  Control via front panel, RS-232 and TCP/IP with manual or auto source selection

  Box Contents
  1 x WMF72
  1 x 24V/5A DC power supply
  1 x 3-pin phoenix connector (RS-232)
  1 x 5-pin phoenix connector (Audio)
  3 x Antenna
  1 x Mounting kit
  1 x Quick Reference Card

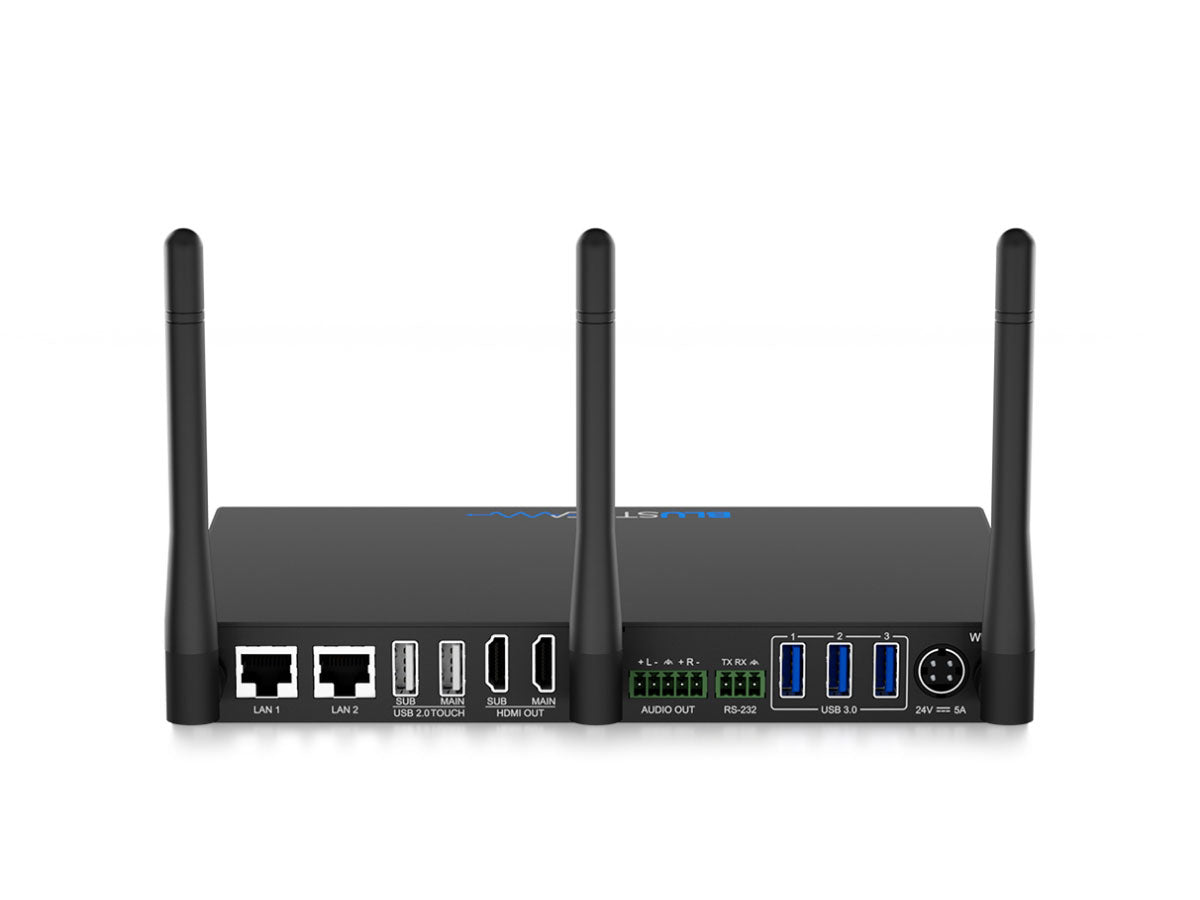

• Feature	Description
  Video Input	1 x HDMI Type A, female 1 x USB Type C, female
  Video Output Connectors	2 x HDMI Type A, 19-pin, female
  Audio Output Connectors	5-Pin Phoenix connector (2ch balanced/un-balanced analogue audio)
  RS-232 Serial Port	1 x 3-Pin Phoenix connector
  TCP/IP Control	2 x RJ45, female (1000Mbps x2)
  USB Connectors	3 x USB3.0 Type A female 1 x USB3.0 Type B female
  USB Touchback Connectors	2 x USB2.0 Type A female
  USB Pairing Connectors	1 x USB2.0 Type A female 1 x USB-C2.0 Type C
  WiFi	3 x SMA, female connector, MIMO antennas (2.4G & 5G, WiFi IEEE 802.11 b/g/n/ac up to 1200Mbps)
  WiFi Encryption	AES WPA PSK, WPA2 PSK
  Casing Dimensions	220mm x 27mm x 161mm (excluding antennas)
  Shipping Weight	2kg
  Operating Temperature	0°C to 45°C (32°F to +113°F)
  Storage Temperature	-20°C to 70°C (-4°F to +158°F)
  Power Supply	24V/5A DC
