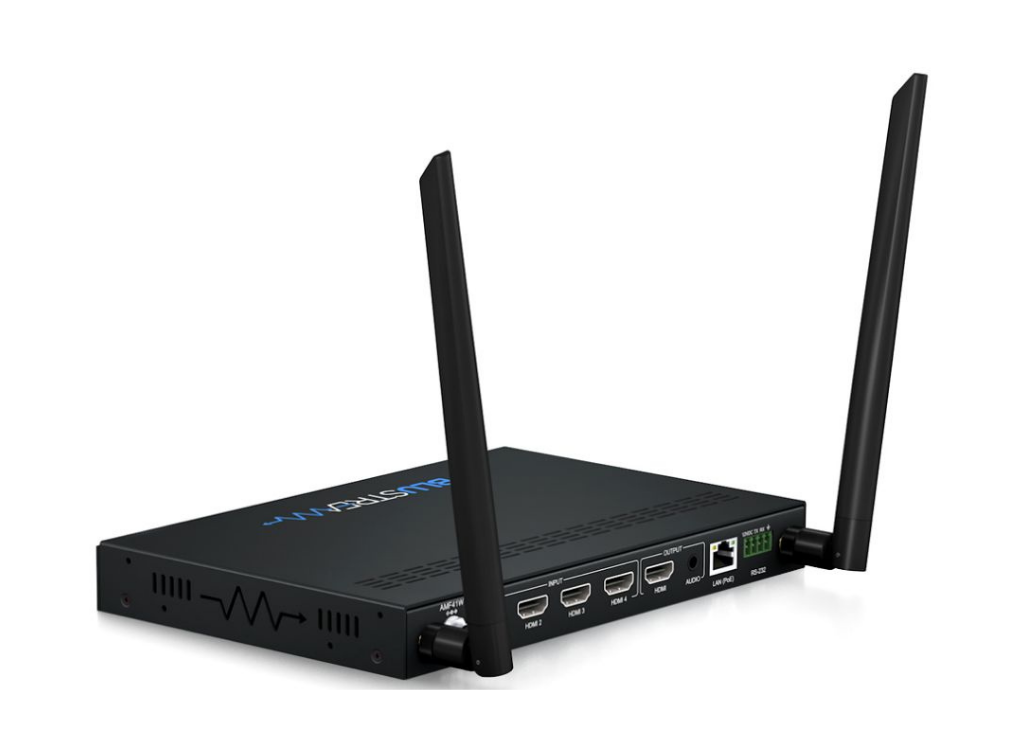

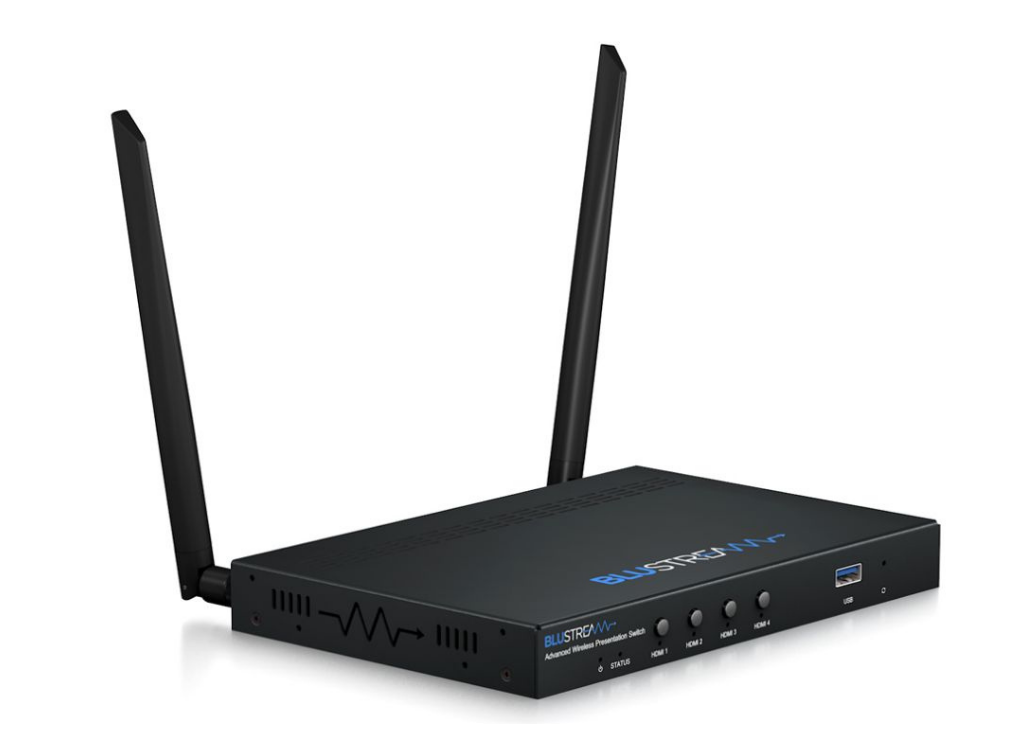

• BluStream Advanced Wireless Multi Format Presentation Switch | AMF41W

  The AMF41W is an advanced 4K multi-format presentation switch featuring 4 x HDMI, AirPlay and Miracast® inputs to a single HDMI output.

  The AMF41W provides enhanced features including localised 2.4/5G WiFi hotspot, seamless switching, multi-view presentation, video scaling, and web-GUI for control and configuration.

  The AMF41W also features auto display control via RS-232, manual or automated source selection and control via front panel, and TCP/IP.

  The AMF41W is an ideal product for your boardroom, classroom or huddle-space application.

  Key Features
  • Features 4 x HDMI, AirPlay and Miracast® inputs which can be switched to a single HDMI output
  • Localised 2.4G/5G WiFi hotspot to host AirPlay and Miracast® local streaming to AMF41W
  • Multi-view presentation with up to 7 concurrent video signals and configurable screen layout
  • Seamless switching of sources in both single, or multi-view mode
  • In-built video scaler with output timing up to 4K 60Hz 4:4:4
  • HDMI inputs support resolutions up to 4K UHD 60Hz 4:2:0 / 4K 30Hz 4:4:4*
  • Supports AirPlay mirror and Miracast® point-to-point mode (up to 1080p)
  • Audio breakout to analogue L/R audio
  • LAN connection for integration to existing network infratructures
  • Auto display on/off feature allowing control of display via RS-232
  • Web interface module for control and configuration of switch

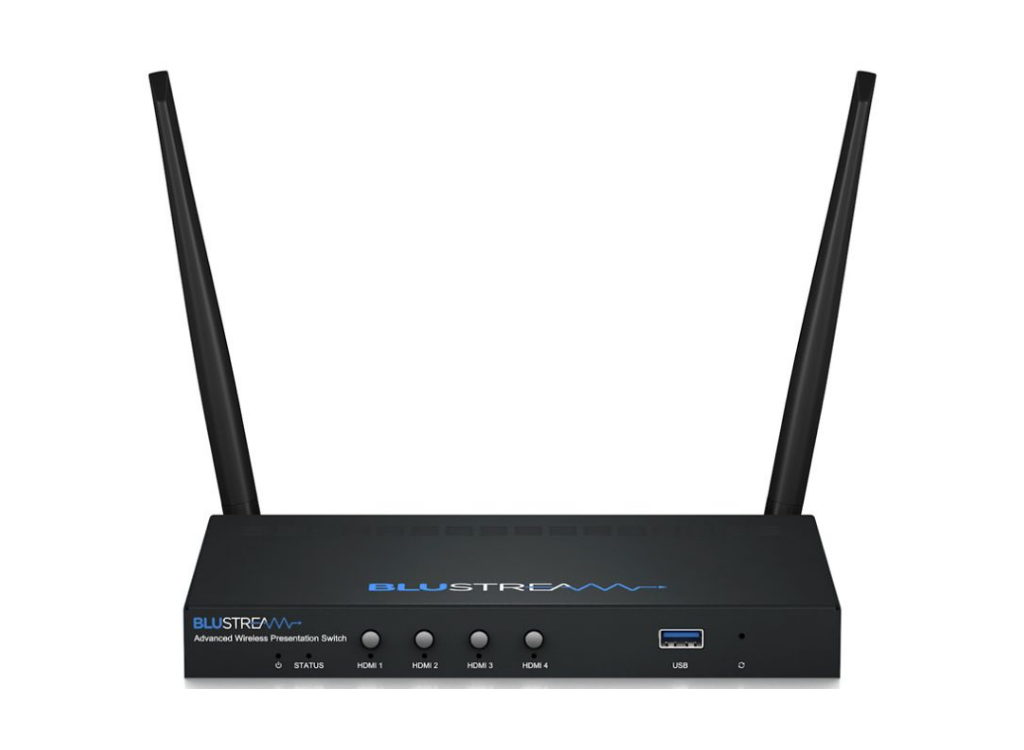

  • Control via front panel or TCP/IP with manual or auto source selection

  * Please note: the AMF41W does not accept interlaced video formats

  Box Contents
  1 x AMF41W
  1 x 12V/2A DC power supply
  1 x 4-pin Phoenix connector (RS-232)
  2 x Antenna
  1 x Mounting kit
  1 x Quick reference guide

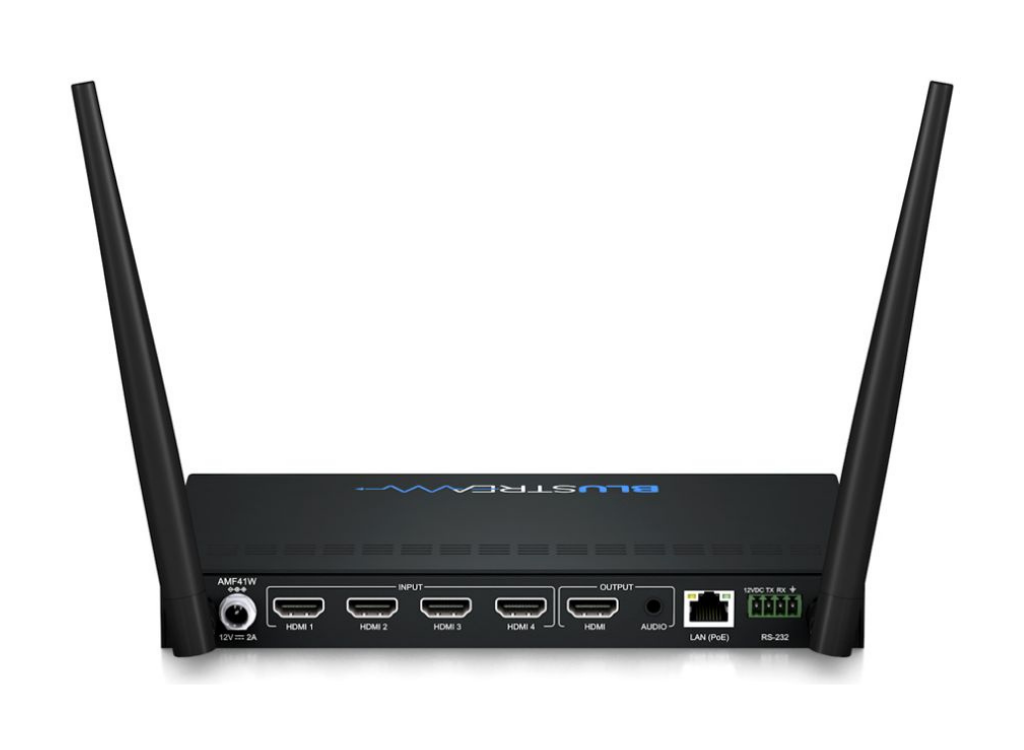

• Feature	Specification
  Video Input Connectors	4 x HDMI Type A, 19-pin, female
  Video Output Connectors	1 x HDMI Type A, 19-pin, female
  Audio Output Connectors	1 x 3.5mm stereo jack
  RS-232 Serial Port	1 x 4-Pin Phoenix connector
  TCP/IP Control	1 x RJ45, female
  USB Connectors	1 x USB Type A female
  WiFi	2.4G & 5G
  Casing Dimensions	215mm x 25mm x 141mm (excluding antennas)
  Operating Temperature	32°F to 113°F (0°C to +45°C)
  Storage Temperature	-4°F to 150°F (-25°C to +70°C)
  Power Supply	12V/2A DC, screw type barrel connector
