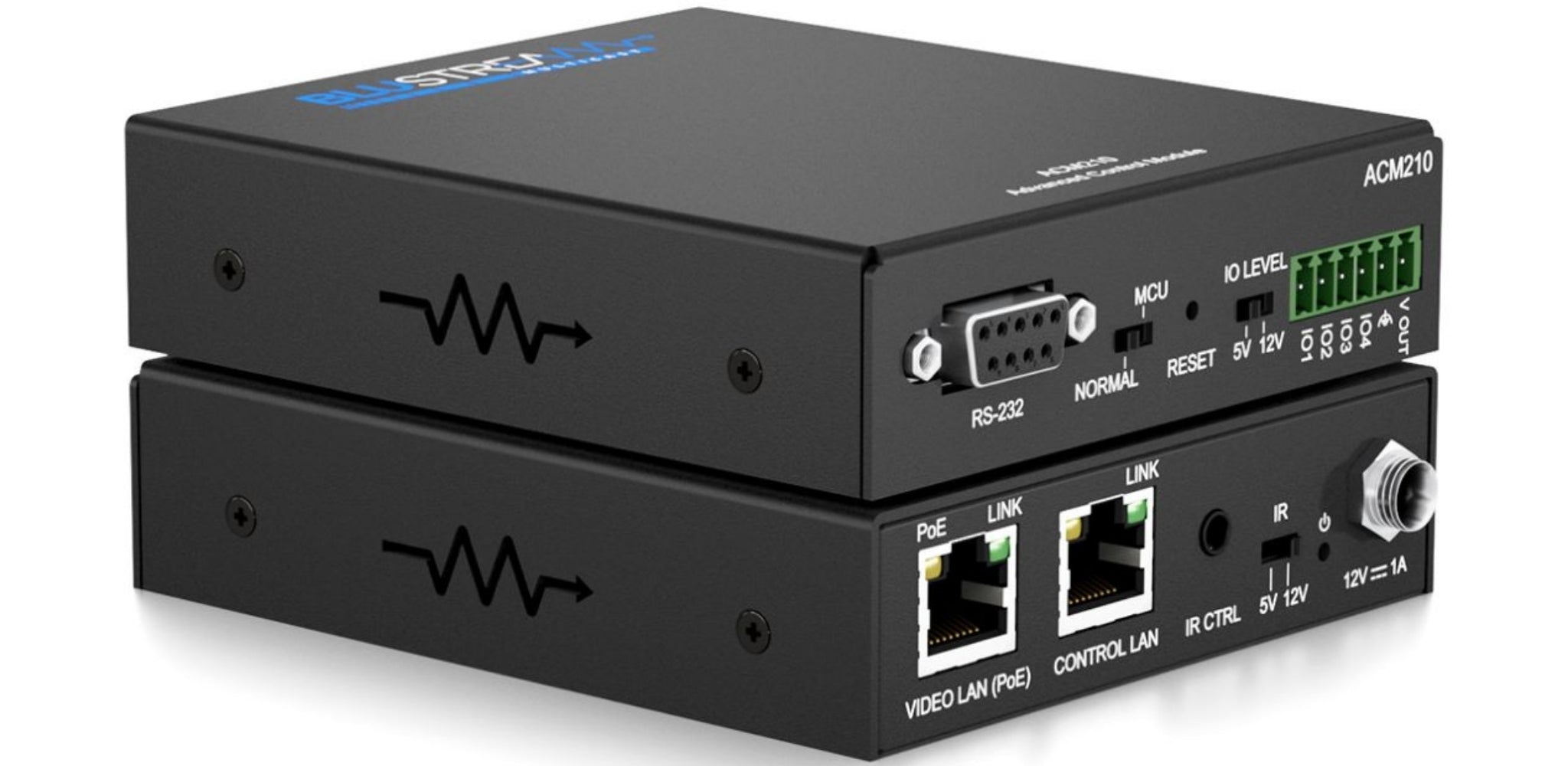

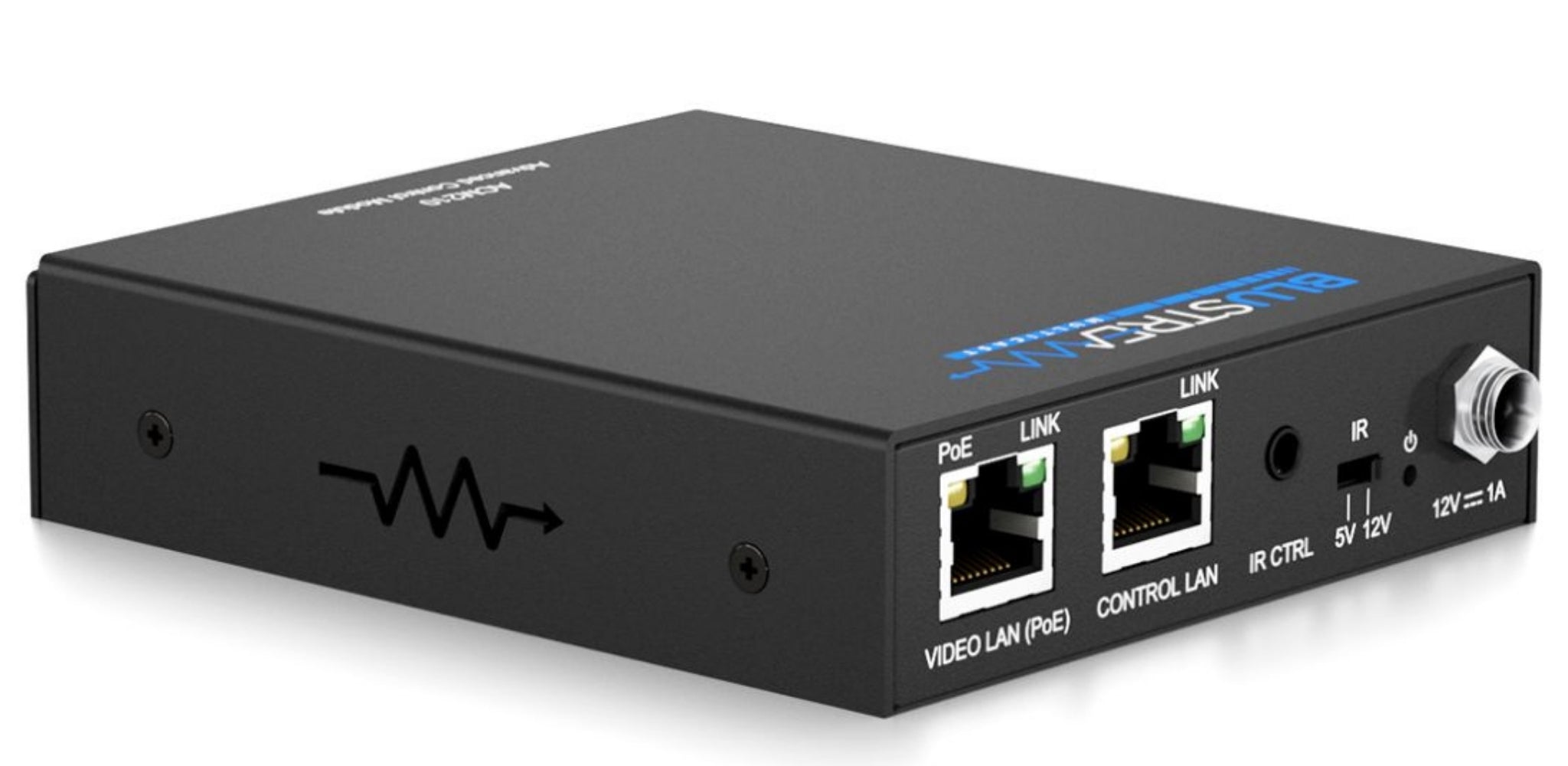

• BluStream Advanced IP Multicast Control Module for IP50, IP200 and IP300 Series

  Our UHD Multicast distribution platform allows distribution of HDMI video over a 1Gb managed network. The ACM210 Advanced Control Module allows for advanced third party control of our IP50HD, IP200UHD, IP250UHD, IP300UHD and IP350UHD Multicast systems using TCP/IP, RS-232 and IR.
  The ACM210 includes a web interface module for control and configuration of the Multicast system and features ‘drag and drop’ source selection with video preview and independent routing of video, audio, IR, RS-232, USB / KVM and CEC.
  Major third party drivers simplify Multicast product installation and negate the need for an understanding of complex network infrastructures.


  Key Features
   Web interface module for configuration and control of IP50HD, IP200UHD, IP250UHD, IP300UHD and IP350UHD Blustream Multicast systems
   Intuitive ‘drag & drop’ source selection with video preview feature for active monitoring of system status
   Advanced signal management for independent routing of IR, RS-232, USB / KVM, audio and video
   Auto system configuration

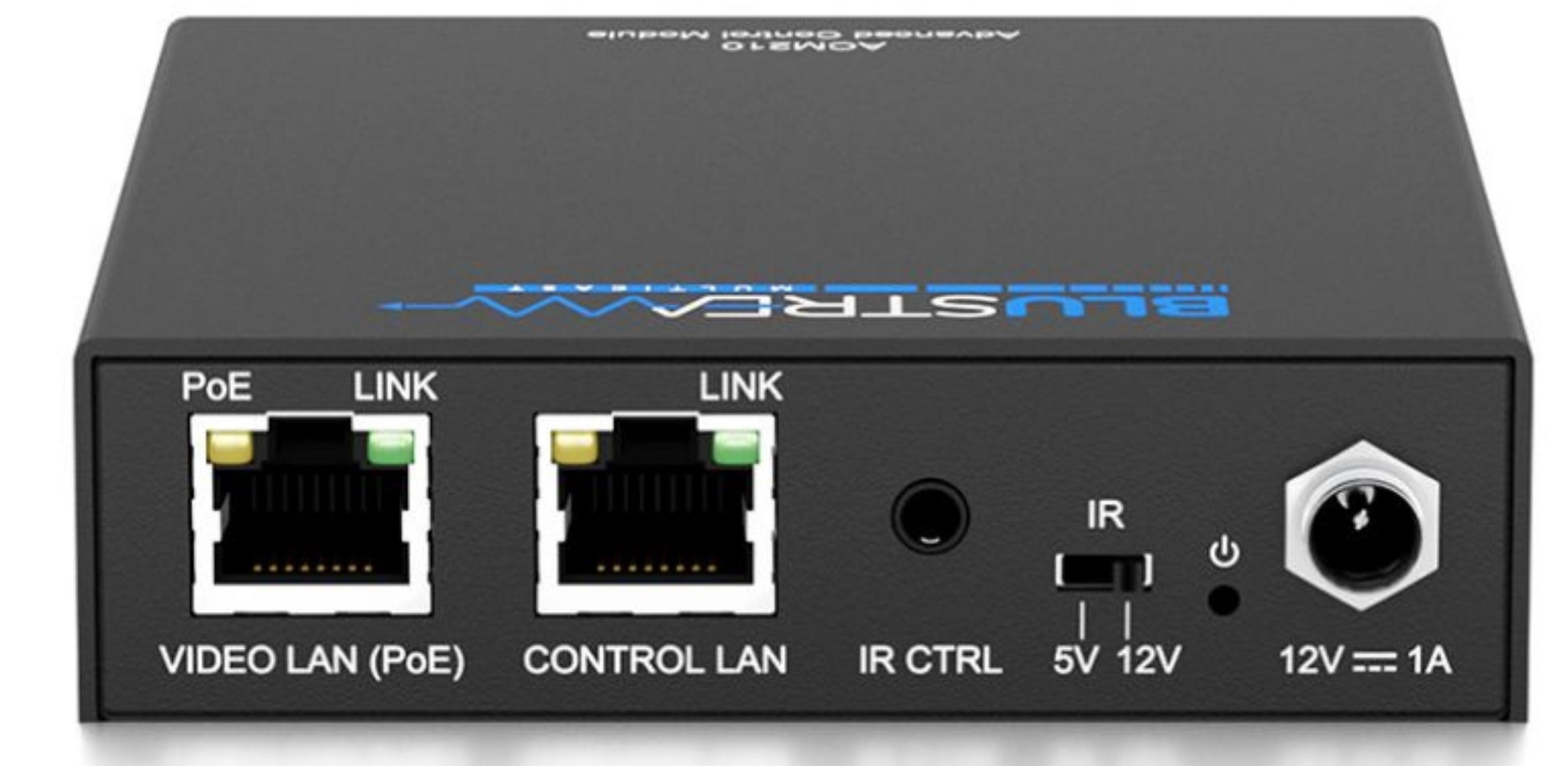

   2 x RJ45 LAN connections to bridge existing network to Multicast video distribution network, resulting in:
     – Better system performance as network traffic is separated
     – No advanced network setup required
     – Independent IP address per LAN connection
     – Allows simplified TCP/IP control of Multicast system
   RS-232 integration for control of Multicast system
   IR integration for control of Multicast system
   PoE (Power over Ethernet) to power Blustream product from PoE switch
   Local 12V power supply (optional) should Ethernet switch not support PoE
   Support for iOS and Android App control
   3rd Party drivers available for major control brands

  Box Contents
  1 x ACM210
  1 x IR Control Cable – 3.5mm to 3.5mm Cable
  1 x 6-pin Phoenix Connector
  1 x Mounting Kit

• Specification	Details
  Ethernet Port	2 x LAN RJ45 (1 x PoE support)
  RS-232 Serial Port	1 x DB-9 female
  GPIO Port	1 x 6-Pin Phoenix connector
  IR Input Port	1 x 3.5mm stereo jack
  PoE Consumption	4.0W (typical), 4.5W (max load)
  Dimensions (W x D x H)	96mm x 110mm x 26mm
  Shipping Weight	0.6kg
  Operating Temp	32°F to 104°F (0°C to 40°C)
  Storage Temp	-4°F to 140°F (-20°C to 60°C)
