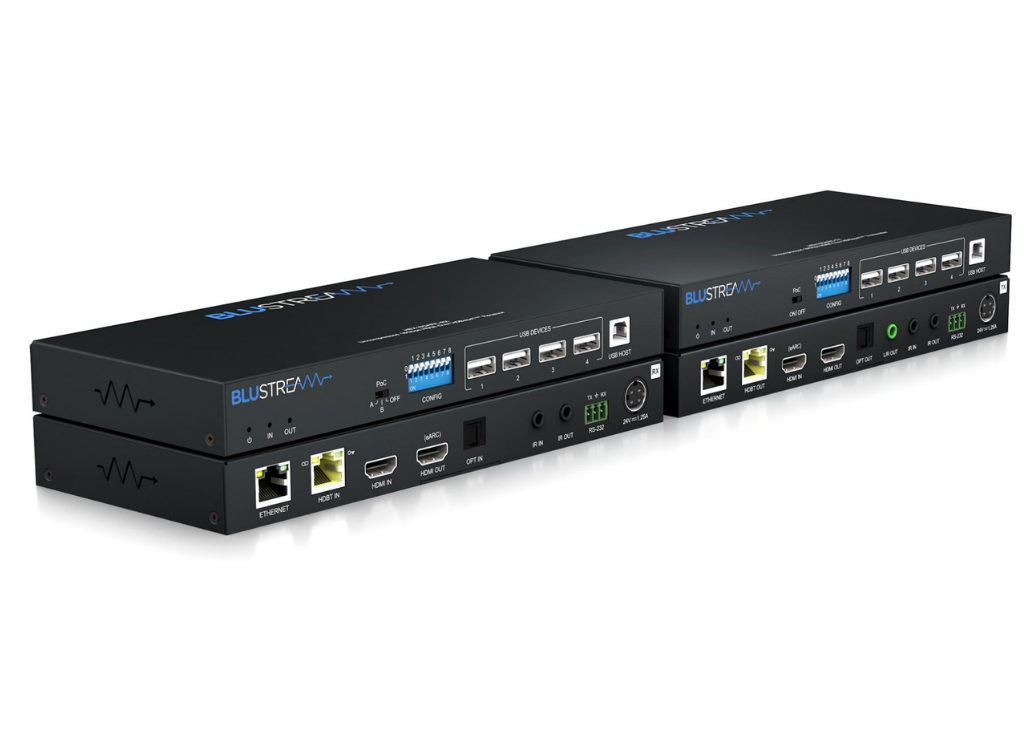

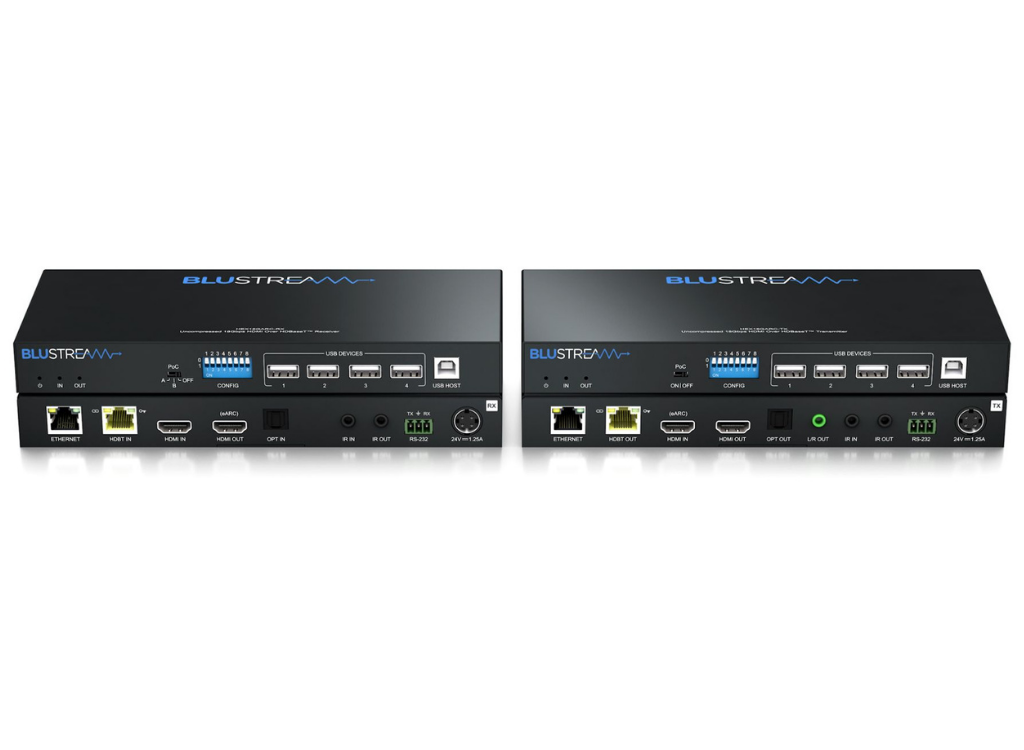

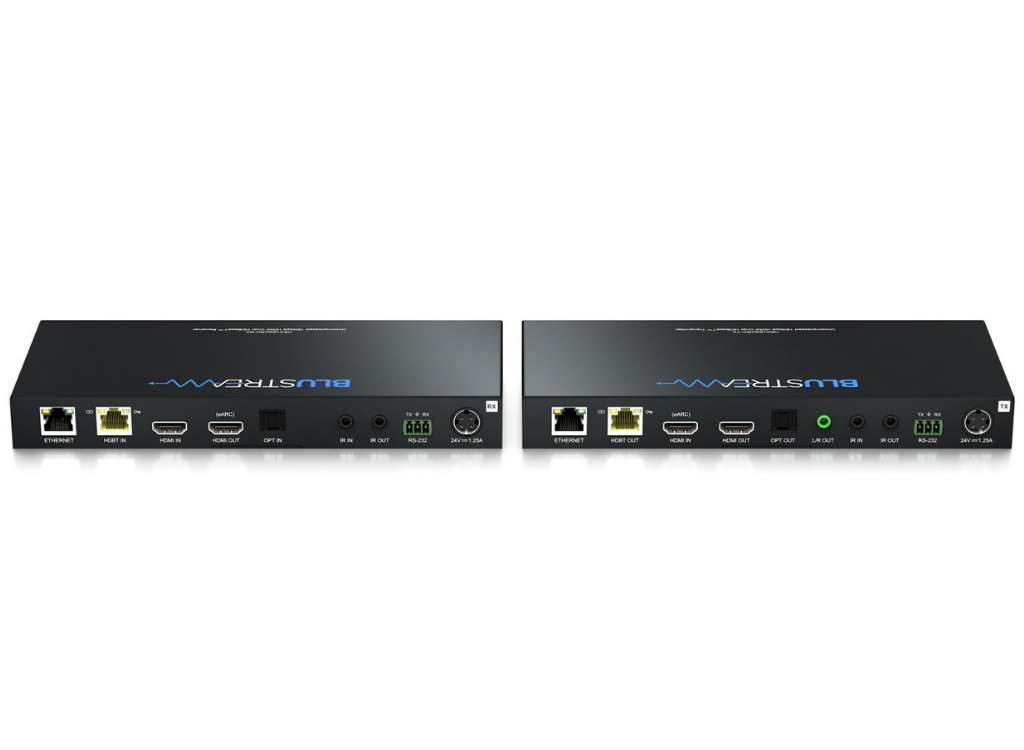

• BluStream Advanced HDBaseT™ Extender Set – 100m | HEX18GARC-KIT

  The HEX18GARC-KIT extender set is an industry leading uncompressed, unconverted HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.3/2.2 solution utilising the latest in HDBaseT™ technology.

  The HEX18GARC-KIT supports uncompressed distribution of the latest HDR resolutions including HDR10/10+ and Dolby Vision resulting in the ultimate in picture quality for your critical viewing areas.

  The HEX18GARC-KIT supports bi-directional IR, RS-232 and PoC up to lengths of 100m over a single CAT6A cable. The HEX18GARC-KIT also provides enhanced features including KVM, eARC via HDMI, or ARC via HDMI or Optical (S/PDIF), and 1Gb Ethernet pass through.

  Key Features
  • Advanced uncompressed, unconverted, HDMI over HDBaseT™ technology offering distribution of bit-for-bit 4K HDMI video and audio over a single CAT6A cable
  • Supports HDMI2.0 18Gbps specification including 4K 60Hz 4:4:4 UHD video
  • Supports uncompressed distribution of the latest HDR resolutions including HDR10/10+ and Dolby Vision
  • Supports HDMI video distribution up to 100m*
  • Features 1x HDMI loop-out on HEX18GARC-TX for integrating local displays or cascading to multiple devices
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • HDMI re-clocking on the HDBaseT™ Receiver to help solve HDMI HDCP, compatibility, and handshaking issues
  • Supports eARC (Enhanced Audio Return Channel) from display via HDMI, and standard ARC from HDMI and Optical (S/PDIF) digital inputs
  • Supports audio return to HDMI (eARC compatible), optical digital, and analogue L/R audio outputs (analogue output supports 2ch PCM only)
  • Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio transmissions
  • Features USB 2.0 for KVM with speeds of up to 350Mbps
  • Bi-directional Ethernet (1Gb), IR, & RS-232 pass through
  • Supplied with Blustream IR receiver and emitter
  • Bi-directional PoC (Power over Cable) to power extenders from either transmitter or receiver end
  • Support for HDCP 2.3, HDCP 2.2 and HDCP 1.4

  *Transmission distance is subject to video format, cable type and installation environment. It is recommended to use a minimum of CAT6A cabling

  Box Contents
  1 x HEX18GARC-TX Transmitter
  1 x HEX18GARC-RX Receiver
  1 x 24V/1.25A DC power supply
  1 x USB-A to USB-B cable
  1 x IRE1 receiver
  1 x IRR emitter
  4 x Mounting brackets
  1 x Quick Reference Guide

• Feature	HEX18GARC-TX	HEX18GARC-RX
  Video Input Connectors	1 x HDMI Type A, female	1 x HDBaseT™ RJ45 connector, 1 x HDMI Type A
  Video Output Connectors	1 x HDBaseT™ RJ45, 1 x HDMI Type A, female	1 x HDMI Type A (reserved for future use)
  Audio Output Connectors	1 x Analogue L/R (3.5mm jack), 1 x Optical (S/PDIF)	N/A
  Audio Input Connectors	N/A	1 x Optical (S/PDIF)
  Ethernet Port	1 x RJ45 connector	1 x RJ45 connector
  RS-232 Serial Port	1 x 3-pin Phoenix connector	1 x 3-pin Phoenix connector
  USB/KVM Port	1 x USB Type-B, 4 x USB Type-A	1 x USB Type-B, 4 x USB Type-A
  IR Input Ports	1 x 3.5mm stereo jack	1 x 3.5mm stereo jack
  IR Output Ports	1 x 3.5mm mono jack	1 x 3.5mm mono jack
  CTRL	8-PIN DIP switch	8-PIN DIP switch
  Casing Dimensions (W x D x H)	220mm x 100mm x 25mm (TX/RX)	220mm x 100mm x 25mm (TX/RX)
  Shipping Weight (kit)	1.8kg	1.8kg
  Operating Temperature	32°F to 104°F (0°C to 40°C)	32°F to 104°F (0°C to 40°C)
  Storage Temperature	-4°F to 140°F (-20°C to 60°C)	-4°F to 140°F (-20°C to 60°C)
  Mounting Kits	Included	Included
  Power Supply	1 x 24V/1.25A DC	1 x 24V/1.25A DC
