BluStream ADC11AU Analogue to Digital Audio Converter (ADC)

• Description
• Specifications
• Downloads

• BluStream ADC11AU Analogue to Digital Audio Converter (ADC)

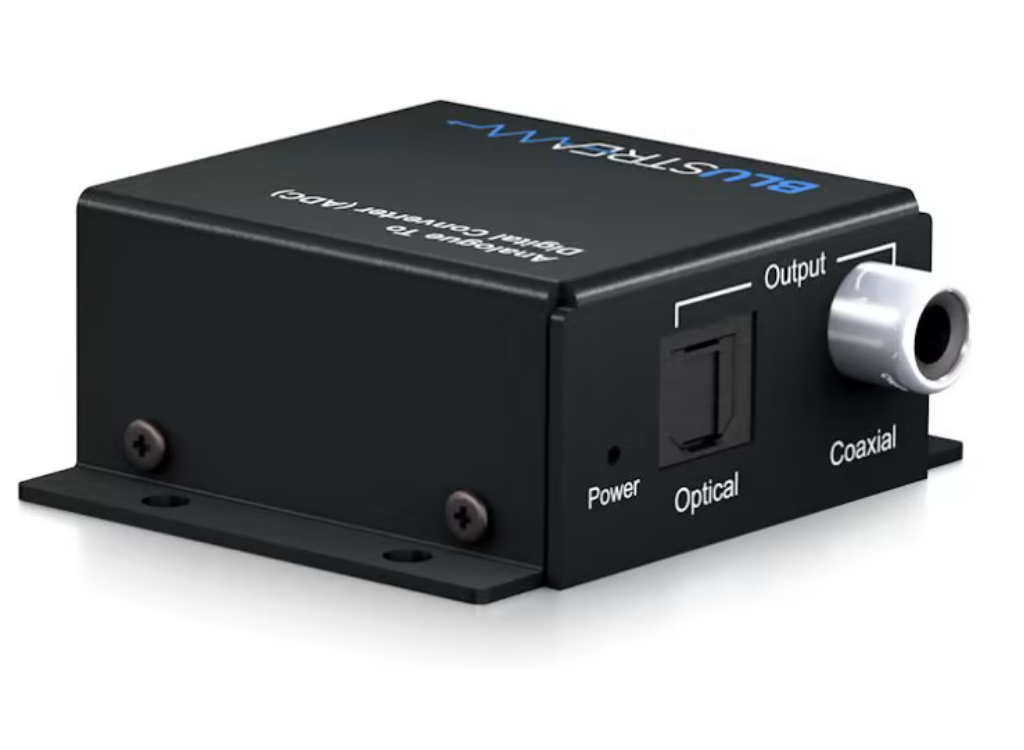

  Our ADC11AU is designed to convert left / right analogue stereo audio into either coaxial or optical digital.

  Both digital outputs are simultaneous so audio can be distributed to multiple locations.

  The ADC11AU converts to 16-bit 48kHz digital audio for enhanced sound reproduction.


  Key Features
  • ADC (Analogue to Digital Audio Converter) converts analogue left / right stereo audio input to both S/PDIF optical and coaxial digital PCM outputs
  • Both optical digital and coaxial digital output simultaneously
  • Converts to 16-bit 48kHz digital audio
  • Plug and play solution

  Box Contents
  1 x ADC11AU
  1 x 5V/1A DC Power Supply
  1 x Mounting Kit
  1 x User Manual

• Specification	Details

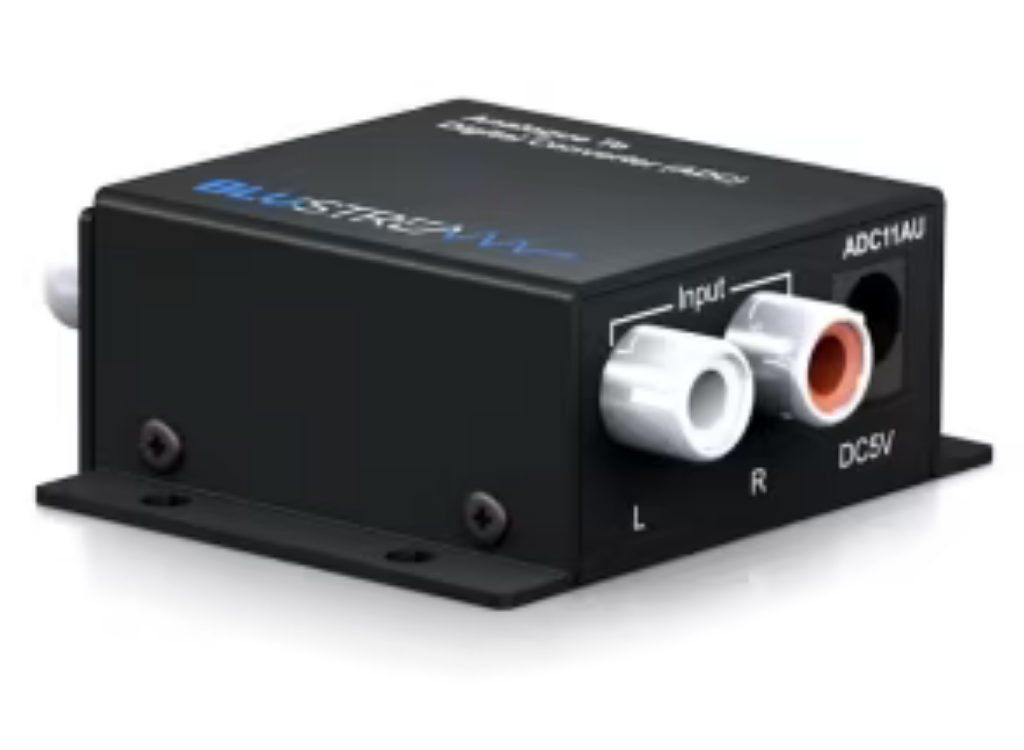

  Audio Input Connectors	2 x Analogue stereo left/right (RCA)

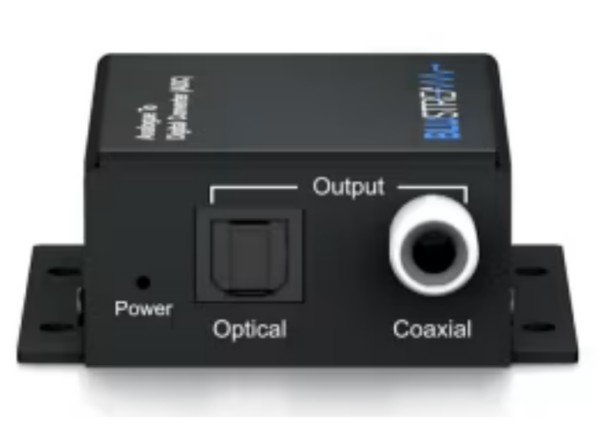

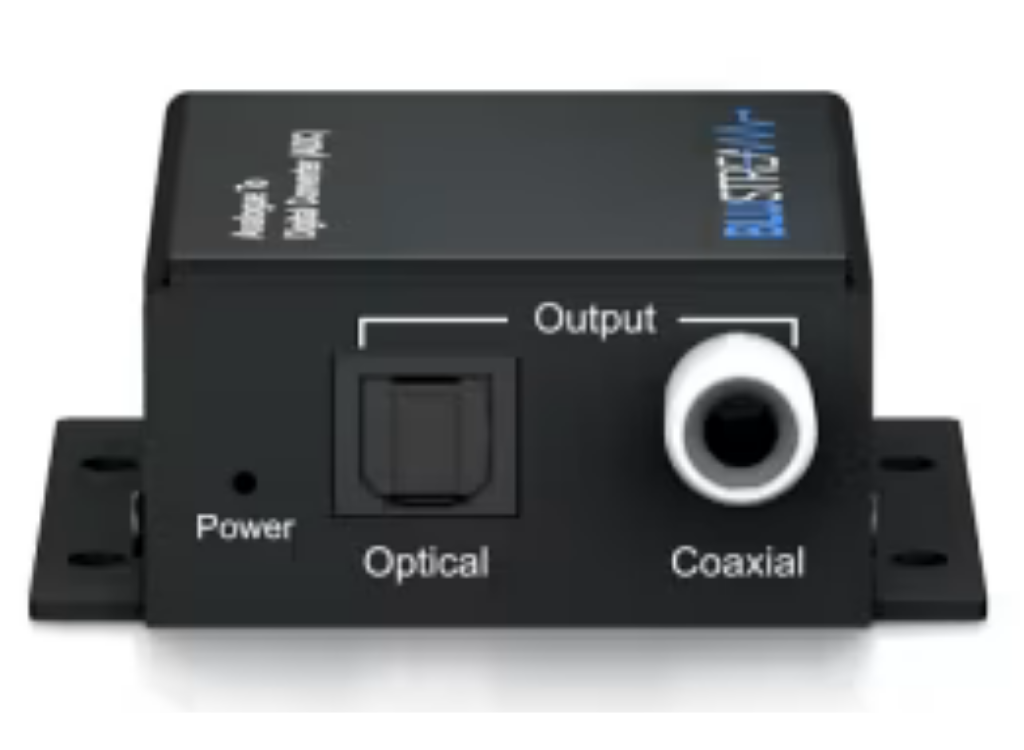

  Audio Output Connectors	1 x Optical (SPDIF), 1 x RCA (SPDIF)
  Dimensions (W x D x H)	65 x 55 x 25mm (with connections)
  Dimensions (W x D x H)	55 x 55 x 25mm (without connections)
  Product Weight	0.1kg (excluding accessories)
  Carton / Box Dimensions	165 x 110 x 90mm
  Shipping Weight	0.3kg
  Operating Temperature	32°F to 104°F (0°C to 40°C)
  Storage Temperature	-4°F to 140°F (-20°C to 60°C)
  Power Supply	5V/1A DC, barrel type connector
  Mounting Kit	Included

• Description	Downloads
  User Manual	Downloads
