• BluStream 7 Input 2 Output Multi-Format Presentation Switch | MFP72

  Our MFP72 is a multi-format presentation switcher with in-built video scaling, audio embedding / de-embedding, and advanced EDID management.

  The MFP72 works in 2 modes, first as a 7 input dual output switcher (7:1 x 2), alternatively each output can work independently with Output 1 routing the 4 x HDMI inputs only (4:1 up to 4K) and Output 2 switching all 7 video/audio inputs (7:1 up to 1080p).

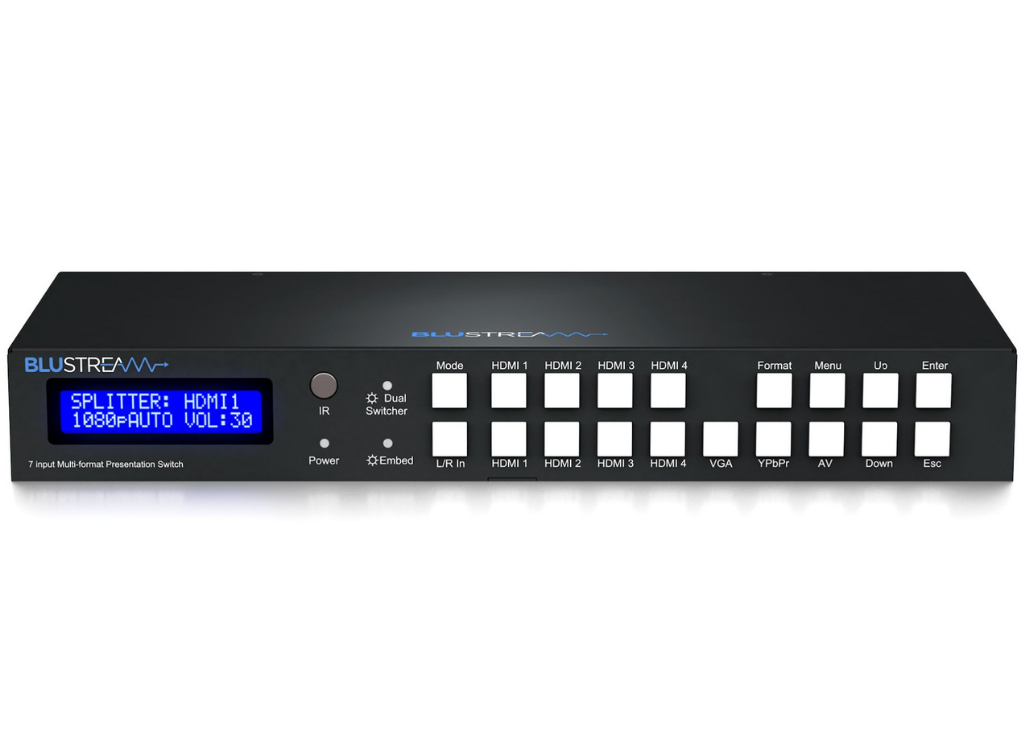

  With control of the switcher using the front-panel push buttons, IR remote control or RS-232 interface it is an ideal solution for commercial installations.

  Key Features
  • Switcher can function in 2 modes:
     – Splitter Mode – both HDMI outputs display the same image from any video input
     – Switcher Mode – HDMI output 1 and 2 are independently controlled
  • HDMI output 1 can view only HDMI inputs 1-4 (up to resolutions of 4K)
  • HDMI output 2 can view all HDMI and analogue video inputs with associated audio (up to 1080p resolution)
  • Built-in video scaling, both up-scaling and down-scaling capabilities
  • Video inputs support industry standard video resolutions including VGA-WUXGA and 480i-4K (including 800×600 @60 & 75Hz)
  • Scaled video output resolutions: 720p, 1080p, 1280×1024, 1024×768, 1360×768, 1440×900, 1680×1050
  • Audio embedding – independent analogue L/R audio input can be embedded to HDMI outputs & Analogue L/R audio and Coaxial digital outputs concurrently (feature available for HDMI output 1 & 2 in ‘Split mode’, ‘Switch mode’ = HDMI output 2 only).
  • HDMI audio breakout to Analogue L/R audio and Coaxial digital outputs concurrently (linked to output 2 in ‘Switch mode’)
  • Volume control – controls volume output of HDMI, Analogue L/R audio and Coaxial digital outputs
  • Supports 3D signal display
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master audio transmission
  • Supplied with Blustream IR receiver and IR link cable
  • Control via front panel, IR and RS-232
  • 3rd Party drivers available for all major home control brands
  • HDCP 1.4 compliant

  Box Contents
  1x MFP72
  1x 5V/2A DC Power Supply
  1x IR Remote Control
  1x IR Receiver
  1x IR control Cable – 3.5mm-3.5mm Cable (IRCAB)
  1x Mounting Kit
  1x User Manual

• Feature	Specification

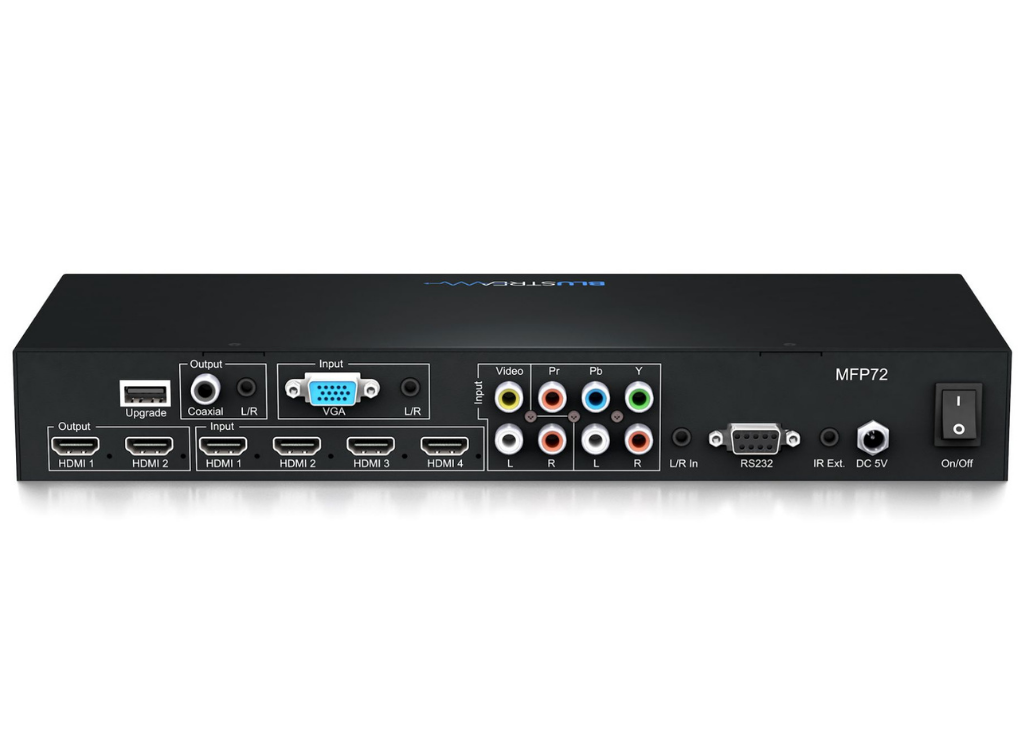

  Video Input Connectors	4 x HDMI Type A, 1 x VGA, 1 x Composite, 1 x YPbPr
  Video Output Connectors	2 x HDMI Type A
  Audio Input Connectors	2 x 3.5mm stereo, 4 x RCA (2 x L/R)
  Audio Output Connectors	1 x 3.5mm stereo, 1 x S/PDIF Coaxial
  RS-232 Serial Port	DB-9 connector
  IR Input Ports	1 x 3.5mm stereo jack
  Casing Dimensions	323mm x 45mm x 130mm, without feet
  Dimensions Including Connections	322mm x 45mm x 140mm
  Shipping Weight	1.5kg
  Operating Temperature	32°F to 104°F (0°C to 40°C)
  Storage Temperature	-4°F to 140°F (-20°C to 60°C)
  Power Supply	5V/2A DC
