BluStream 6 Input 2 Output Multi-Format Presentation Switcher | MFP62

• Description
• Specifications
• Downloads

• BluStream 6 Input 2 Output Multi-Format Presentation Switcher | MFP62

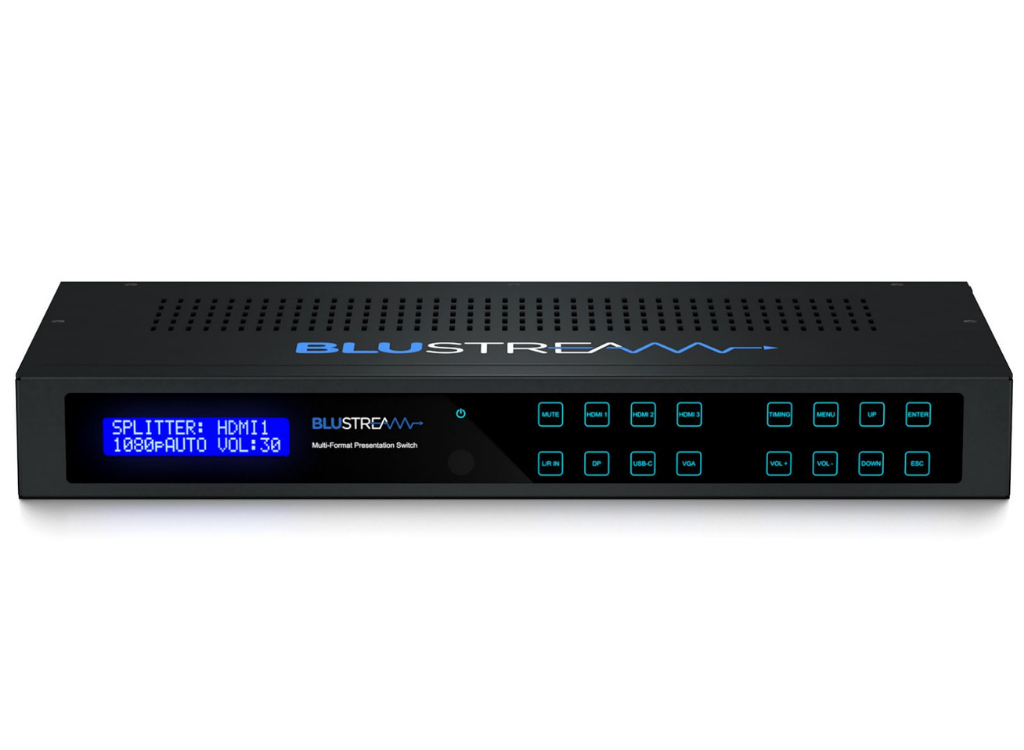

  Our MFP62 is an advanced 4K multi-format presentation switch featuring 3 x HDMI, 1 x USB-C, 1 x DisplayPort™ and 1 x VGA input to dual HDMI outputs.

  The MFP62 provides enhanced features Including video scaling on output, MIC input with phantom power and audio mixing. The MFP62 also features Web GUI for control and configuration, analogue audio embedding, audio de-embedding, and control via front panel, IR, RS-232 and TCP/IP.

  The MFP62 is an ideal product for your boardroom, classroom or hybrid working environment.

  Key Features
  • Features 3 x HDMI, 1 x USB-C, 1 x DisplayPort™ & 1 x VGA input which can be routed to dual HDMI outputs

  • Supports HDMI 2.0 18Gbps specification including HDR

  • Supports resolutions up to 4K UHD 60Hz 4:4:4

  • Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission

  • Dual HDMI outputs with video scaling

  • Supports USB Type C up to 4K UHD 60Hz 4:4:4, DP1.2 & Alt mode

  • Supports DisplayPort up to 4K UHD 60Hz 4:4:4, DP1.2

  • Audio breakout to analogue L/R audio and Coaxial (S/PDIF) digital outputs concurrently

  • Features audio mixer with independent level adjustment

  • Analogue audio embedding

  • MIC input supports line level, 48V Phantom power or 1ch balanced / un-balanced audio

  • Web interface module for control and configuration of switch

  • Control via front panel, IR, RS-232 and TCP/IP

  • HDCP 2.2 compliant with advanced EDID management

  Box Contents
  1 x MFP62
  1 x Remote Control
  1 x 24V/1A DC Power Supply
  1 x Rack Mounting Kit
  1 x IR Receiver
  1 x Quick Reference Guide

• Feature	Specification
  Video Input Connectors	3 x HDMI, 1 x USB-C, 1 x Display Port™, 1 x VGA
  Video Output Connectors	2 x HDMI Type A, 19-pin, female
  Audio Input Connectors	1 x analogue L/R (3.5mm jack)
  MIC Input Connectors	1 x 3-pin Phoenix connector
  Audio Output Connectors	1 x RCA (S/PDIF), 2 x RCA L/R
  RS-232 Serial Ports	1 x 9-pin RS-232 connector
  TCP/IP Control	1 x RJ45, female
  IR Input Ports	1 x 3.5mm stereo jack
  Product Upgrade	1 x Micro USB female
  Rack-Mountable	1U rack height, rack ears included
  Casing Dimensions (W x H x D)	344mm x 44mm x 168mm, without feet
  Shipping Weight	3kg
  Operating Temperature	32°F to 104°F (0°C to 40°C)
  Storage Temperature	-4°F to 140°F (-20°C to 60°C)
  Power Supply	24V/1A DC
