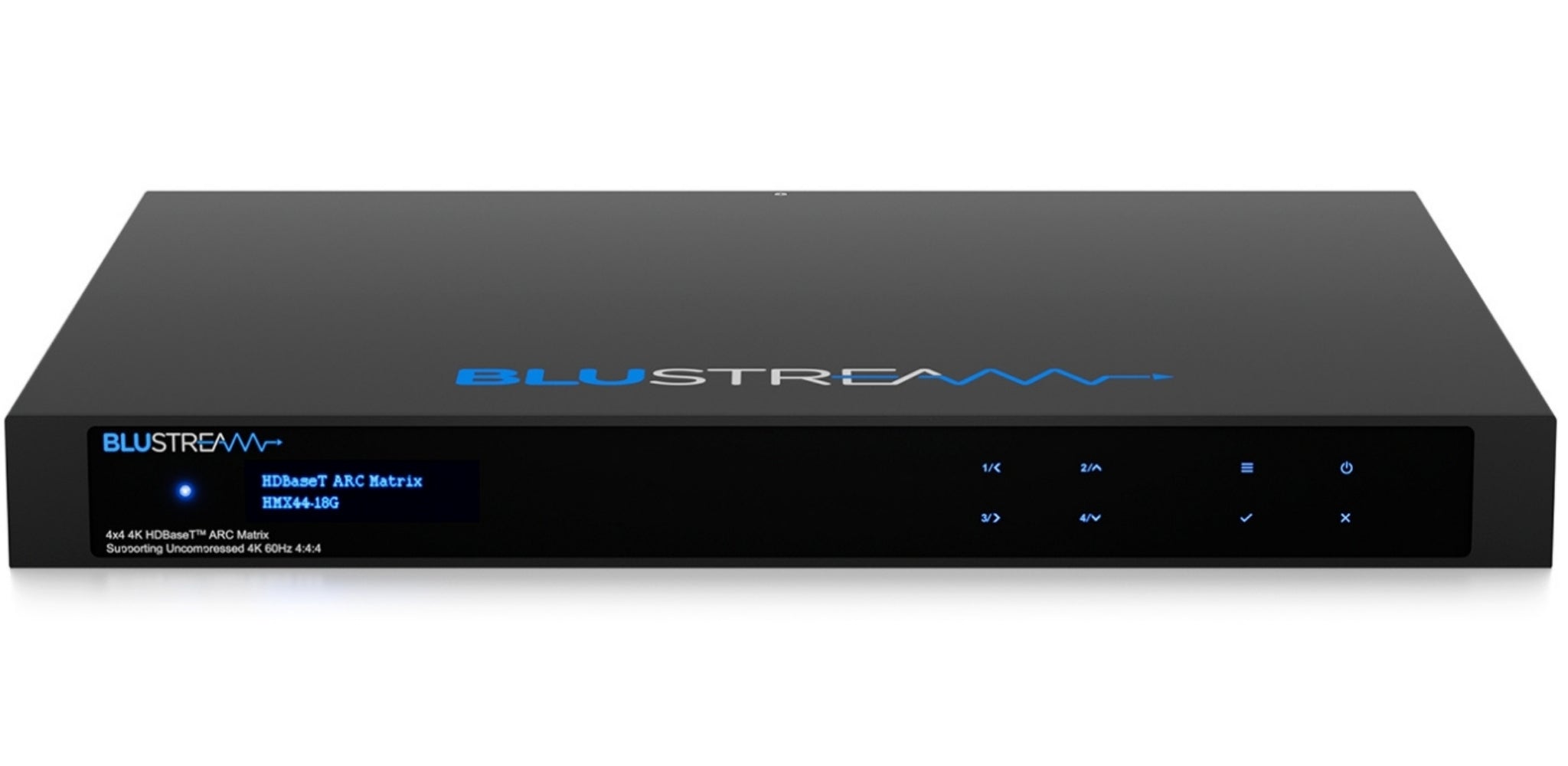

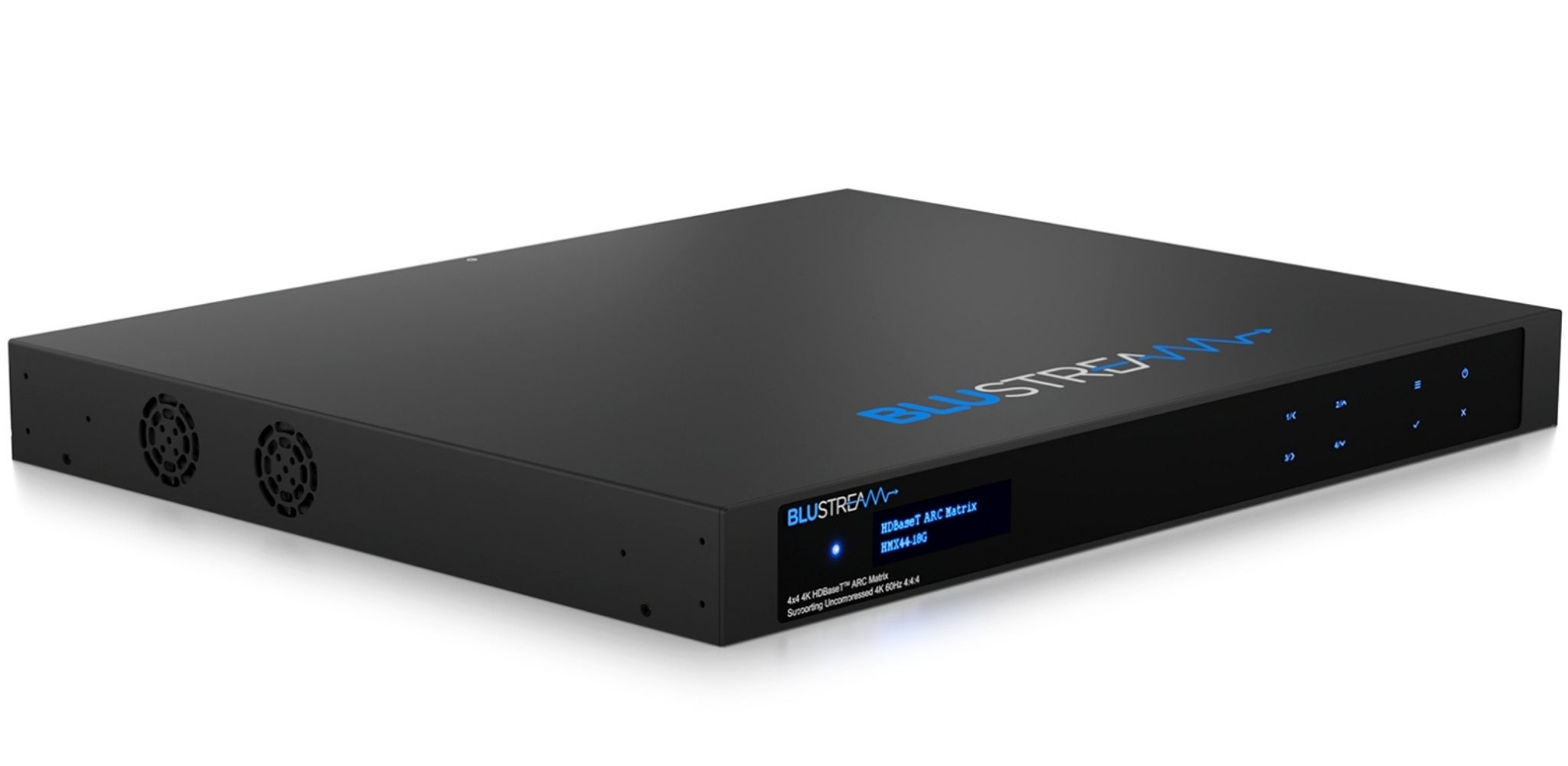

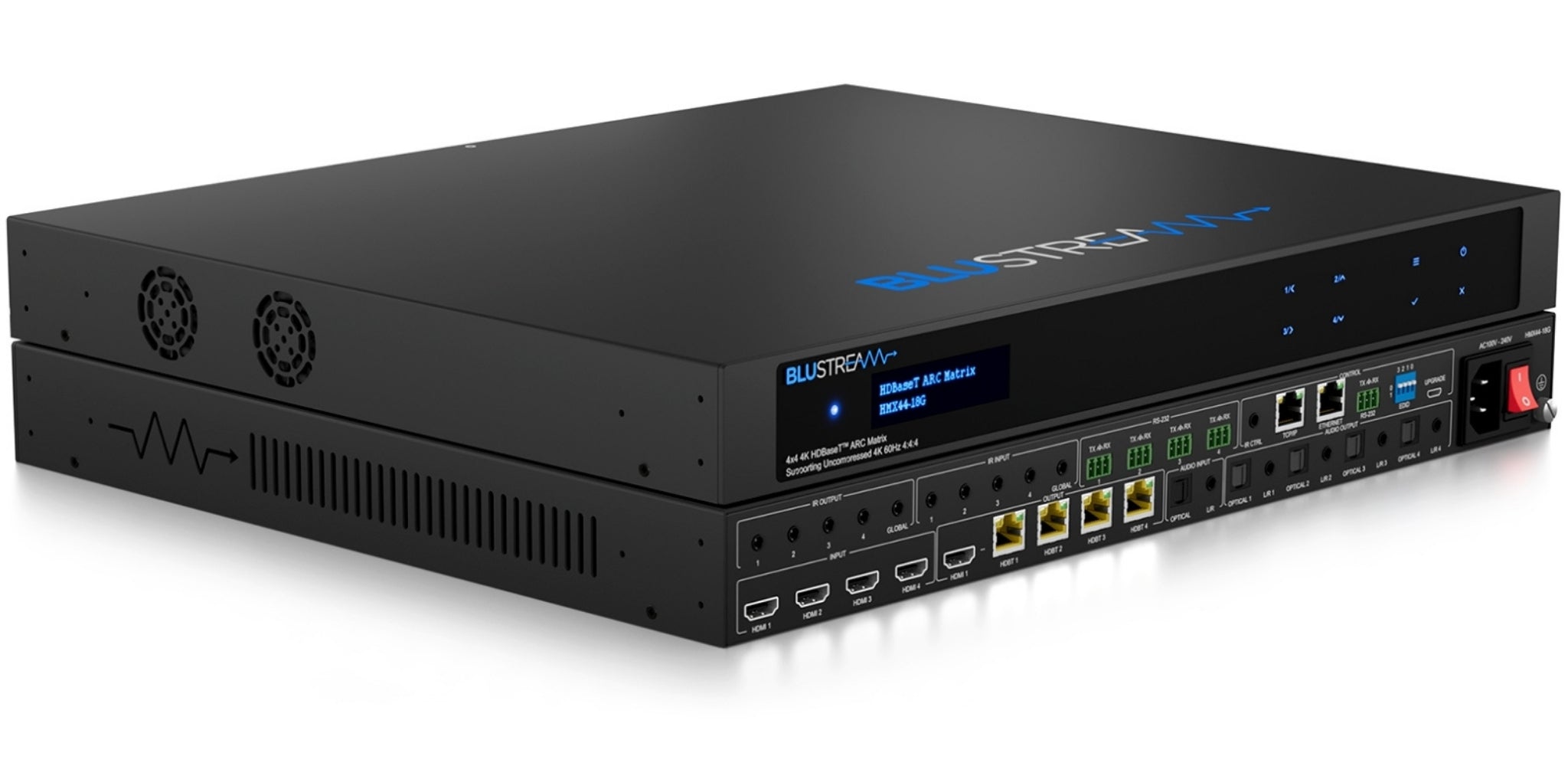

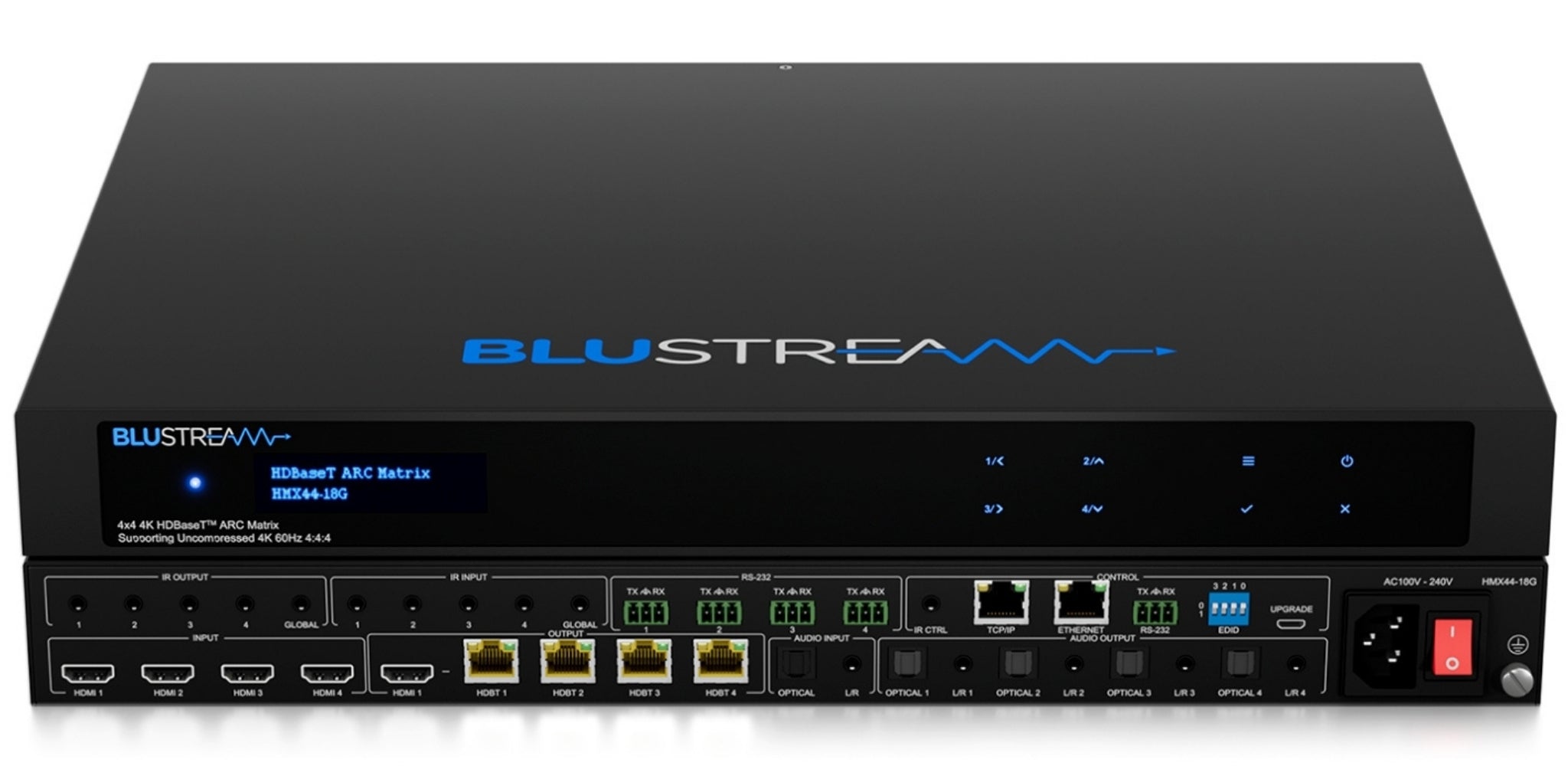

BluStream 4×4 HDBaseT™ ARC Matrix Supporting Uncompressed 4K 60Hz 4:4:4
The HMX44-18G Matrix is an industry leading uncompressed, unconverted HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.3/2.2 solution utilising HDBaseT™ 3 technology to deliver HDMI, Bidirectional IR & RS-232, ARC, 1Gb Ethernet, and PoC up to lengths of 100m over a single CAT6A cable.
The HMX44-18G supports uncompressed distribution of the latest HDR resolutions including HDR10/10+ and Dolby Vision resulting in the ultimate in picture quality for your critical viewing areas.
The Matrix also provides advanced features including simultaneous HDBaseT™/HDMI on output 1, video smart scaling on HDBaseT outputs, and an independent 14×4 audio matrix, and ARC. The HMX44-18G includes an in-built web browser interface module for control and configuration of the Matrix, and RS-232, IR and 1Gb Ethernet pass through to enable seamless 3rd party control integration.
Key Features
Advanced uncompressed, unconverted, HDMI over HDBaseT™ technology offering distribution of bit-for-bit 4K HDMI video and audio over a single CAT6A cable
Features 4 x HDMI inputs which can be independently routed to 4 x HDBaseT™ outputs
Output 1 features a simultaneous HDMI and HDBaseT™ output
Supports distribution of uncompressed HDMI2.0 18Gbps specification including 4K 60Hz 4:4:4 UHD video up to 100m*
Supports distribution of the latest HDR resolutions including HDR10/10+ and Dolby Vision
14×4 Audio Matrix independently controllable from video. Audio source inputs include:
4 x audio breakout from HDMI source inputs
4 x audio breakout from zone outputs
4 x audio return from zone outputs*
1 x optical and 1x analogue audio input
Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
Integrated Ethernet switch (LAN Serving) when used with Blustream RX18G receiver (1Gb maximum)
Web interface module for control and configuration of the Matrix
Supports bi-directional IR and RS-232 on all HDBaseT™ outputs
Control via front panel, IR, iOS / Android App, RS-232 and TCP/IP
Supports PoC (Power over Cable) to power the supplied HDBaseT™ receivers
Advanced EDID management and HDCP 2.3 compliant
Supplied with 4 x RX18G HDBaseT™ Receivers
Box Contents
1 x HMX44-18G
4 x RX18G
1 x Rack mounting kit
1 x Remote control
4 x IR emitters
5 x IR receivers
1 x Serial Cable – DB9 to 3-pin phoenix connector
1 x IR Control Cable – 3.5mm-3.5mm Cable
IEC Power Cable(s)
1 x Quick Reference Guide -
Category Details Video Input Connectors 4 x HDMI Type A, 19-pin, female Video Output Connectors 1 x HDMI Type A, 19-pin, female, 4 x HDBaseT™ RJ45 connectors Audio Input Connectors 1 x Analogue audio L/R (3.5mm stereo Jack), 1 x Optical (S/PDIF) Audio Output Connectors 4 x Analogue audio L/R (3.5mm stereo Jack), 4 x Optical (S/PDIF) RS-232 Serial Ports 5 x 3-pin Phoenix connector TCP/IP Control Port 1 x RJ45, female Ethernet Passthrough Port 1 x RJ45, female IR Input Ports 6 x 3.5mm stereo jack IR Output Ports 5 x 3.5mm mono jack Product Upgrade Port 1 x Micro USB, female Rack Mountable 1U rack height, rack ears included Casing Dimensions 436mm x 360mm x 44mm (without feet) Shipping Weight 8.7kg Operating Temperature 23°F to 131°F (-5°C to +55°C) Storage Temperature -13°F to 158°F (-25°C to +70°C) Power Supply Internal 100-240V AC HDBaseT Power Output 24V DC 0.75A per port -
