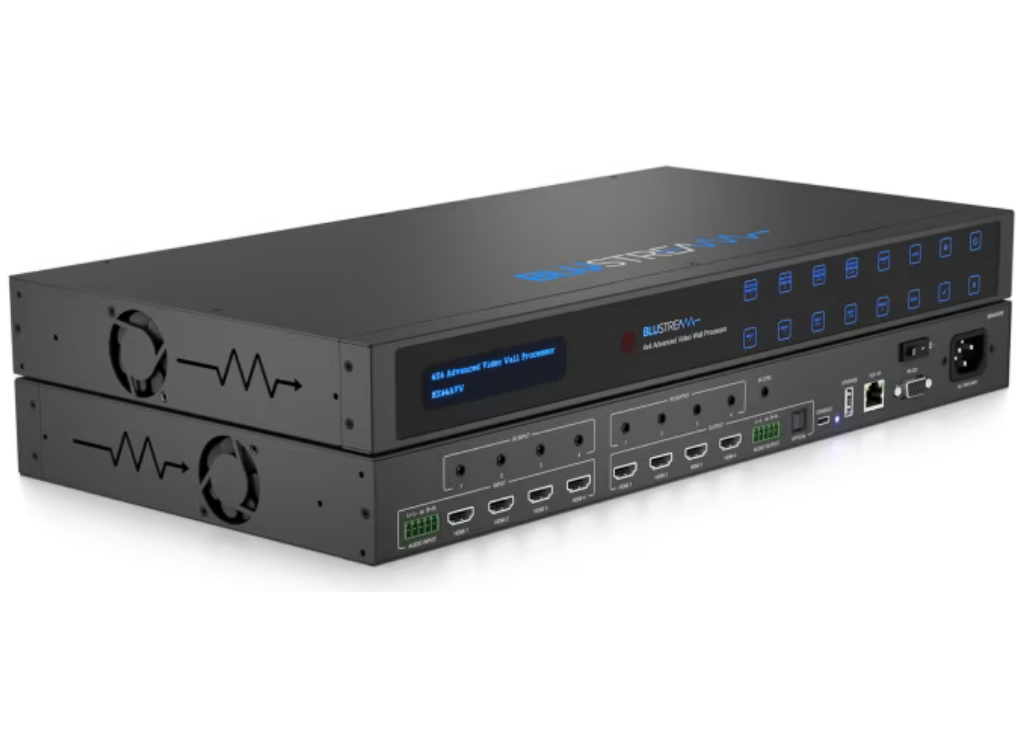

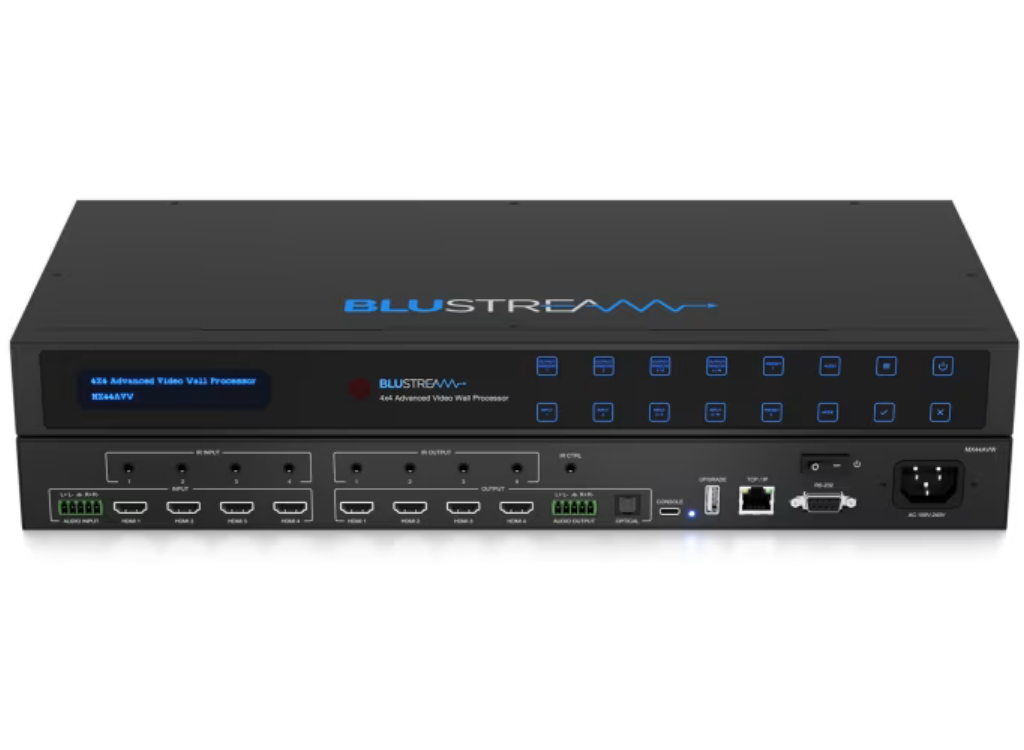

• BluStream 4×4 Advanced Video Wall Processor | MX44AVW

  Our MX44AVW is an advanced 4K HDMI 2.0 multi-purpose high-speed video processing system. The MX44AVW can be configured for 3 different output modes:
  – 4×4 seamless matrix switcher
  – Advanced video wall solution
  – Quad multi-view presentation system

  The MX44AVW supports advanced video wall configurations, allowing individual overlap and rotation of panels; multiview with pre-defined and customisable layouts using PIP, POP, PBP, and up to 4 window layouts.

  The MX44AVW features a web browser interface module for control and configuration of the matrix with additional third party control achievable via the front-panel push buttons, IR remote control, RS-232 interface and TCP/IP. The MX44AVW is designed to achieve artistic video wall configurations within retail and showcase style installations.


  Key Features
  Advanced 4K HDMI 2.0 multi-purpose high-speed video processor supporting matrix, multiview, and video wall function

  Advanced video wall configuration allowing individual overlap and rotation of panels

  Multiview mode supports PIP, PBP, POP, Dual, Triple and Quad-windows layouts with pre-defined and customisable configurations

  Seamless video switching

  Supports HDMI 2.0 4K UHD 60Hz 4:4:4 18Gbps specification including HDR

  Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K

  Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission

  HDMI audio breakout to analogue L/R audio and optical digital outputs concurrently

  IR routing

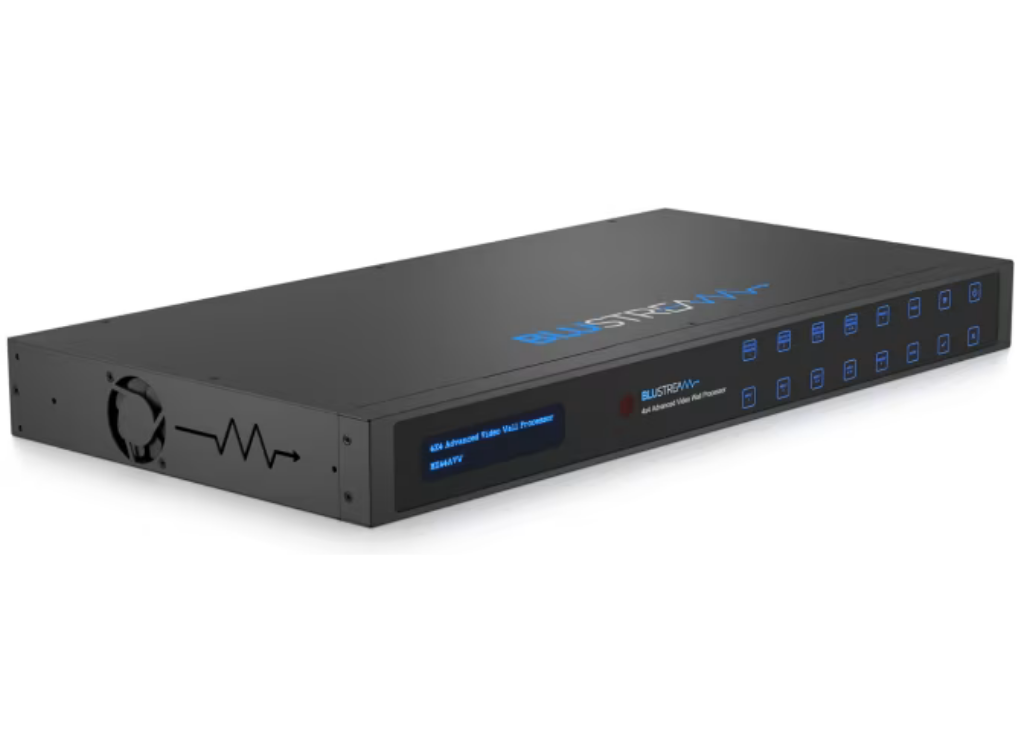

  Control via front panel, IR, RS-232, TCP/IP and web-GUI

  Supplied with Blustream 5V IR receiver and remote control

  HDCP2.2 compliant with advanced EDID management


  Box Contents
  1 x MX44AVW
  1 x Remote control
  1 x IR Control Cable – 3.5mm-3.5mm Cable
  1 x 19″ Rack Mounting kit
  4 x Mounting feet
  1 x Quick Reference Card
  1 x IEC Power Cable

• Feature	Description

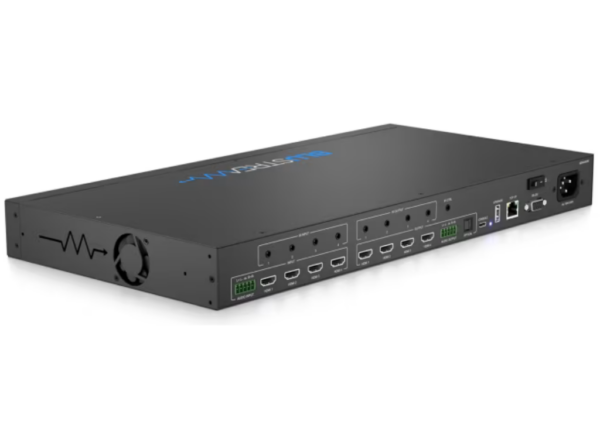

  Video Input Connectors	4 x HDMI Type A, 19-pin, female
  Video Output Connectors	4 x HDMI Type A, 19-pin
  Audio Input Connectors	5-Pin Phoenix connector (2ch balanced/un-balanced analogue audio)
  Audio Output Connectors	1 x Optical (S/PDIF), 5-Pin Phoenix connector (2ch balanced/un-balanced analogue audio)
  Control Ports	1 x DB-9, female
  Console Control Ports	1 x USB Type C, female
  TCP/IP Control	1 x RJ45, female
  IR Input Ports	5 x 3.5mm stereo jack
  IR Output Ports	4 x 3.5mm mono jack
  Firmware Upgrade	1 x USB Type A female
  Rack-Mountable	1U rack height, rack ears included
  Casing Dimensions (W x D x H)	440mm x 240mm x 44mm
  Dimensions Including Connections (W x D x H)	440mm x 245mm x 44mm
  Shipping Weight	xxkg TBC
  Operating Temperature	32°F to 104°F (0°C to 40°C)
  Storage Temperature	-4°F to 140°F (-20°C to 60°C)
  Power Supply	Internal 100-240V AC
