• BluStream 4-Way Optical Switch with built-in DAC and Audio Conversion | OPT41AU

  Our OPT41AU is an advanced 4-way optical audio switch. Perfect for the integration of multiple audio sources with a sound bar.

  The OPT41AU also has a built in DAC and simultaneous digital and analogue stereo audio outputs.

  The OPT41AU supports 192kHz sample rates and up to 24-bit resolution for enhanced sound reproduction.

  Key Features
  • Features 4 x optical S/PDIF digital inputs which can be switched to single optical output
  • DAC (Digital to Analogue Audio Converter) converts selected optical digital to analogue left / right stereo audio output
  • Built-in digital audio converter converts selected optical audio input to coaxial digital output
  • Outputs optical digital, coaxial digital and analogue left / right stereo audio concurrently
  • Supports sample rates 32kHz, 44.1kHz, 48kHz, 96kHz & 192kHz up to 24-bit resolution
  • Supports LPCM, DTS, Dolby Digital and Dolby Digital plus when used as a straight digital in / digital out switcher
  • Ultra low jitter and high fidelity design

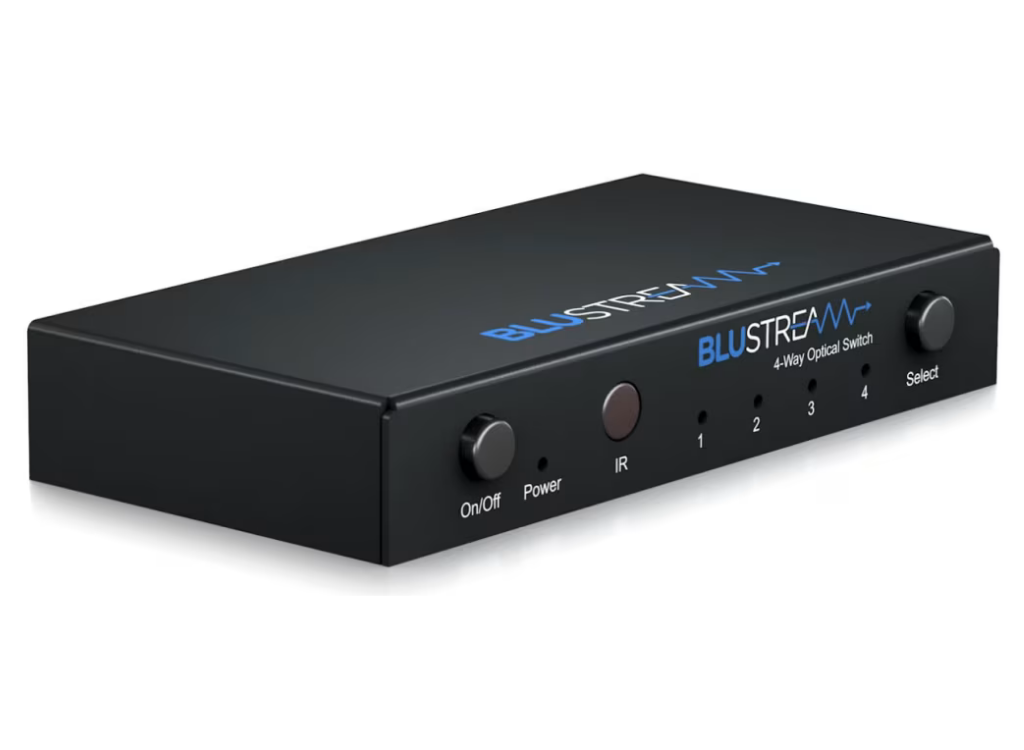

  • Input selection button on front panel to toggle between optical inputs
  • IR receiver on front panel to switch inputs and turn on / off audio outputs using supplied IR remote
  • External IR input can be used to extend IR with Blustream IR receiver cable


  Box Contents
  1 x OPT41AU
  1 x IR Remote Control
  1 x 5V/1A DC Power Supply
  1 x Mounting Kit
  1 x User Manual

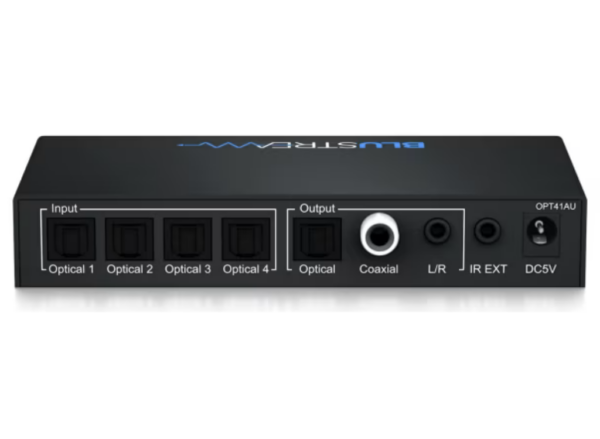

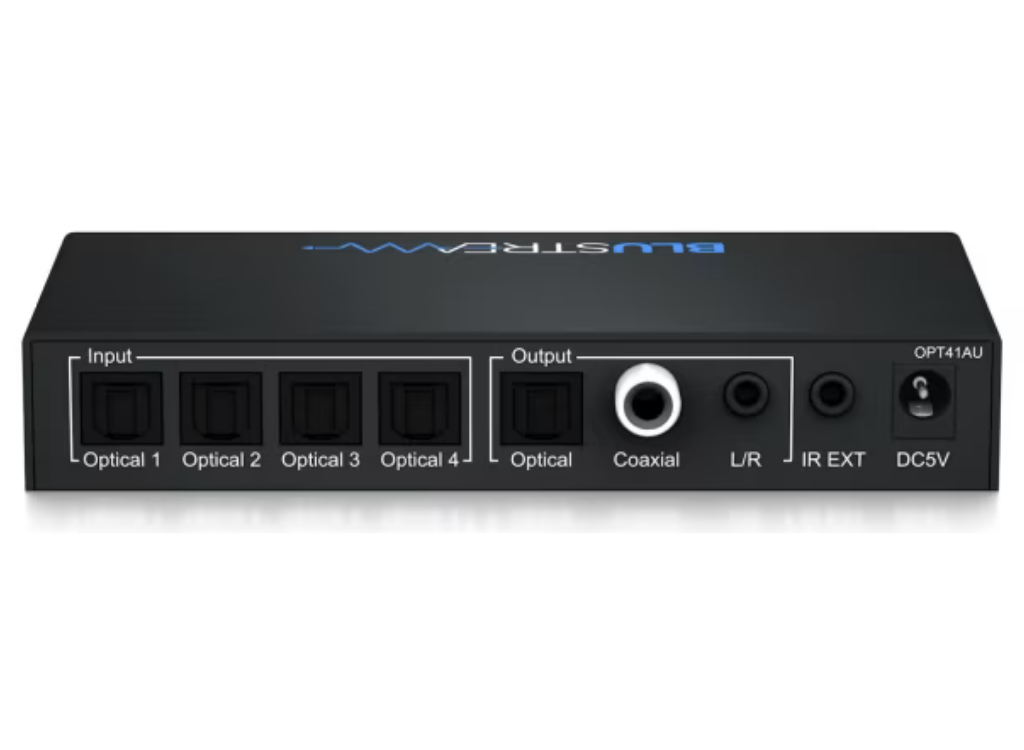

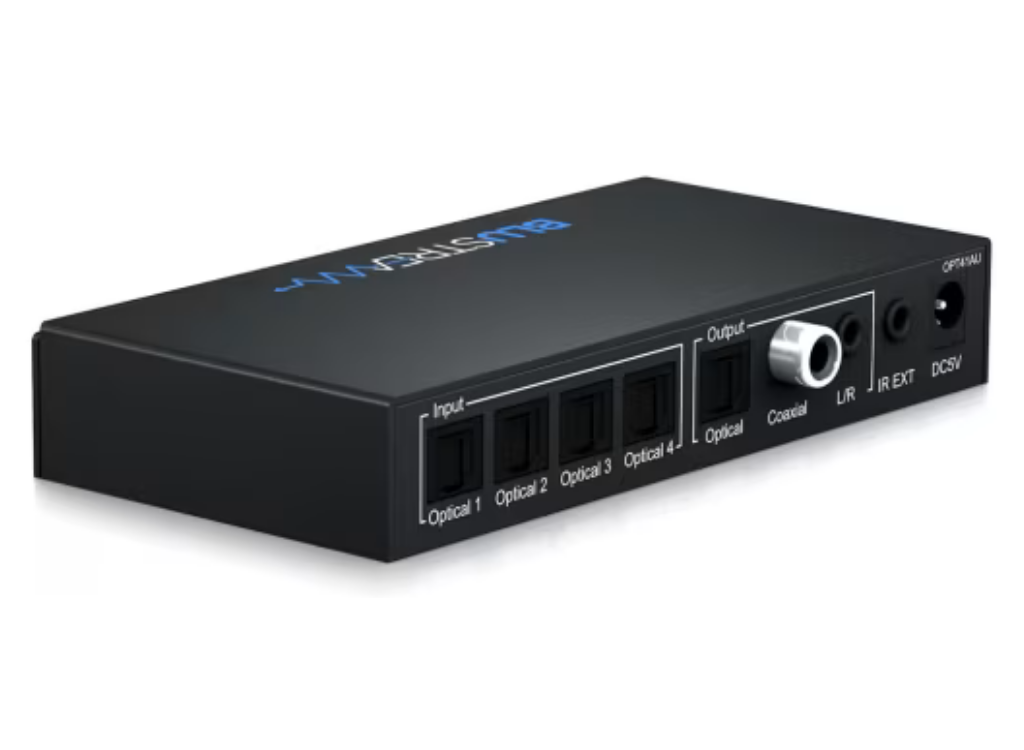

• Feature	Specification
  Audio Input Connectors	4 x Optical (S/PDIF)
  Output Connectors	1 x Optical, 1 x RCA (S/PDIF), 1 x Analog L/R
  IR Input Ports	1 x 3.5mm stereo jack
  Product Dimensions (with)	140 x 80 x 25 mm
  Product Dimensions (without)	140 x 70 x 25 mm
  Product Weight	0.25 kg
  Box Dimensions	210 x 125 x 90 mm
  Shipping Weight	0.5 kg
  Operating Temperature	32°F to 104°F (0°C to 40°C)
  Storage Temperature	-4°F to 140°F (-20°C to 60°C)
  Power Supply	5V/1A DC, screw type connector
  Mounting Kit	Included
