• BluStream 4-Way Multiview HDMI Switcher | MV41

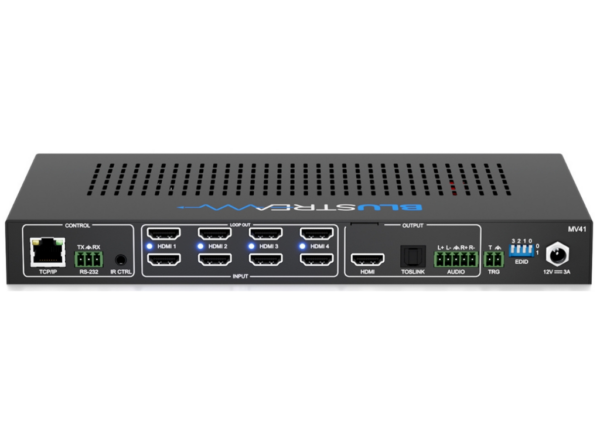

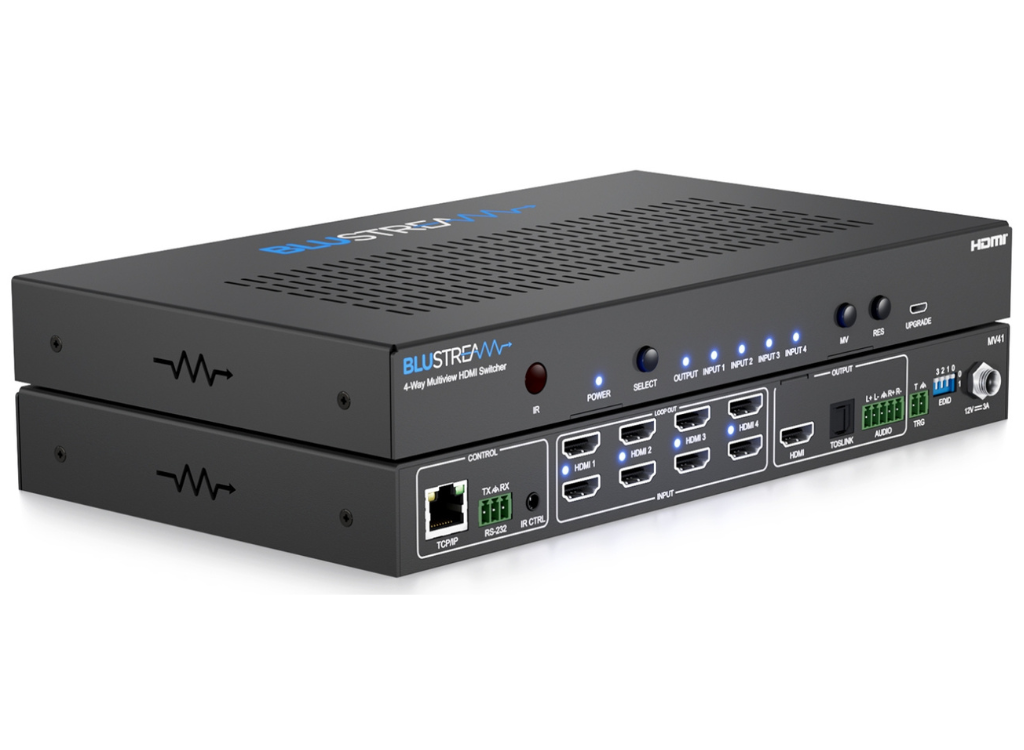

  Our MV41 is an advanced 4×1 HDMI multi-view switcher. The MV41 allows up to 4x HDMI2.0 sources to be output to a single display at the same time, with pre-defined and customisable video layouts, and seamless switching. The MV41 also supports HDMI loop-through for all HDMI inputs allowing cascading of original source signals for further distribution.

  The MV41 features 2ch PCM and Optical S/PDIF audio breakout, with third party control achievable from the web-GUI, TCP/IP, RS-232, IR remote control, of from the front panel buttons.

  The multiple configuration and connectivity options make the MV41 suitable for both residential and commercial installations

  Key Features
  • Advanced 4x HDMI input switch with multi-view HDMI output
  • Features 4x HDMI loop out for integrating local displays or cascading to multiple devices
  • Supports PIP, PBP, POP, Dual, Triple and Quad-windows layouts with pre-defined and customisable configurations
  • Supports video down-scaling and HDR to SDR conversion on HDMI multiview output
  • Supports HDMI2.0 4K UHD 60Hz 4:4:4 18Gbps specification including HDR
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
  • HDMI audio breakout to analogue L/R audio, and optical digital outputs concurrently
  • Analogue L/R audio outputs support both balanced and unbalanced audio signals
  • Control via front panel, IR, RS-232, TCP/IP, web-GUI and 12V trigger
  • Supplied with Blustream 5V IR receiver and remote control
  • 3rd party drivers available for all major control brands
  • HDCP2.3 compliant with advanced EDID management

  Box Contents
  1 x MV41
  1 x IR receiver
  1 x IR remote control
  1 x 5-pin phoenix connector
  1 x 3-pin phoenix connector
  1 x 2-pin phoenix connector
  1 x 19” rack mounting kit
  1 x Quick reference guide
  1 x 12V/3A DC power supply

• Feature	Specification
  Video Input Connectors	4 x HDMI Type A, 19-pin, female
  Video Output Connectors	5 x HDMI Type A, 19-pin, female
  Audio Output Connectors	1 x Optical (S/PDIF), 1 x 5-pin Phoenix connector
  TCP/IP Control	1 x RJ45, female
  RS-232 Port	1 x 3-pin Phoenix connector
  12V Trigger Port	1 x 2-pin Phoenix connector
  IR Input Ports	1 x 3.5mm stereo jack
  Firmware Upgrade	1 x Micro-USB UART port
  Dimensions (W x D x H)	265mm x 152mm x 30mm
  Shipping Weight	1.5kg
  Operating Temperature	32°F to 104°F (0°C to 40°C)
  Storage Temperature	-4°F to 140°F (-20°C to 60°C)
  Power Supply	12V/3A DC, screw connector
