BluStream 4-Way HDMI Switcher with Multi-Channel Dante Audio Breakout | SW42DA

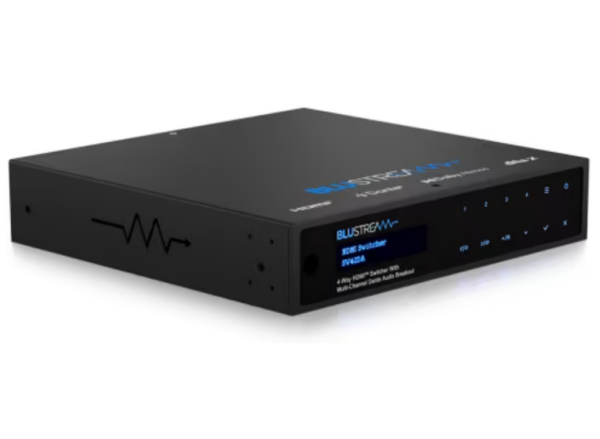

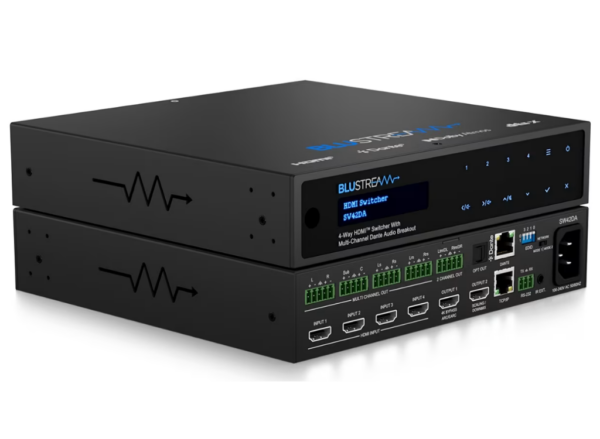

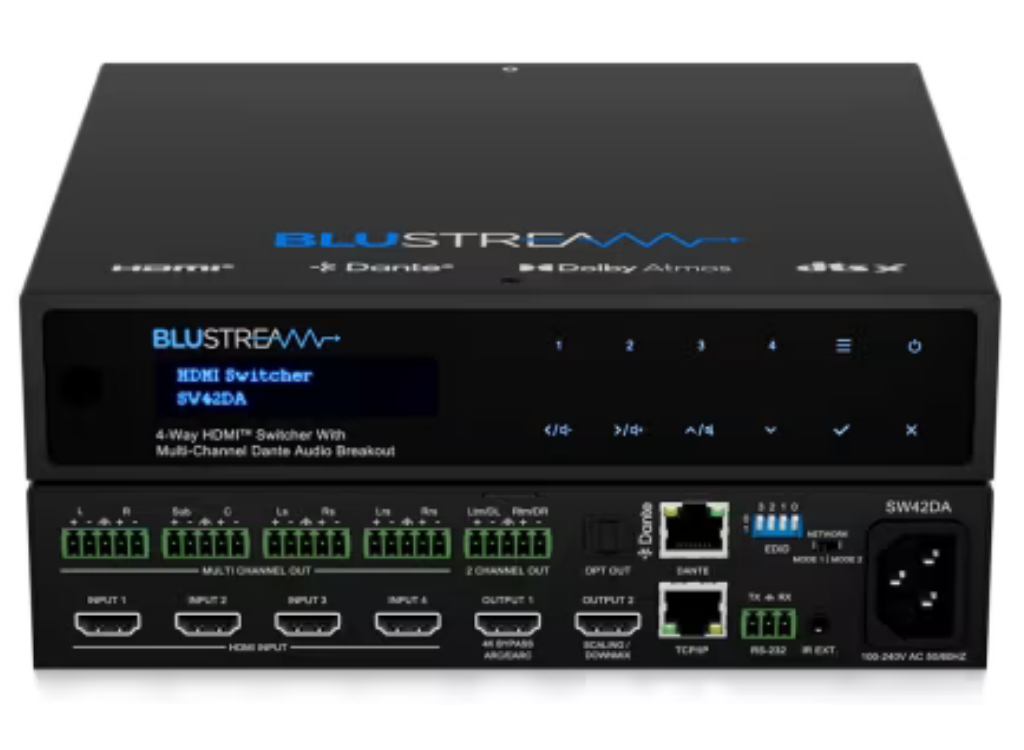

The Blustream SW42DA is a 4-Way HDMI switch that has been designed to breakout, convert, and downmix embedded Dolby Audio or DTS Audio within a HDMI switching environment.
The SW42DA will pass native video with the embedded multi-channel audio to compatible equipment on output 1, with a second HDMI output featuring optional video down-scaling from 4K 60Hz 4:4:4 or 4:2:0, video down to 1080p, with the native embedded audio, or down-mixed 2ch audio as required.
Audio capabilities include the selection and manipulation of formats across both multichannel and 2ch downmixed. The Dante output allows for 9.1ch breakout and embedding into a Dante digital signal, and/or 7.1ch breakout with a separate 2ch down-mixed Dante output. Optical S/PDIF breakout (2ch or 5.1ch as required), individual analogue multi-channel breakout, and 2ch downmixed balanced/unbalanced analogue audio can also be broken out as required directly from the unit.
The SW42DA provides an advanced, but cost effective solution for ensuring that 4K UHD video and multi-channel audio can be distributed around a Dante multi-room system where there are a mixture of 2ch and/or 7.1ch zones or 7.1.2ch / 5.1.4ch (9.1ch) audio, with multiple output resolution requirements. Perfect for cinema and media room set up’s where local content would be shared within a multi-zone distributed system where either multichannel or down-mixed audio is required.
Key Features
Features 4 x HDMI inputs which can be switched to the dual HDMI outputs simultaneouslySupports HDMI 2.0b 18Gbps specification, including 4K 60Hz 4:4:4 UHD video
Supports distribution of the latest HDR resolutions including HDR10/10+ and Dolby Vision
HDMI output 1 replicates the HDMI input signal – up to 4K 60Hz 4:4:4 and 5.1.4ch / 7.1.2ch
Dolby Atmos and DTS-HD multi-channel audio
HDMI output 2 features an optional 4K video down-scaler, and 5.1.4ch / 7.1.2ch to 2ch Dolby
Atmos and DTS-HD audio downmixing
Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
HDMI audio breakout of Dolby Atmos and DTS-HD to up to 8 channels of Dante audio (7.1ch), with an independent 2 down-mixed channels of Dante audio
HDMI audio breakout of Dolby Atmos and DTS-HD to up to 10 channels of Dante audio (7.1.2ch / 5.1.4ch)*
HDMI audio breakout to 7.1ch balanced / unbalanced analogue audio outputs
HDMI Dolby Atmos and DTS-HD 7.1 down-mixing to 2ch balanced and unbalanced audio ouputs
Supports ARC/eARC including breakout to 7.1ch and 2ch downmixed analogue, and Dante audio
Supports: 44.1, 48, 88.2 & 96kHz Dante® sample rates @ 24-bit
Configurable Dante® device latency using Dante® Controller
Supports AES67 RTP audio transport
Control via TCP/IP, web-GUI, RS-232, front panel buttons, and infrared
HDCP 2.3 compliant with advanced EDID management * The Dante 2ch down-mix channels can be re-allocated to allow for additional height channels (7.1.2ch / 5.1.4ch)
Box Contents
1 x SW42DA
1 x Remote Control
1 x IR Receiver
1 x 19” Rack Mounting Kit
4 x Feet
1 x Quick Reference Card
IEC Power Cable(s) -

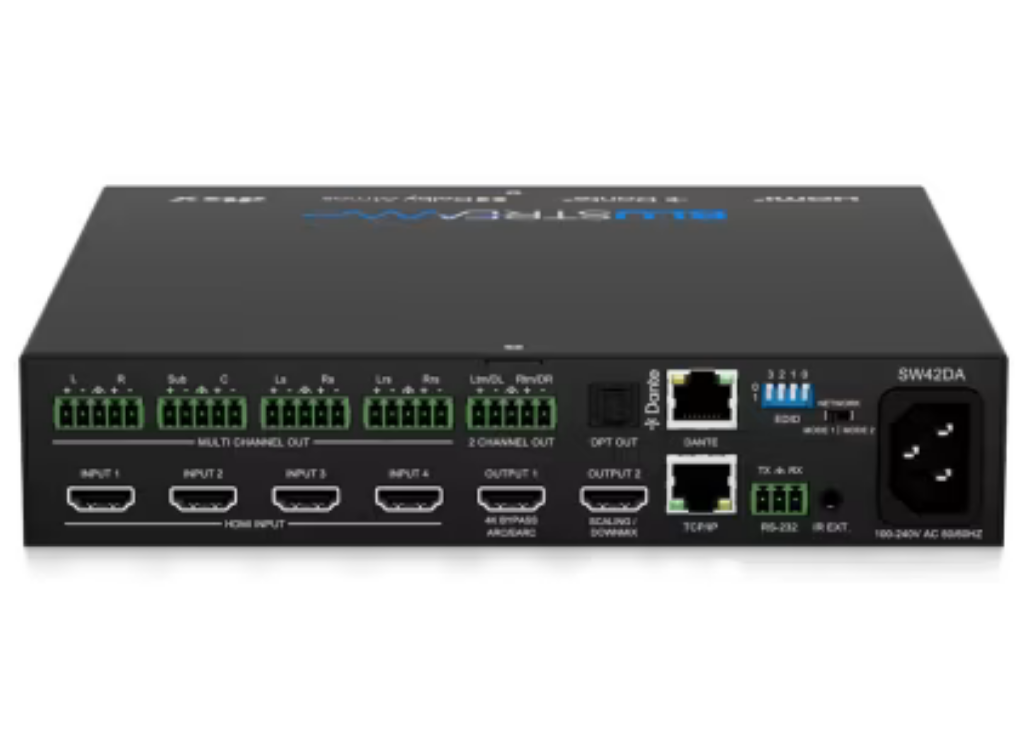

Feature Description Video Input Connectors 4 x HDMI Type A, 19-pin, female Video Output Connectors 2 x HDMI Type A, 19-pin, female Audio Output Connectors 1 x Optical (Toslink), 5 x 5-pin Phoenix connector (8ch and separate 2ch balanced/unbalanced analogue audio), 1 x RJ45, female (100Mbps Dante® network) EDID 4-pin DIP switch TCP/IP Control 1 x RJ45, female RS-232 Port 1 x 3-pin Phoenix connector IR Input Ports 1 x 3.5mm stereo jack Dimensions 220mm x 214mm x 45mm, without feet or connections Shipping Weight 2.6kg (TBC) Operating Temperature 32°F to 104°F (0°C to 40°C) Storage Temperature -4°F to 140°F (-20°C to 60°C) Power Supply Internal 100-240V AC -
