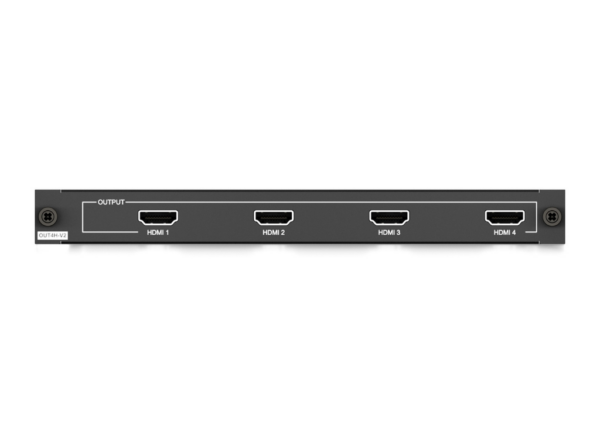

BluStream 4-Way HDMI 2.0 Output Board – 18Gbps | PRO-OUT4H-V2
- Description
- Specifications
-
BluStream 4-Way HDMI 2.0 Output Board – 18Gbps | PRO-OUT4H-V2
The PRO-OUT4H-V2 supports HDMI 2.0 4K 60Hz 4:4:4 (18Gbps) with HDCP 2.2, allowing distribution of inputs to four independent displays.
The PRO-OUT4H-V2 also features quick release card module fittings allowing simple installation into the Custom Pro Matrix hub.
Key Features
• Features 4 x HDMI outputs for connection to HDMI displays
• Supports HDMI 2.0 18Gbps specification including HDR
• Supports up to 4K UHD 60Hz 4:4:4*
• Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
• Quick release card module fittings allowing simple population of input and output cards in Custom Pro Matrix Hub
• HDCP 2.2 Support -
Feature Specification Video Output Connectors 4 x HDMI Type A, 19-pin, female Card Dimensions (W x H x D) 182mm x 22mm x 177mm Dimensions Including Connections (W x H x D) 202mm x 22mm x 188mm Shipping Weight 0.5kg Operating Temperature 32°F to 104°F (0°C to 40°C) Storage Temperature -4°F to 140°F (-20°C to 60°C)
