• BluStream 4-Way HDBaseT™ / HDMI Input Switch

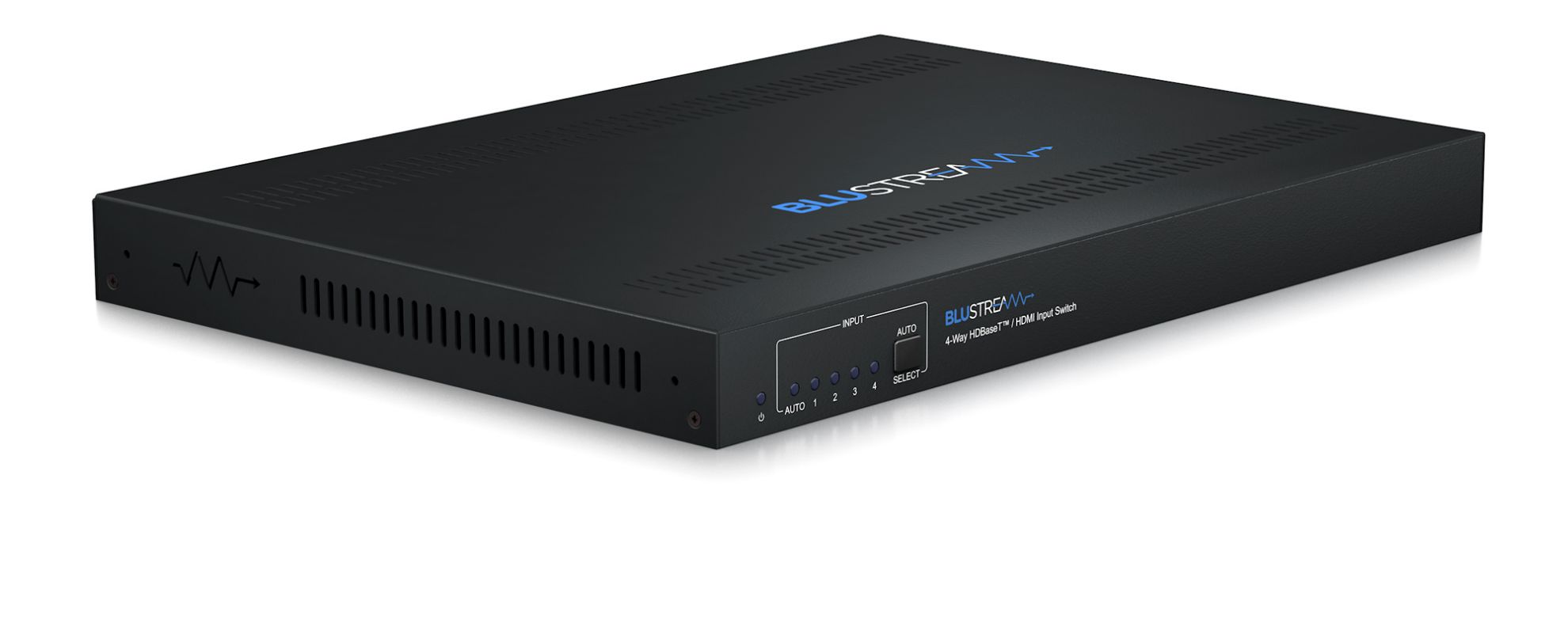

  Our SW41HDBT is a 4-Way HDMI 2.0 4K 60Hz 4:4:4 HDBaseT™ switch utilising CSC technology to deliver HDMI and HDBaseT™ inputs to simultaneous HDMI / HDBaseT™ outputs.
  The SW41HDBT provides enhanced features including PoC to power connected Blustream Transmitter and Receiver products, web GUI for configuration and control, source / display control via CEC, manual or automated source selection, RS-232 pass-through and control via front panel, IR, RS-232 and TCP/IP.
  The SW41HDBT is an ideal product for your boardroom, classroom or huddle-space application when used in conjunction with our Blustream HDBaseT™ wall-plate solutions.

  Key Features
  Features 2 x HDMI 2.0 and 2 x HDBaseT™ inputs which can be switched to simultaneous HDBaseT™ and HDMI outputs
   Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
   Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR
   Automatic downscaling of up to 4K 60Hz 4:4:4 video input to 4K 30Hz 4:4:4/4K 60Hz 4:2:0 or 1080p on HDBaseT™
   HDBaseT™ input supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0), HDBaseT™ output supports 4K UHD video up to 40m (3840 x 2160 @60Hz 4:4:4) with compatible CSC receiver*
   Extends HDMI 1080p up to a distance of 70m from Transmitter to SW41HDBT, and up to 70m from SW41HDBT to Receiver
   Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
   Supports PoC when used with compatible 12V HDBaseT™ transmitters and receivers*
   Compatible with all Blustream HDBaseT™ transmitters and receivers*
   Audio breakout to analogue L/R audio and Toslink (S/PDIF) digital outputs concurrently
   Web interface module for configuration and control of switch

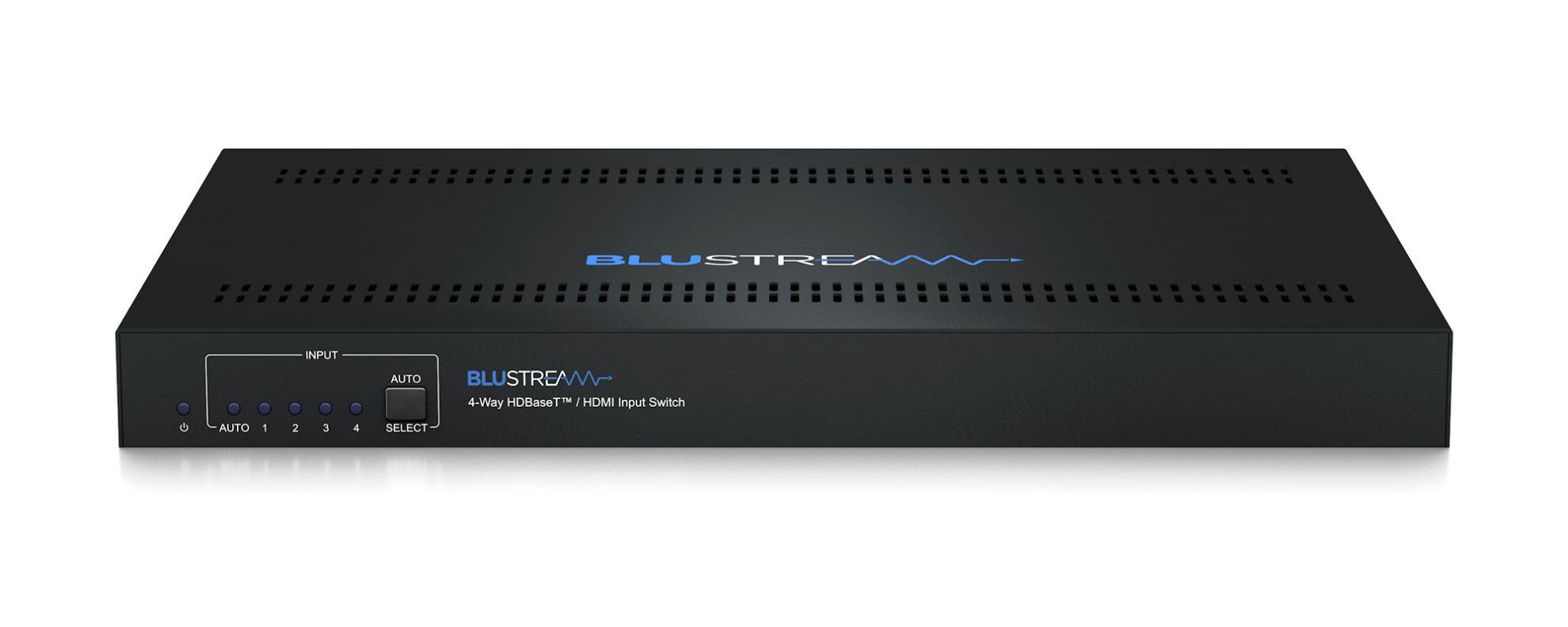

   Manual or auto source selection with control via front panel, IR, RS-232 and TCP/IP
   Auto source selection supported by compatible Blustream HDBaseT™ transmitters only*
   HDCP 2.2 compliant with advanced EDID management

  Box Contents
  1 x SW41HDBT
  1 x 24V/5A DC Power Supply
  1 x IR Receiver
  1 x IR Control Cable – 3.5mm – 3.5mm
  1 x RS-232 Control Cable
  1 x Mounting Kit
  1 x Quick Reference Guide

• Category	Details

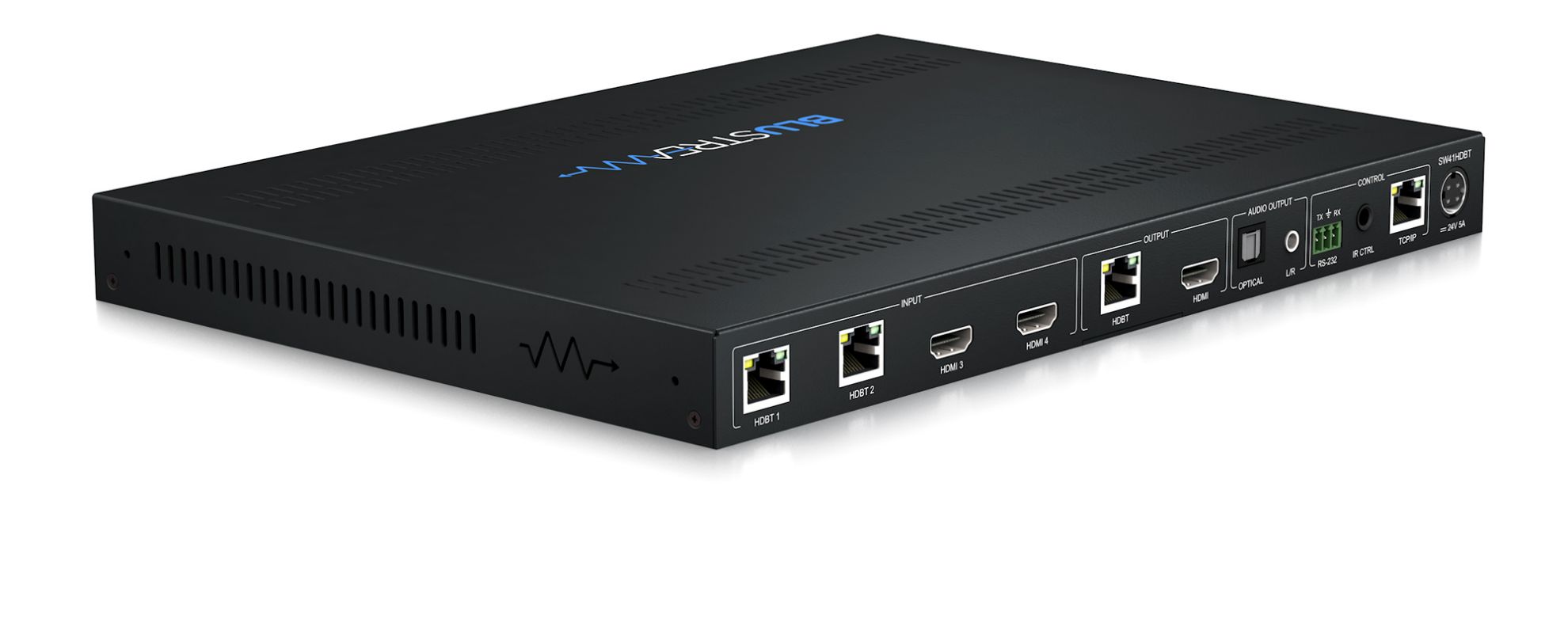

  Video Input	2 x HDMI Type A, 19-pin, female 2 x HDBaseT™ RJ45 connectors
  Video Output	1 x HDBaseT™ RJ45 connector 1 x HDMI Type A, 19-pin, female
  Audio Output	1 x Toslink (S/PDIF) 1 x 3.5mm L/R Analogue audio
  RS-232 Serial Port	1 x 3-Pin Phoenix connector
  TCP/IP Control	1 x RJ45, female
  IR Input Ports	2 x 3.5mm stereo jack
  Dimensions (W x H x D)	305mm x 28mm x 220mm
  Shipping Weight	1.5kg
  Operating Temperature	32°F to 104°F (-5°C to +55°C)
  Storage Temperature	-4°F to 140°F (-25°C to +70°C)
  Power Supply	24V/5A DC

• Description	Downloads
  BluStream 4-Way HDBaseT™ / HDMI Input Switch | SW41HDBT DataSheet	Downloads
  BluStream 4-Way HDBaseT™ / HDMI Input Switch | SW41HDBT User Manual	Downloads
  BluStream 4-Way HDBaseT™ / HDMI Input Switch | SW41HDBT Compatibility Guide	Downloads
  BluStream 4-Way HDBaseT™ / HDMI Input Switch | SW41HDBT Quick Reference Guide	Downloads
  BluStream 4-Way HDBaseT™ / HDMI Input Switch | SW41HDBT Schematic	Downloads
