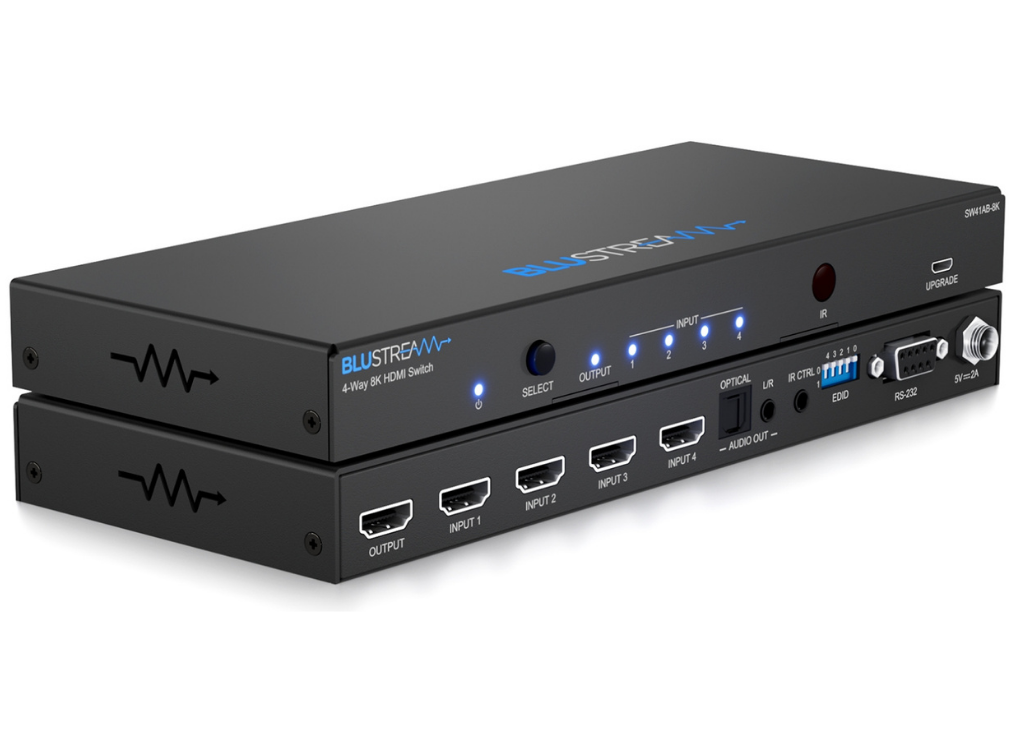

• BluStream 4-Way 8K HDMI Switch | SW41AB-8K

  The SW41AB-8K HDMI2.1 switcher integrates multiple source devices where the features and functionality of the HDMI2.1 chipset are being utilised for 8K 60Hz, and 4K 120Hz signals.

  With selection of 4 x HDMI input sources, the SW41AB-8K can auto-switch based on detecting a 5V hot plug, or a new TMDS signal, RS-232, or manually using IR, or the front panel.

  Analogue and optical digital (S/PDIF) audio breakout allows for audio integration. The SW41AB-8K is HDCP2.3 compliant and has advanced EDID management of source devices connected.


  Key Features
  Features 4x HDMI 2.1 inputs that can be switched to a single HDMI output
  Supports HDMI 2.1 40Gbps specification including HDR
  Supports up to 8K60 YCbCr 4:2:0 10bit, 8K30 RGB/YCbCr 4:4:4 10bit or 4K120 RGB/YCbCr 4:4:4 10bit
  Supports ALLM (Auto Low Latency Mode) & VRR (Variable Refresh Rate)
  Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
  Auto HDMI source switching via 5V and / or TMDS signal sensing
  Manual HDMI source switching via front panel, IR and RS-232
  Audio breakout to analogue L/R audio and optical (S/PDIF) digital outputs concurrently
  5V / 12V IR Compatible
  HDCP 2.3 compliant with advanced EDID management

  Box Contents
  1 x SW41AB-8K
  1 x REMSW41 Remote Control
  1 x 5V/2A DC Power Supply
  1 x IR Receiver (IRR)
  1 x Mounting Bracket Set
  1 x User Manual

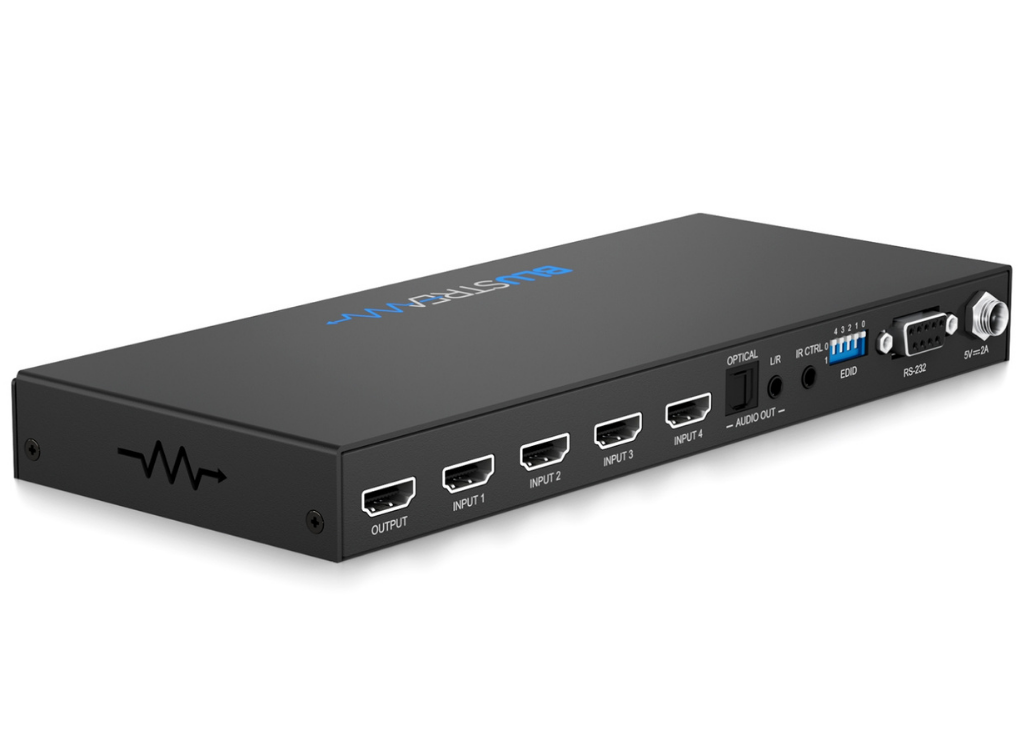

• Feature	Specification
  Video Input Connectors	4 x HDMI Type A, 19-pin, female
  Video Output Connectors	1 x HDMI Type A, 19-pin, female
  Audio Output Connectors	1 x Optical (S/PDIF), 1 x Analogue L/R (3.5mm stereo jack)
  IR Input Ports	1 x 3.5mm stereo jack
  RS-232 Serial Port	1 x DB9, female
  Dimensions (W x D x H)	196mm x 104mm x 41mm (including connections, without feet)
  Shipping Weight	0.9kg
  Operating Temperature	32°F to 104°F (0°C to 40°C)
  Storage Temperature	-4°F to 140°F (-20°C to 60°C)
  Power Supply	1 x 5V/2A DC
