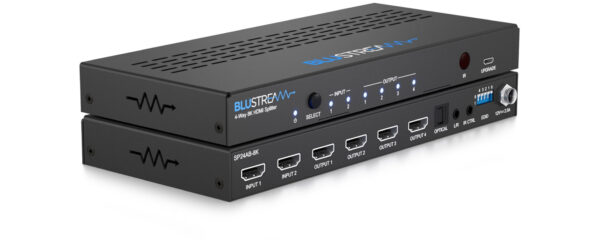

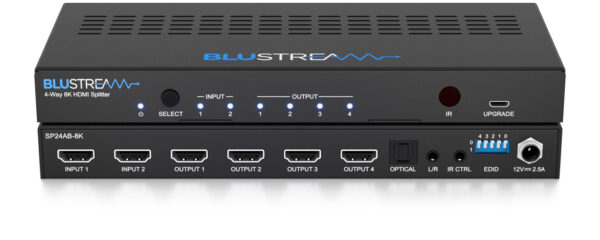

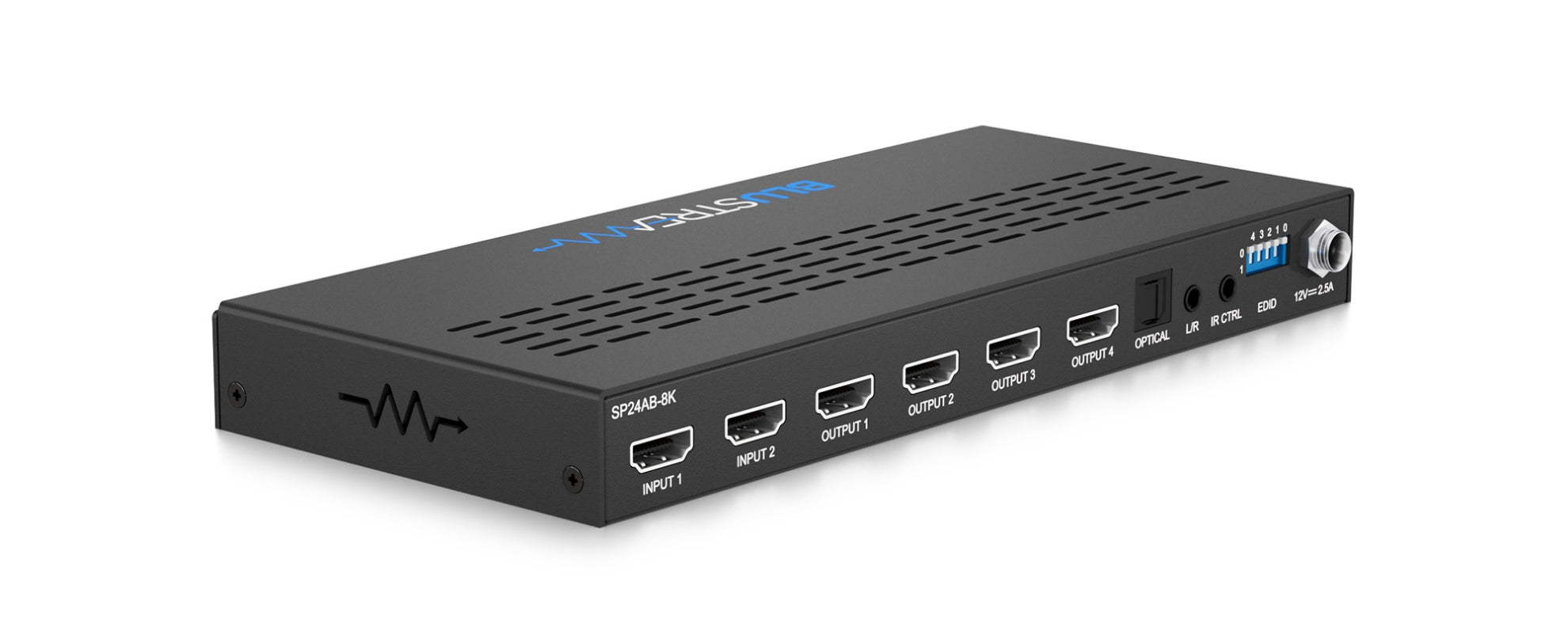

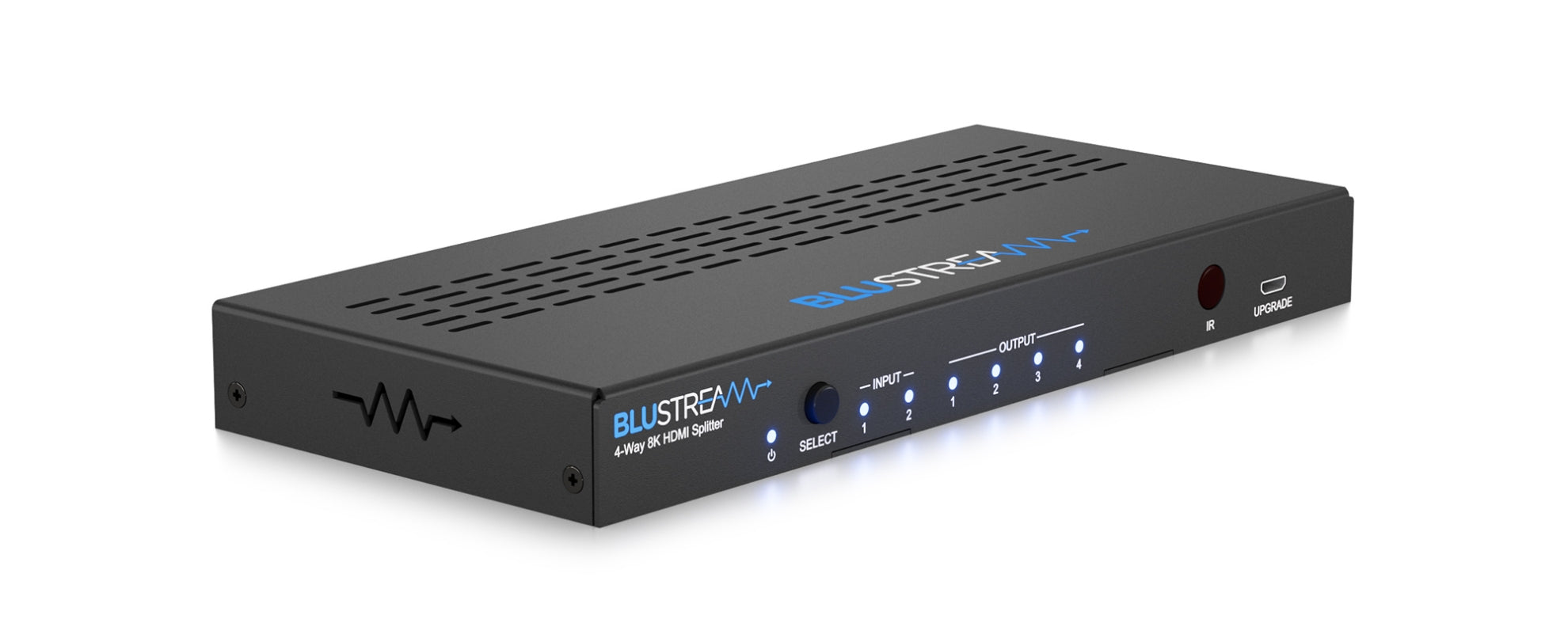

• BluStream 4-Way 8K HDMI Splitter | SP24AB-8K

  The SP24AB-8K HDMI 2.1 splitter is designed to be used where HDMI 2.1 chipset are being utilised for signals up to 8K 60Hz and 4K 120Hz.

  With selection of 2 x HDMI 2.1 input sources, a single source can be distributed to up to 4 x outputs simultaneously, the SP24AB-8K can auto-switch based on detecting a 5v hot plug, a new TMDS signal; or manually using IR (remote included), or the front panel. Analogue and optical digital (S/PDIF) audio breakout allows for audio integration. HDCP2.3 compliant, and advanced EDID management.


  Key Features
  • Features 2 x selectable HDMI 2.1 inputs that are split to 4 x HDMI outputs

  • Supports HDMI 2.1 specification including HDR (40Gbps maximum)

  • Supports up to 8K 60Hz YCbCr 4:2:0 10bit, 8K 30Hz RGB/YCbCr 4:4:4 10bit, or 4K 120Hz RGB/YCbCr 4:4:4 10bit

  • Supports ALLM (Auto Low Latency Mode) & VRR (Variable Refresh Rate)

  • Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission

  • Auto HDMI source switching via 5v and / or TMDS signal sensing

  • Manual HDMI source switching via front panel and IR

  • Audio breakout to analogue L/R audio and Coaxial (S/PDIF) digital outputs concurrently

  • 5v / 12v IR Compatible

  • HDCP 2.3 compliant with advanced EDID management

  Box Contents
  1 x SP24AB-8K
  1 x 12V/2.5A DC power supply
  1 x IR Receiver 1 x IR Remote Control 1 x Mounting kit
  4 x Rubber Feet
  1 x Quick Reference Guide

• Feature	Specification
  Video Input Connectors	2 x HDMI Type A, female
  Video Output Connectors	4 x HDMI Type A, Female RJ45 connector
  Audio Output Connectors	1 x Analogue L/R (3.5mm), 1 x Optical S/PDIF
  IR Input Port	1 x 3.5mm stereo jack
  Upgrade Port	1 x Micro USB connector
  Casing Dimensions (WxDxH)	212mm x 94mm x 23mm
  Power Supply	12v/2.5A DC connector
  Box Dimensions (WxDxH)	265mm x 135mm x 90mm
  Shipping Weight	1kg
  Operating Temperature	32°F to 104°F (0°C to +40°C)
  Storage Temperature	-4°F to 140°F (-20°C to +60°C)
