• BluStream 4 Port Managed IEC PDU | PWR4IEC

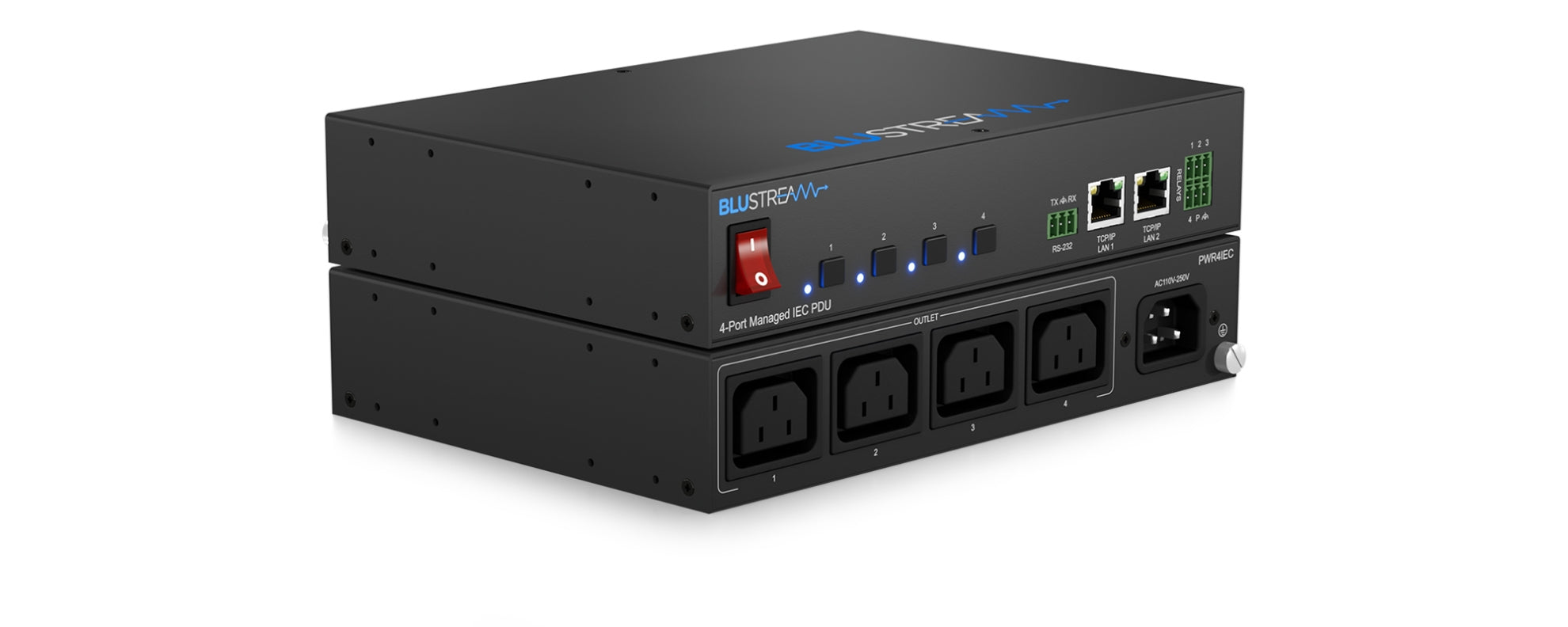

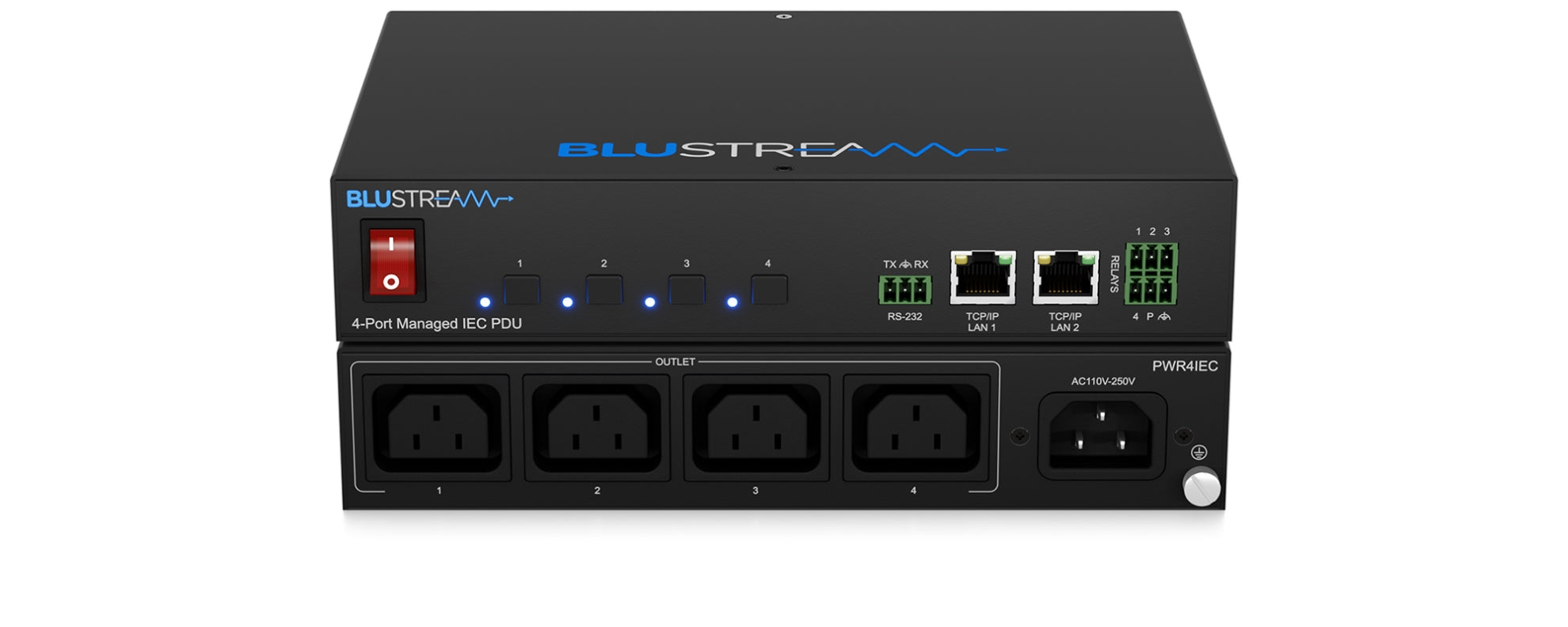

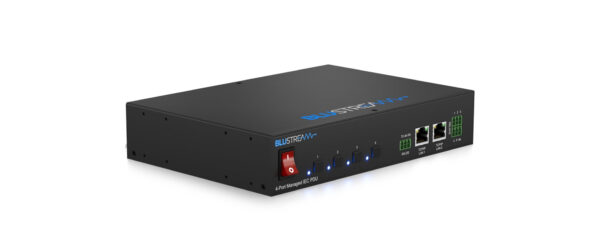

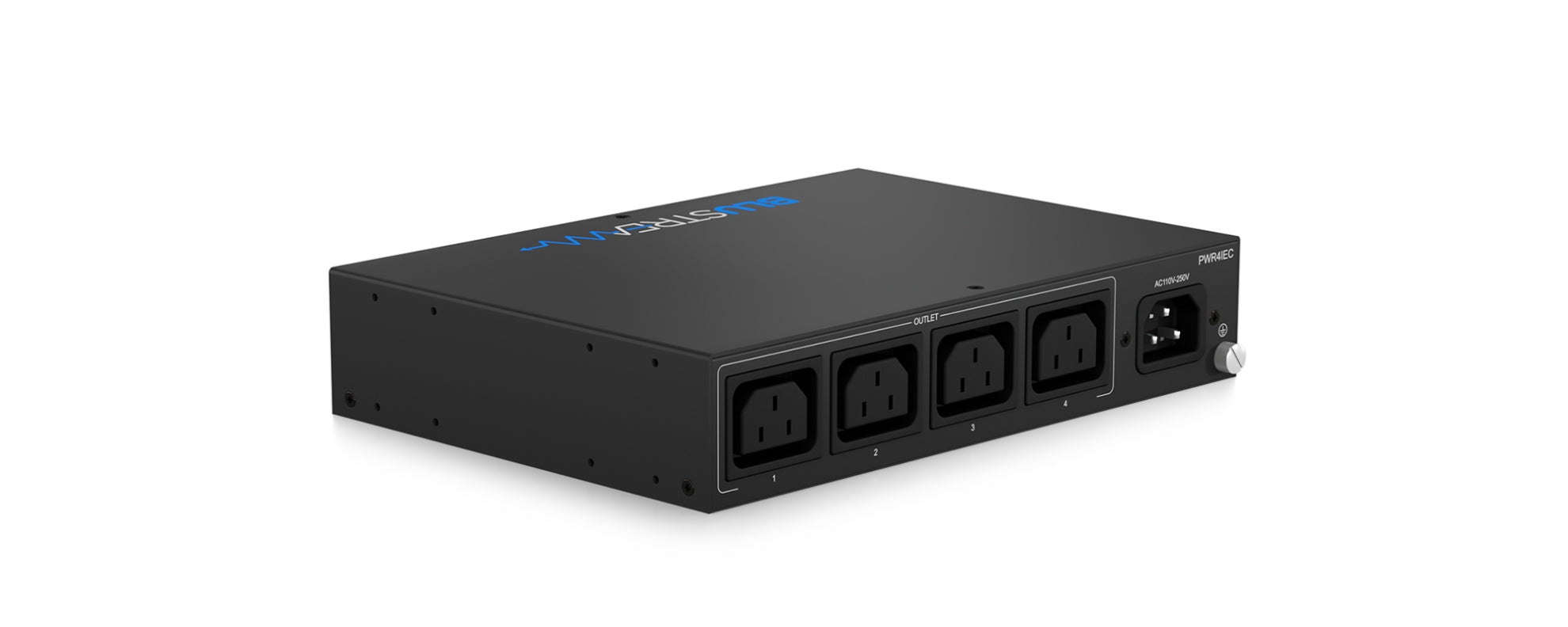

  The PWR4IEC is an outlet-level metered and switched smart PDU. The unit features 1 x IEC C14 inlet for power (110-250V at up to 10A) and 4 x IEC C13  output outlets for supply to high-power consumption devices.

  The PDU supports TCP/IP and RS-232 control, with a redundant TCP/IP port as a back-up. Front panel buttons for manual switching of power to individual outlets, and a single mains switch for overall system power.

  The PWR4IEC supports advanced power management features including scheduling, sequencing and power consumption. The relay connections (x5) can also be used for automatic control of power to both inlet and individual outlet stages when triggered from 3rd party control platforms or BMS systems. Remote access and monitoring can be set-up and achieved via the web-GUI.


  Key Features
  Single C14 IEC inlet with 4x C13 IEC outlets
  Products supports 110-250V AC power input (up to 10A)
  Monitoring and metering of: voltage, current, power, and energy consumption
  Overload protection and interference filtering
  Advanced power management features including scheduling and power on/off sequencing
  Control via TCP/IP, RS-232, front panel buttons, or relays
  Dual TCP/IP network ports providing uninterrupted network service / access with SSL connectivity
  Relays for automated switching of overall or individual power outlets
  Provides remote monitoring with password authentication through web-GUI
  Support multiple network and IoT protocols
  1U design for 19″ rack mount integration – rack mounting kit included

  Box Contents
  1 x PWR4IEC
  1 x Serial cable – DB9 to 3 pin Phoenix connector
  2 x 3 pin 3.5mm Phoenix connector
  1 x 19″ Rack Mounting kit
  1 x Shelf / wall mounting brackets
  1 x Quick Reference Card
  Input power IEC Cables (outlet cabling not supplied)

• Feature	Specification
  Power Input Ports	1 x C14 IEC 10A
  Power Output Ports	4 x C10 IEC 10A (total)
  Relay Control	2 x 3-Pin Phoenix connector
  RS-232 Serial Port	1 x 3-Pin Phoenix connector
  TCP/IP Control	2 x RJ45, female
  Rack-Mountable	1U rack height, rack ears included
  Casing Dimensions (W x D x H)	218mm x 153mm x 42mm
  Casing Dimensions (incl. connections)	218mm x 170mm x 42mm
  Shipping Weight	1.2kg
  Operating Temperature	32°F to 104°F (0°C to 40°C)
  Storage Temperature	-4°F to 140°F (-20°C to 60°C)
  Power Input	110-250V AC
