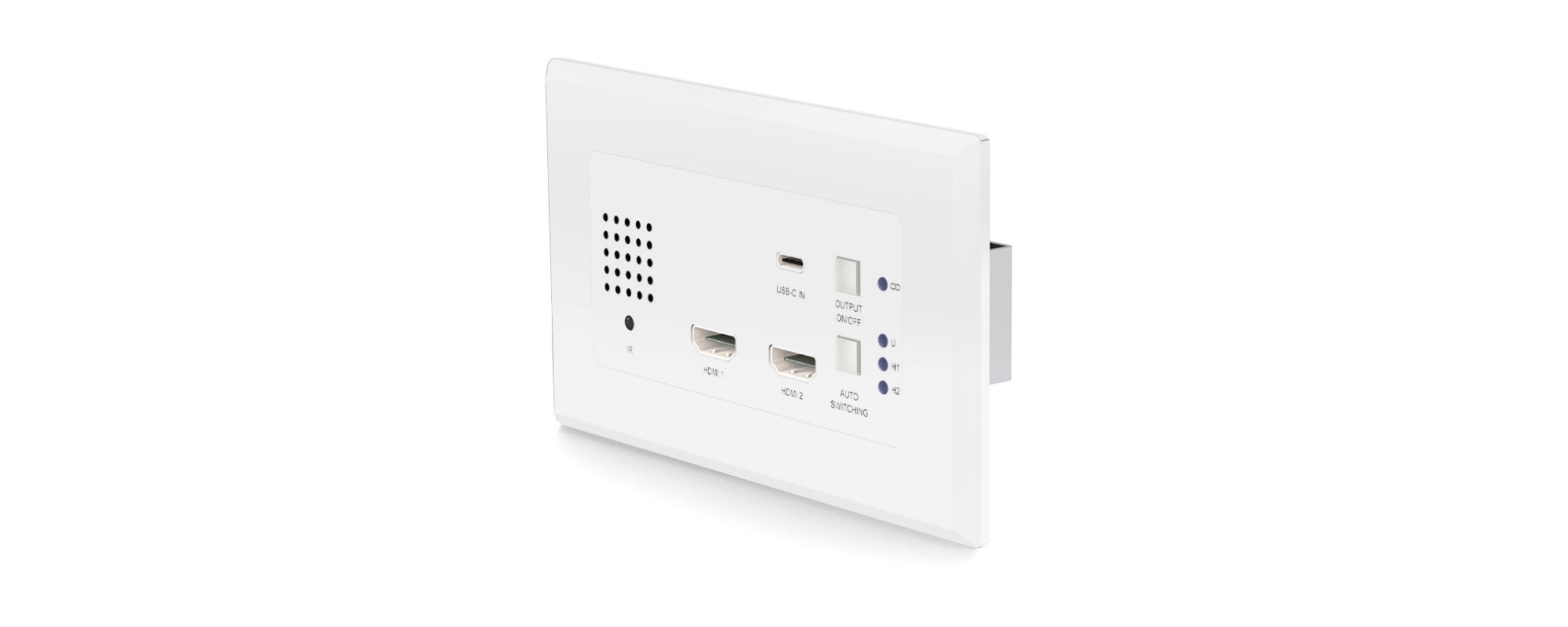

• BluStream 2 x HDMI & 1 x USB-C Wall Plate HDBaseT™ Transmitter | HEX31WPW-TX

  Our HEX31WPW-TX HDMI/USB-C wall plate HDBaseT™ Transmitter is a multi-format 4K input switcher solution delivering HDMI and USB-C inputs up to 70m at 1080p (40m 4K 60Hz 4:2:0).

  The HEX31WPW-TX features both manual or automated source selection and includes display on / off control via CEC, RS-232 and IR (via compatible HDBaseT™ receivers / Matrix).

  The HEX31WPW-TX has been designed to work with all Blustream HDBaseT™ receiver and matrix solutions, be installed in both UK and European back boxes and can be powered locally or from compatible Blustream HDBaseT™ products.

  Key Features
  • Features 2 x HDMI & 1x USB-C inputs with manual / auto source selection

  • Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable

  • Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)

  • Extends HDMI at 1080p up to a distance of 70m

  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission

  • Input selection via front panel, IR or RS-232

  • Programmable ON / OFF button utilising IR, RS-232 or CEC for control of display device at HDBaseT™ receiver

  • Supports 12V-48V PoC from compatible Blustream HDBaseT™ receiver / matrix products

  • Bi-directional RS-232 pass through

  • Supports IR pass-through to HDBaseT™ device

  • Compatible with all Blustream HDBaseT™ receiver / matrix products *

  • Magnetic faceplate surround allowing both UK & EU back box compatibility

  • HDCP 2.2 support

  * Technical performance is subject to the features supported on the connected HDBaseT™ device   ** Please note: The USB-C input port on this unit does not provide PD charging to devices connected for video distribution.

  Box Contents
  1 x HEX31WPW-TX
  1 x 12V/1A DC Power Supply
  1 x Magnetic Faceplate
  1 x RS-232 Control Cable
  1 x Quick Reference Guide

• Feature	Specification
  Video Input Connectors	2 x HDMI Type A, 19-pin, female, 1 x USB-C Type C
  Video Output Connector	1 x HDBaseT™ RJ45 connector
  RS-232 Serial Port	1 x 3-Pin Phoenix connector
  IR Input Port	1 x 3-Pin Phoenix connector
  Product Upgrade	1 x Micro USB female
  Local Power Input	1 x 2-Pin Phoenix connector
  Casing Dimensions (WxHxD) (without faceplate)	136mm x 76mm x 44mm
  Casing Dimensions (WxHxD) (with faceplate)	146mm x 86mm x 44mm
  Faceplate Dimensions (WxHxD)	146mm x 86mm x 6mm
  Backbox Housed Unit Dimensions (WxHxD)	109mm x 49mm x 35mm
  Backbox Mounting Depth	40mm (minimum) – backbox not supplied
  Shipping Weight	2.8kg
  Operating Temperature	32°F to 104°F (-5°C to +55°C)
  Storage Temperature	-4°F to 140°F (-25°C to +70°C)
  Power Supply	12V/1A DC
