BluStream 16×8 Digital Matrix Processor with 8x analogue, 4x optical, and 4x coaxial inputs to 8x analogue audio outputs, DSP and EQ | DMP168

• Description
• Specifications
• Downloads

• BluStream 16×8 Digital Matrix Processor with 8x analogue, 4x optical, and 4x coaxial inputs to 8x analogue audio outputs, DSP and EQ | DMP168

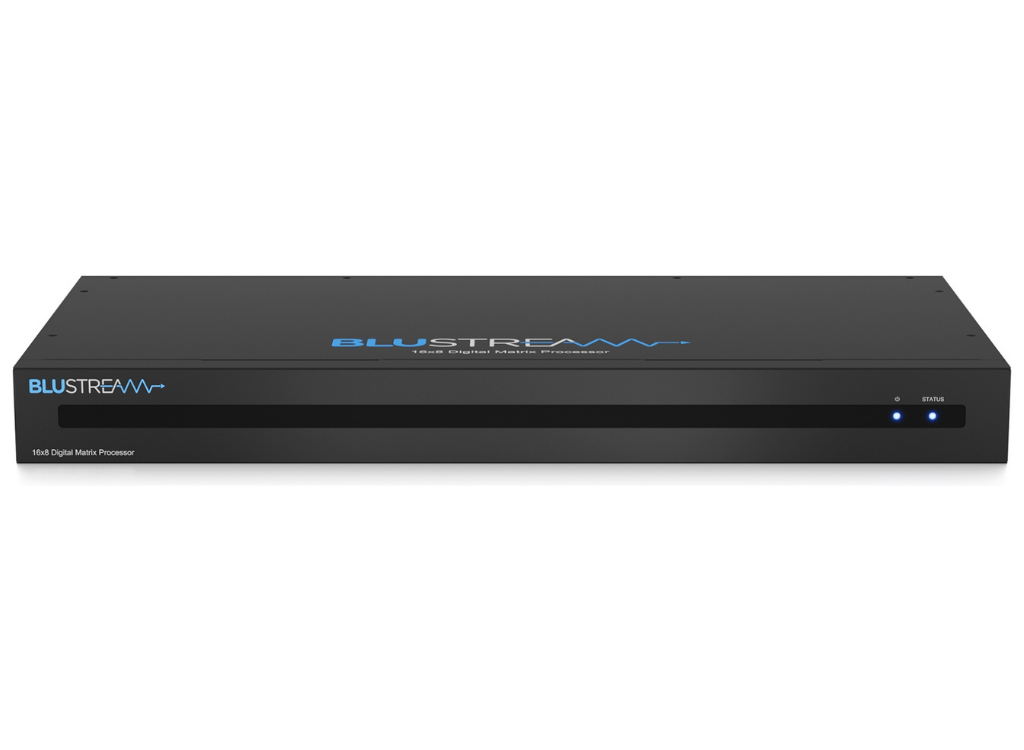

  The Blustream DMP168 is an advanced 16×8 digital audio matrix, perfect for the distribution of multiple audio sources in a multi-zone installation.

  The DMP168 features advanced audio processing including volume, balance, high/low shelf, high/low pass filter and 4 band parametic equalizer control per input and output, independent lip-sync delay per input, stereo to mono separation, or combining of mono audio inputs, configurable output grouping, and assignable audio ducking.

  The DMP168 provides an advanced, but cost effective solution for ensuring that 2ch audio can be distributed around a multiroom system where there are a mixture of digital and analogue audio sources.


  Key Features
  Features 8 x analogue L/R inputs, 4 x digital coaxial inputs, and 4 x digital optical inputs which can be switched to 8 x analogue L/R outputs
  Supports separation (mono) of all audio channels and independent control resulting in switching of up to 32×16 audio feeds
  Supports: volume, balance, high/low shelf, high/low pass filter, and 4 band parametic equalizer control per input and output
  Supports independent gain adjustment for all analogue and digital inputs
  Features 8 x assignable bus inputs allowing mixing of source inputs
  Features output grouping to combine audio outputs for a single group control.
  Combining the output grouping feature with high/low pass filter results in up to 4 x 2.1ch audio outputs
  Features assignable audio ducking with independent level and ramp up/down rate adjustment
  Features 8x configurable presets
  Supports 48kHz 24-bit sampling rate for A/D and D/A conversion
  Digital audio inputs support resolutions up to 192kHz 24-bit
  Supports independent lip-sync delay (0-500ms) per output
  Features input audio sensing, 2 x contact closures and 2 x trigger inputs allowing programmable events based on the presence of audio, NO/NC connections, and/or voltage between 2-15V AC or DC voltage
  Supports control via web-GUI, RS-232, TCP/IP and IR
  1U design for 19″ rack mount integration – rack mounting kit included

  Box Contents
  1 x DMP168
  1 x IR receiver
  1 x 19″ Rack Mounting kit
  4 x Mounting feet
  1 x Quick Reference Card
  1 x IEC Power Cable

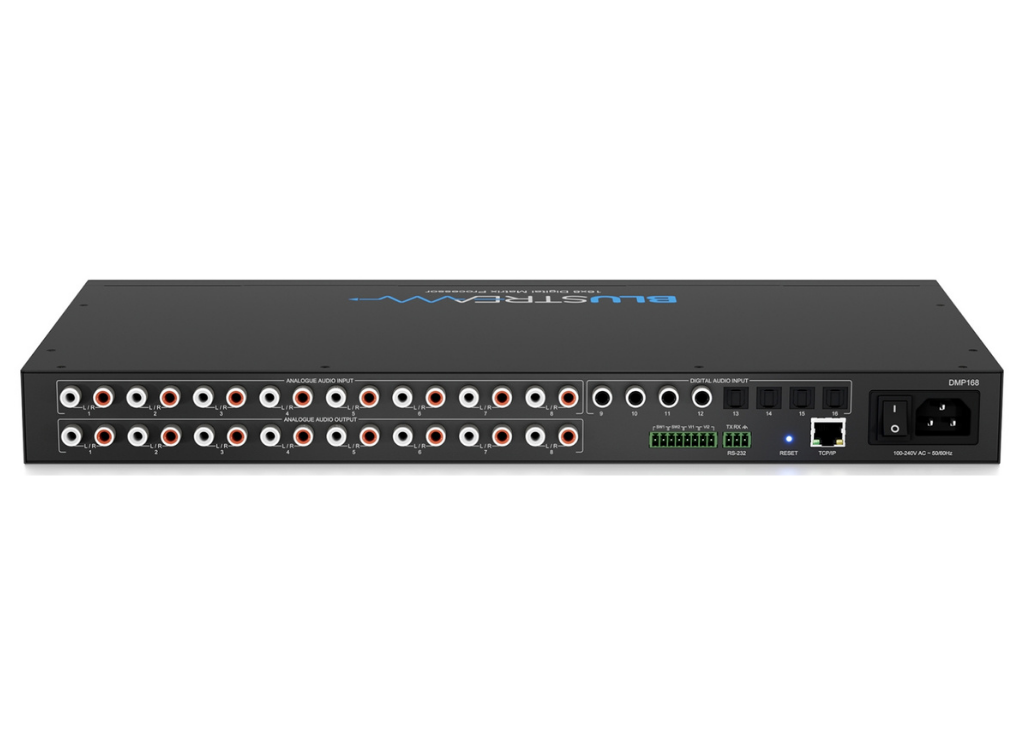

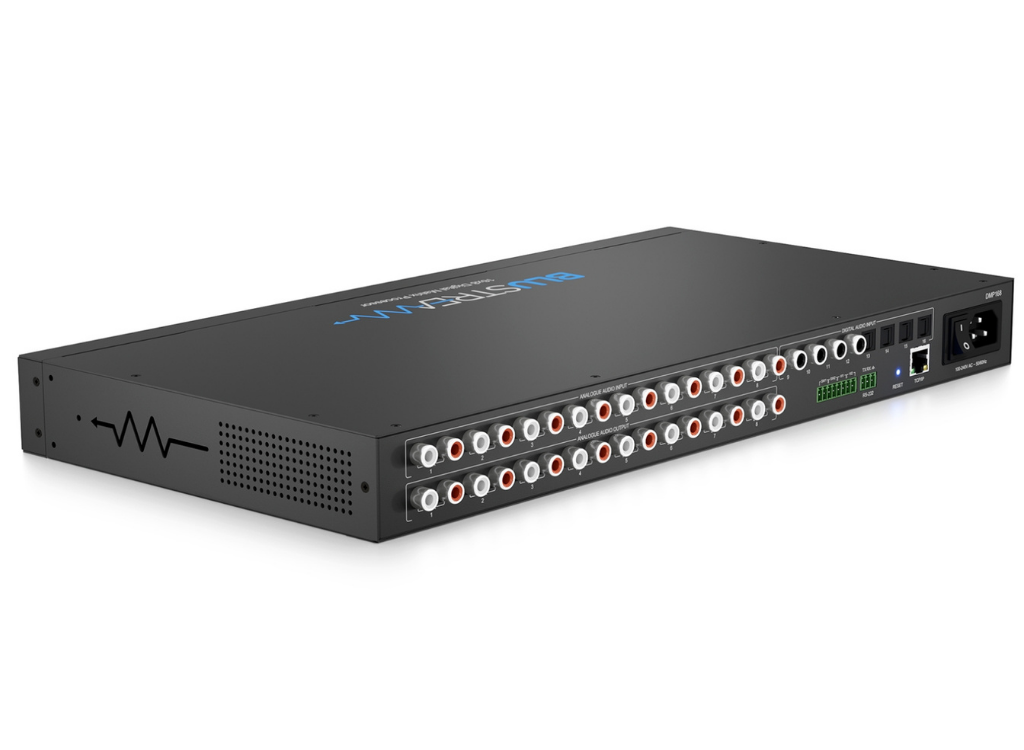

• Feature	Specification
  Audio Input Connectors	8 x Analogue RCA, 4 x Optical (S/PDIF), 4 x Digital RCA (S/PDIF)
  Audio Output Connectors	8 x Analogue RCA (Left / Right)
  RS-232 Serial Port	1 x 3-Pin Phoenix connector
  TCP/IP Control	1 x RJ45, female
  Control Port	4 x 2-Pin Phoenix connector
  Rack-Mountable	1U rack height, rack ears included
  Casing Dimensions (W x D x H)	440mm x 226mm x 44mm
  Dimensions Including Connections & Feet (W x D x H)	440mm x 235mm x 51mm
  Shipping Weight	TBC
  Operating Temperature	32°F to 104°F (0°C to 40°C)
  Storage Temperature	-4°F to 140°F (-20°C to 60°C)
  Power Supply	Internal 100-240V AC
