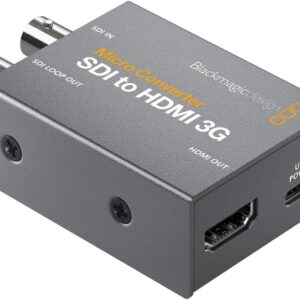

Blackmagic Design Micro Converter BiDirectional SDI to HDMI 3G | CONVBDC/SDI/HDMI03G

• Description
• Specifications

• Blackmagic Design Micro Converter BiDirectional SDI to HDMI 3G | CONVBDC/SDI/HDMI03G

  The new Blackmagic Micro Converter 3G models are incredibly tiny broadcast video converters that let you connect between consumer HDMI and professional SDI equipment. The rugged and miniaturized design makes them small enough to be used anywhere. You get professional 3G-SDI connections for working with all SD and HD formats up to 1080p60. Micro Converters use USB for power, so they can be powered directly from televisions or laptop computers. You can even purchase them without power supplies if they are not needed. Only Blackmagic Micro Converters feature custom designed electronics that conform to current global broadcast specifications, and can be updated to new standards in the future.

• Feature	Description
  Connections
  SDI Video Inputs	1x SD, HD or 3G-SDI (automatic match to HDMI input)
  SDI Video Outputs	1x SD, HD or 3G-SDI (automatic match to HDMI input)
  HDMI Video Inputs	1x HDMI Type A
  HDMI Outputs	1x HDMI Type A
  Multi Rate Support	Auto detects SD or HD video formats
  Updates & Configuration	USB-C connection
  Reclocking	Yes
  Standards
  SDI Video Standards	NTSC, PAL, 720p, 1080p, 1080PsF, 1080i, 2Kp DCI, 2KPsF DCI up to 60fps
  SDI Compliance	SMPTE standards
  SDI Rates	Selectable SD/HD, Level A/B for 3G-SDI
  SDI Color Precision	4:2:2 YUV
  SDI Auto Switching	Detects SD, HD, 3G-SDI formats
  HDMI Video Standards	Same as SDI formats
  HDMI Color Precision	4:2:2 YUV
  Other Features
  Copy Protection	Does not capture copy-protected HDMI content
  Camera Control	Bidirectional for Blackmagic Camera Control and Tally
  Settings Control	Via MacOS/Windows software utility (USB)
  Operating Systems	Mac 10.15 Catalina or later, Windows 10 64-bit
  Software	Internal upgrades via USB
  Power
  Power Consumption	2.5 W
  Operational Voltage Range	4.4 to 5.25V DC
  Physical Specifications
  Not specified in table
  Warranty	3 years
  What’s Included	Micro Converter Bi-Directional SDI/HDMI 3G
