• Blackmagic Design DeckLink Quad 2 | BDLKDVQD2

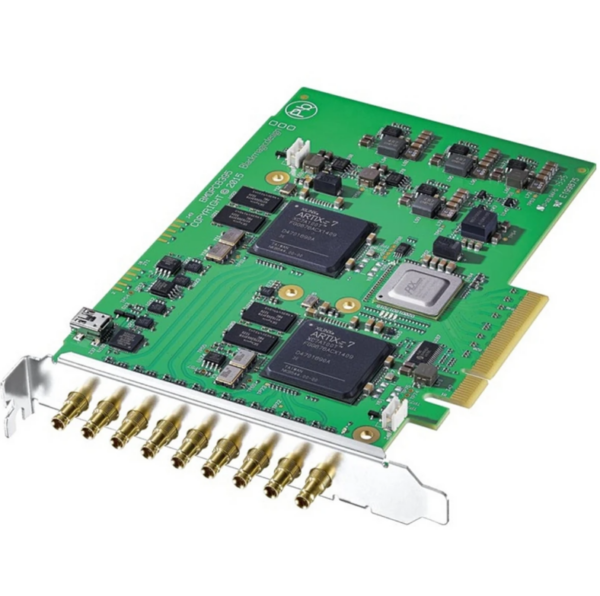

  DeckLink Quad 2 features 8 independent 3G-SDI mini DIN capture and playback channels in a single card! Fully compatible with the previous 4 channel model, this new model also allows 4 independent capture and playback channels but now also includes 4 extra channels that developers can use for configuring the card in any combination of up to 8 capture or 8 playback channels. This means DeckLink Quad 2 allows each of the 8 3G-SDI connectors to switch direction between capture or playback in SD and HD up to 1080p60 and as a complete independent channel.

• Category	Value
  Connections
  SDI Video Inputs	8 x 3G-SDI (SD/HD up to 12-bit)
  SDI Video Outputs	8 x 3G-SDI (SD/HD up to 12-bit)
  SDI Audio	16 channels embedded in SD and HD (In/Out)
  Sync Input	Tri-Sync or Black Burst
  Computer Interface	PCI Express 8 lane Gen 2
  Supported Codecs	Extensive list including AVC-Intra, ProRes, DNxHR/HD, DPX, and more
  Software	Media Express, Disk Speed Test, LiveKey, Desktop Video Utility, Driver
  Video Standards	SD, 720p, 1080p (various frame rates)
  SDI Compliance	SMPTE standards and ITU-R recommendations
  Audio Sampling	48 kHz, 24-bit
  SDI Color Precision	8, 10, 12-bit RGB/YUV 4:2:2/4:4:4 (depending on mode)
  Color Space	REC 601, 709, 2020
  HDR Support	Static metadata packing, HLG/PQ transfer characteristics
  Processing	Hardware real-time color space conversion
  Up/Down/Cross Conversion	Hardware/Software HD/SD conversion and 720/1080 HD cross conversion
  Real-Time Effects	Supported by major editing software (DaVinci Resolve, Final Cut Pro, etc.)
  Software Compatibility	Mac, Windows, Linux
  Power	22W
  Dimensions	Not specified
  Warranty	3 Years
