• Black Box Freedom II KM Switch with Glide and Switch Mouse Switching | KV0008A-R2

  The Freedom II KM Switch with Glide & Switch enables a single user to easily access information and control operations across the computer systems and monitors, saving time, money, and space. The Freedom II works like an extended desktop switch on a single computer. Once you configure your screen layout for the attached PCs with up to four or eight external displays, switching ports is as simple as moving your mouse cursor over the screens’ X and Y borders.

  Freedom is ideal in command and control applications, such as those in finance on a trading room floor. Not only can users switch between several computers just by moving the mouse, but they can also simultaneously access a mix of USB peripherals, including high-speed USB 2.0 devices.

  Additionally, the Freedom II KVM Switch integrates with the Black Box Agility IP-based KVM system. This Freedom II KM Switch can interface with Agility receivers, and then switch the Agility targets using just one keyboard and mouse.

  The Freedom II KM Switch is ideal for command and control applications such as in:

  Broadcasting
  Public safety
  Industrial
  Defense
  Transportation

• Category	Feature	Details
  General	Operating Humidity	5 – 85% non-condensing
  	MTBF	1,000,000 hours (unit only); 50,000 hours (unit and power supply)
  	Software Compatibility	Driver compatible with Windows® 10/11
  	Approvals	CE, FCC, RoHS2, WEEE, TUV
  	Hardware Compatibility	All computers with USB interfaces
  	Operating Temperature	32 to 104° F (0 to 40° C)
  	Power	Dual DC connectors (one power adapter included); Input: 100 to 240 VAC, 50 to 60 Hz; Output: 12 VDC, 1.5 A; Consumption: 18 W
  	Storage Temperature	-22ºF to 176ºF (-30ºC to 80ºC)

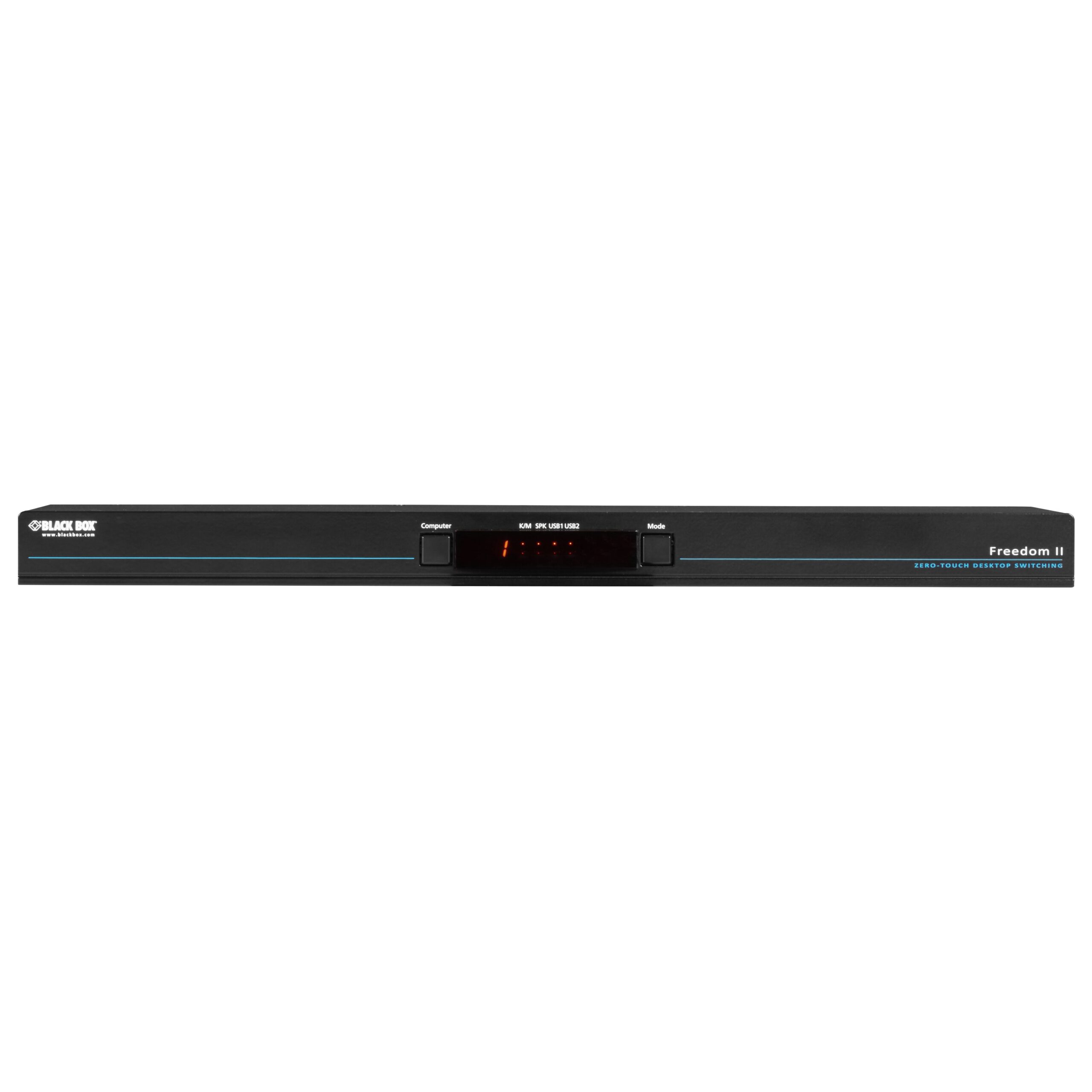

  	User Controls	(2) Front push buttons (Computer and Mode), mouse activated switching

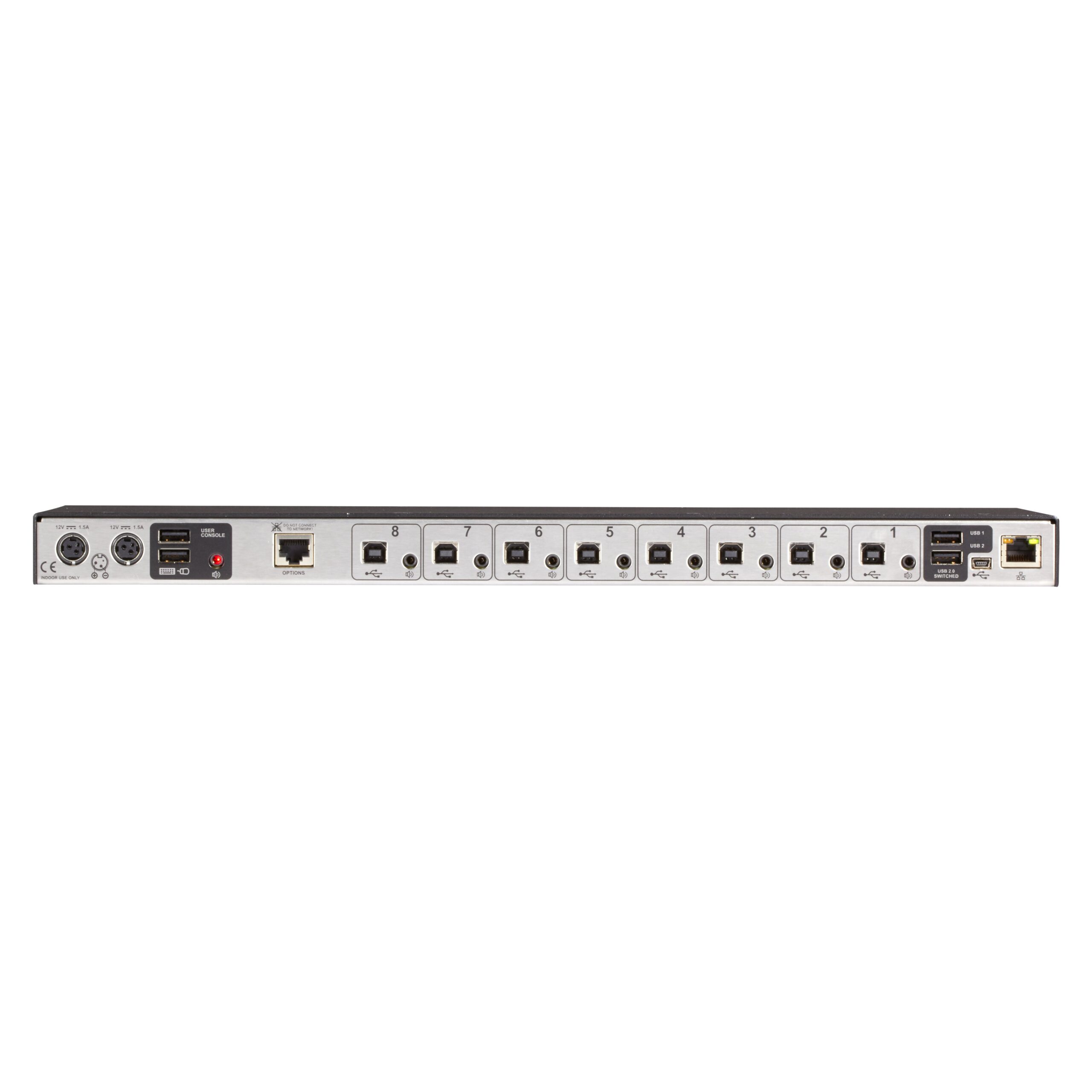

  Item Specifications	Connectors	CPU/Server: (8) USB Type-B (Female); (8) 3.5-mm Audio Inputs
  		User Console: (2) USB HID Type-A (Female); (2) USB 2.0 Type-A (Female); (1) 3.5-mm Audio
  		Other: (1) USB Mini B; (1) RJ45 Options Port; (1) RJ45 Network Configuration Port; (2) 3-Position Locking Power Connector
  	Dimensions	1.22-in. H x 17.05-in. W x 6.22-in. D (3.1 x 43.3 x 15.8-cm)
  	Replaces	KV0008A
  	Weight	3-lb. (1.36-kg)
