BirdDog P200 PTZ Camera and Education Bundle | BDP200B-EDU
- Description
- Specifications
-
BirdDog P200 PTZ Camera and Education Bundle
FULL NDI. NO COMPROMISES
P200 PTZ camera utilizes BirdDog’s custom NDI® silicon chip and leverages an impressive Sony CMOS backlit sensor and full Sony Image Module.
Designed for serious production the image quality of P200 is best in class. Built on a true Sony Image module with Sony CMOS backlit sensor, P200 has super fast focus, incredibly sharp images, and amazingly fast zoom. P200 has frame rates up to 1080p60, 30x optical zoom, and outputs SDI, HDMI, and NDI® simultaneously. 3.5mm audio connectors allow P200 to work with BirdDog Comms, the world’s first NDI audio intercom platform. Comms is a Windows 10 application that can run on any Windows 10 compatible computer, laptop, or surface for a touch screen experience.
P200 has been designed for the most demanding on image quality. The superior optics make P200 perfect for Sports, Broadcast, Live Event Production, IMAG, Education, and any other application where quality matters. P200 can also be used as a traditional PTZ camera with SDI, RS422, RS485, and RS232 control allowing you to move into the world of NDI® when you are ready.
FREE CAM CONTROL. COLOUR MATCH IN SECONDS
The Cam Control app is the easiest and most user-friendly way to dial in BirdDog cameras. Simply load on a Windows 10 machine on the same network as your BirdDog cameras and access all functions of the camera through a beautiful interface. Quickly dial in the look you like and copy settings across multiple cameras in seconds. And it’s 100% FREE with all BirdDog PTZ cameras.

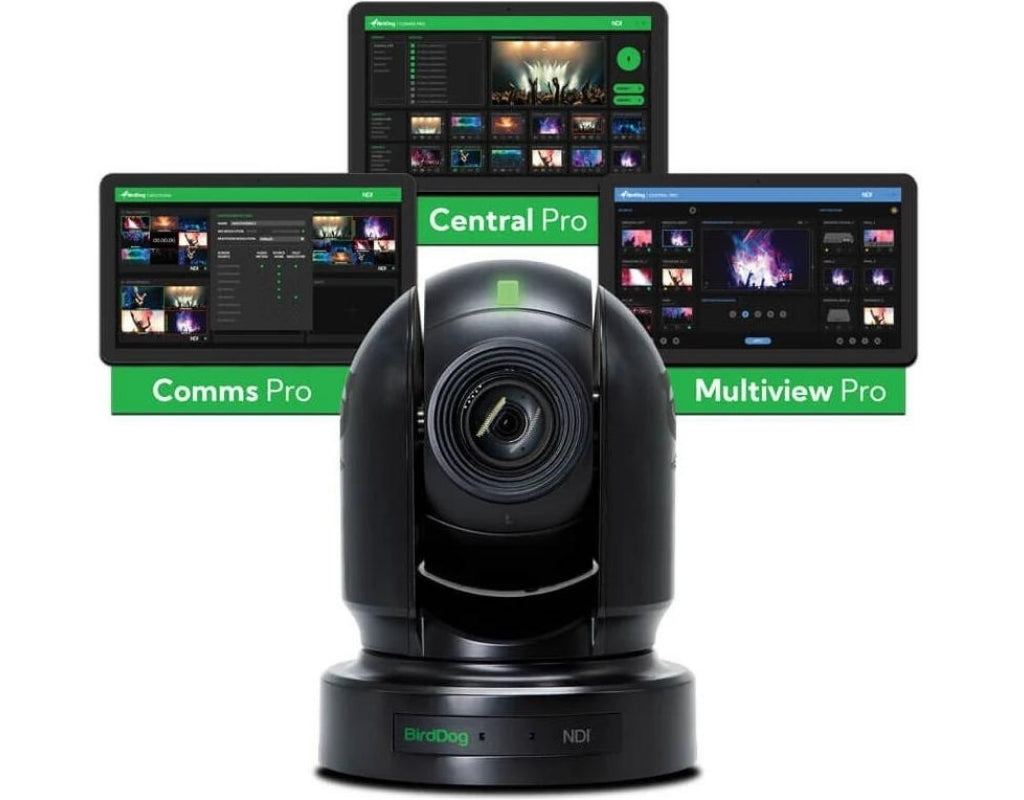

P200 Full NDI PTZ Camera with Comms Pro, Central Pro & Multiview Pro
Full NDI using BirdDog’s custom NDI silicon chip
Sony CMOS Backlit Sensor
Full Sony Image Module
1080p60
30x Optical Zoom
Comms Pro
Audio intercom platform
Supports up to six BirdDog devices
Auto source detection
Compatible with all BirdDog hardware
Create upto 5 Groups
Central Pro
NDI® routing
Group NDI® decoders together to easily manage content distribution to multiple receivers
Browser based so you can access anywhere
Supports SSO
Video preview windows
Media player
NDI audio re-insertion

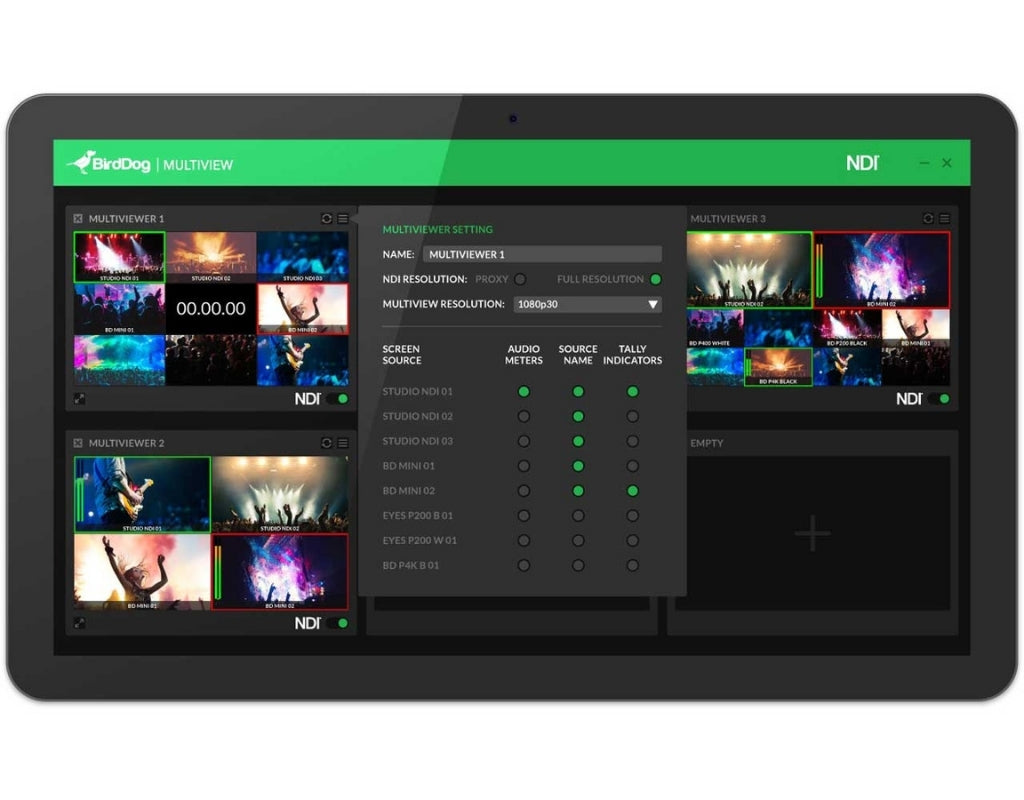

Multiview Pro
NDI Multivew
96 sources in Pro, 24 sources in Lite
Customised overlays
Full Screen Local Preview
Audio Track Selector -
Category Description Imaging Sensor Type: 1/2.8″-Type CMOS Sensor Sensor Resolution: Effective: 2.13 Megapixel Built-In ND Filter: None Image Stabilization: Digital Focus Control: Autofocus, Manual Shutter Type: Electronic Rolling Shutter Shutter Speed: 1/10000 to 1 Second Minimum Illumination: 0.01 Lux Flip / Mirror Support: Image Flip, Mirror (Vertical) White Balance: 2000 to 10,000K, Presets: ATW, AWB, Indoors, Manual, Outdoors Lens Focal Length: 4.3 to 129mm Optical Zoom Ratio: 30x Max Digital Zoom: 12x Field of View: Horizontal: 2.3 to 63.7 Maximum Aperture: f/1.6 to 4.7 Video Capture External Recording Modes: SDI/BNC / HDMI / RJ45 Resolution: 1920 x 1080p at 25/29.97/50/59.94/60 fps, 1920 x 1080i at 50/59.94/60 fps, 1280 x 720 at 25/29.97/50/59.94/60 fps Broadcast Output: NTSC IP Streaming: NDI, TCP, UDP, 1920 x 1080, 1280 x 720 Control Presets: 128 Move Speed: 150/sec Movement Range: Pan: 350°, Tilt: 120° (-30 to 90) Tally Light: Yes Supported Control Protocols: Pelco-D, VISCA Interface Video I/O: 1 x RJ45 (NDI) Output, 1 x BNC (3G-SDI) Output, 1 x HDMI 1.4 Output Audio I/O: 1 x 1/8″ / 3.5 mm TRS Stereo Input, 1 x 1/8″ / 3.5 mm TRS Stereo Output Other I/O: 1 x RJ45 Control, 2 x RJ45 (RS-232, RS-422, RS-485), 1 x Unspecified USB Power PoE Support: PoE+ 802.3at Power I/O: 1 x Barrel (12VDC) Input Environmental Operating Temperature: 14 to 122°F / -10 to 50°C Operating Humidity: 80% General Mounting: 1 x 1/4″-20 Female OS Compatibility: Windows 10 or Later Certifications: FCC Part 15 Dimensions (W x H x D): 6.3 x 7 x 8.7″ / 160 x 178 x 220 mm Weight: 4.41 lb / 2 kg
